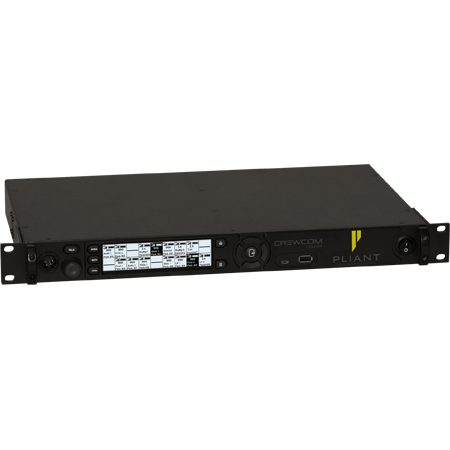

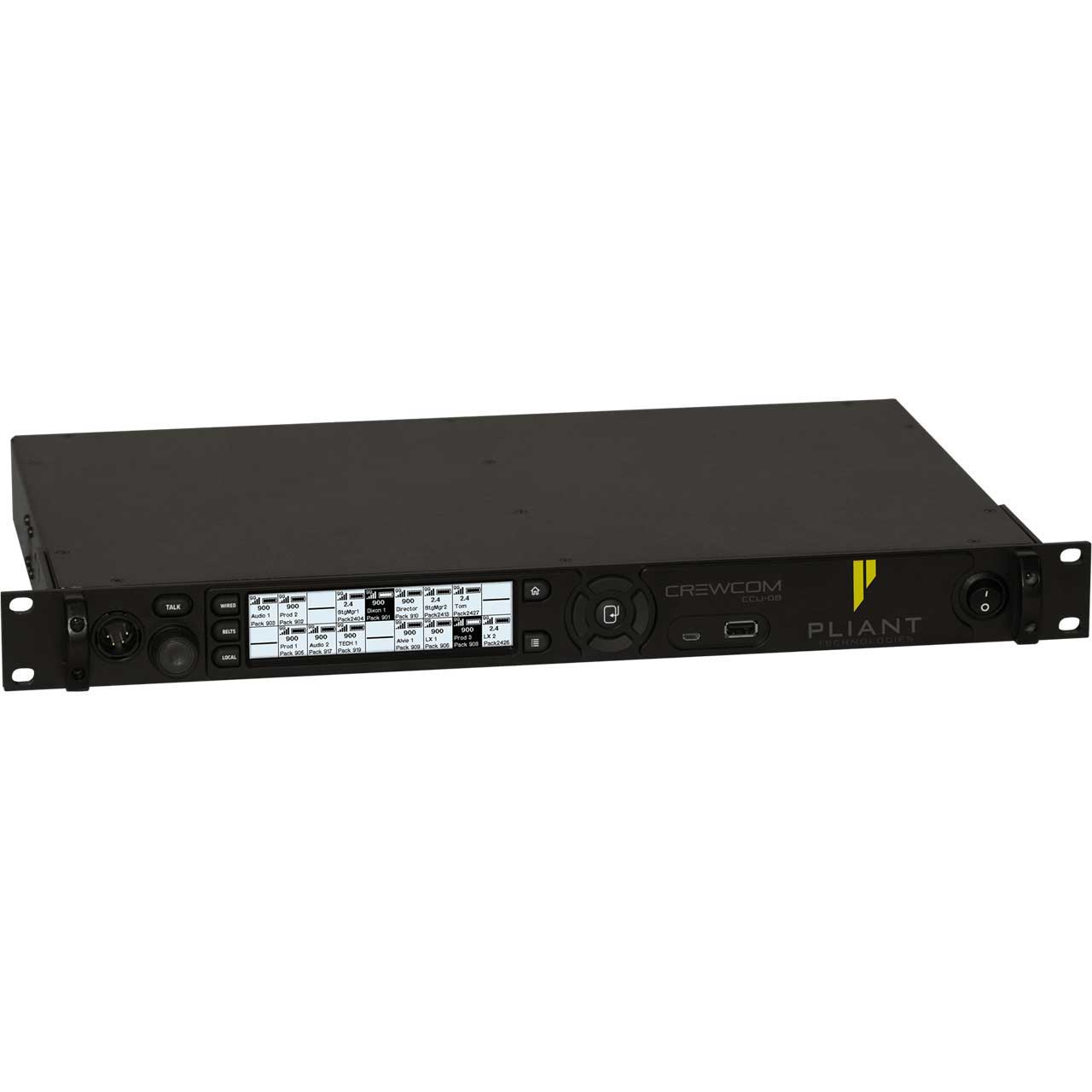

Pliant Technologies CCU-08 CrewCom 1RU Eight 4-Wire I/O Control Unit

CCU-08 - Overview

The next evolution of wireless intercom

• Features:

  • Each CU supports up to 82 Radio Packs (RPs) across all RF bands (18 Normal mode RPs & 64 High Density mode RPs)

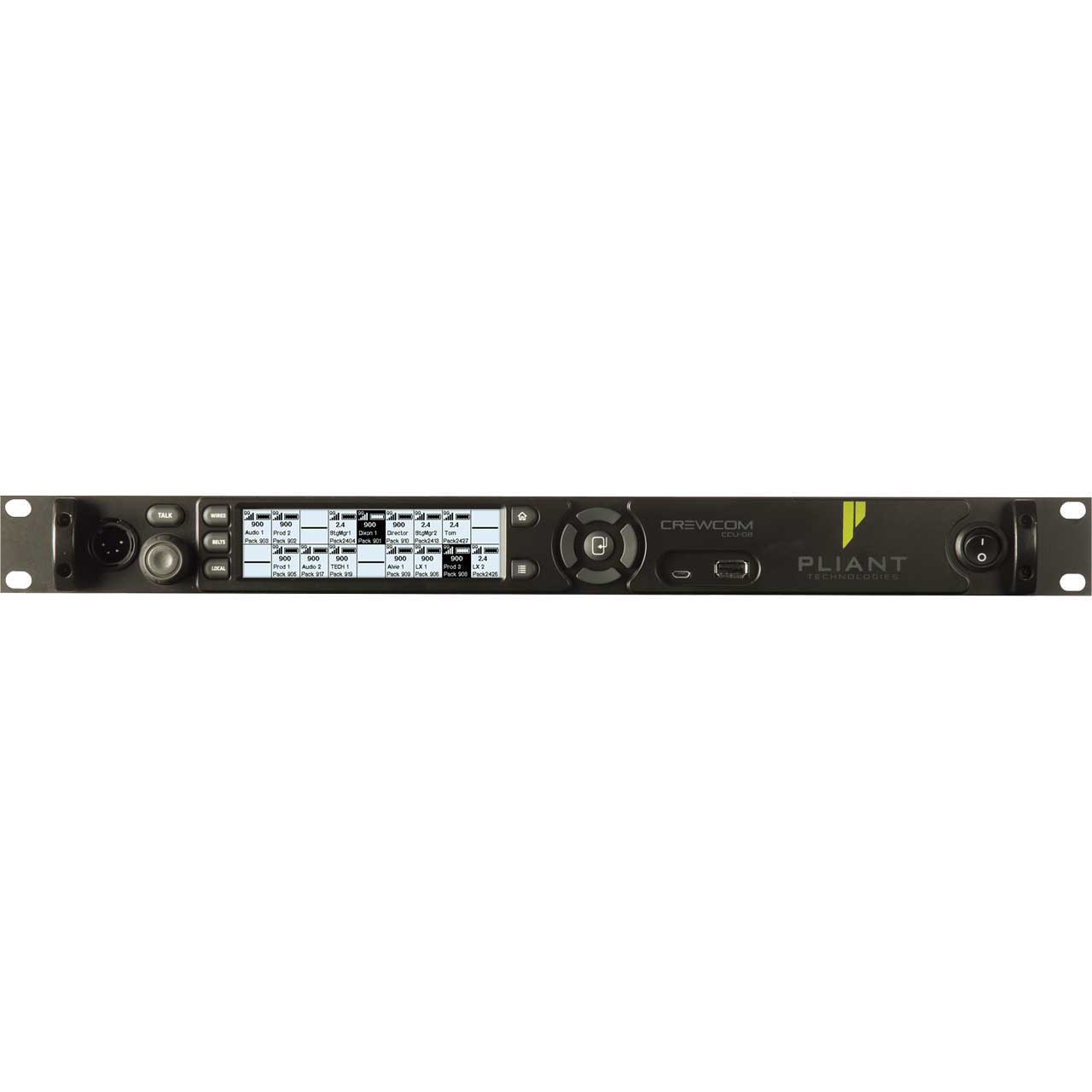

  • Easy-to-use interface with large informative backlit display and clearly laid out quick access controls
  • Eight available 4-Wire intercom connections
  • Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates and computer connectivity
  • Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
  • LAN port for CrewWare connectivity via computer network
  • Front panel headset monitor station
  • Stage announce audio output
  • AUX In/Out for program input and intercom audio output
  • GPO Contact closure relays (x 5)
  • Sync input to receive sync from another CrewCom system


• Specifications:

  • Intercom Audio Channels: 8,
  • Active Radio Packs (Normal Mode): 18 (18 active Normal Mode Radio Packs requires use of at least 3 RTs)
  • Active Radio Packs (High Density Mode): 64 (64 active High Density Mode Radio Packs requires use of at least 2 RTs),
  • No. of Paired Radio Packs Supported (per CU): 256
  • USB Ports: 1x USB Type A; 1x Micro USB
  • Front Panel LCD Display: 512x128 resolution
  • Stage Announce and GPO Closures: 5 Relays via DA-15

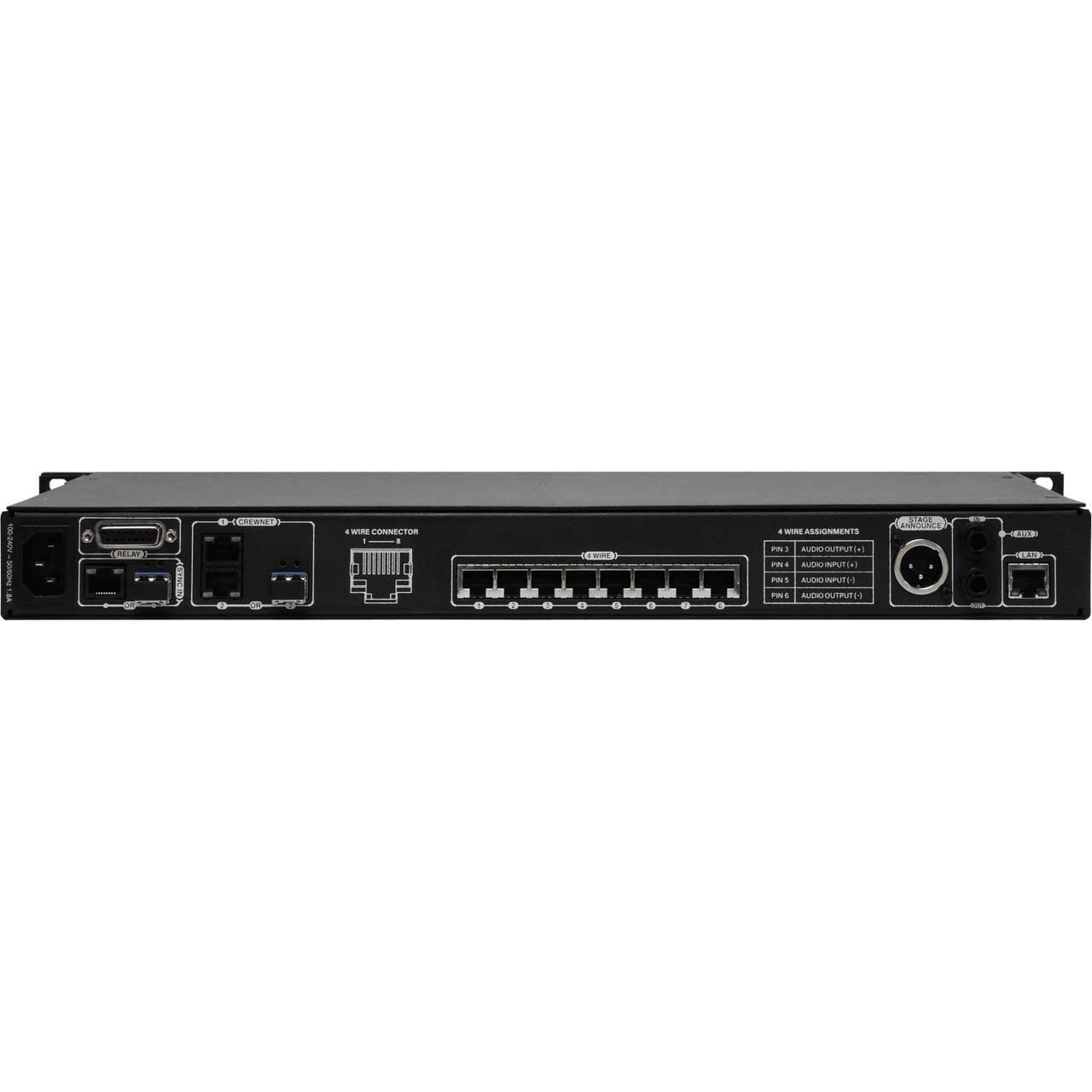

  • CrewNet Ports (supports 2 connections): 2 RJ-45 for copper; 1 duplex LC for Single Mode Fiber
  • Sync In Ports (supports 1 connection): 1 RJ-45 for copper; 1 duplex LC for Single Mode Fiber
  • 4-Wire Intercom Connection: 8 ports via RJ-45
  • Stage Announce Output: XLR 3M, nominal 12 dBu into 600 ohms, balanced, transformer isolated,
  • AUX IN: 1/4" (6.35 mm) 3 conductor jack, 17.5 dBu max in, balanced, transformer isolated
  • AUX OUT: 1/4" (6.35 mm) 3 conductor jack, 12 dBu into 600 ohms, balanced, transformer isolated,
  • LAN Port: 1 RJ-45
  • Power Input/Connector: 100-240V ~ 50-60 Hz, 1.8A
  • Dimensions: 1 RU, 19 in. x 1.73in. x 11.68 in. (48.3 cm x 4.4 cm x 29.7 cm) metal enclosure
  • Weight: 6.5 lbs (2.9 kg)
  • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
  • Maximum Line Length: Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m), Maximum Altitude: 9,842 ft. (3,000 m)
  • RoHS Compliant: Yes


• Item Includes:

  • 1x Control Unit
  • 1x AC Power Cord
  • 1x USB A to Micro B cable,
  • 1x 15ft. (4.6 m) Cat 5e cable
  • 1x Quick Start Guide
  • 1x USB Flash Drive that includes product documentation
  • 1x Warranty and Support Information Card


• Warranty:

  • 2-Year Warranty (Second Year Requires Registration)
