Pliant Technologies CRP-22-2400 CrewCom 2.4GHz 2-Vol/2-Conf Radio Pack

CRP-22-2400 - Overview

• Features:

  • Compact size and light weight (13 oz./ 369 g)
  • 7 kHz digital audio for excellent voice quality
  • Familiar volume/talk user interface

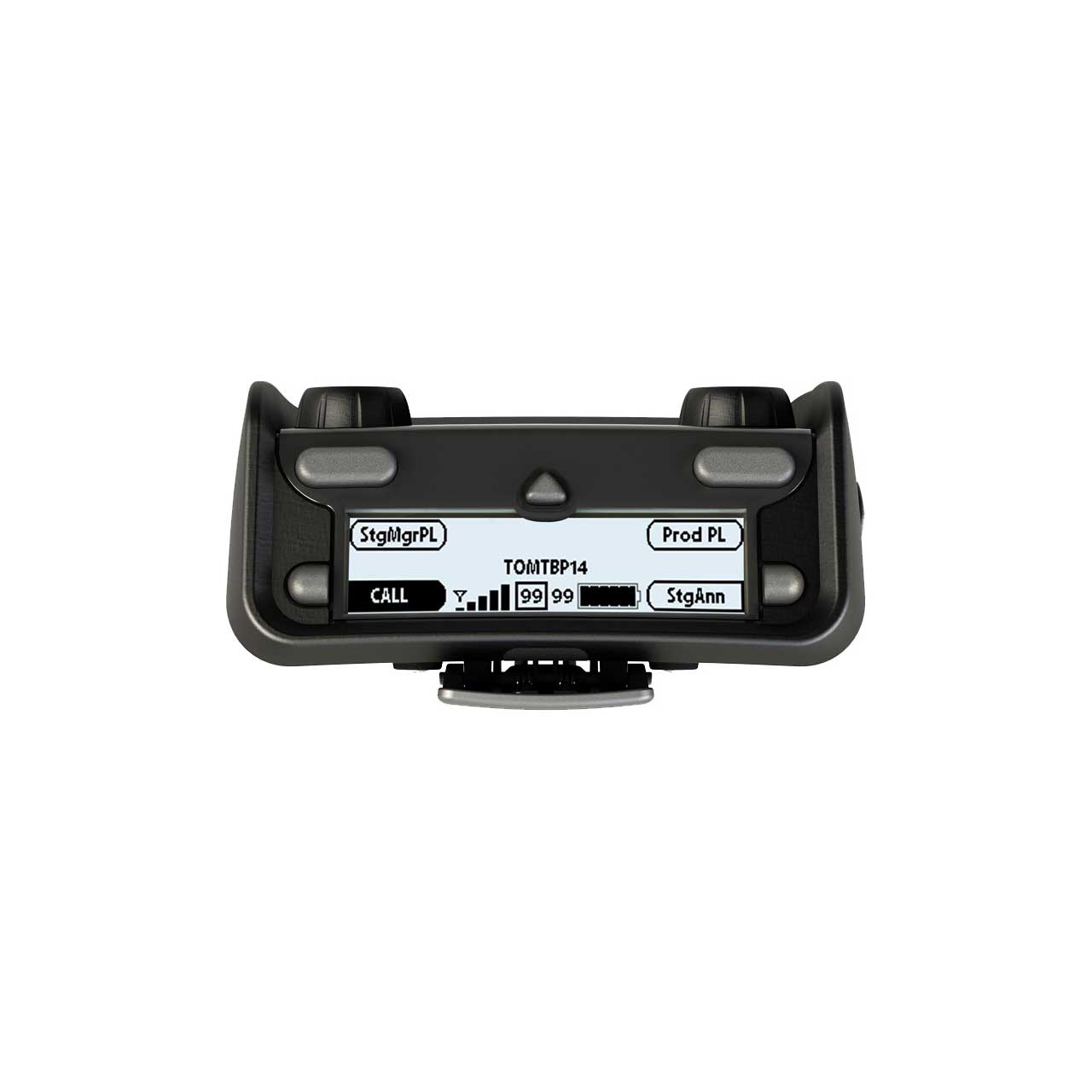

  • Large informative and easy-to-read display
  • Isolated wireless conference (ISO) function
  • Assignable function buttons (x2)
  • Access to all conferences
  • USB connection for pairing, firmware updates and battery charging
  • Dual battery (Li-Poly or AA) operation
  • Greater than 8 hours continuous operation (Li-Poly)
  • Easy-to-use spring-loaded belt clip


• Specifications:

  • RF Frequency (MHz): 2400-2483 MHz
  • RF Scheme: FHSS with TDMA
  • Effective Radiated Power: 100 mW (+20 dBm)
  • Receiver Sensitivity: -100 dBm at 10-5 BER
  • Radio Certification: FCCID: HSW-CCT24 and IC: 4492A-CCT24
  • Transmission Range: 500 ft. (150 m) under typical conditions; 1500 ft. (450 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.)
  • Audio Dynamic Range: Greater than 90 dB
  • Audio Frequency Response: 150 Hz-7 kHz
  • Conferences: 2
  • Simultaneous Listen Paths: True Dual Listen
  • Volume Knobs: 2
  • Talk Buttons: 2
  • Headset Connector: 4-pin male XLR
  • Microphone Type: Auto Detect or Manual Select; Dynamic or Electret
  • LCD Display: 280 × 64 resolution
  • Antenna: (2) 2dBi Dipole
  • Battery Life, Rechargeable Lithium-Polymer: Greater than 10 hours
  • Charging Power Supply: Micro USB; 6W AC wall adapter
  • Charge time for Lithium-Polymer Battery: Under 3 hours
  • Charge time via PC: Under 5 hours
  • Optional Power: 3 Standard AA alkaline batteries
  • Battery Life, Alkaline batteries: Approximately 5 hours
  • Dimensions (inches): 4.5 in. × 4.57 in. × 2.31 in. (11.4 cm × 11.6 cm × 5.9 cm)
  • Weight (with Lithium-Polymer battery): 13 oz. (369 g)
  • Material: Polycarbonate substrate with thermoplastic elastomer overmold
  • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
  • RP Power Adapter: is 0 to 40° C (32° to 104° F).
  • Maximum Altitude: 9,842 ft. (3,000 m)
  • RoHS Compliant: Yes


• Item Includes:

  • Radio Pack, Lithium-Polymer Rechargeable Battery, Battery Charger / Power Supply, USB A to Micro B cable, Product Overview Guide, Warranty Extension Registration Card


• Warranty:

  • 2 Years (2nd Year Requires Registration)
