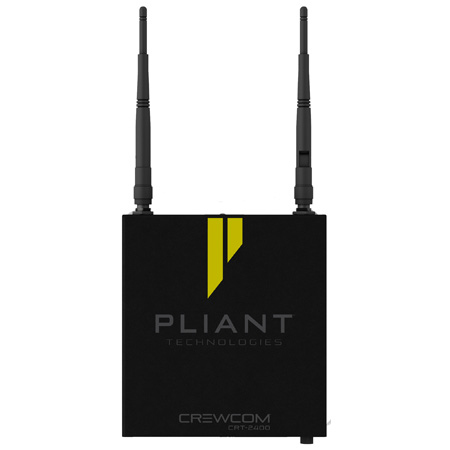

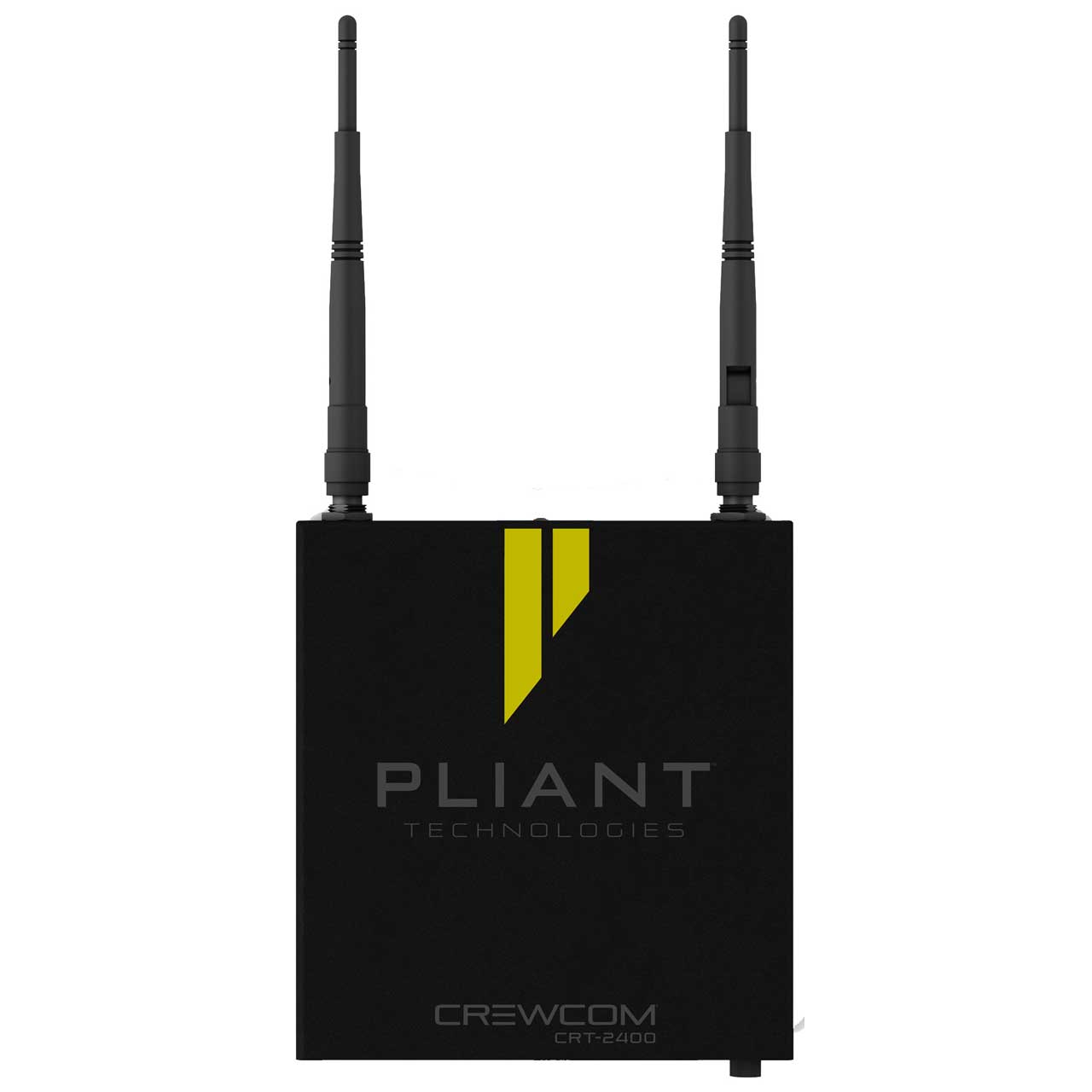

Pliant Technologies CRT-2400 CrewCom 2.4GHz Radio Transceiver

CRT-2400 - Overview

• Features:

  • Supports up to 6 Radio Packs
  • Supports a selectable Normal or High Density mode of operation

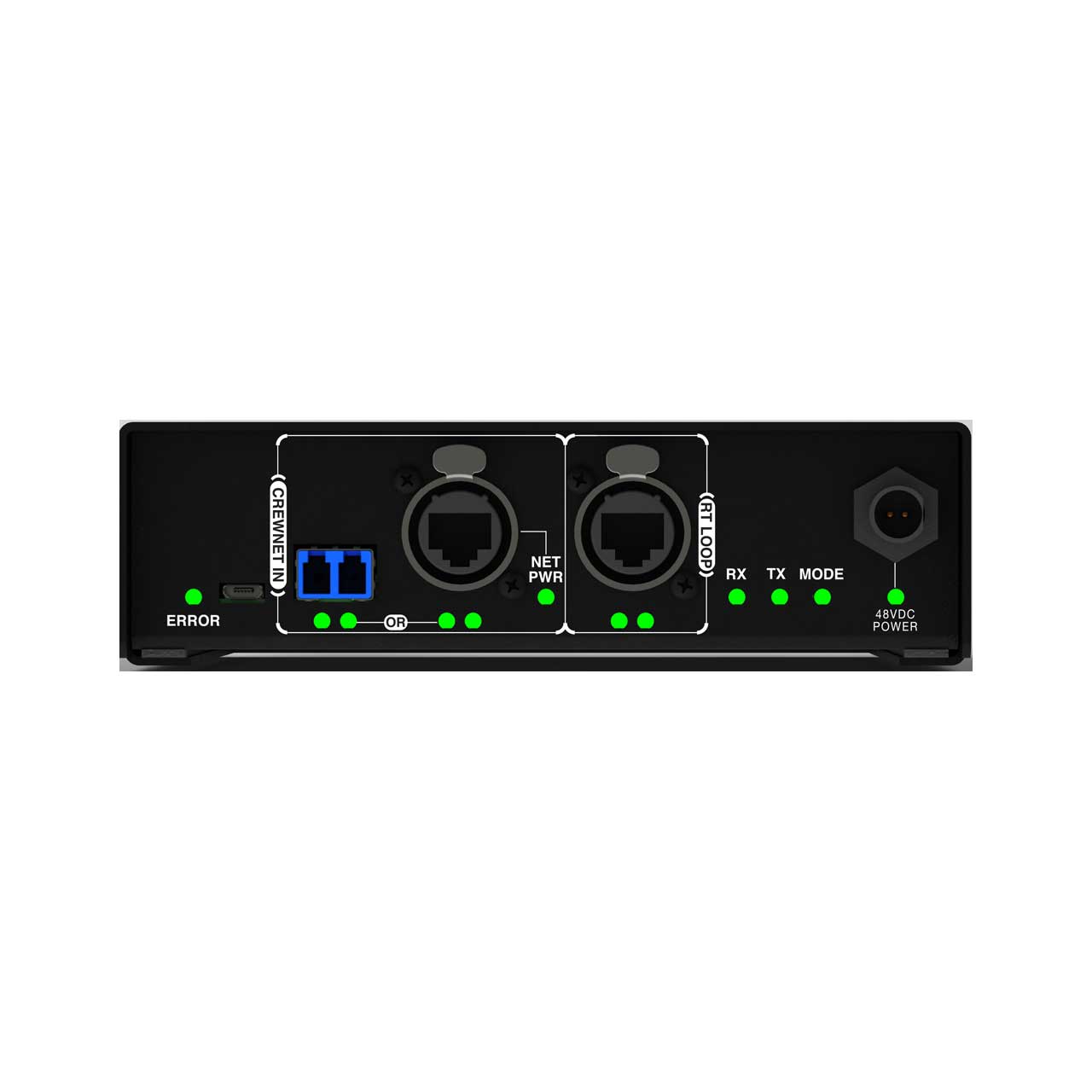

  • CrewNet connections (etherCon or duplex LC Single Mode Fiber) with network status indicators
  • Status indicators for data RX/TX, operation mode, and error
  • CrewNet RT Loop connection for connecting up to 8 CrewCom Radio Transceivers
  • Micro USB connection for firmware updates
  • Dual powering options (network power, external 48VDC-sold separately)


• Specifications:

  • RF Frequency (MHz): 2400-2483 MHz
  • RF Scheme: FHSS with TDMA
  • Effective Radiated Power: 100 mW (+20dBm)
  • Receiver Sensitivity: -100dBm
  • Radio Certification: FCCID: HSW-CCT24 and IC: 4492A-CCT24
  • Transmission Range: 500 ft. (150 m) under typical conditions; 1500 ft. (450 m) line of sight (Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.)
  • No. of Radio Packs Supported (when RT in Normal Mode): 6
  • No. of Radio Packs Supported(when RT in High Density Mode): 32
  • Number of Antenna Connections: per RT 2
  • Antenna Connector Type: RP-TNC
  • Supplied Antenna: +2dBi Omni-directional (whip)
  • CrewNet In Port (supports 1 connection): (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
  • RT Loop Port (1): RJ-45
  • Maximum Line Length: Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m)
  • Network Power: CrewNet RJ-45 only
  • External Power: 48VDC Power Supply (Sold Separately)
  • Dimensions without Antennas (inches): 6.30 in. × 7.74 in. × 1.81 in. (16 cm × 19.7 cm × 4.6 cm)
  • Weight: 1.25 lbs (567 g)
  • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
  • Maximum Altitude: 9,842 ft. (3,000 m)
  • RoHS: Yes


• Item Includes:

  • Radio Transceiver, Omni-Directional Antenna (x2), 15 ft. (4.6 m) Cat 5e Cable, USB A to Micro B cable, Mounting Hardware and Bracket (2x), Microphone Stand Adapter, Product Overview Guide, Warranty Extension Registration Card


• Warranty:

  • 2 Years (2nd Year Requires Registration)
