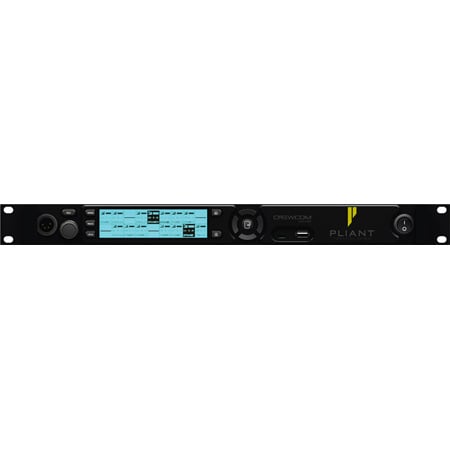

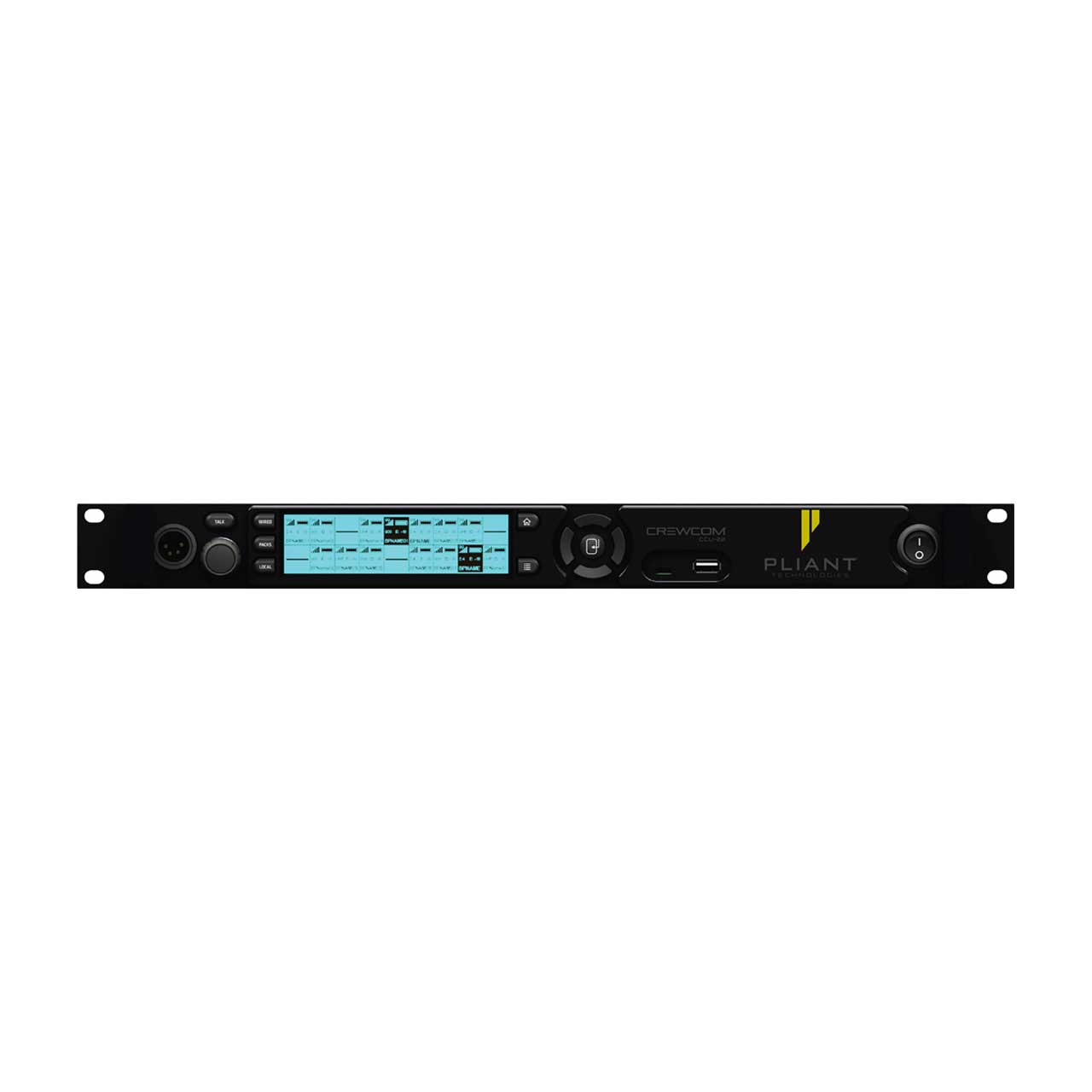

Pliant Technologies CCU-22 CrewCom 2plus2 Control Unit

CCU-22 - Overview

• Features:

  • Each CU supports up to 18 Radio Packs (RPs) across all RF bands.
  • Easy-to-use interface with large informative backlit display and clearly laid out quick access controls
  • Simultaneously active 2-Wire and 4-Wire intercom connections
  • Front panel USB ports for Radio Pack pairing, CrewCom device firmware updates and computer connectivity
  • Duplex LC Single Mode Fiber and traditional Cat 5e or greater CrewNet connections
  • LAN port for CrewWare connectivity via computer network
  • Front panel headset monitor station
  • Stage announce audio output
  • AUX In/Out for program input and intercom audio output
  • GPO Contact closure relays (x 5)
  • Sync input to receive sync from another CrewCom system


• Specifications:

  • Intercom Audio Channels: 4
  • Active Radio Packs: 18 (18 active Normal Mode Radio Packs requires use of 3 RTs.)
  • No. of Paired Radio Packs Supported (per CU): 256
  • USB Ports: (1) USB Type A; (1) Micro USB
  • Front Panel LCD Display: 512x128 resolution
  • Stage Announce and GPO Closures: 5 Relays via DA-15

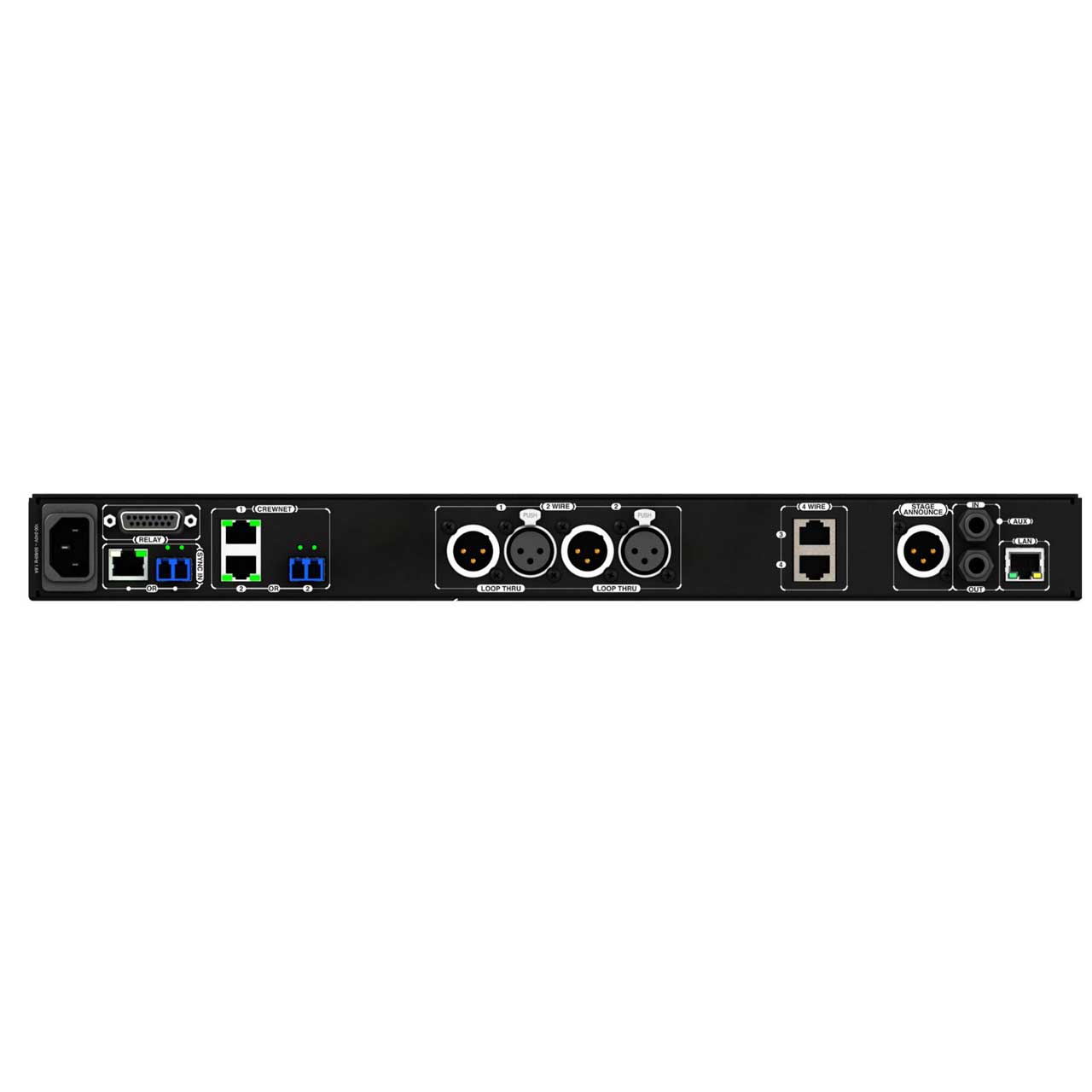

  • CrewNet Ports (supports 2 connections): (2) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
  • Sync In Ports (supports 1 connection): (1) RJ-45 for copper; (1) duplex LC for Single Mode Fiber
  • 2-Wire Intercom Connection: 2 channels via XLR 3F with XLR 3M loop (2 ports)
  • 2-Wire Compatibility: Clear-Com, RTS, and AudioCom (Balanced)
  • 4-Wire Intercom Connection: 2 ports via RJ-45
  • Stage Announce Output: XLR 3M, nominal 12 dBu into 600 ohms, balanced, transformer isolated
  • AUX In: 1/4" (6.35 mm) 3 conductor jack, 17.5 dBu max in, balanced, transformer isolated
  • AUX Out: 1/4" (6.35 mm) 3 conductor jack, 12 dBu into 600 ohms, balanced, transformer isolated
  • LAN Port: (1) RJ-45
  • Power Input/Connector: 100-240V ~ 50-60 Hz, 1.8A
  • Dimensions: 1 RU, 19 in. × 1.73in. × 11.68 in. (48.3 cm × 4.4 cm × 29.7 cm) metal enclosure
  • Weight: 5.9 lbs (2.7 kg)
  • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity.
  • Maximum Line Length: Copper 330 ft. (100 m); Fiber 32,800 ft. (10,000 m)
  • Maximum Altitude: 9,842 ft. (3,000 m)
  • RoHS Compliant: Yes


• Item Includes:

  • Control Unit, AC Power Cord, USB A to Micro B cable, 15ft. (4.6 m) Cat 5e cable, Quick Start Guide, USB Flash Drive that includes product documentation, Warranty Extension Registration Card


• Warranty:

  • 2 Years (2nd Year Requires Registration)
