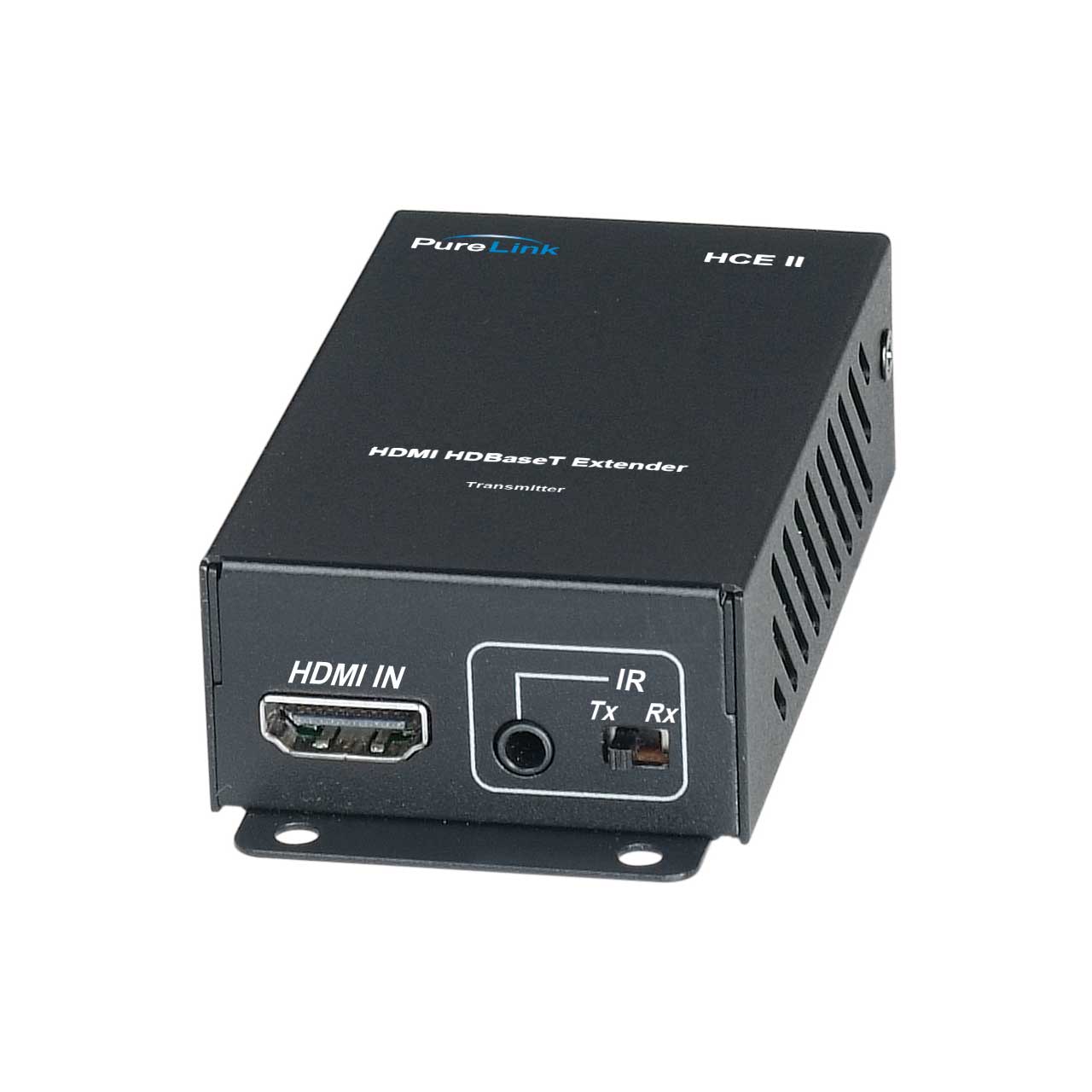

PureLink HCE II Tx HDMI to HDBaseT Transmitter - Ultra HD

HCE II TX - Overview

• Features:

  • Integrated HDBaseT technology
  • Supports cable lengths up to 230 ft. (70 m) for resolutions up to 1080p
  • Supports cable lengths up to 130 ft. (40 m) for resolutions up to Ultra HD/4K
  • HDMI v1.4 support
  • IR control
  • Ultra slim design


• Specifications:

  • Hardware
  • Audio: HDMI w/embedded audio
  • Cabling: Use CAT6a/CAT7 cable for maximum distance transmission
  • Input Signal Types: (1) HDMI Type A Female
  • Output Signal Types: (1) HDBaseT [RJ45]

    Performance
  • Supported Distance: up to 130 ft. (40m) at Ultra HD/4K 30Hz and up to 230 ft. (70m) at 1920x1200 60Hz or 1080p 60Hz
  • Supported Resolutions: VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
  • Video Bandwidth: 10.2 Gbps
  • Compliance: HDMI 1.4, HDCP 2.2
  • IR Extension: Bi-directional IR control
  • Power Supply: DC 5V, 2A
  • Operating Temperature: 32° 131°F (0° to 55°C)
  • Storage Temperature: -4° to 185°F (-20° to 85°C)
  • Relative Humidity: 10 to 80%
  • MTBF: 50,000 hours
  • Rack Mounting Option: Standard 19 inch rack-mountable design

    Enclosure
  • Rack Mounting Option: Standard 19 inch rack-mountable design
  • Product Dimensions: 4.01 x 3.34 x 1.02" (102.1 x 85 x 26mm)
  • Product Weight: 0.61Lbs (0.28kg)


• Warranty:

  • 3-Year Limited Warranty
