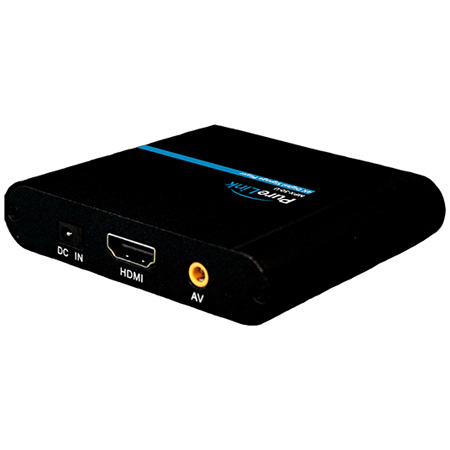

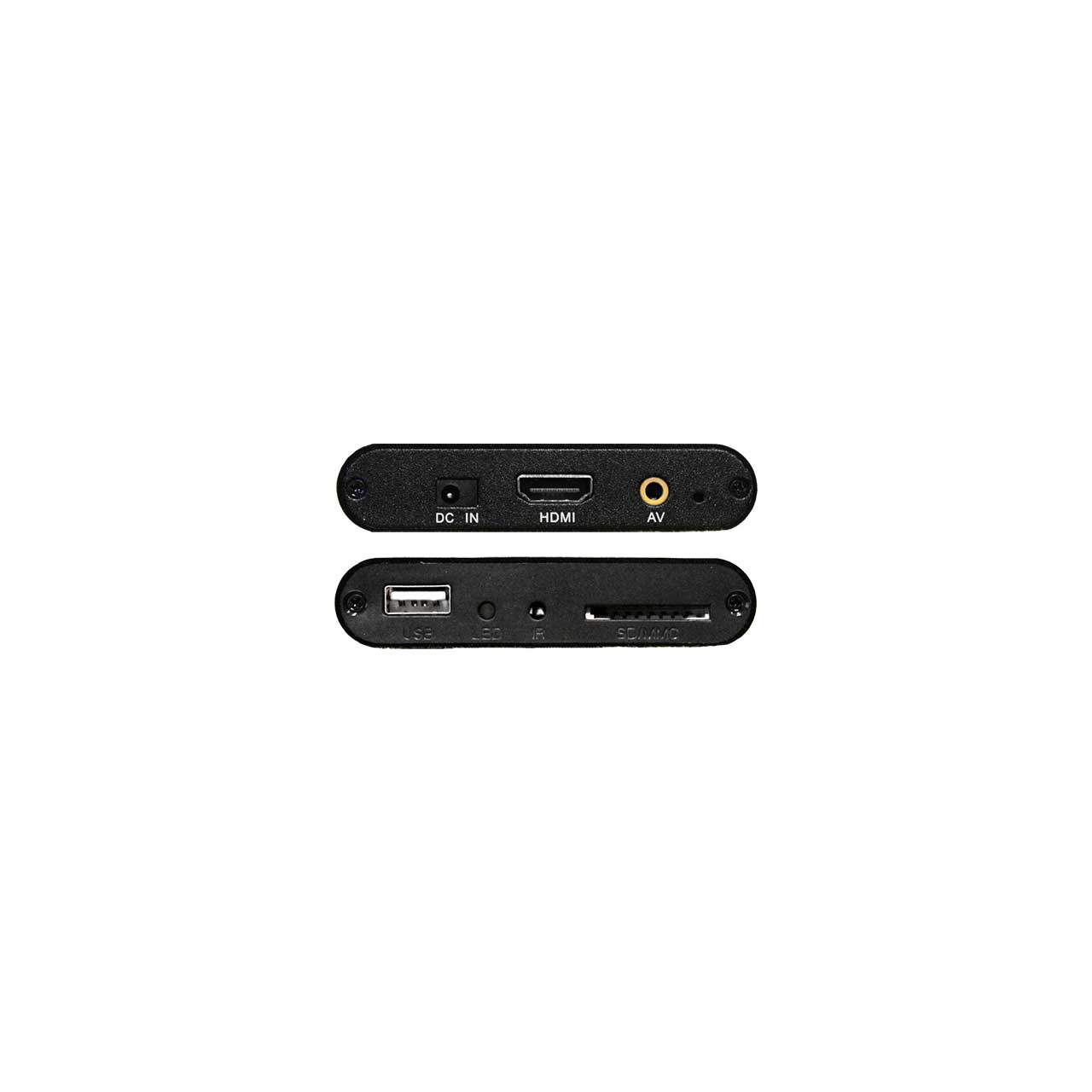

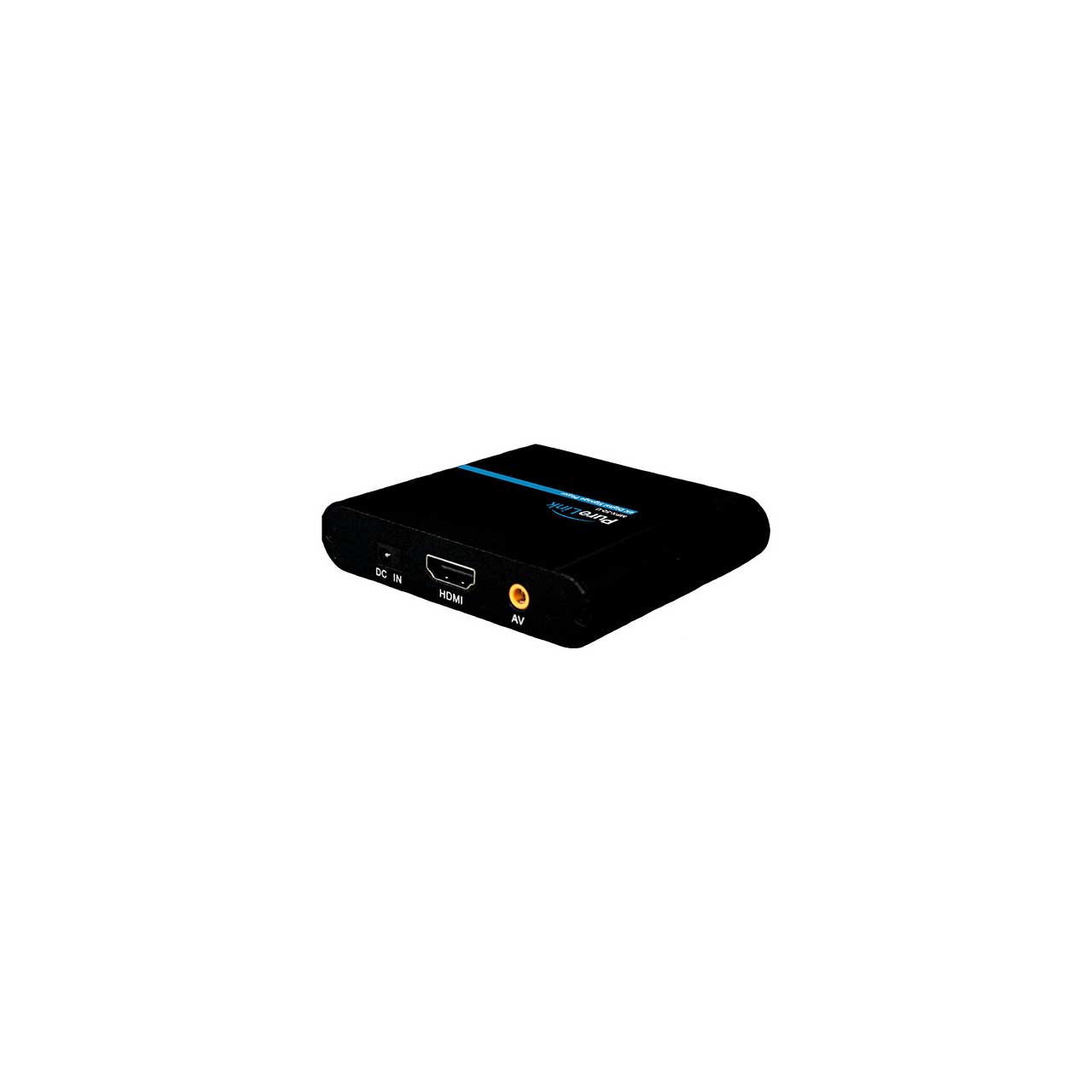

PureLink MPX-50-U Ultra HD/4K Digital Signage Player

MPX-50-U - Overview

• Features:

  • 4K@60Hz 10-bit & 3D video output
  • HDCP 2.2/1.4 compliant
  • Audio L/R outputs
  • Supports a wide range of media formats
  • Supports SRT/SMI/SSA/ASS and SUB+IDX subtitle formats
  • Customizable playback settings (Resume/Time/Auto-play/RTC/Repeat)
  • Multi-language OSD menu


• Specifications:

  • General Specifications
  • Platform: Non-PC based, Quad-core Cortex-A7 Processor
  • Video Output: HDMI 2.0 (up to 4K@60Hz 10-bit, 3D video)
  • Audio Output: RCA L / R jack with composite video
  • Supported Resolutions: up to 4K@60Hz
  • Storage SD/SDHC/MMC: up to 64GB; USB/hard drive up to 2TB
  • Processor: Quad-core Cortex-A7
  • Memory: 8GB NandFlash
  • Power Supply: DC 5V / 2A
  • Power Consumption: 12W (max)
  • Operating Temperature: 32° to 158°F (0° to 70°C)
  • Operating Humidity: 10 to 85%
  • Storage Temperature: -4° to 176°F (-20° to 80°C)
  • Storage Humidity: 5 to 90%
  • Audio Formats: MP3/WMA/FLAC/OGG/APE/AAC/AC3/QCP/DTS/DTS HD/TrueHD
  • Image Formats: JPEG/JPG/BMP/GIF/PNG/TIFF

    Supported Media
  • Video Formats: MOV/AVI/MP4/WMV/MKV/RM/RMVB/VOB/AVI/FLV/VC-1/ RV10/DAT/.MPG/MPEG
  • Audio Formats: MP3/WMA/FLAC/OGG/APE/AAC/AC3/QCP/DTS/DTS HD/TrueHD
  • Image Formats: JPEG/JPG/BMP/GIF/PNG/TIFF
  • Subtitles: SUB, SMI, SSA, SRT, IDX+USB, PGS

    Enclosure
  • Rack Mounting Option: Standard 19 inch rack-mountable design
  • Product Dimensions: 3.3 x 2.8 x 0.7"


• Warranty:

  • 3 Year Limited Warranty
