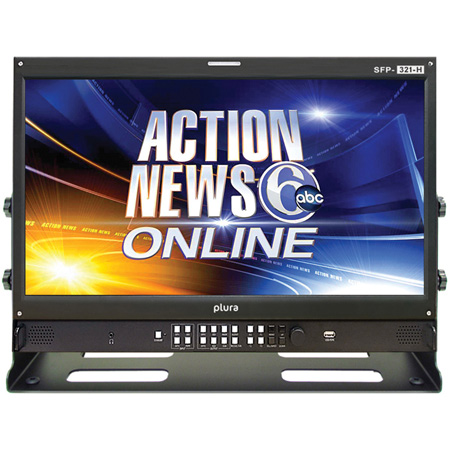

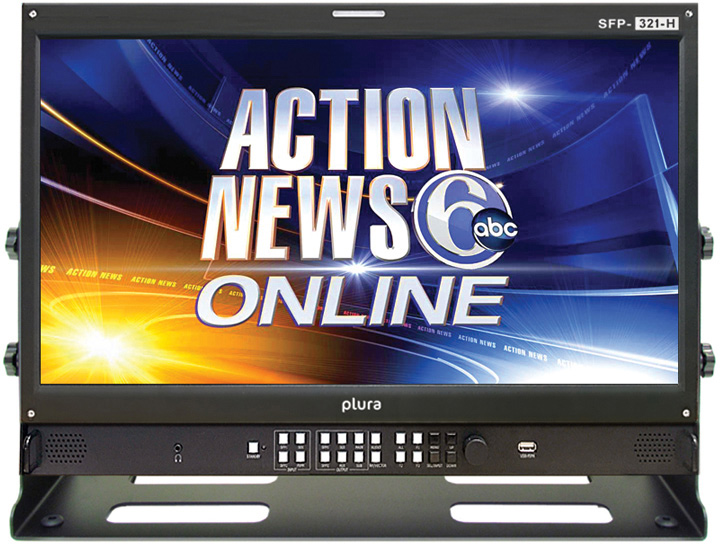

Plura SFP-321-H Broadcast Monitor (1920x1080)-Direct 3Gb/s BNC I/O Coaxial SFP I/O - IP SFP over Fiber - 21 Inch

ITEM #: PLUR-SFP-321-H MFG #: SFP-321-H

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SFP-321-H - Overview

The Plura SFP-321-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SFP+ over Fiber decoding "ST-2110 & ST-2022" with Third-Party H/W decoder and the NEW PIPM "Plura Software Stack IP Platform" decoder.

SFP-H is the ONLY monitor series in the market that can decode ST-2110 and ST-2022 IP streams with PIPM "Plura Software Stack IP Platform" based on a powerful computing core and utilizing standard 10G/s SFP+ module.

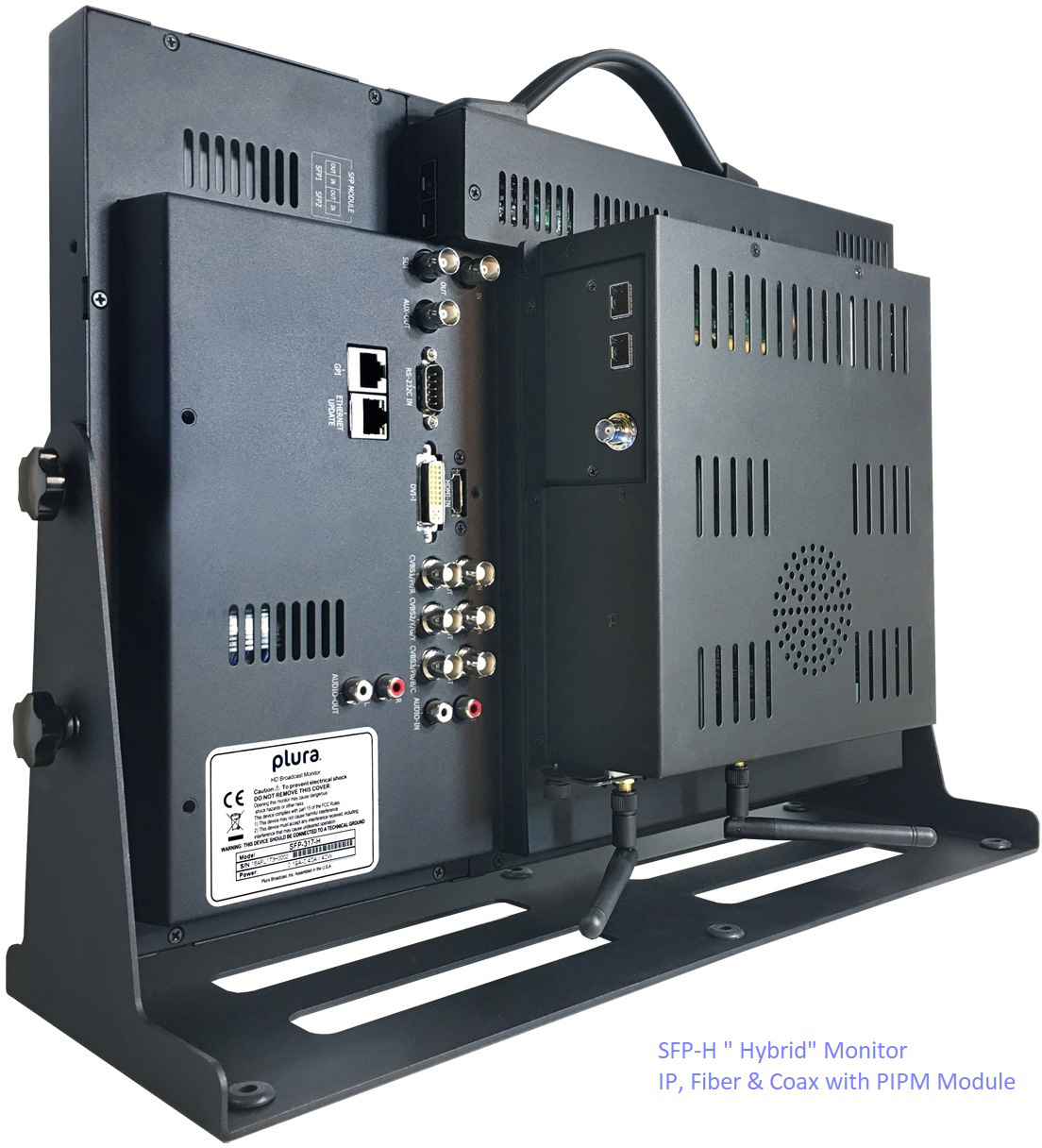

SFP-321-H, 21" monitor is the NEW FUTURE PROOF Hybrid Monitor which supports: IP - 10G/s SFP+, Fiber - 3Gb/s SFP, Coaxial SFP 3Gb/s, Direct BNC 3Gb/s I/O.

  • Features:

    • SFP-321-H, 21" Hybrid Monitor supporting Coax, Fiber & IP connectivity
    • Decode ST-2110 and ST-2022 IP streams with "PIPM" Plura Software Stack IP Platform module
    • Supports Coaxial 3Gb/s BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • Supports IP SFP+ over fiber decoding "ST-2110 & ST-2022" with any Third-Party H/W decoder
    • 2x SFP+ cages supporting 10G/3G/1.5G SDI
    • 1x 3G/1.5G Input port
    • 2x 3G/1.5G output ports
    • LKFS Audio Loudness logging & measurement
    • *"PIPM" Plura Software Stack IP Platform - OPTIONAL
    • Built-IN 4 x 4 Crosspoint Solution
    • 1x HDMI, 1x DVI & other legacy I/O
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 - 3.0)
    • Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Various and User defined Markers Display & Safe Area

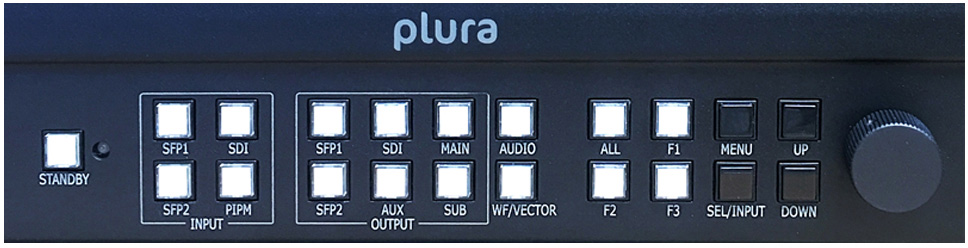

    • Programmable 3 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) - North American Market
    • Cutting edge De-interlacing and scaling Technology
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control
    • Underscan / Overscan / Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System


  • Specifications:

    • Weight: 13 lbs
    • Dimensions: 20.7 x 13.7 x 2.55"
    • Screen Size: 21"
    • Style: Desktop
    • Screen Resolution: 1920x1080
    • Backlight: LED
    • Color Depth: 8-bit
    • Features: Battery Operation, LKFS Measurement, SFP Modules Compatibility
    • Remote Control Features: Ethernet, RS232, Wall Control System
    • ICAC: Yes
    • H/W Decoding: ST-2022, ST-2110
    • S/W Decoding: ST-2022, ST-2110
    • Video: 3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV
    • Audio: Analog Audio, Embedded Digital Audio
    • Additional Features: Closed Caption, Vectorscope, Waveform
    • Housing: VESA (100x100) & (75x75), Optional 19" Rack
    • RU: 8
