Crest Audio 03602200 Pro-Lite 7.5 120V Power Amplifier

ITEM #: PVY-03602200 MFG #: 03602200

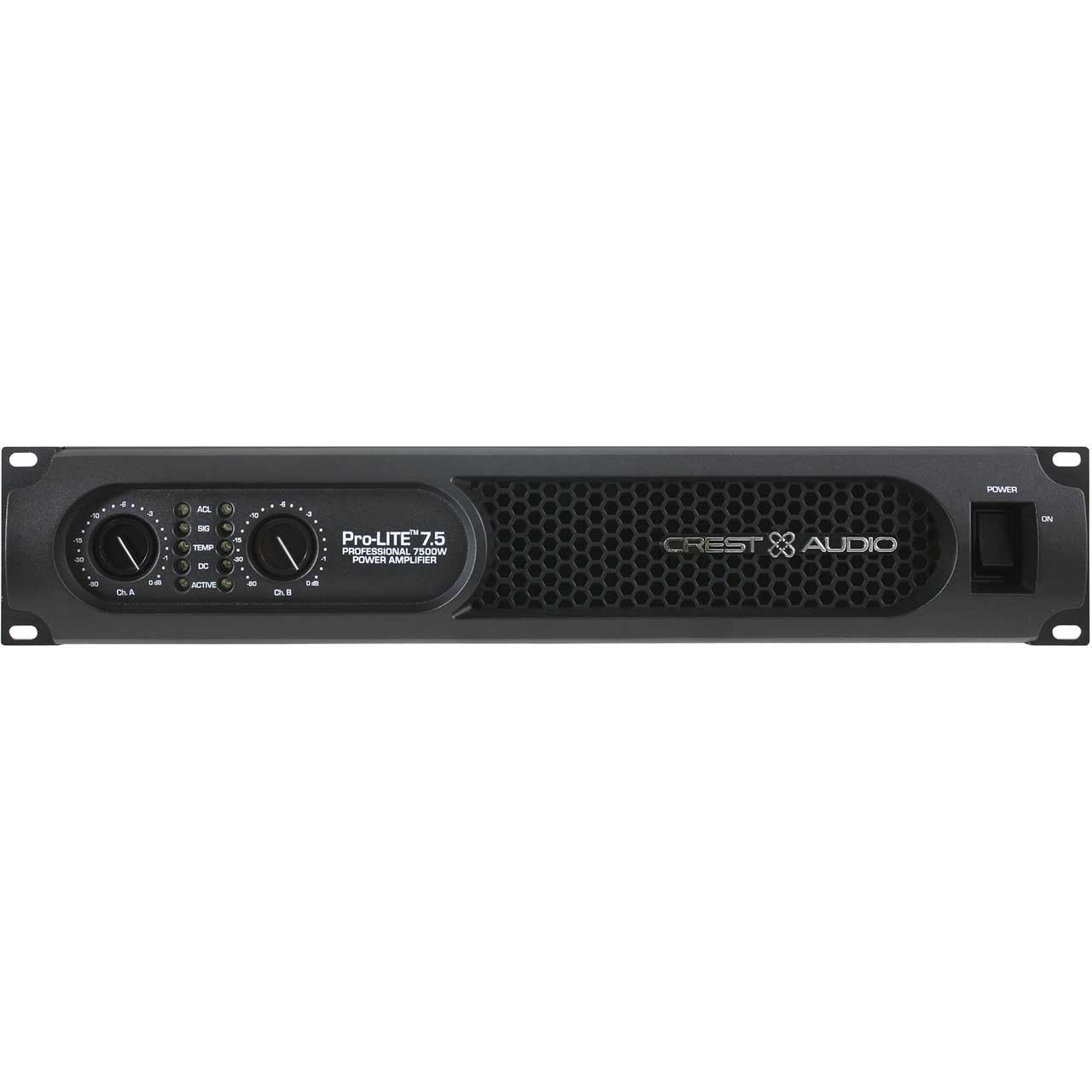

Primary Image

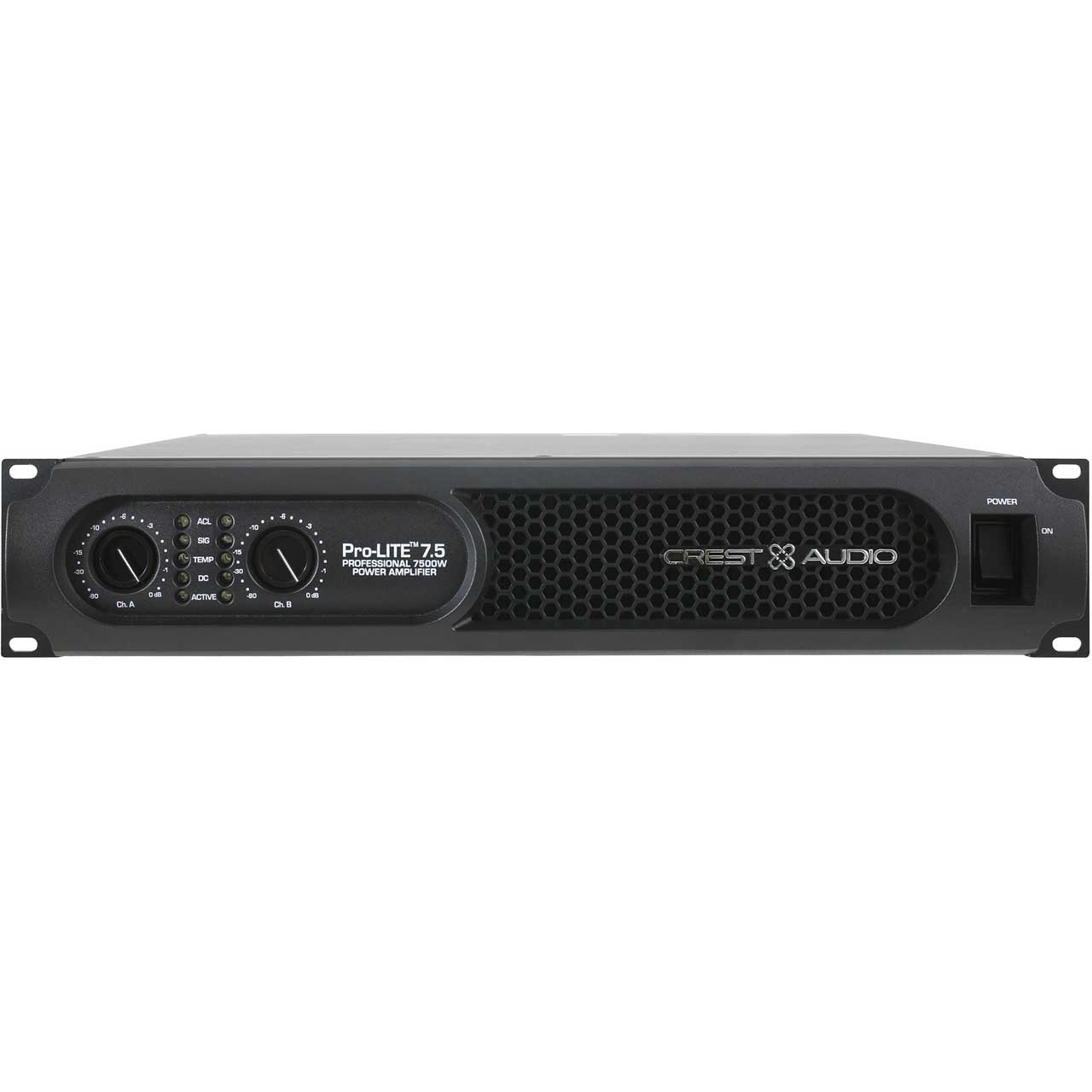

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4

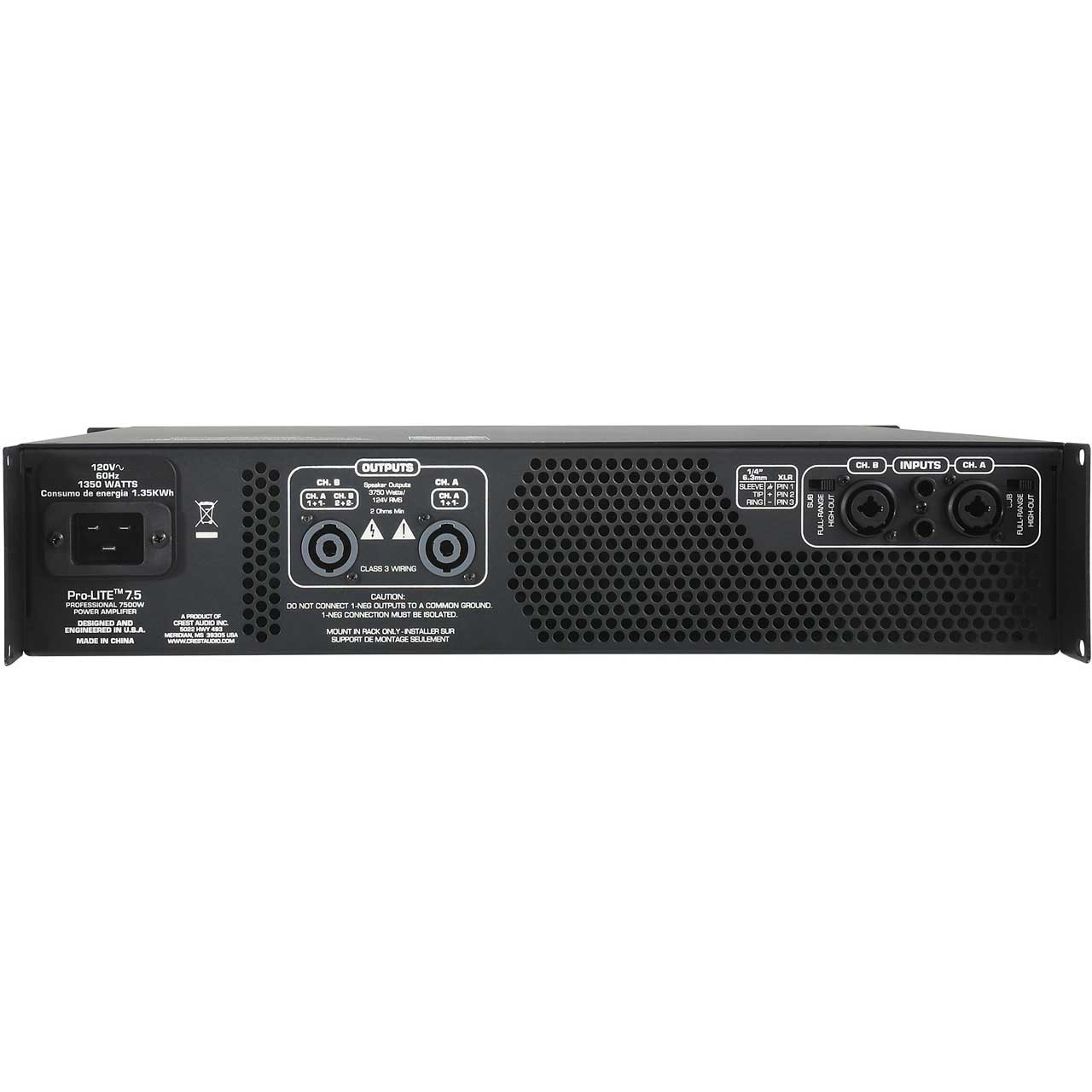

  • Product Image Thumbnail 3 of 4

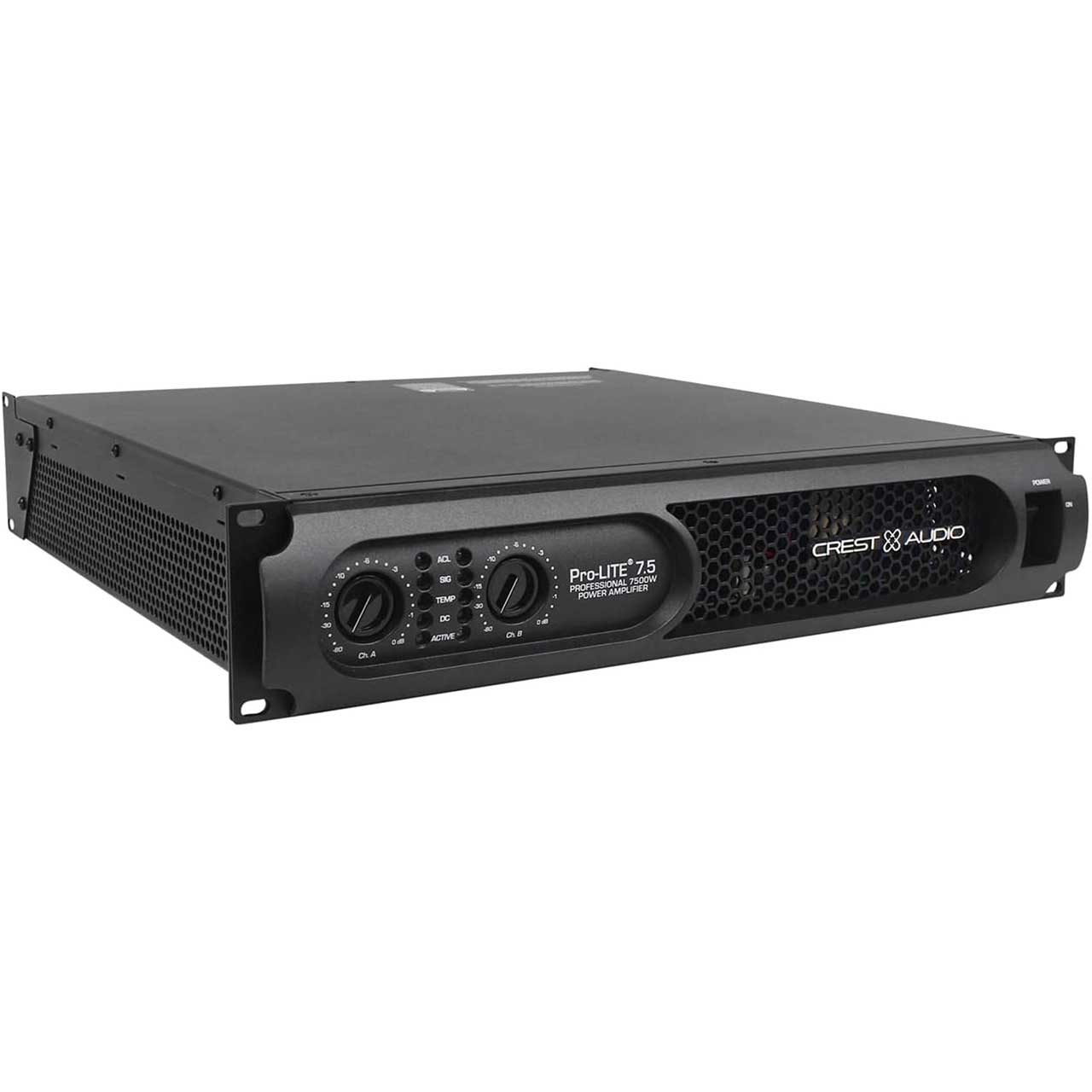

  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,999.00

Our Price:

$1,245.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


03602200 - Overview

The Pro-LITE™ 03602200 7.5 power amplifier features an incredibly lightweight, efficient design with high power and stable performance.

The Crest Audio® Pro-LITE 7.5 amplifier is designed with an advanced, high-speed class D design with a switch-mode power supply that reduces weight while increasing reliability, thermal efficiency and output power.

The onboard protection suite includes Crest Audio's proprietary ACL™ Automatic Clip Limiting circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers, as well as DC, Temp, Signal and Active safeguards, all referenced on the front panel with LED indicators.

  • Features:

    • 3790 Watts @ 2 Ω per channel
    • 2450 Watts @ 4 Ω per channel
    • 1425 Watts @ 8 Ω per channel
    • ACL Automatic Clip Limiting protection
    • Revolutionary Pro-LITE class D topologry
    • Detented input controls
    • Neutrik® Combi Neutrik® XLR-1/4" inputs
    • Speakon® output connectors
    • XLR thru connector
    • Two channel-independent fourth order crossovers

  • Specifications:

    • Channels (Input): 2
    • Channels (Output): 2
    • Power per Channel @ 2 Ω: 3790 W
    • Power per Channel @ 4 Ω: 2450 W
    • Power per Channel @ 8 Ω: 1425 W
    • Topology: Class D
    • Minimum Load Impedance: 2 Ω
    • Frequency Response: -3 dB, 20 Hz - 25 kHz; +0 dB
    • Input Connectors: 2 x XLR-1/4" Combo & 2 x 1/4" Jack
    • Output Connectors: 2 x Neutrik® Speakon® NL4
    • Color: Black
    • Rack Mount (19"): Yes (2U)
    • Net Weight: 14.6 lbs (6.61 kg)
    • Product Height: 3.50" (89 mm)
    • Product Width: 19.00" (483 mm)
    • Product Depth: 17.60" (447 mm)
    • AC Power Input: 120VAC 60 Hz & 220-240VAC 50 Hz version available
