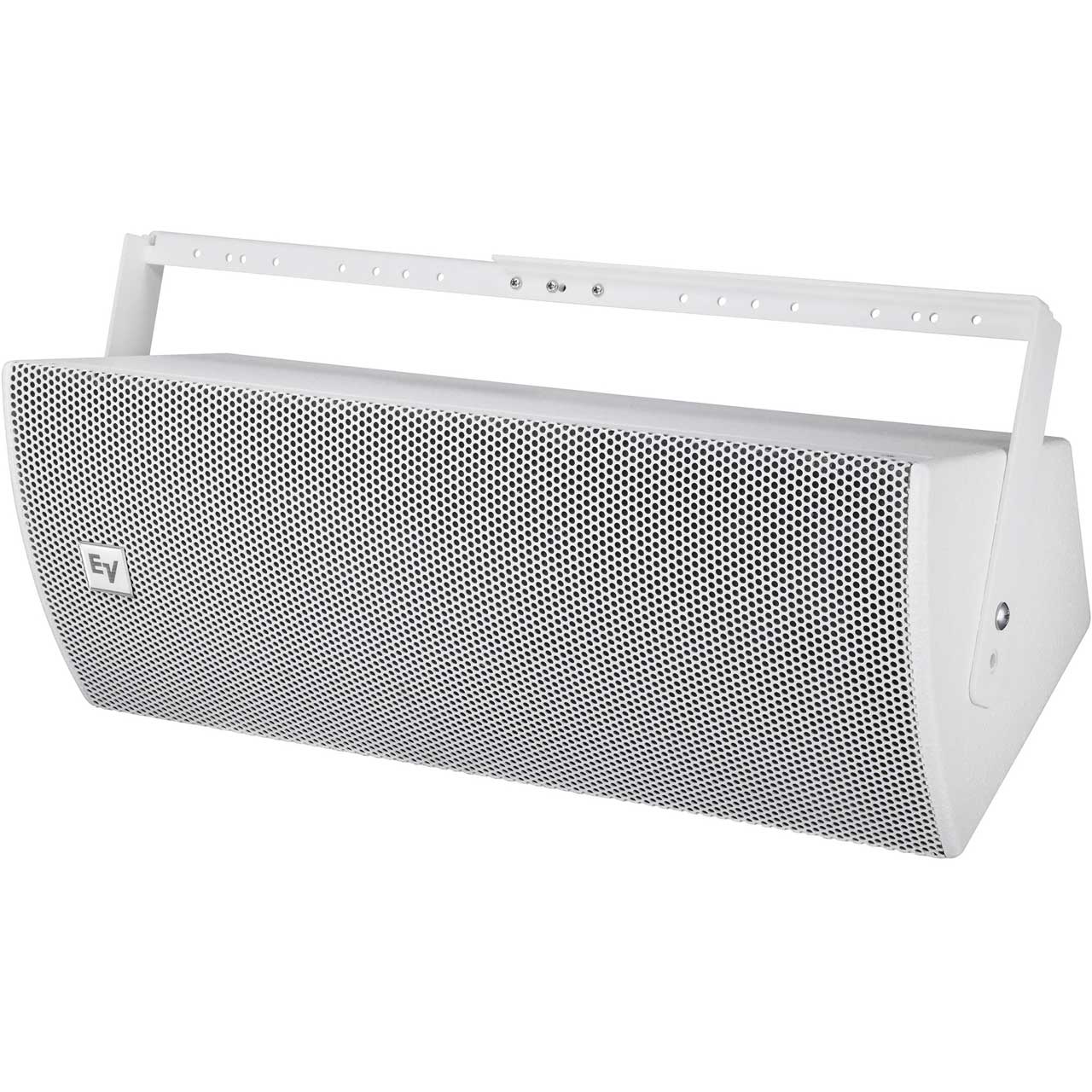

The Electro-Voice EVU series EVU-2082-95-W is a compact high power 2-way loudspeaker system used in a variety of applications where high-quality sound reinforcement is required in an ultra compact light-weight enclosure. The enclosure design utilizes asymmetrical angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings.
This design is optimized for wall, stage lip and under balcony applications. The EVU series incorporates the ICT (Install Compact Transducer), a high-output 1.3-inch titanium compression driver coupled to a Constant Directivity 90 x 50 rotatable waveguide. The EVU woofers are developed using FEA (Finite Element Analysis) optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility.
The crossover designs uses 18dBper octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability. The EVU line is constructed of multi-ply hardwood plywood enclosure with six (6) integral M8 suspension points to support a wide variety of mounting positions.
The EVU system is finished in textured paint available in either white or black. Each EVU system includes a universal U-Bracket to facilitate mounting. The U-Bracket provides for a 330° unobstructed, translation of the loudspeaker. Additional mounting points are located on the back of the enclosure for use with an Omnimount type bracket, available from Omnimount Inc. An available 60W transformer kit is easily mounted over the input panel for use in distributed systems.
