QSC AC-C8T-WH 8 Inch Two-way Ceiling Speaker 70/100V Transformer with C-ring and Rails - White PAIR

ITEM #: QSC-AC-C8T-WE MFG #: QSC-AC-C8T-WE

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$434.95

Our Price:

$399.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


QSC-AC-C8T-WE - Overview

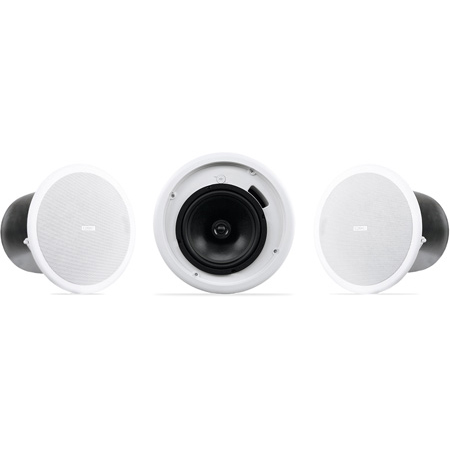

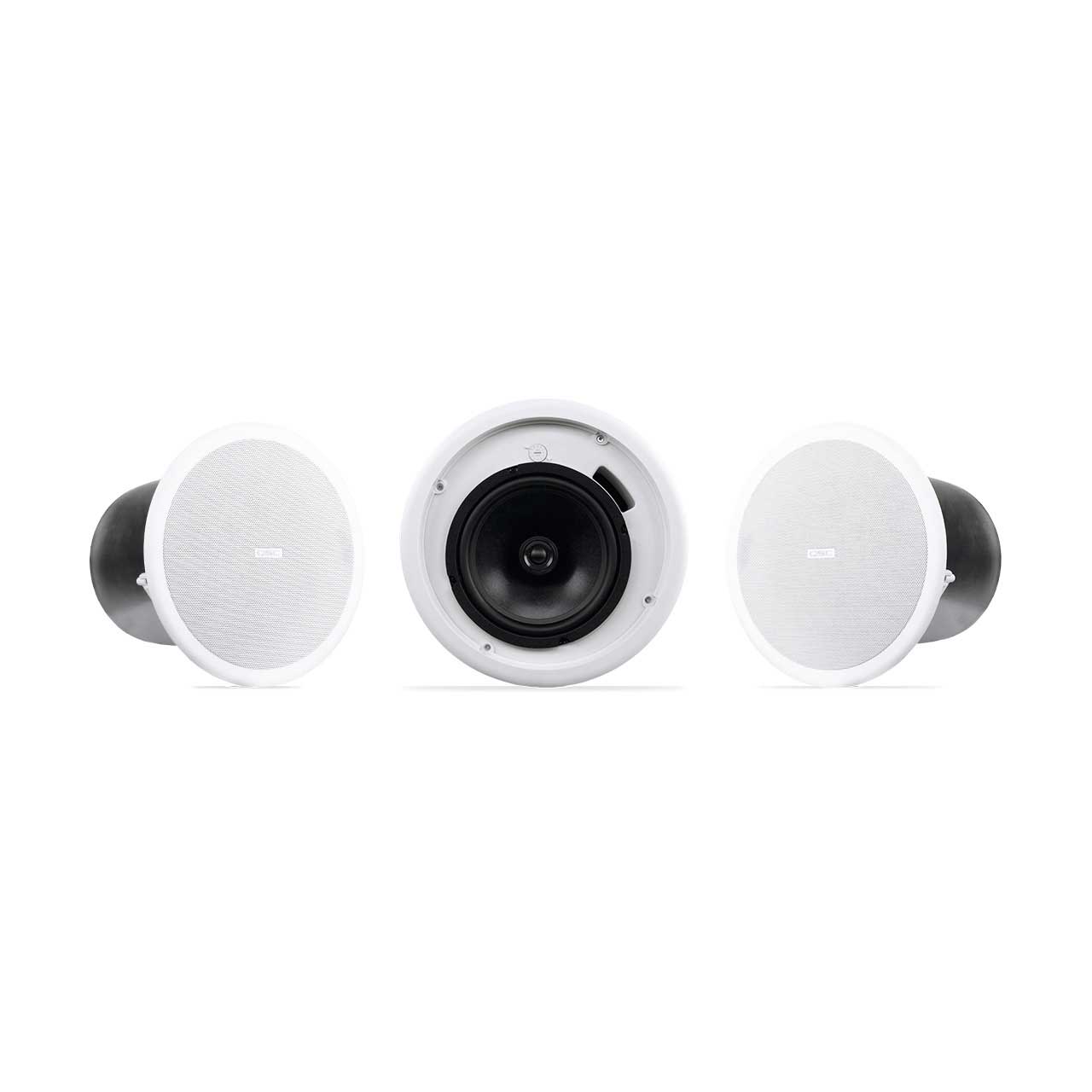

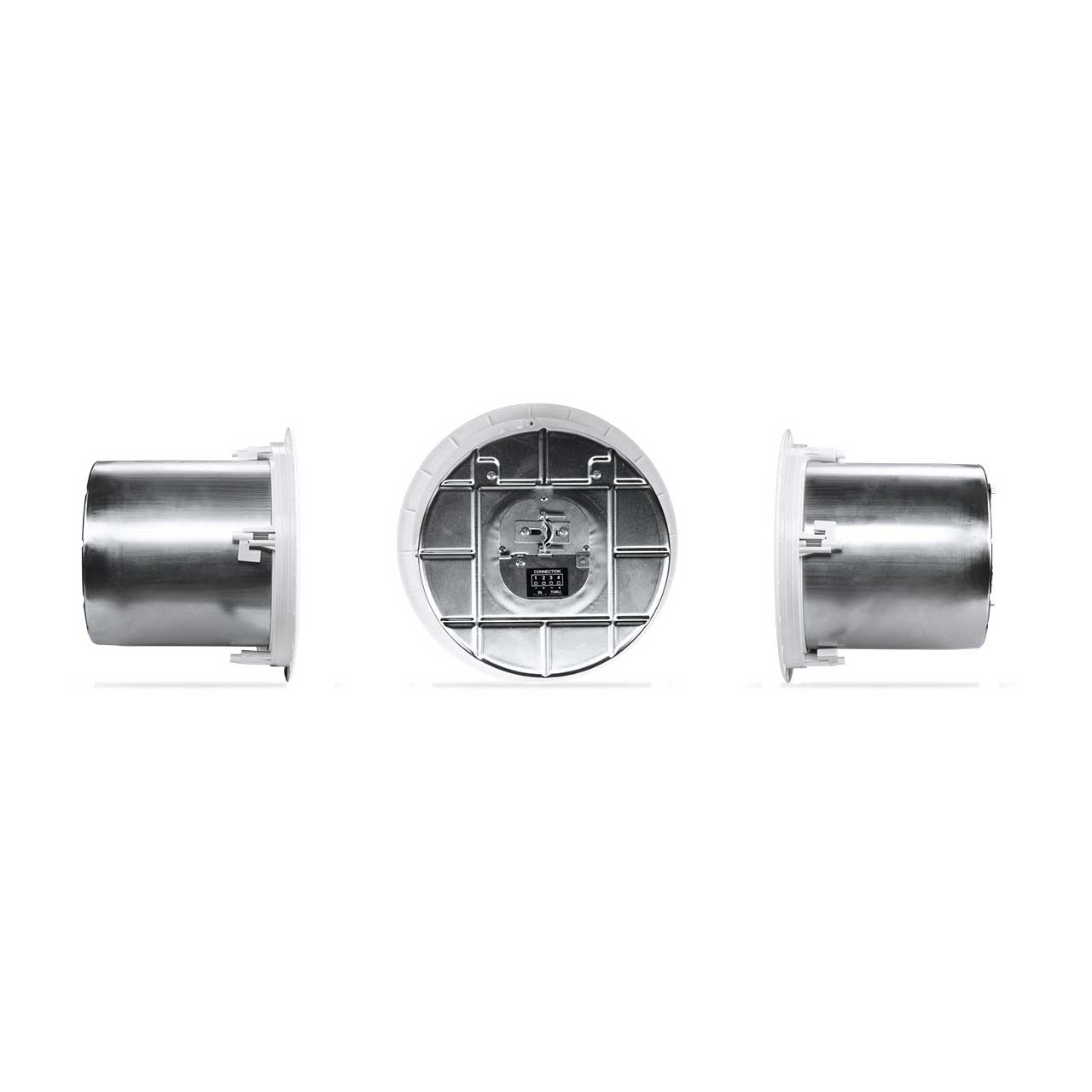

The QSC AcousticCoverage™ Series QSC-AC-C8T-WE is a pair of white ceiling-mounted 8-inch twoway loudspeakers with 70/100V transformer, suitable for a wide variety of audio/video conferencing reinforcement, voice paging and background music applications.

AcousticCoverage™ Series is designed to offer integrators a cost-effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products.

The high quality 8-inch polypropylene cone transducer with butyl rubber surround and the sensitivity matched coaxially mounted .86-inch silk dome tweeter offers pristine clarity through the critical vocal range for increased speech intelligibility. With 100 degrees of conical coverage, the AC-C8T reduces the number of loudspeakers required for even coverage in low ceiling applications.

  • Features:

    • High quality transducers provide exceptional clarity through the critical voice range
    • Improved musicality often not seen in typical BGM class products
    • Ported baffle for increased low frequency extension down to 52 Hz
    • Low saturation 70/100V transformers with 8 ohm bypass
    • 4-pole Euroblock connector eases system wiring
    • Advanced voicing via QSC Intrinsic
    • Correction™, applied using the Q-SYS™ Platform or CXD Series amplifier platforms
    • White (RAL 9010) with UV inhibitors to match complimenting QSC product families
    • Complete EASE, CF2, CAD, & BIM information available online

  • Specifications:

    • System Details: AC-C8T
    • Effective Frequency Range: 52Hz - 20kHz
    • Rated Noise Power / Voltage: 80W / 25.3V (rms)
    • System Sensitivity: 89dB SPL
    • Coverage Angle (-6 dB): 100° (500 Hz - 5 kHz)
    • Maximum Continuous SPL: 108dB
    • Maximum Peak SPL4: 114dB
    • Rated Bypass Impedance: 8 ohms
    • Transformer Taps: 70 V: 60, 30, 15, 7.5, 3.8 watts; 100 V: 60, 30, 15, 7.5 watts; 8 ohm bypass
    • HF Transducer: 22 mm [.86 in] silk dome tweeter, coaxially mounted
    • LF Transducer: 210 mm [8 in] Polypropylene cone with butyl rubber surround
    • Input Connector Type: Euroblock connector with parallel output terminals
    • Baffle Material: Painted ABS polymer
    • Grille Material: Painted steel
    • Back Can Material: Plated steel
    • Testing Listed: UL1480, UL2043 safe for use in air handling space
    • Net Weight: 5.2 kg [11.5 lb]
    • Product Dimensions: 316 x 288 mm [12.4 x 11.3 in]
    • Cut-Out Dimensions: 285 mm [11.2 in]
    • Ceiling Capture Thickness: 6 - 38 mm [0.25 - 1.5 in]
    • Shipping Weight: 13.3 kg [29.3 lb] (pair packed)
    • Shipping Dimensions: 743 x 381 x 381 mm [29.3 x 15 x 15 in]

  • GTIN:

    0684284067319
