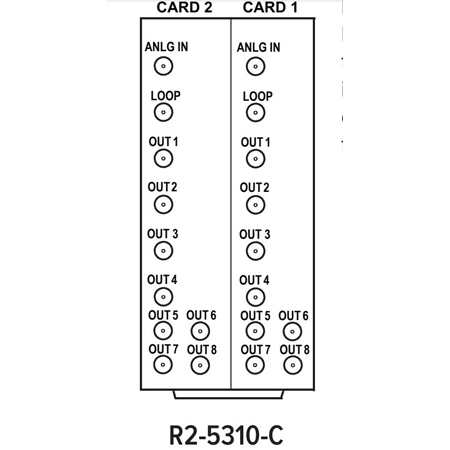

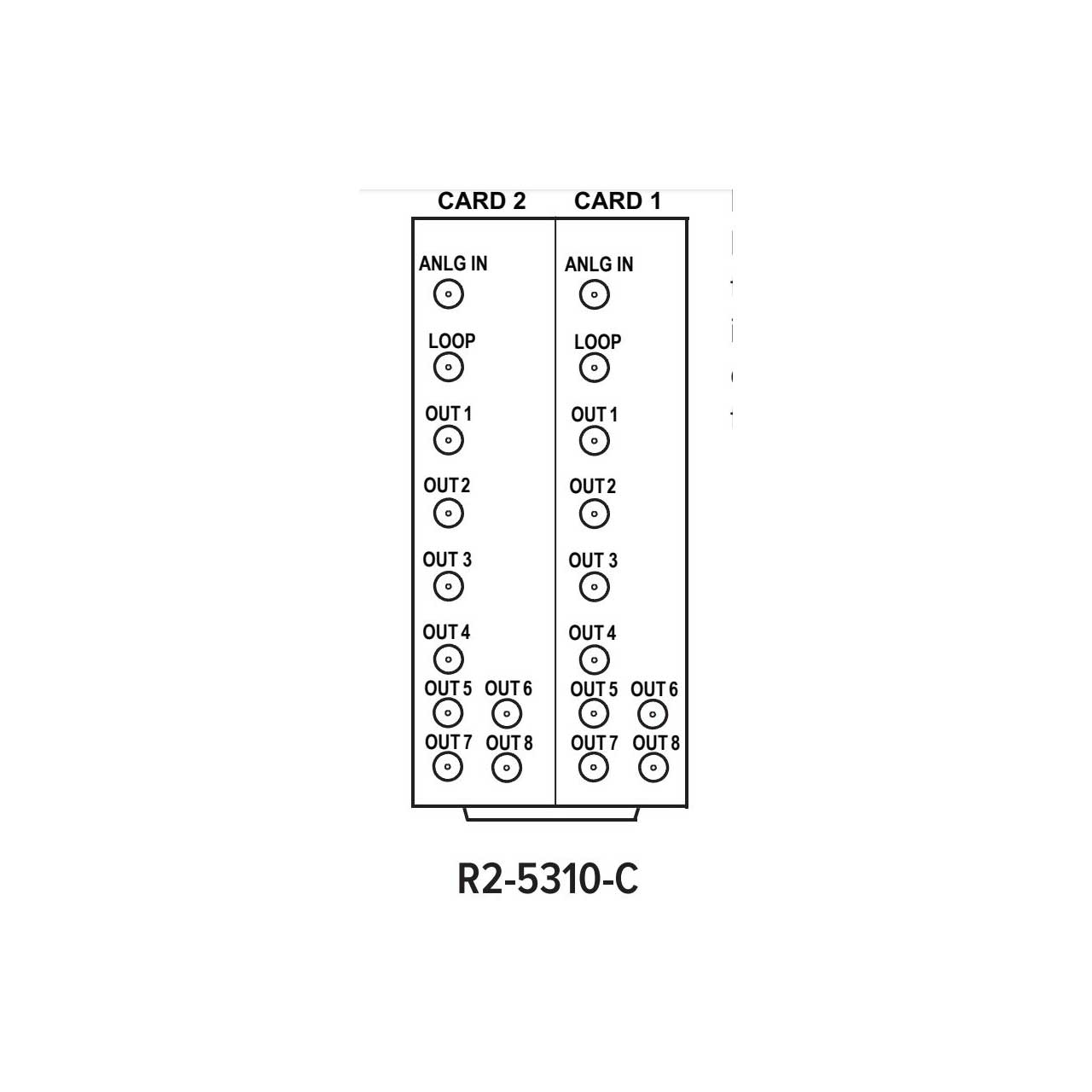

Multidyne R2-5310-C is an openGear 20-Slot Frame Rear I/O Module, split and supports 2 cards with one Analog Video Input, eight Analog DA Outputs, and one Input Loop Output. These connections are per card and all connectors are DIN 1.0/2.3.
Applications include the following...
*Bi/Tri-Level Sync Distribution
*LTC Timecode Distribution
*Fly Packs
*Houses of Worship
*Mobile Trucks
Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation.
Remote control monitoring via DashBoard software.
Note: R2-5310-C & R2-5310-D allows only typical single ended input operation (shield conductor of input BNC tied to GND).
Please Note: This is a dual card split module. This module requires 2 of the OG-5310-ADA-1X8 cards to function as intended.
