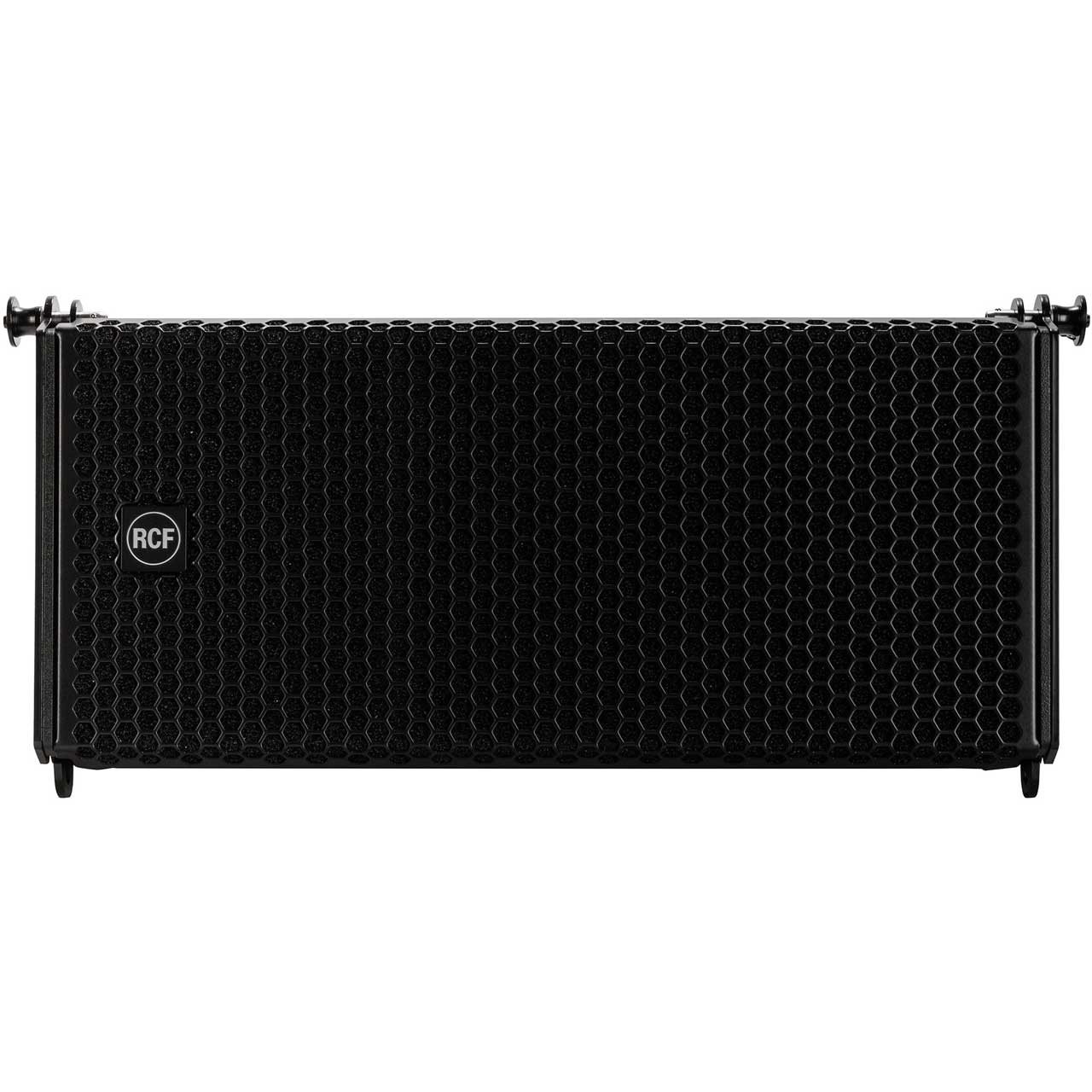

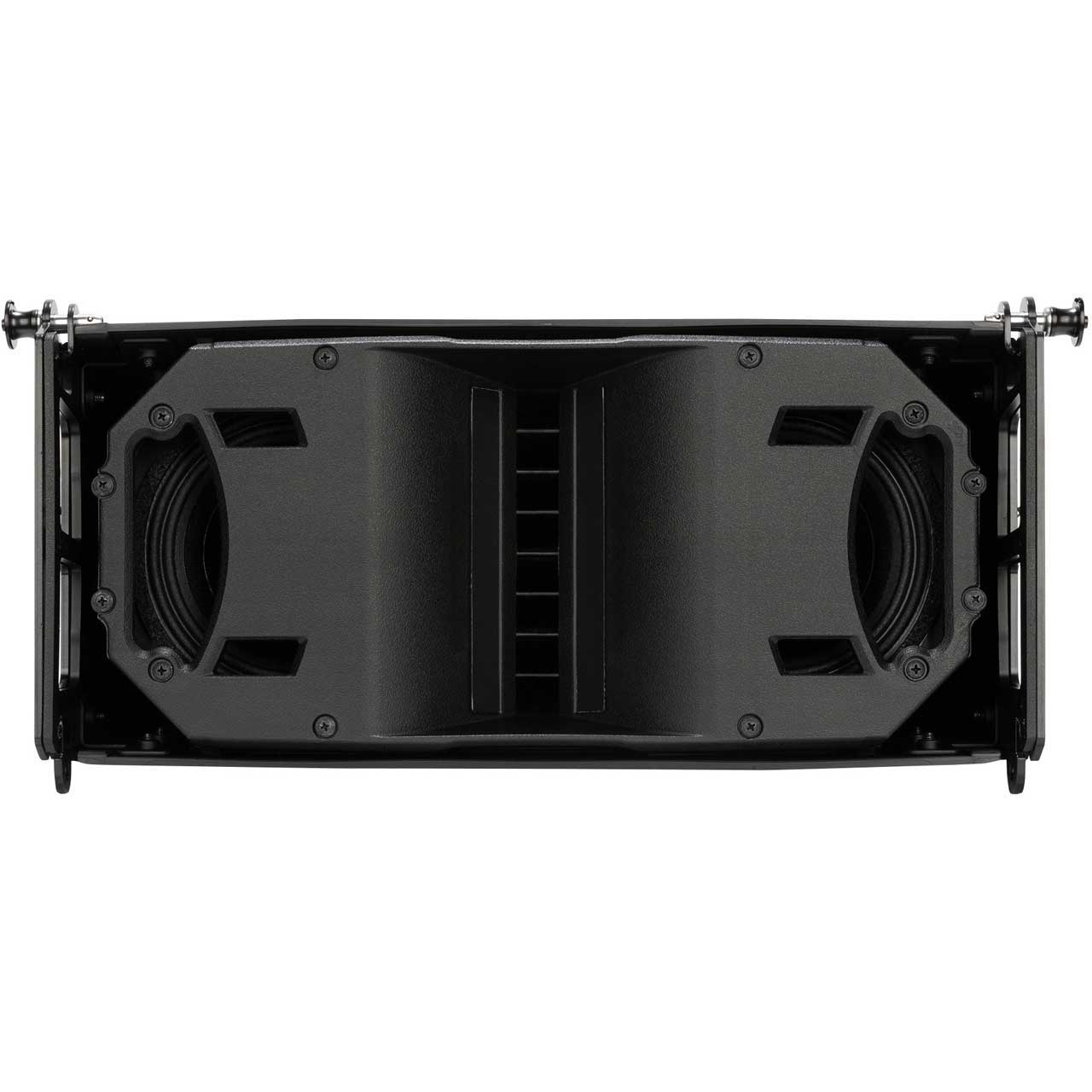

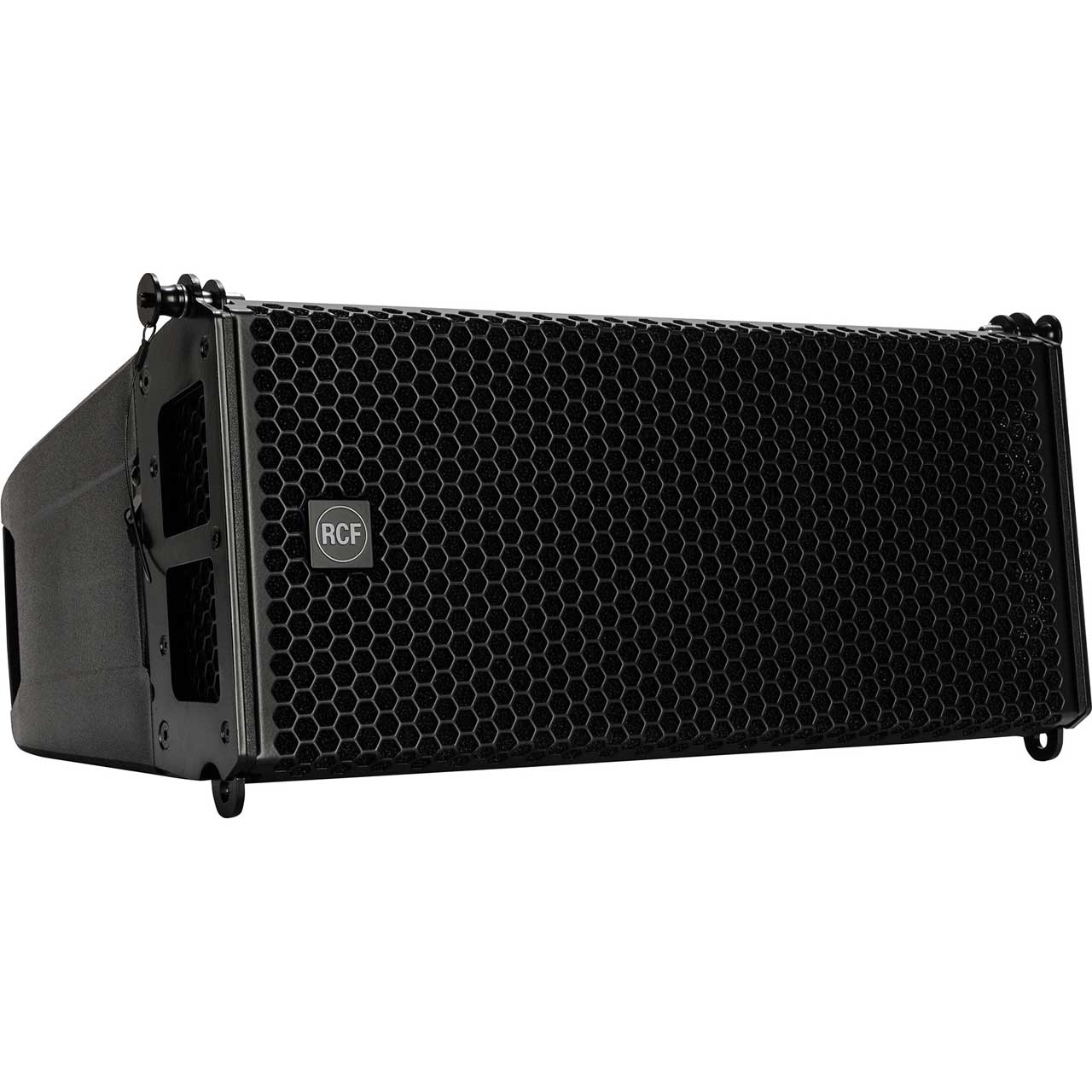

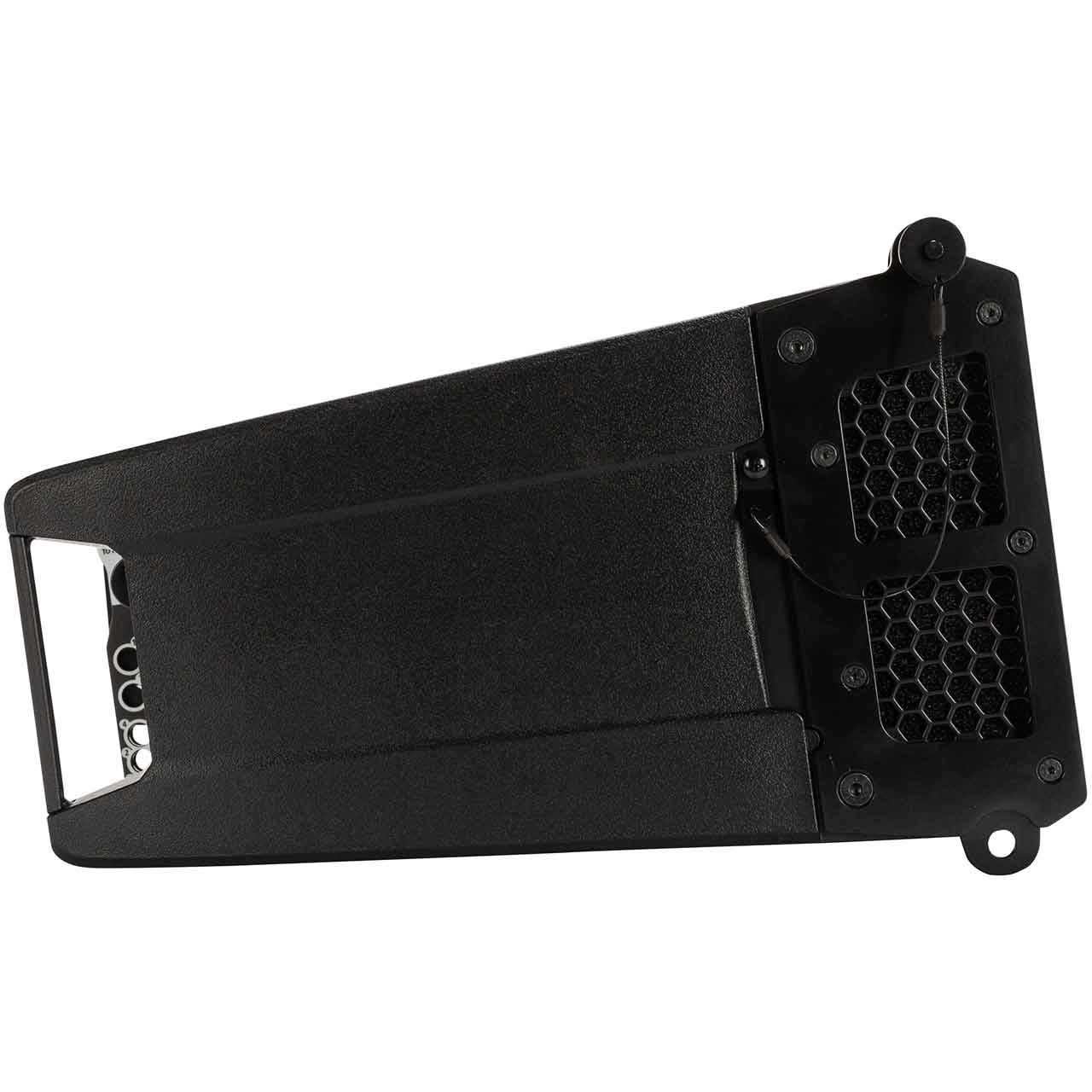

RCF HDL26-A Active Compact 2-way Line Array PA Speakers - Black

ITEM #: RCF-HDL26-A MFG #: HDL26-A

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


HDL26-A - Overview

The RCF HDL26-A is an ultra-compact bi-amped two-way active touring system for small and medium-sized events, both indoors and outdoors. Due to the advanced transducer design and the 2000W Class-D amplifier, among the best in its class, it is capable of an extended bottom-end and a pristine sound for a wide range of applications, alone or in RDNet managed line-array configurations. The HDL 35-AS is the ideal flyable bass complement for the HDL 26-A array system.

  • Features:

    • 133 DB Max Spl
    • 2000w Two-Way Amplifier
    • Exclusive Firphase Technology On-Board
    • 750 HZ Crossover for Best Vocal Reproduction

  • Specifications:

    • Acoustical Specifications:
    • Frequency Response: 55 Hz ö 20000 Hz
    • Max SPL @ 1M: 133 Db
    • Horizontal Coverage Angle: 100°
    • Vertical Coverage Angle: 10°

      Transducers
    • Compression Driver: 1 X 1.5'' Neo, 3.0'' V.C
    • Woofer: 2 X 6.0'' Neo, 2.0'' V.C

      Input/Output Section
    • Input Signal: BAL/Unbal
    • Input Connectors: XLR
    • Output Connectors: XLR
    • Input Sensitivity: +4 DBU

      Processor Section
    • Crossover Frequencies: 750
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Preset, Rdnet Bypass
    • RDNet: Yes

      Power Section
    • Total Power: 2000 W Peak, 1000 W RMS
    • High Frequencies: 600 W Peak, 300 W Rms
    • Low Frequencies: 1400 W Peak, 700 W Rms
    • Cooling: Convection

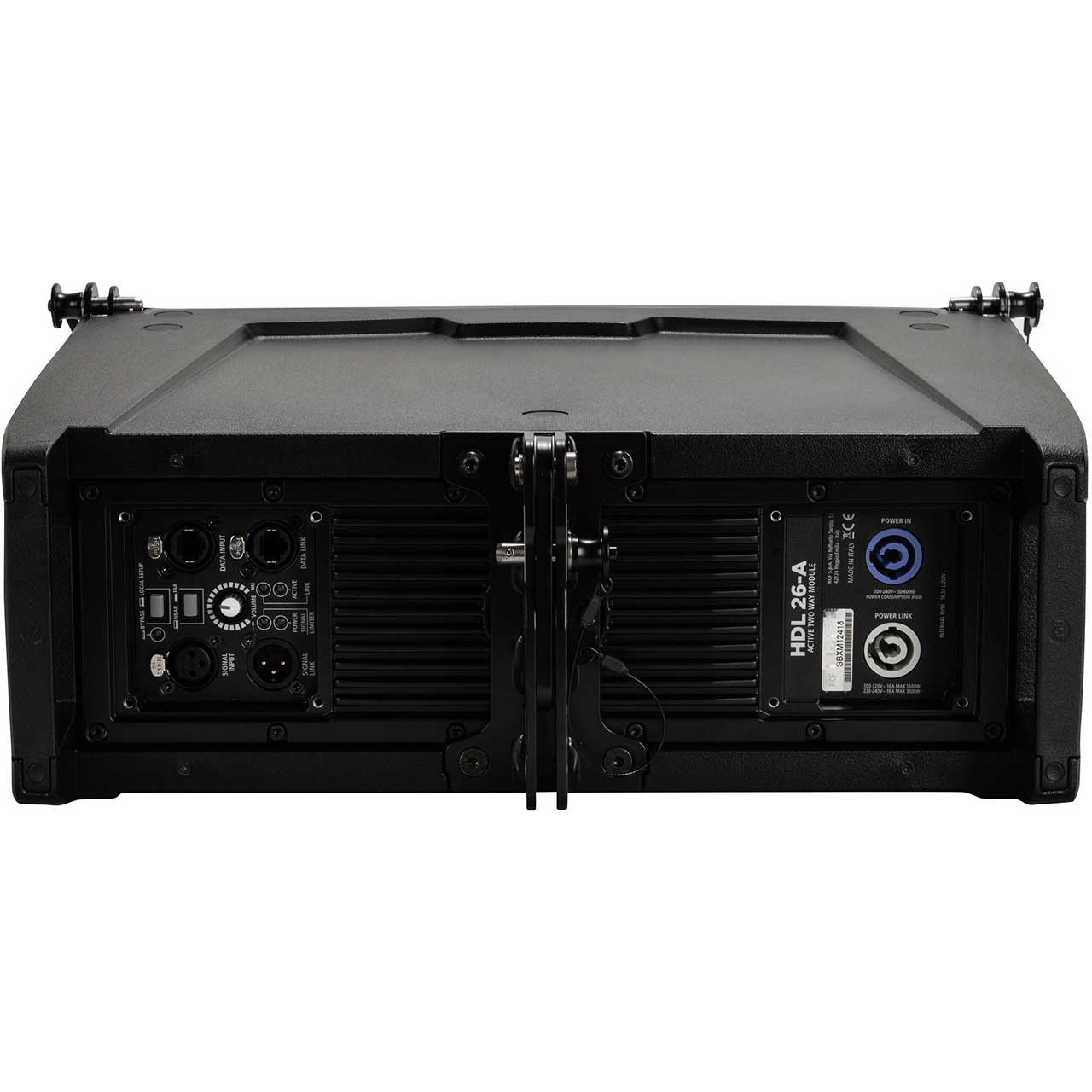

    • Connections: Powercon In/Out

      Standard Compliance
    • CE Marking: Yes
    • Cabinet/Case Material: PP Composite
    • Hardware: Array Fittings
    • Handles: 2 Back
    • Grille: Steel
    • Color: Black

  • GTIN:

    8024530016845
