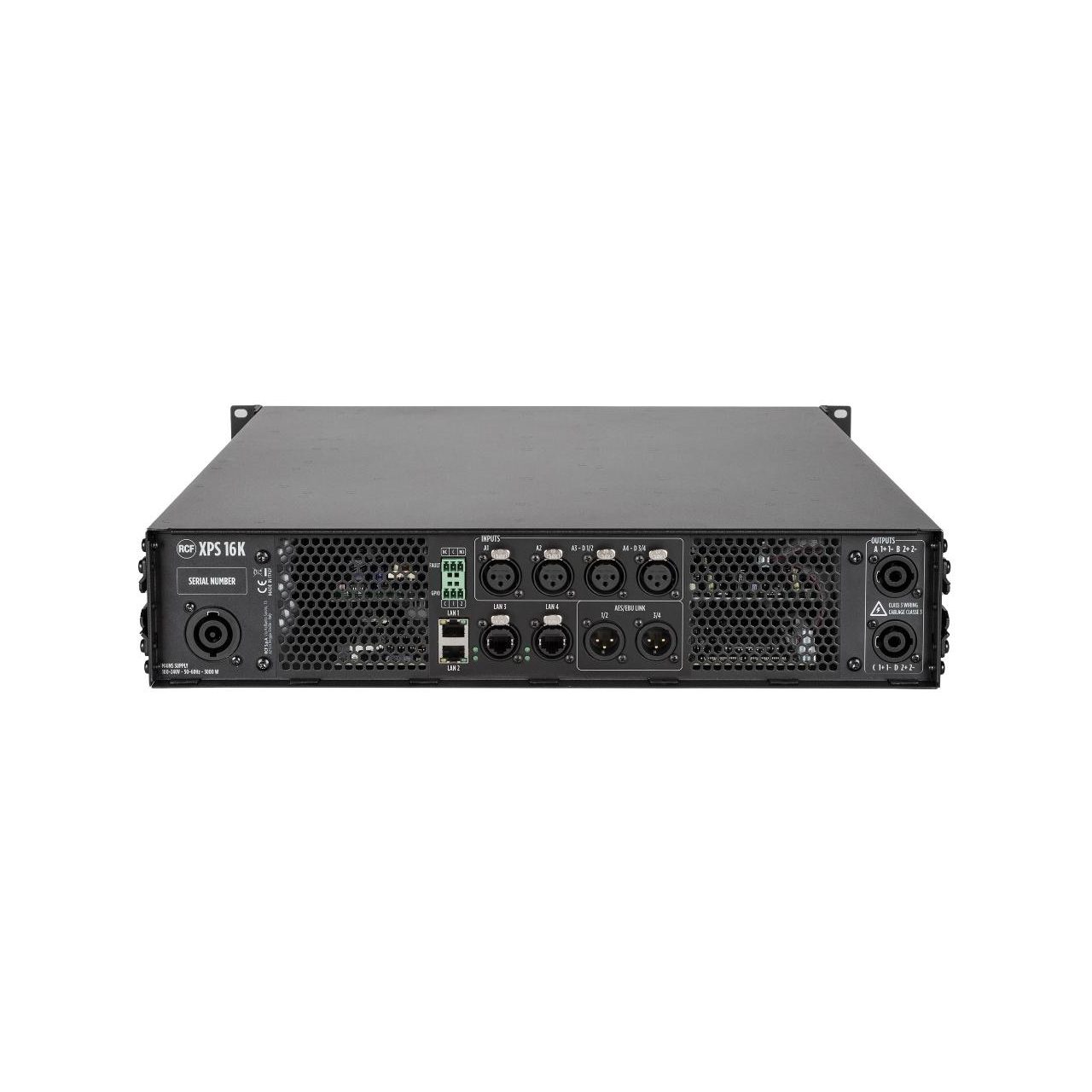

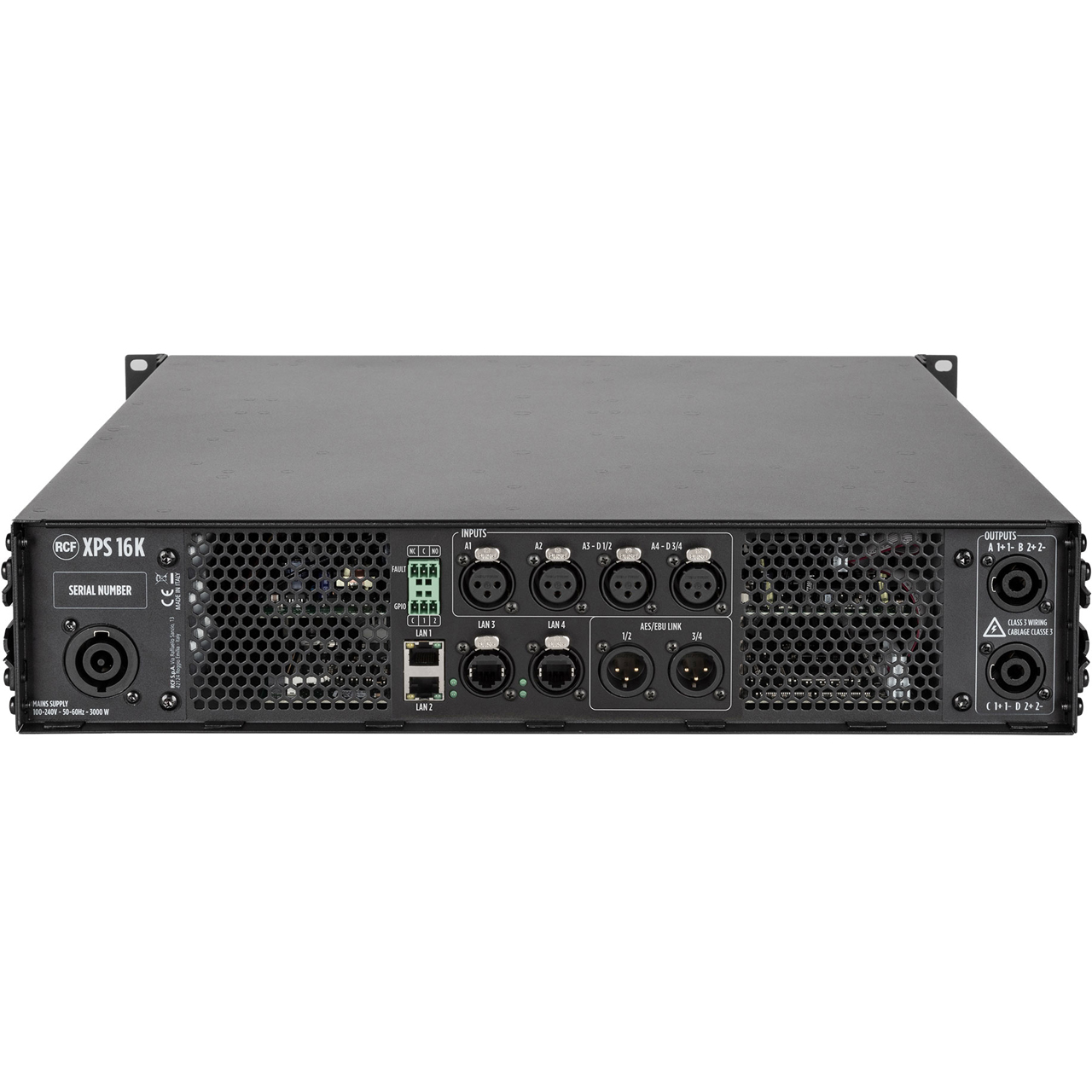

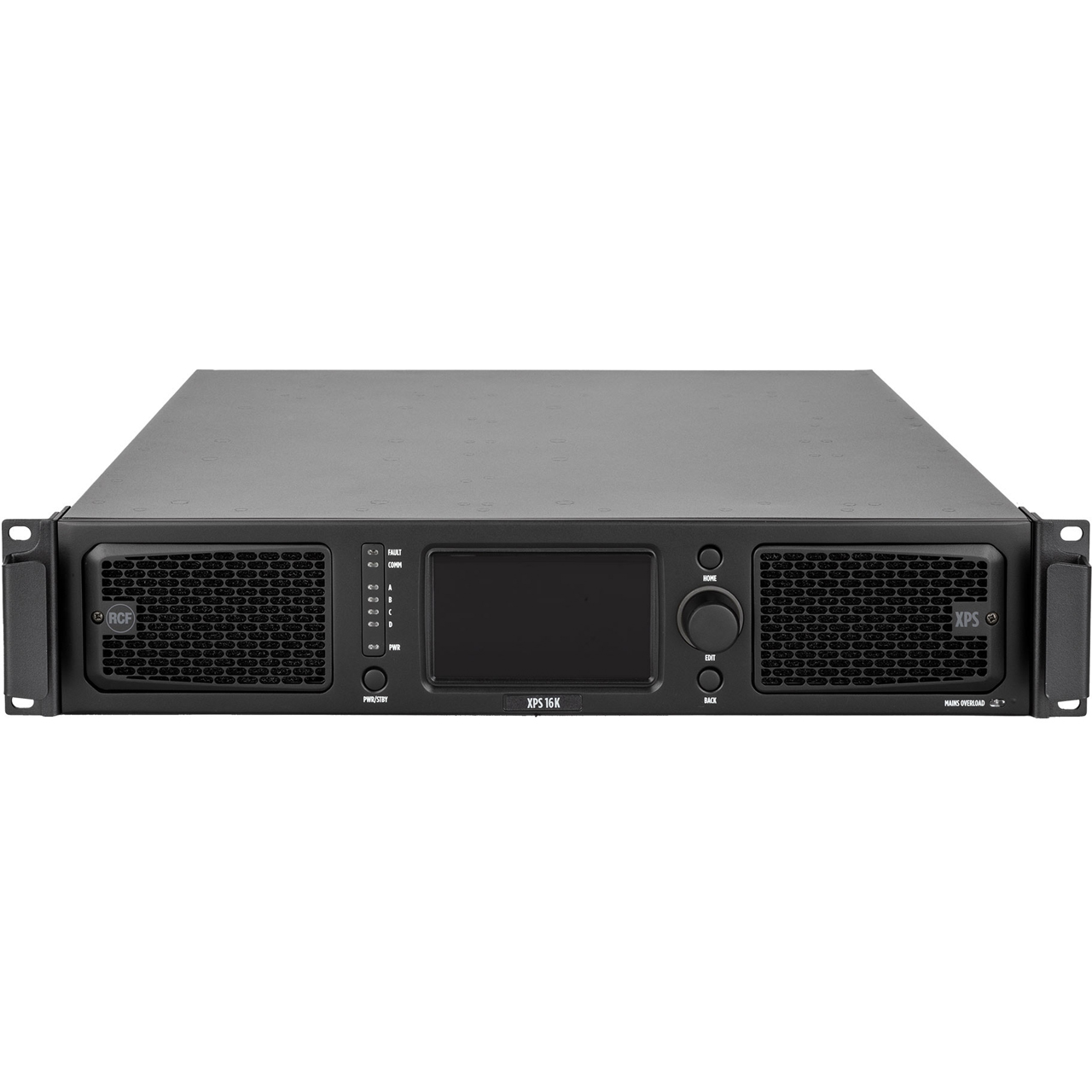

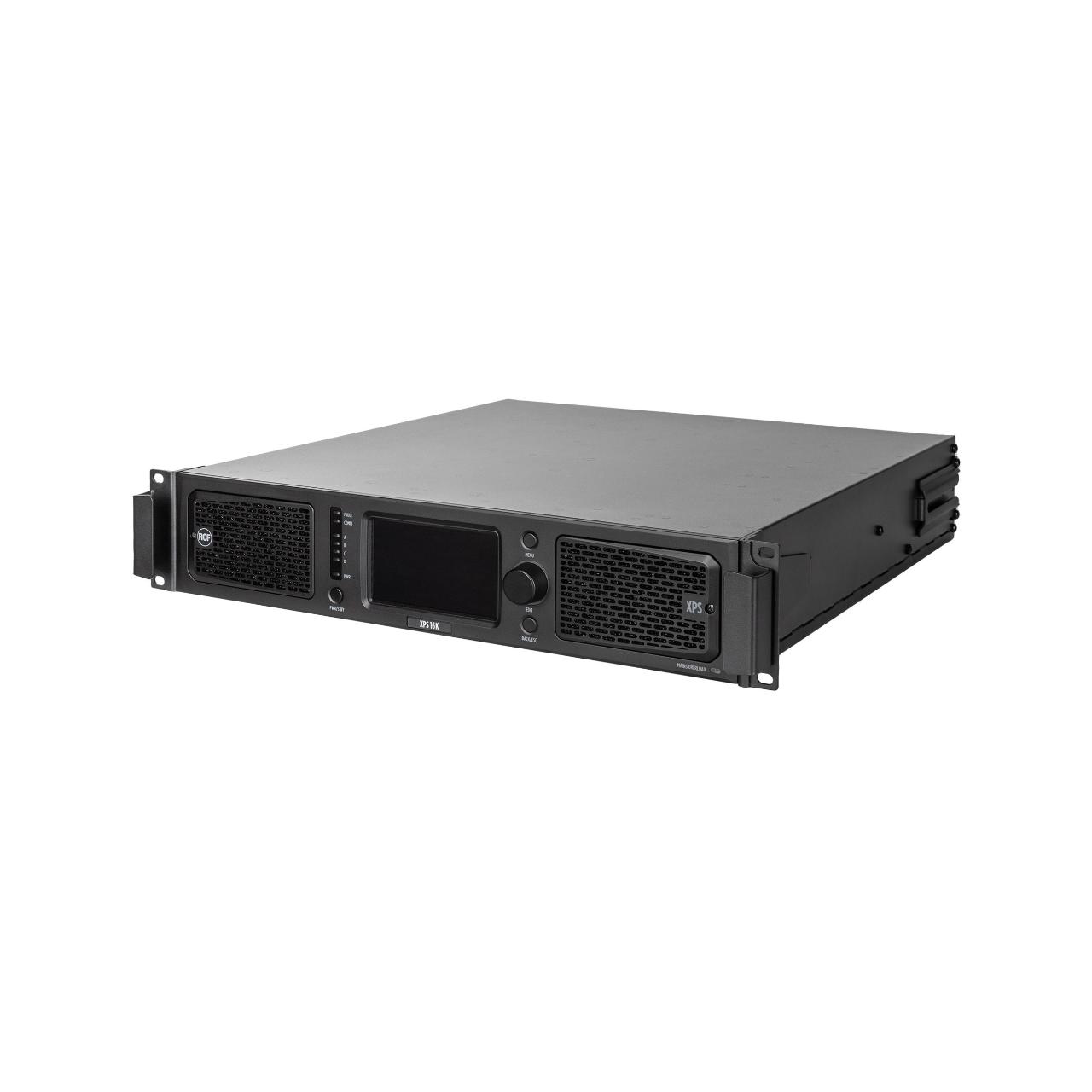

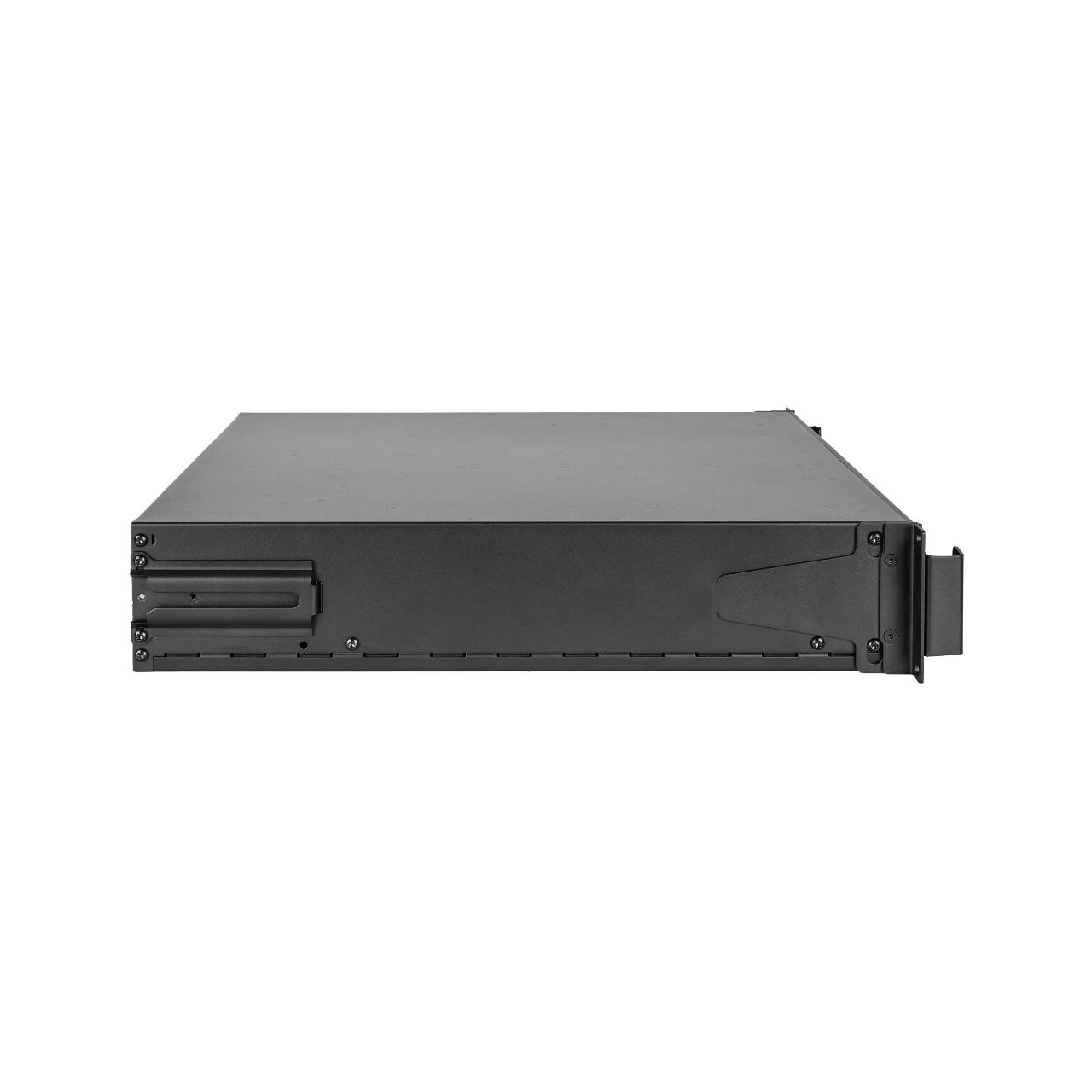

The RCF XPS 16K is a four-channel power amplifier with advanced processing and analog/digital routing options for both touring and install use. With 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.
Installed Audio - Quality Power for Fixed Sound Systems
XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with RCF's proprietary RDNet management platform.
Tour Sound - Thinking Out of the Box, and Into The Rack
XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.
Power to Change Everything - Four-Channel Modular Amplifier
XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.
New Attitude in Sound Management
XPS 16K supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 16K offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.
Power You Can Trust
RCF's effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company's beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 16K.
