Cobalt RM20-9904-G-HDBNC 20-Slot Frame Rear I/O Module 4x SDI Inputs/Outputs 3x AES I/Os - 9904 Models

Name: Cobalt RM20-9904-G-HDBNC 20-Slot Frame Rear I/O Module 4x SDI Inputs/Outputs 3x AES I/Os - 9904 Models
Brand: Cobalt Digital
SKU: RM20-9904-GHDBNC
Price: 479.00 USD
Availability: PreSale

ITEM #: RM20-9904-GHDBNC MFG #: RM20-9904-G-HDBNC

Cobalt Digital

Our Price:

$479.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RM20-9904-G-HDBNC - Overview

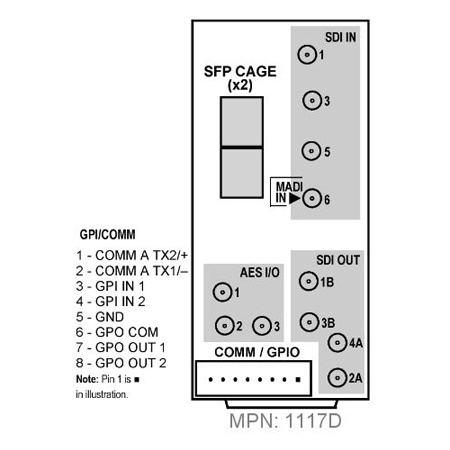

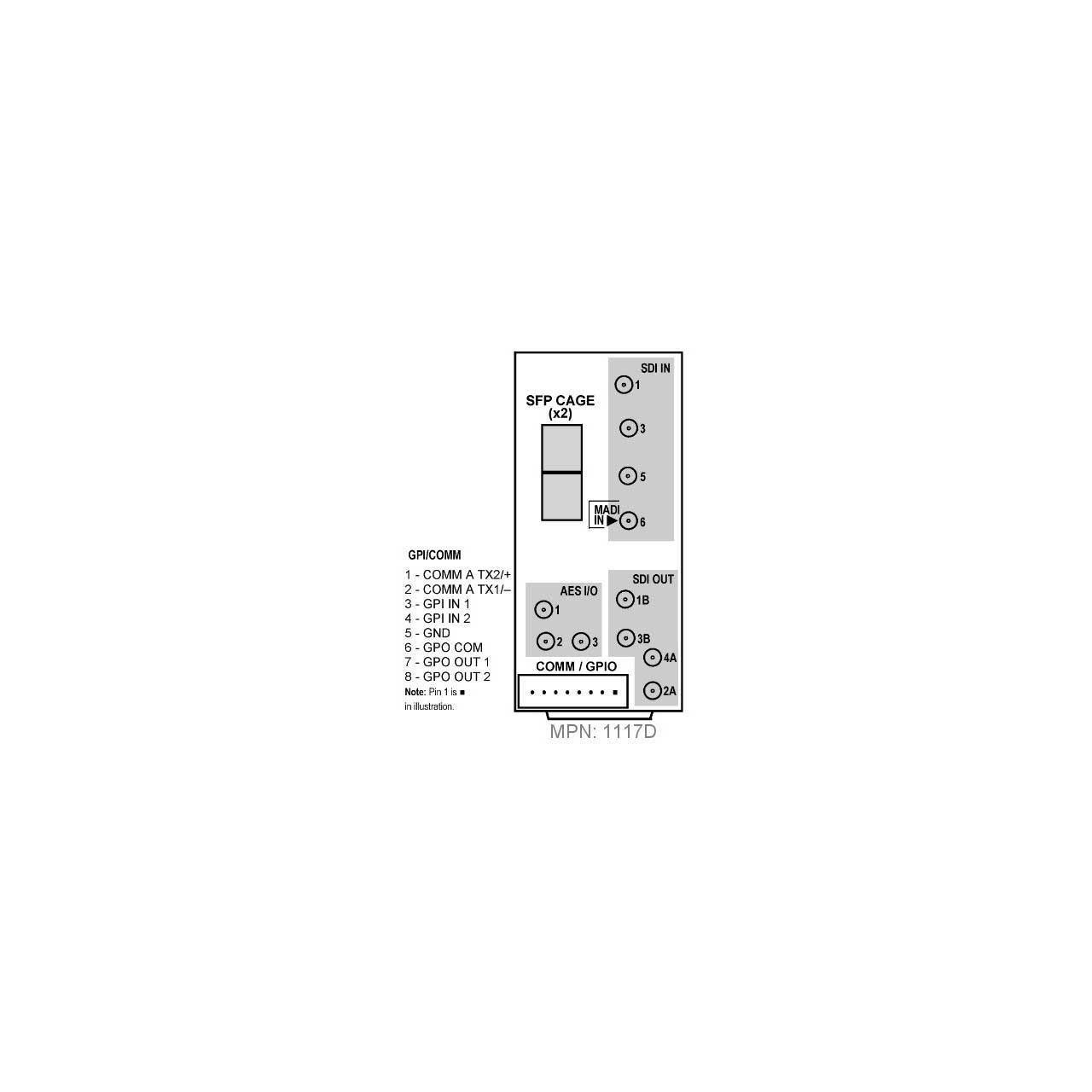

Cobalt RM20-9904-G-HDBNC is a 20-Slot Frame Rear I/O Module (Standard-Width) (4) 12G/6G/3G/HD/SD/SD-SDI Inputs, (4) 12G/6G/3G/HD/SD/SD-SDI Processed Outputs, (3) AES I/O, (2) SFP cage receptacles (when used in conjunction with SFP option), GPIO/COMM MADI Compatible (All coaxial connectors HD-BNC.) (Note: Mates to card in odd frame slot.)

Note: Mates to card in odd slot.

The award-winning Cobalt® 9904-UDX-4K 12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor is Cobalt's next generation of advanced scaler/frame synchronizers for the openGear® platform.

The 9904-UDX-4K upconverts 12G/6G/3G/HD/SD to either UHD1 3840x2160 Square DIvision Multiplex (SDM) or Two-Sample Interleave (2SI) quad 3G-SDI based formats, or can output ST 2082 12G-SDI for single-wire 4K transport. With both 12G-SDI and quad 3G-SDI inputs, the 9904-UDX-4K can downconvert 12G and quad UHD. The 9904-UDX-4K provides an HDMI 2.0 output for economical 4K video monitoring. The 9904-UDX-4K offers numerous options, including SDR-to-HDR conversion and color correction.

The 9904-UDX-4K-IP model offers the same functionality as the 9904-UDX-4K SDI-based model, but also provides dual 10GigE ports providing support for the emerging uncompressed video/audio/data over IP standards.

The 9904-UDX-4K-DSP model provides the same functionality as the 9904-UDX-4K model, and additionally also offers a DSP-based platform that supports multiple audio DSP options, including Dolby® Real-Time Loudness Leveling automatic loudness processing, Dolby® E/D/D+ encode/decode, and Linear Acoustic® UPMAXT automatic upmixing. Embedded audio and metadata are properly delayed and re-embedded to match any video processing delay, with full adjustment available for audio/video offset.

The high-density openGear® design allows for up to five 9904-UDX-4K to be installed in one 2RU openGear® frame. Card control/monitoring is available via DashBoard user interface or Cobalt's RESTful-based Reflex protocol.

Features:
- (4) SDI In
- (4) SDI Out
- (3) AES I/O (User Selectable)
- MADI Compatible
- SFP cage receptacles (valid with option -UDX-SFP or-UDX-SFP-MSA only)
- GPIO/COMM (All coaxial connectors HD-BNC)
Specifications:
- 12G/6G/3G/HD/SD-SDI Input/Outputs
- (6) 75Ω inputs (max)
- (8) 75Ω outputs (max)
- SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
- Return Loss:
  > 15 dB up to 1.485 GHz
  > 10 dB up to 3 GHz
  > 7 dB up to 6 GHz
  > 5 dB up to 12 GHz
- Input Cable Length:
  45m Belden 1694A cable at 11.88 Gbps
  120m Belden 1694A cable at 2.97 Gbps
  240m Belden 1694A cable at 1.485 Gbps
  400m Belden 1694A cable at 270 Mbps
- Output Signal Level: 800 mV ±10%
- DC Offset: 0 V ± 50 mV
- Rise and Fall Time @ 11.88 Gbps: < 45 ps
- Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

  Frame Sync Audio/VIdeo Delay
- Max offset: 20 frames
- Latency (min): 1 frame

  User Audio Delay Offset from Video
- Bulk delay control: -33 msec to +3000 msec.
- Per-channel delay controls: -800 msec to +800 msec

  AES Audio Inputs/Outputs
- (8) 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports
- Note: Hardware rev -E and later has 8 AES ports; earlier versions have 4 port max

  MADI Audio Inputs/Outputs
- (2) 75Ω coaxial ports (max)
- Note: Not all rear modules support full MADI I/O. MADI I/O is a function of Rear Module used
- and is available only on card with on rev C (or later) hardware with firmware supporting MADI I/O
- See Rear Module illustrations for specific information

  HDMI Input (Option -H2S only)
- HDMI 2.0 Input; mini connector

  HDMI Output
- HDMI 2.0 Output; type A standard connector

  GPIO
- 6 GPI (max); 2 GPO (max)
- Note: GPIO max capacity is a function of Rear Module used. See Rear Module Options tab for specific information

  Frame Reference Input
- (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

  Frame Loading (Max. recommended number of 9904 cards supported per Frame Model)
- OG3 Frame: (5) cards
- HPF-9000 Frame: (5) cards
- oGx Frame: (7) cards
  Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.
Item Includes:
- 1x Cobalt RM20-9904-G-HDBNC 20-Slot Frame Rear I/O Module 4x SDI Inputs/Outputs 3x AES I/Os - 9904 Models
Warranty:
- Five year
