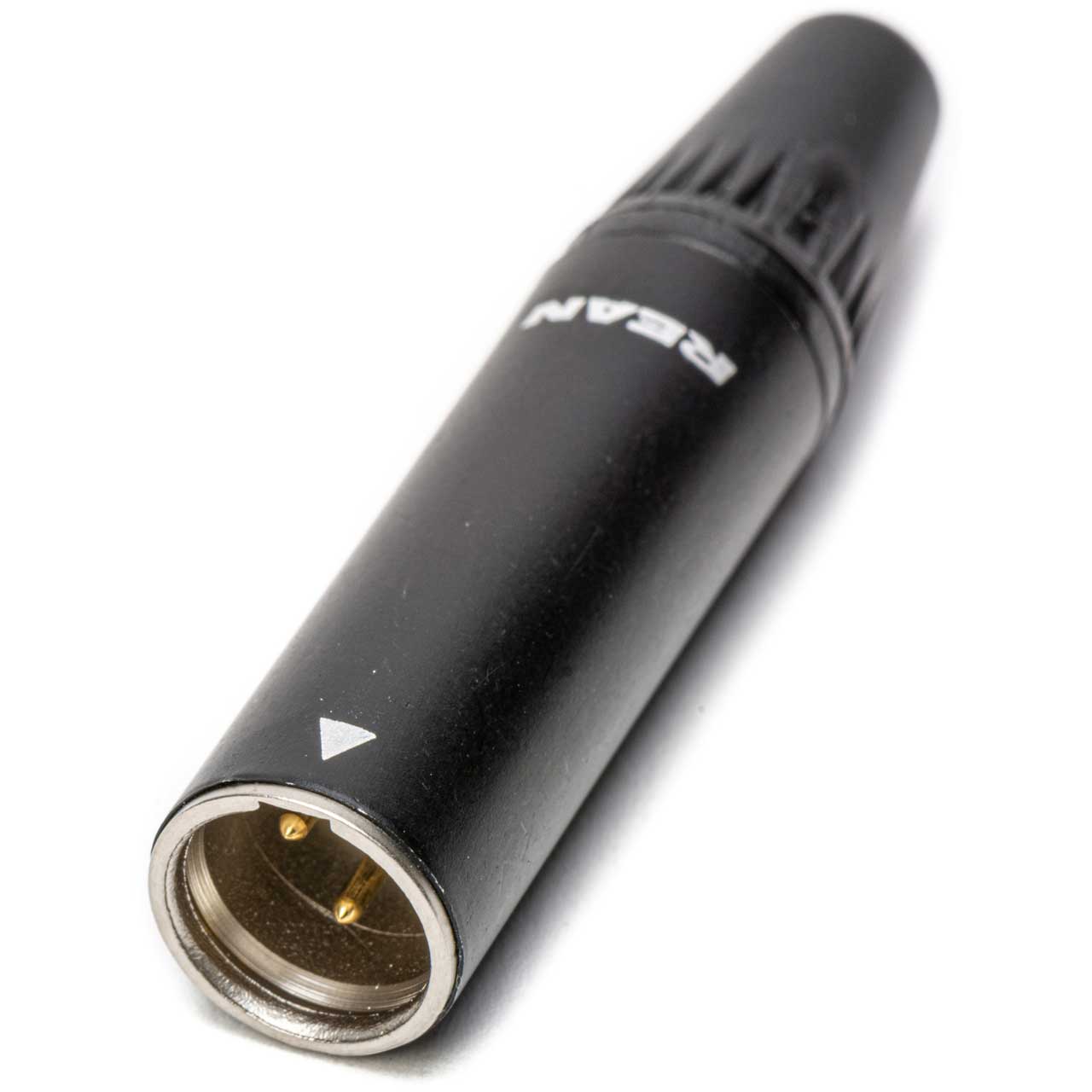

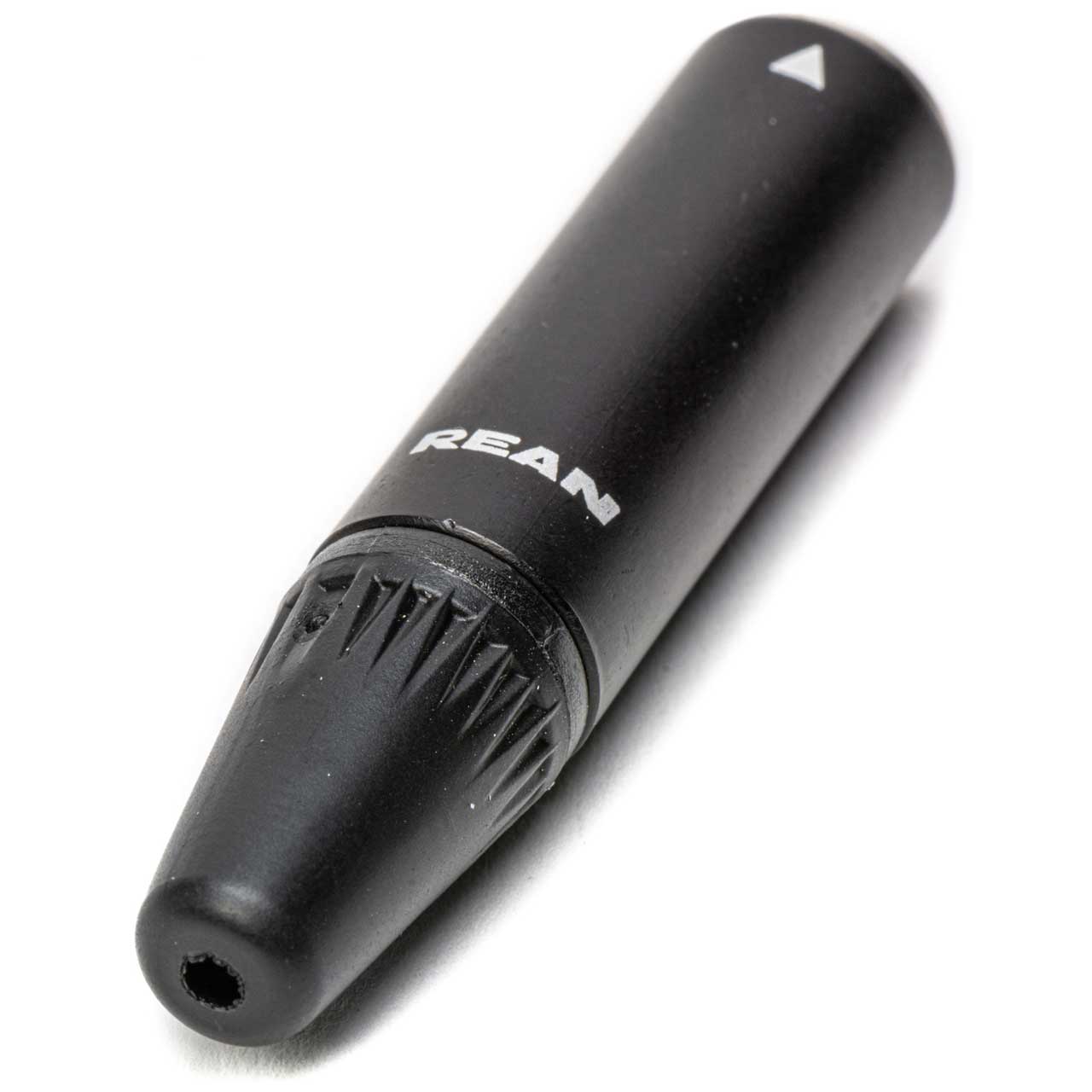

Rean RT3MC-B Tiny XLR Cable Connector - 3-Pole - Male - Black Housing - Gold Plated Contacts

RT3MC-B - Overview

• Features:

  • Bulk Pack: 100 Pieces


• Specifications:

  • Electrical
  • Contact Resistance: <10 MOhms (Inner)
  • Dielectric Strength: >0.5 kVDC
  • Insulation Resistance: >1 GOhms
  • Rated Current: <5 A

    Mechanical
  • Cable O.D.: 0.08 to 0.16" / 2 to 4.0 mm
  • Lifetime: >5000 mating cycles
  • Wire Size:
    0.22mm²
    24 AWG
  • Wiring: Solder Contacts

    Material
  • Bushing: ABS / TPU
  • Contact Plating: Au
  • Contacts: Bronze (CuSn6)
  • Insert: PA 6.6 30% GF
  • Shell: Zinc Die-Cast (ZnAl4Cu1)
  • Shell Plating: Black
  • Strain Relief: POM

    Environmental
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22° to 185°F (-30° to 85°C)
  • Dimensions (Ø x L): 0.4 x 1.9" (10.7 x 47.5mm)
