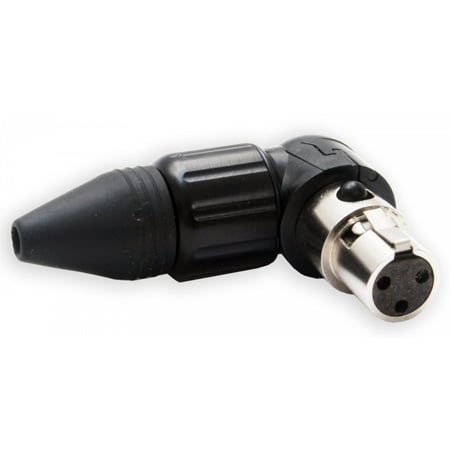

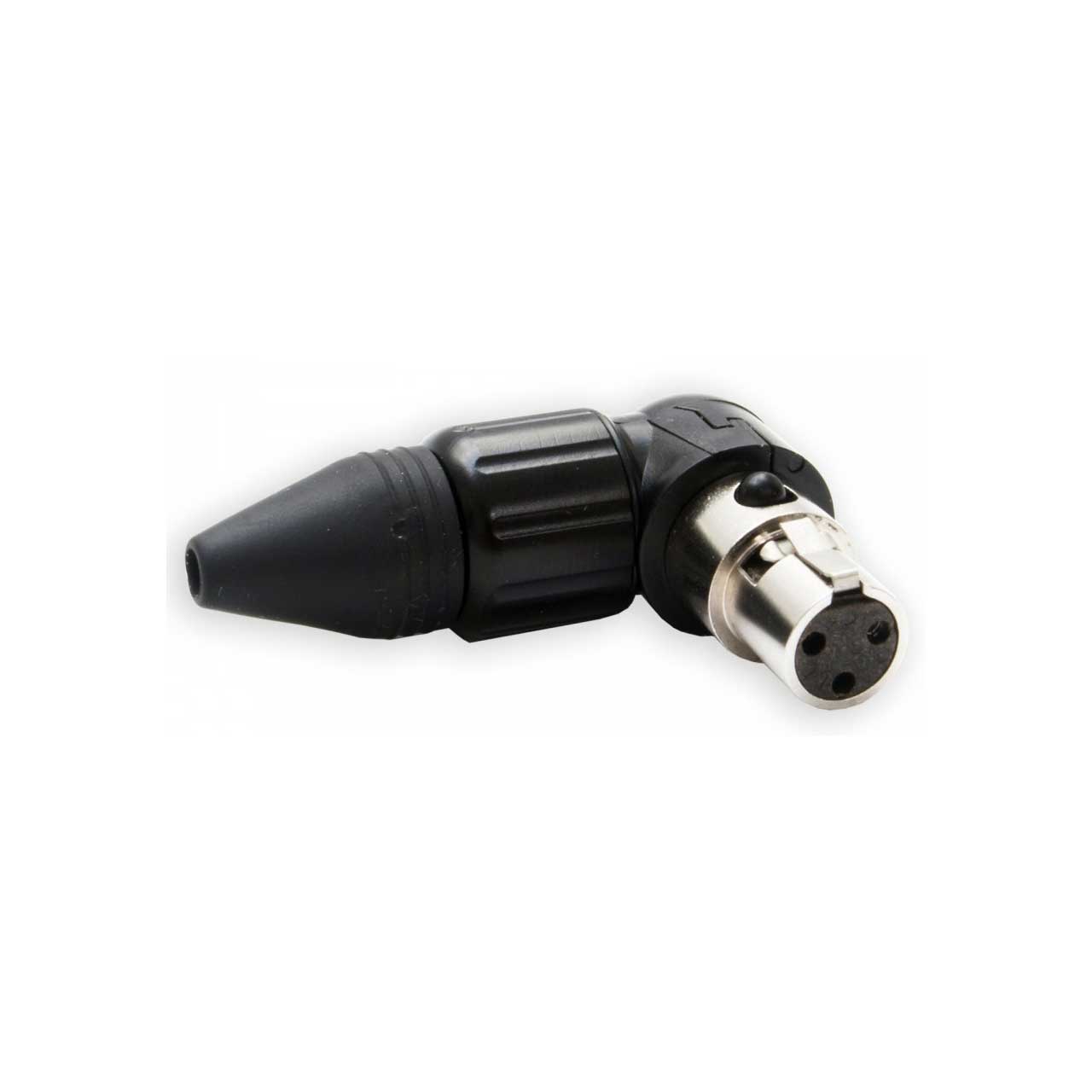

Switchcraft TARA3FX 3-Pin Female Right Angle Tini-QG Series Mini XLR Connector

ITEM #: SW-TARA3FX MFG #: TARA3FX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$13.00

Our Price:

$11.50

Availability: In Stock
iAvailability Description Popup


TARA3FX - Overview

Switchcraft's right angle Tini-QG series mini XLR connectors are made from high-quality thermoplastic and nickel plated brass. They are available with male or female contacts and are easy to assemble with chuck-style strain relief. Key features include high-quality flex relief for maximum durability, silver or gold-plated BeCu contacts to ensure excellent connectivity as well as a rotatable handle for achieving desired angle during installation.

  • Features:

    • Mates with TA Series, TB Series, TRA, and TY series Mini XLRs
    • Right angle design eliminates strain on cable
    • Fits cables up to 0.15” [3.8mm]
    • Larger flex relief available for cables up to 0.210” [5.3mm]
    • Gold plated contacts and other special options available from factory

  • Specifications:

    • Wire Gauge: 20, 22, or 24 AWG
    • Current Rating: 4A for 3, 4, and 5 pin; 1.5A for 6 pin
    • Contact Resistance: <0.015 ohms
    • Insulation Resistance: >10,000 MΩ @500VDC
    • Dielectric: 500 VAC
    • Operating Temperature: -55°C to +85°C
    • Life: 5,000 Insertion/Withdrawal Cycles
    • Insertion Force: 6.1 lbs Max
    • Withdrawal Force: 5.6 lbs Min
    • Vibration: per Mil-Std 202G, Method 102A
