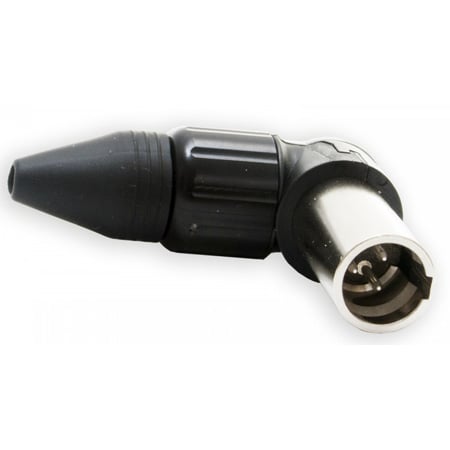

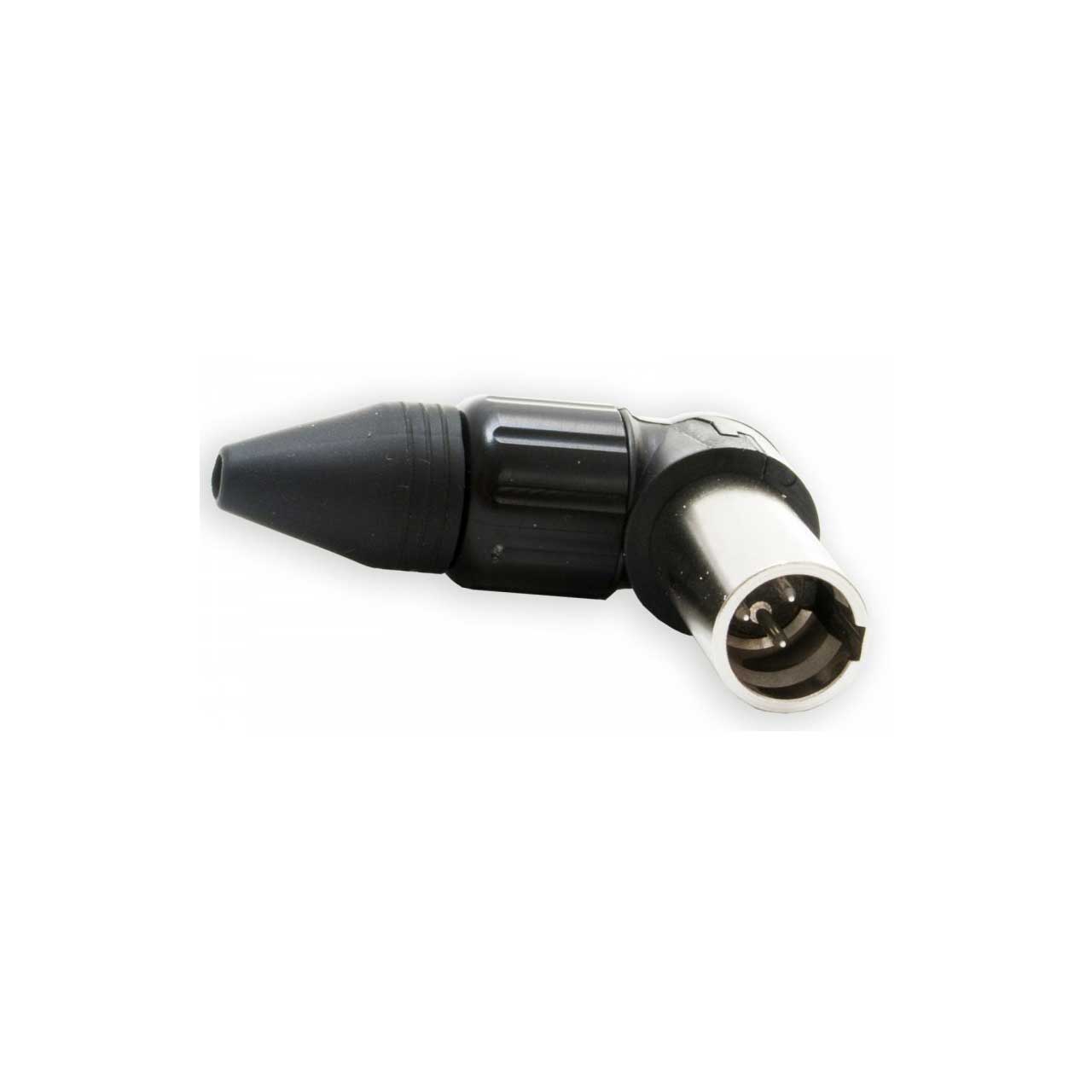

Switchcraft TARA3MX 3-Pin Male Right Angle Tini-QG Series Mini XLR Connector

ITEM #: SW-TARA3MX MFG #: TARA3MX

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$10.00

Our Price:

$9.48

Availability: In Stock
iAvailability Description Popup


    TARA3MX - Overview

    Switchcraft's right angle Tini-QG series mini XLR connectors are made from high-quality thermoplastic and nickel plated brass. They are available with male or female contacts and are easy to assemble with chuck-style strain relief. Key features include high-quality flex relief for maximum durability, silver or gold-plated BeCu contacts to ensure excellent connectivity as well as a rotatable handle for achieving desired angle during installation.

    • Features:

      • Mates with TA Series, TB Series, TRA, and TY series Mini XLRs
      • Right angle design eliminates strain on cable
      • Fits cables up to 0.15” [3.8mm]
      • Larger flex relief available for cables up to 0.210” [5.3mm]
      • Gold plated contacts and other special options available from factory

    • Specifications:

      • Wire Gauge: 20, 22, or 24 AWG
      • Current Rating: 4A for 3, 4, and 5 pin; 1.5A for 6 pin
      • Contact Resistance: <0.015 ohms
      • Insulation Resistance: >10,000 MΩ @500VDC
      • Dielectric: 500 VAC
      • Operating Temperature: -55°C to +85°C
      • Life: 5,000 Insertion/Withdrawal Cycles
      • Insertion Force: 6.1 lbs Max
      • Withdrawal Force: 5.6 lbs Min
      • Vibration: per Mil-Std 202G, Method 102A
