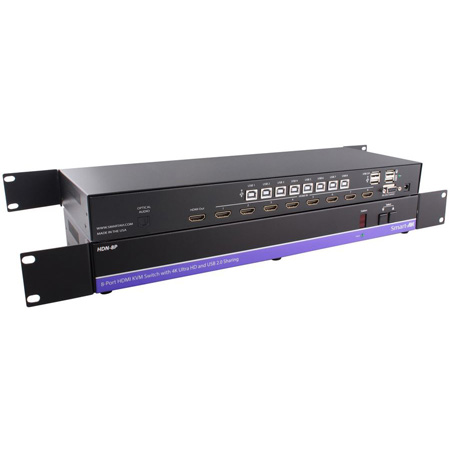

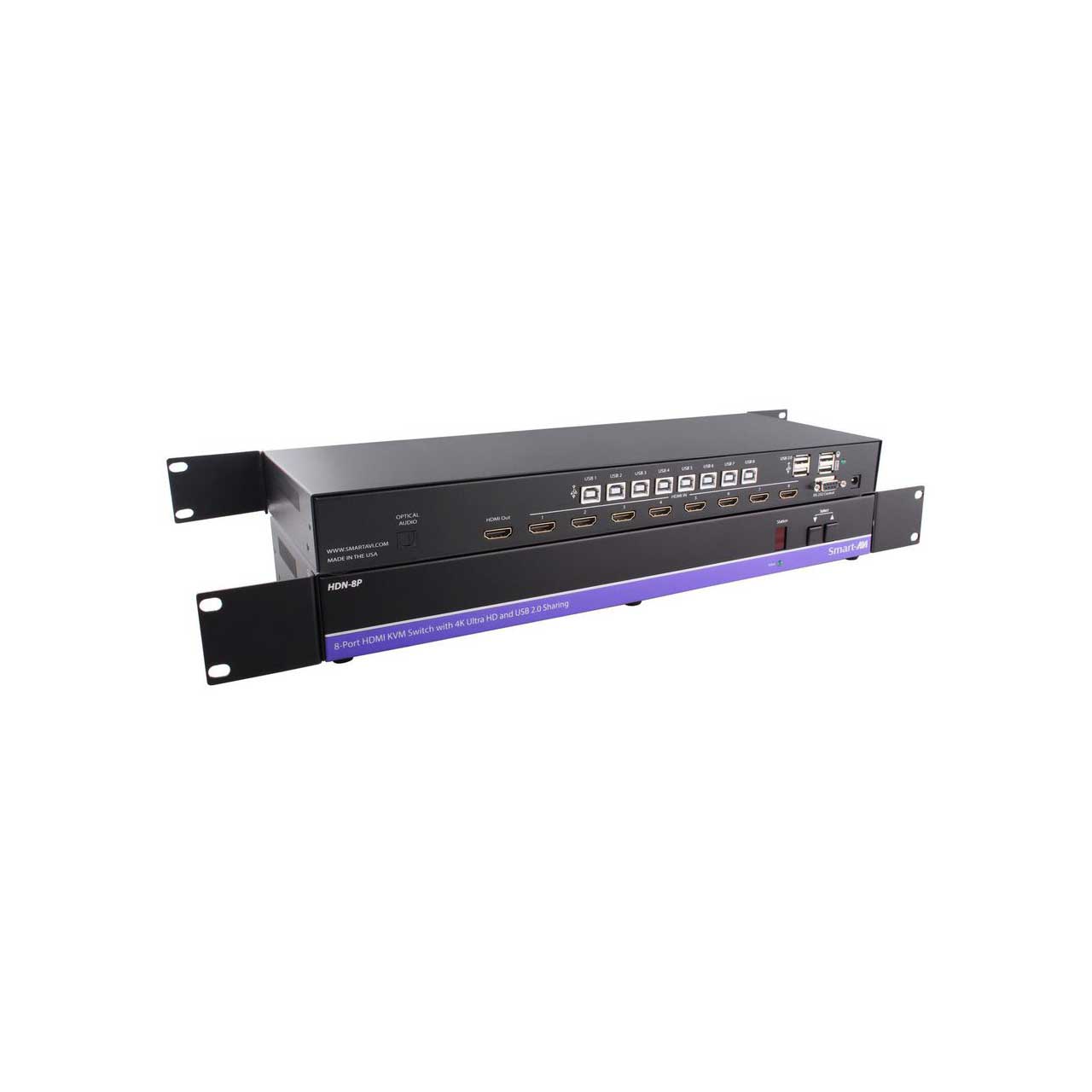

Smart AVI HDN-8P-S 8-Port HDMI KVM Switch with 4K Support USB 2.0 and Keyboard/Mouse Emulation

ITEM #: SAVI-HDN-8P-S MFG #: HDN-8P-S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SAVI-HDN-8P-S

HDN-8P-S - Overview

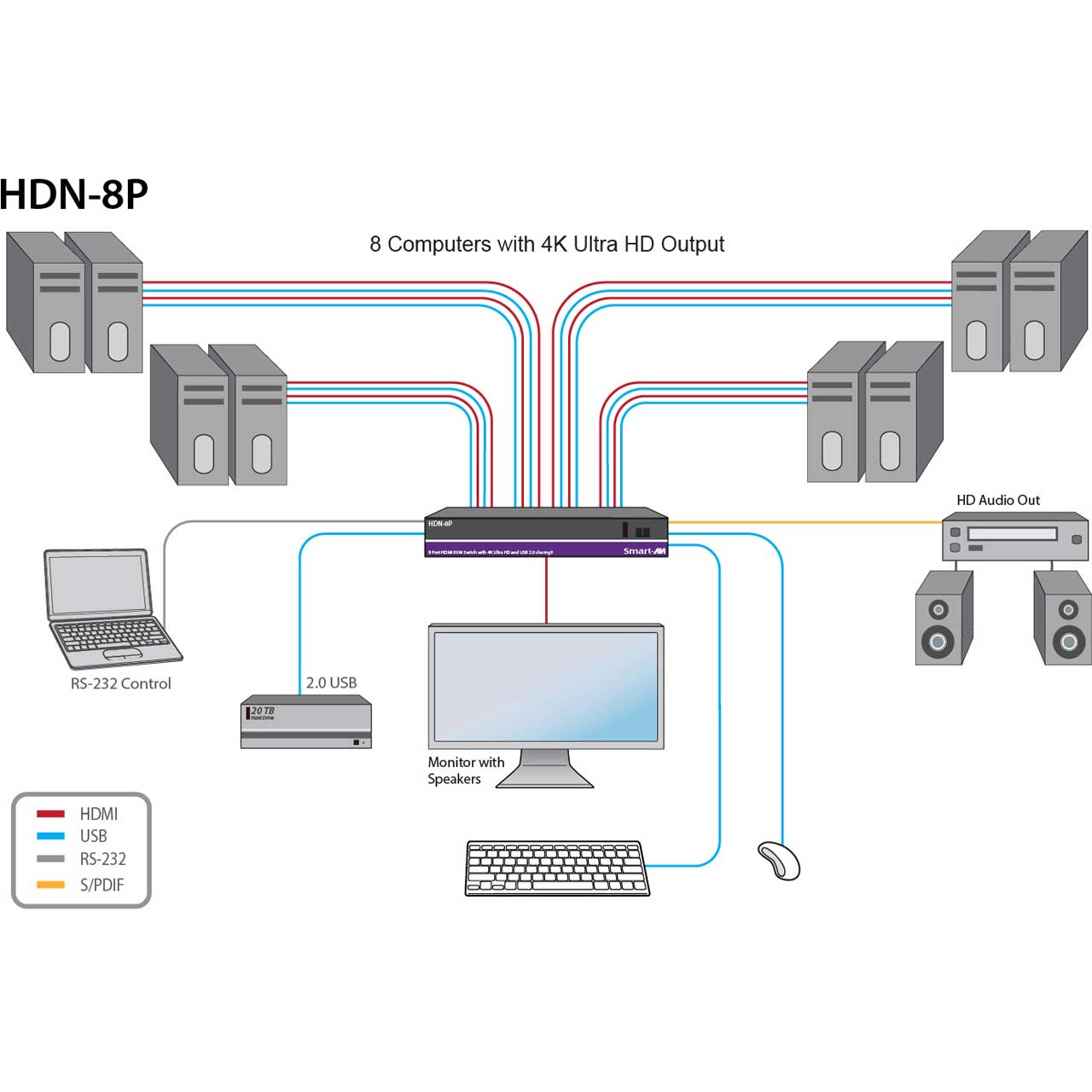

Smart-AVI HDN-8P-S is a dedicated multi-platform KVM switch capable of managing eight computers through a single HDMI monitor, USB keyboard, USB mouse, and other USB 2.0 devices. This is the first KVM switch on the market that features support for 4K Ultra HD (3840x2160 @30Hz or 4Kx2K @60Hz YUV4:2:0) workstations. The device also features SmartPreview technology, which enables simultaneous picture-in-picture monitoring of the other sources connected to the switch. This helpful technology allows users to keep tabs on the other connected workstations without constantly needing to switch back and forth. The USB emulation technology utilized by HDN-8P enables immediate hot key source switching through a remote USB keyboard and mouse. HDN-8P is HDMI 1.4 and HDCP compliant, which supports 4K Ultra HD resolutions and 12-bit deep color at 1080p @60Hz. RS-232 control and front panel switching are supported. The switch also transmits digital audio.

  • Features:

    • Switches eight Ultra HD sources to one Ultra HD display
    • Supports resolutions up to 4K Ultra HD (3820x2160 @30Hz), including 1080p (@60Hz) full HD
    • Uses HDMI 1.4 ports
    • Supports 3DTV pass through
    • Zero pixel loss with TMDS signal correction
    • Supports all USB 2.0 devices, including keyboard and mouse
    • Control Sun, Mac or PC workstations from one KVM console
    • Rack mountable in a standard 19 inch rack
    • Flash upgradable firmware
    • Supports HDCP
    • Supports LPCM 7.1, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
    • Supports control via RS-232
    • Hot key commands for quick channel selection
    • Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a document and save it in another computer
    • Complete keyboard emulation for errorfree booting
    • Front panel keys for manual switching
    • Supports DVI sources/display with DVI-to-HDMI adaptors (not included)

  • Specifications:

    • Video
    • Format: HDMI 1.4
    • Maximum Pixel Clock: 300 MHz
    • Input Interface: (8) HDMI (female)
    • Output Interface: (1) HDMI (female)
    • Resolution: Up to 4Kx2K (3840x2160 @30Hz) or 4Kx2K @60Hz YUV4:2:0, 1080P @60Hz and 1080P 3D @60Hz
    • DDC: 5 volts p-p (TTL)
    • Input Equalization: Automatic
    • Input Cable Length: Up to 20 ft.
    • Output Cable Length: Up to 20 ft.

      USB
    • Signal Type: USB 2.0, 1.1, and 1.0 w/ internal hub
    • Input Interface: (8) USB Type B
    • Output Interface: (2) USB 1.1 Type A for keyboard and mouse (2) USB 2.0 Type A Transparent

      Control
    • Front Pane: Tactile Switches
    • RS-232: Via Control @ 9600 bps
    • Hot keys: Via Keyboard
    • Emulation: Keyboard and mouse only

      Other
    • Power: External 100-240 VAC/ 5VDC4A @ 20W
    • Consumption: 20 W (Max)
    • Dimensions: 1.75" H x 6.25" D x 14.75" W
    • Weight: 3.5 lbs
    • Approvals: UL, CE, ROHS Compliant
    • Operating Temp.: -5 to +35°C(+23 to +95°F)
    • Storage Temp.: -4-185 °F (-20-85 °C)
    • Humidity: 5 to 90%RH (No Condensation)

  • GTIN:

    0813280021517
