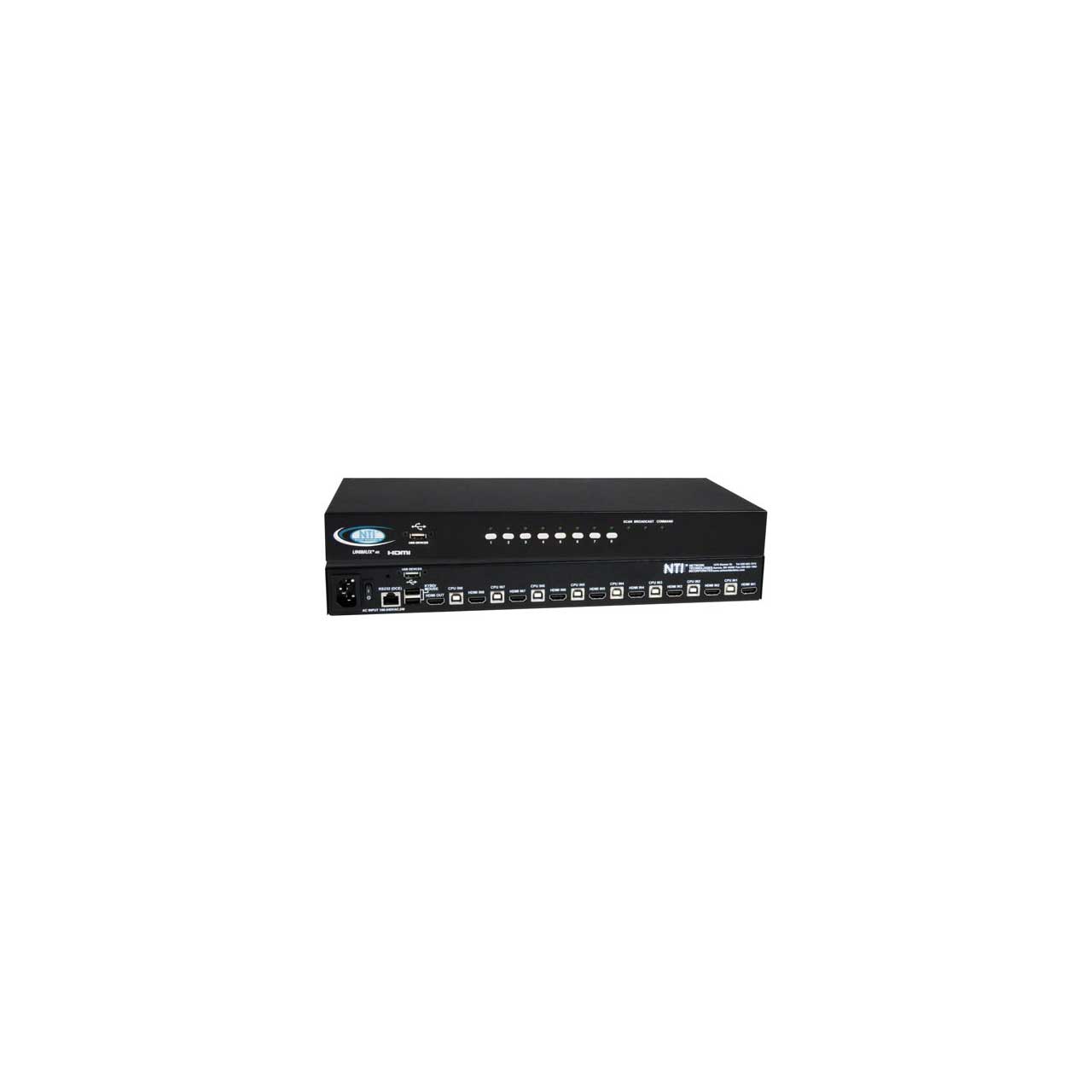

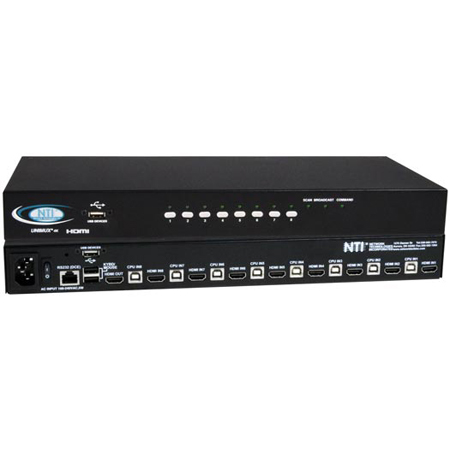

NTI UNIMUX-HD4K18GB-8 8-Port 4K 18 Gbps HDMI 2.0 / USB 2.0 KVM Switch

UNIMUX-HD4K18GB-8 - Overview

• Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA)
  • HDMI 2.0
  • Up to 12-bit Deep Color on input and 8-bit on output.
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Dolby Digital+, Dolby Atmos, LPCM 2/5.1/7.1CH, DTS 5.1, and DTS:X
  • RGB, YUV 4:4:4, YUV 4:2:2, and YUV 4:2:0
  • Bandwidth up to 600 MHz (18Gbps)
  • 3D (1080p @60Hz)
  • HDR
  • HDCP 2.2 compliant.
  • Features NTI's patented true autoboot USB switching - all attached computers can be booted simultaneously.

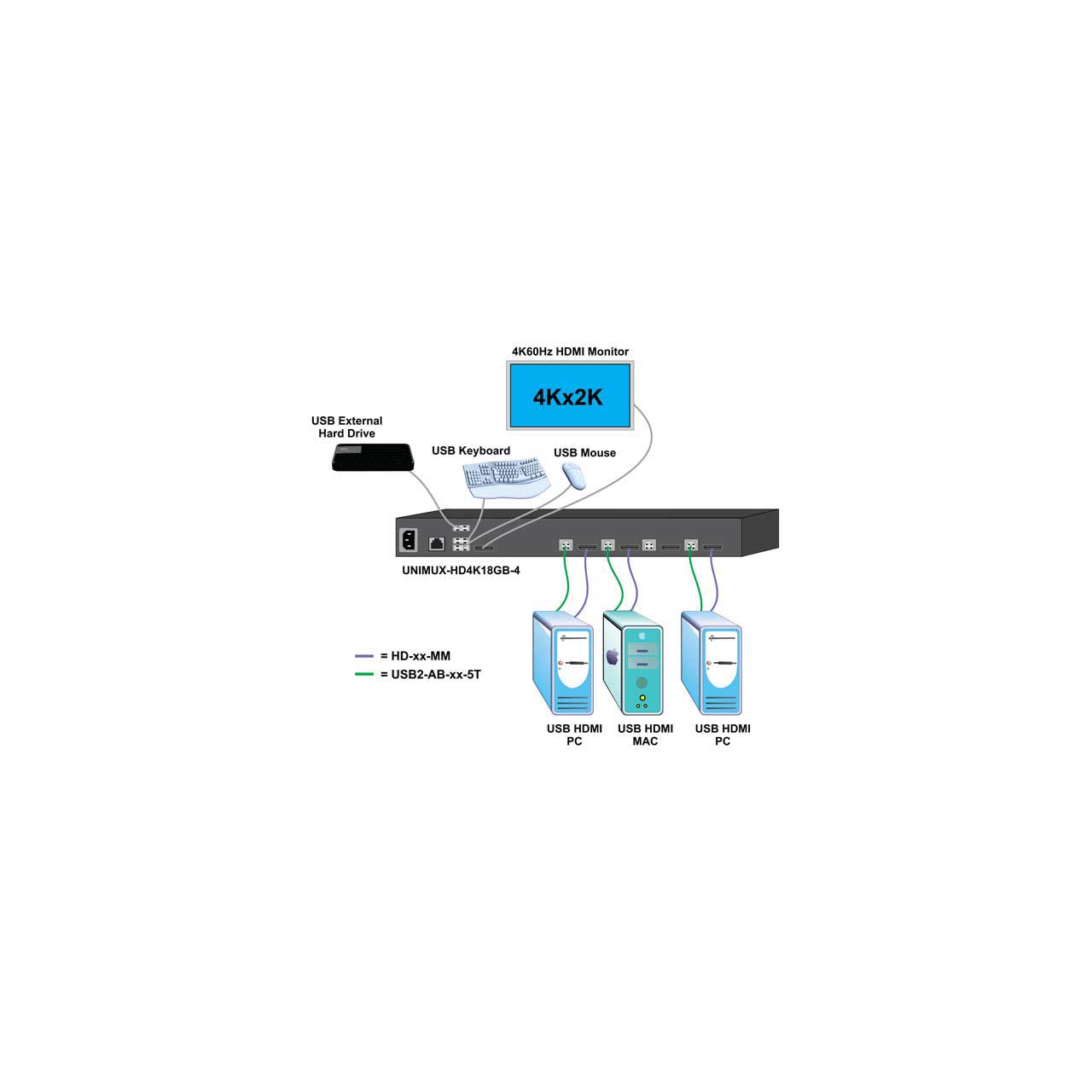

  • Compatible with USB computers (PC and MAC) with HDMI outputs.
  • Control the switch through the front panel buttons, keyboard commands, OSD, or RS232.
  • Two transparent USB 2.0 ports, in addition to keyboard and mouse ports, for connecting USB devices such as printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports high-speed (480 Mbps), full speed (12 Mbps), or low speed (1.5 Mbps) USB devices.
  • High quality steel construction.
  • Flash upgradeable.
  • Rackmount kit included.
  • Cable management tray included.


• Specifications:

  • Hosts
  • Female HDMI-A connectors
  • Female USB Type B connectors
  • Supports USB-enabled computers (PC and MAC) with HDMI video
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13
  • Compliant with HDMI 2.0 and HDCP 2.2 standards

    Monitor
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @24/30/60Hz RGB/YUV 4:4:4, HDTV resolutions to 1080p @120Hz, and up to 1920x1200 (WUXGA)
  • One female HDMI-A connector
  • Compliant with HDMI 2.0 and HDCP 2.2 standards

    Devices
  • Two female USB 1.1 Type A connectors for keyboard and mouse
  • Supports full-speed (12 Mbps) or low-speed (1.5 Mbps) USB keyboard and mouse
  • Keyboard and mouse are hot-pluggable
  • Supports MAC extra keys
  • Two transparent female USB 2.0 Type A connectors for additional USB devices
  • Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) USB devices including, but not limited to, touchscreens monitors, CAC card readers, printers, scanners, and thumb drives

    Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector.
  • 14Watts
  • The combined current consumption of the connected USB devices cannot exceed 1.0A

    Environmental
  • Operating temperature: 32 to 104°F
  • Storage temperature: -22 to 140°F
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH

    Dimensions
  • Without supplied rackmount kit: 15.32x6.82x1.75 in
  • With supplied rackmount kit: 19x6.82x1.75 in

    Front Panel Interface Control Methods
  • LEDs indicate currently selected port and mode of operation
  • Hold in any button for more than five seconds to go into Scan, Broadcast or Command Mode
  • In Normal Operating Mode, the user can directly operate the selected computer with transparent presence of the NTI switch
  • Scan Mode automatically and sequentially displays the video from each powered on computer for 5-255 seconds
  • Broadcast Mode allows the user's keystrokes to be sent to all powered on computers. (Broadcast Mode is not available for MACs.)
  • Command Mode allows the user to give instructions to the switch through his/her keyboard. Keystrokes are not passed to the computer
  • Keyboard
  • Scan, Broadcast and Command Modes are available from the keyboard using hot keys
  • Use the keyboard to command the switch box to select ports or configure the Scan delay
  • Type Ctrl + <`> to go into Command Mode
  • Press to leave Command Mode and return to Normal or Scan Mode
  • RS232 Control
  • Female RJ45 connector
  • Baud rate: 1200 to 115200
    Commands
  • CS - connect output (user) port to specific input (CPU) port
  • CB - change baud rate
  • RO - reads what input is connected to the output
  • RU - reads unit size
  • RV - return firmware version
  • On Screen Display (OSD)
  • Select computers by name with the On Screen Display (OSD)
  • Use keyboard or mouse to operate the switch from menus superimposed onto the monitor
  • Names can be up to 30 characters long
  • Help screen assists user with the OSD
  • OSD is built into the switch - no need to install additional hardware or software
  • OS and software-independent


• Item Includes:

  • 1x NTI UNIMUX-HD4K18GB-8 8-Port 4K 18GBPS HDMI USB KVM Switch
