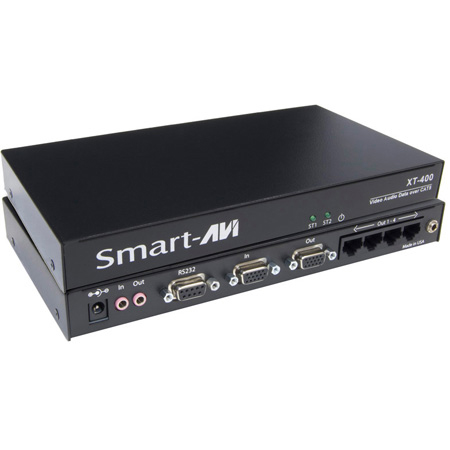

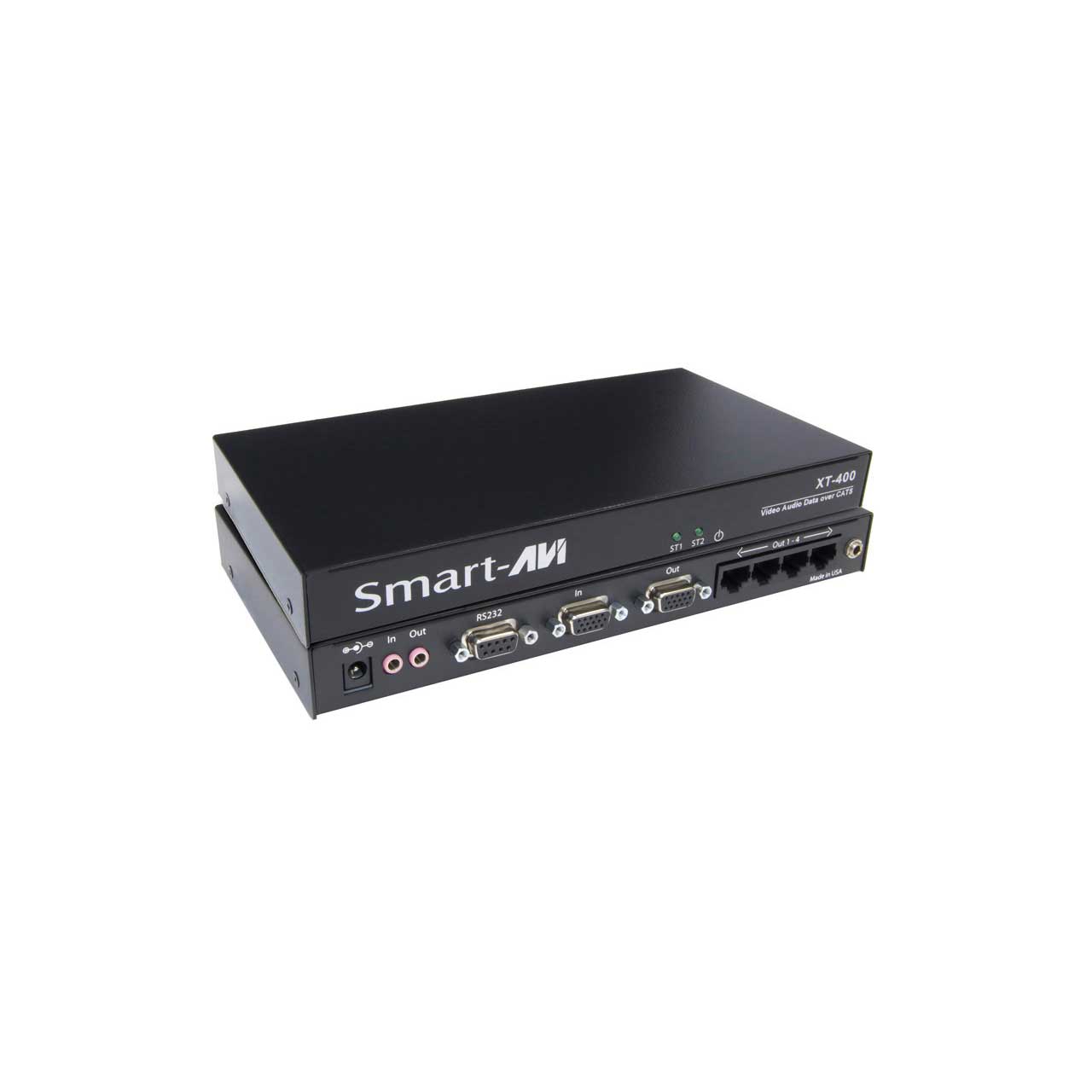

Smart AVI XT-TX400S UXGA/Audio/IR/RS232 Multi-Point CAT5 Extender 4 ports Transmitter

XT-TX400S - Overview

• Features:

  • Supports Dual Screens.
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8.
  • Each output reaches up to 1,000 feet (300 m).
  • Supports high resolution video up to 1900x1200
  • HDTV Compatible (720p, 1080i,1080p)
  • 300 MHz Bandwidth.

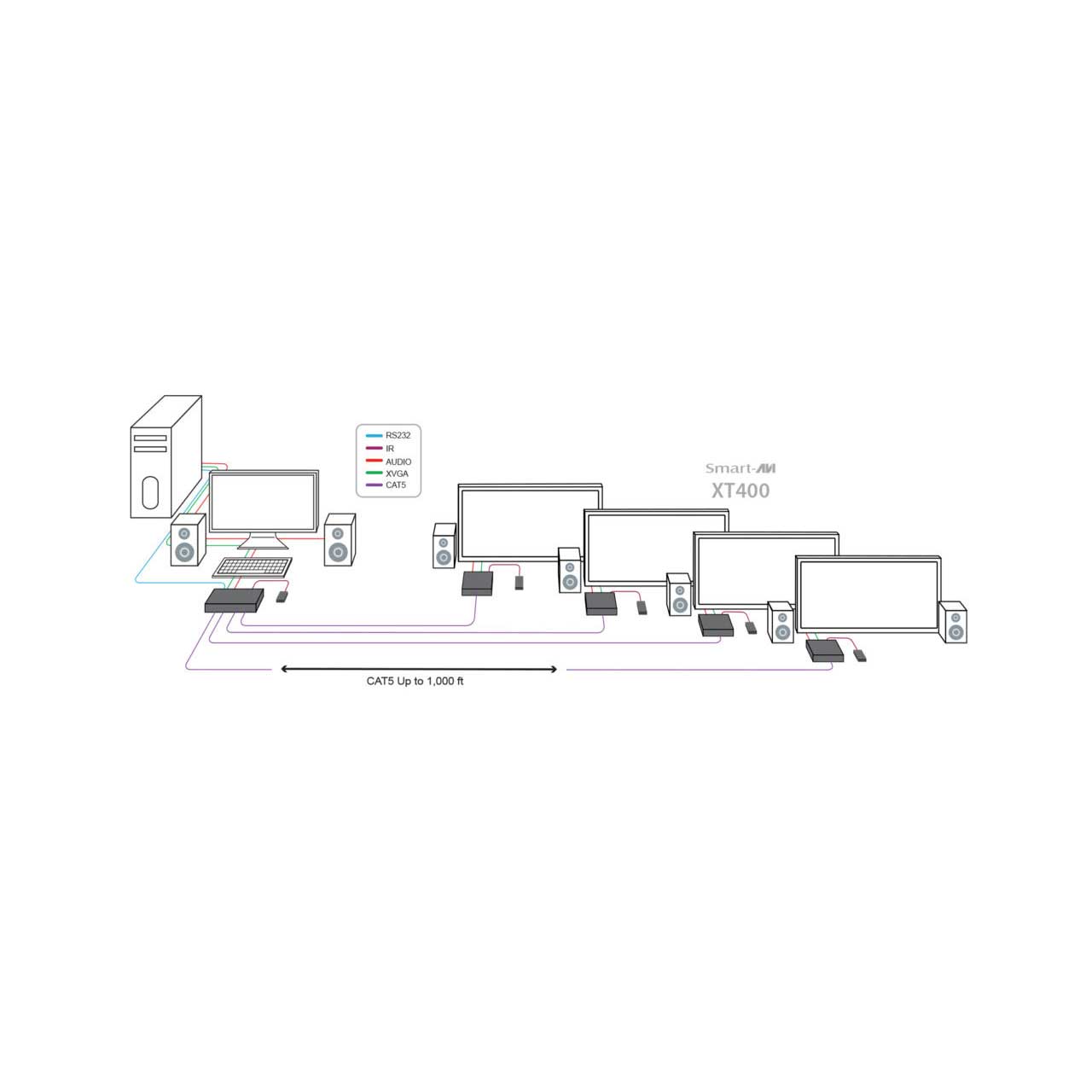

  • Sends high-resolution VGA, Stereo Audio signals, RS232 or IR from one source to 4 locations.
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation.
  • Compatible with Line Level Stereo Audio Signals.
  • High ground loop immunity.
  • Built-in power surge and transient protection.
  • Designated trimmer in the remote unit to compensate for cable length.
  • Compact Metal Case Enclosure.
  • External power supply.
  • RS-232c Communication support to single or multiple Displays.
  • IR command to single or multiple Displays


• GTIN:

  0813280024105
