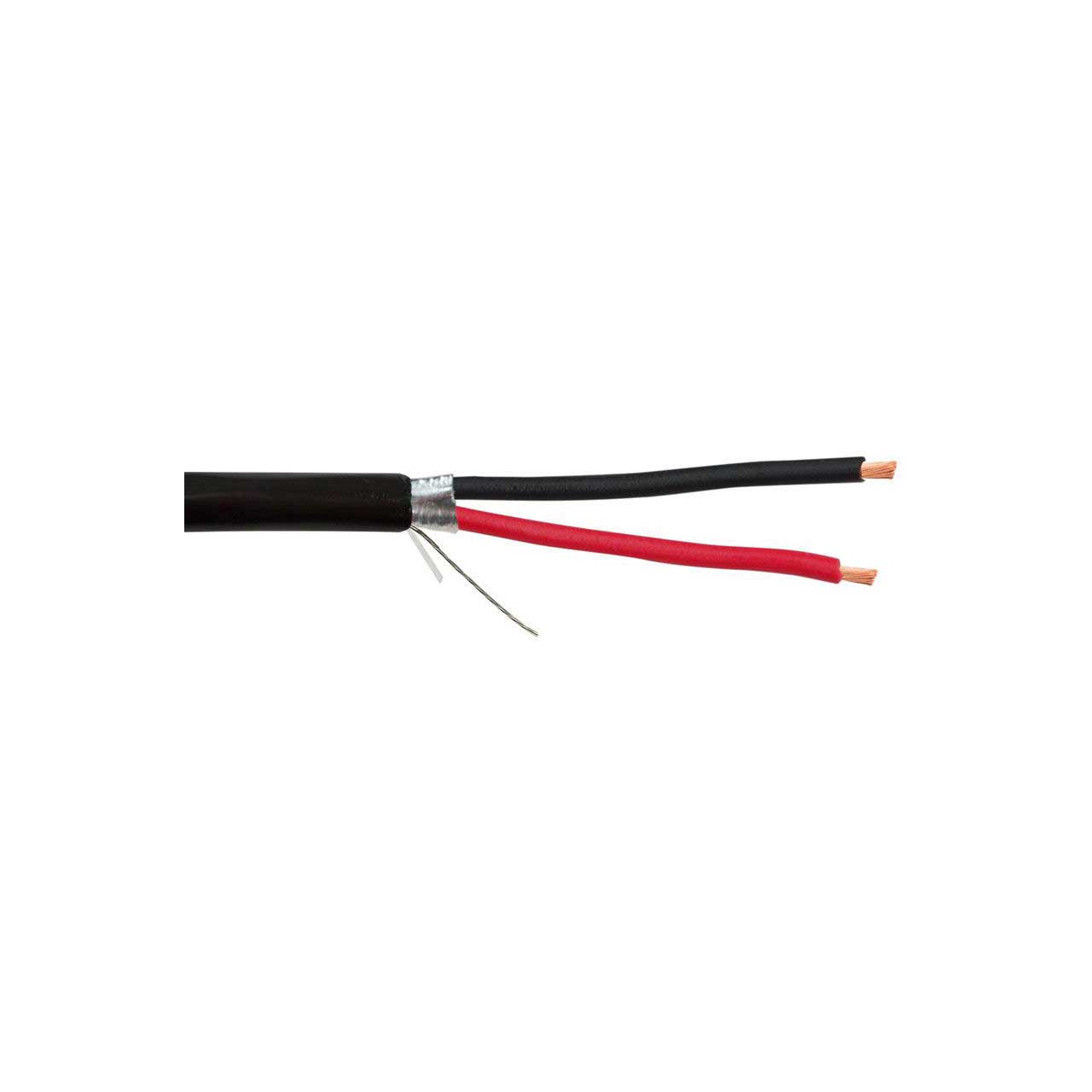

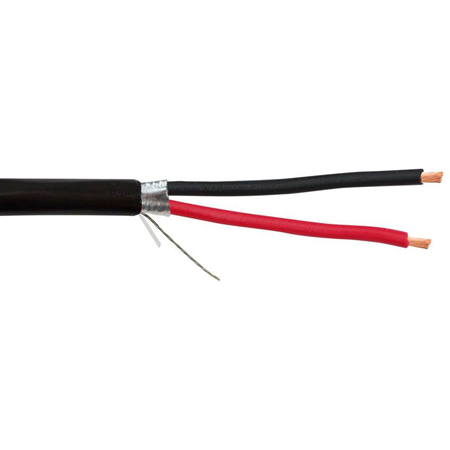

Structured Cable 18/2SHDB 2-Conductor 18 AWG Shielded Direct Burial Speaker Cable - 1000 Feet Black

18/2SHDB - Overview

• Features:

  • Linear Low-Density Polyethelene jacket with UV Sun Resistance
  • Insulated twisted pair
  • Water Block Tape (WBT) for moisture protection
  • Descending Feet and Zone/Outlet Jacket Markings
  • Spool Packaging

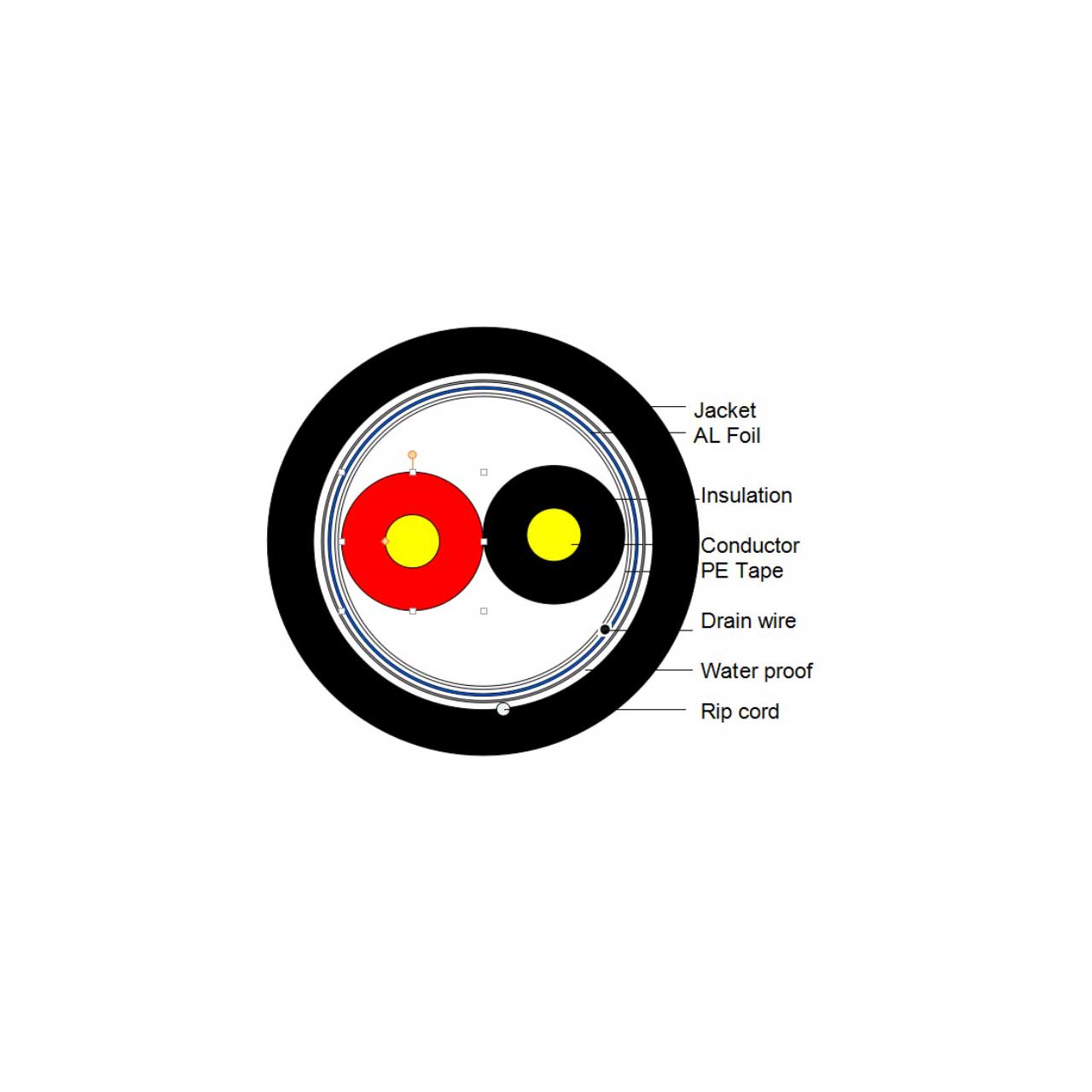

• Specifications:

  • Conductor:
  • Material: Stranded Bare Copper
  • Size: 18AWG X 2C
  • Construction: 16/0.254mm±0.004mm
  • Resistance: Max 22.8Ω/km at 20°C

    Insulation:
  • Material: PVC
  • Min. Thickness: 0.24mm
  • Avg. Thickness: 0.26mm
  • Diameter: 1.7mm±0.05mm
  • Colors: Black and Red
  • Resistance: Min 50MΩ*km at 20°C
  • Unaged Tensile Strength: 13.8Mpa
  • Unaged Elongation: 100%
  • Aged Tensile Strength: 11.7Mpa (100°C 168h)
  • Aged Elongation: 50% (100°C 168h)

    Shield:
  • Core Wrap: PE Tape
  • Drain Wire (TC): 7/0.20±0.004mm
  • Shield: AL Foil
  • Filler: Water proof

    Jacket:
  • Material: LLDPE
  • Min. Thickness: 0.54mm
  • Avg. Thickness: 0.60mm
  • Diameter: 5.4mm±0.20mm
  • Rip Cord: Nylon
  • Unaged Tensile Strength: 9.8Mpa
  • Unaged Elongation: 100%
  • Aged Tensile Strength: 9.2Mpa (100°C 168h)
  • Aged Elongation: 50% (100°C 168h)


  • Operating Temperature Range: -20°C - +75°C
  • Dielectric Strength: Min AC1.5KV
  • Rated Voltage: Max 300V


• GTIN:

  0810070010713
