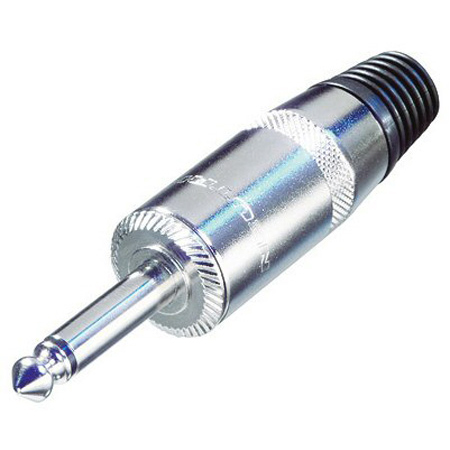

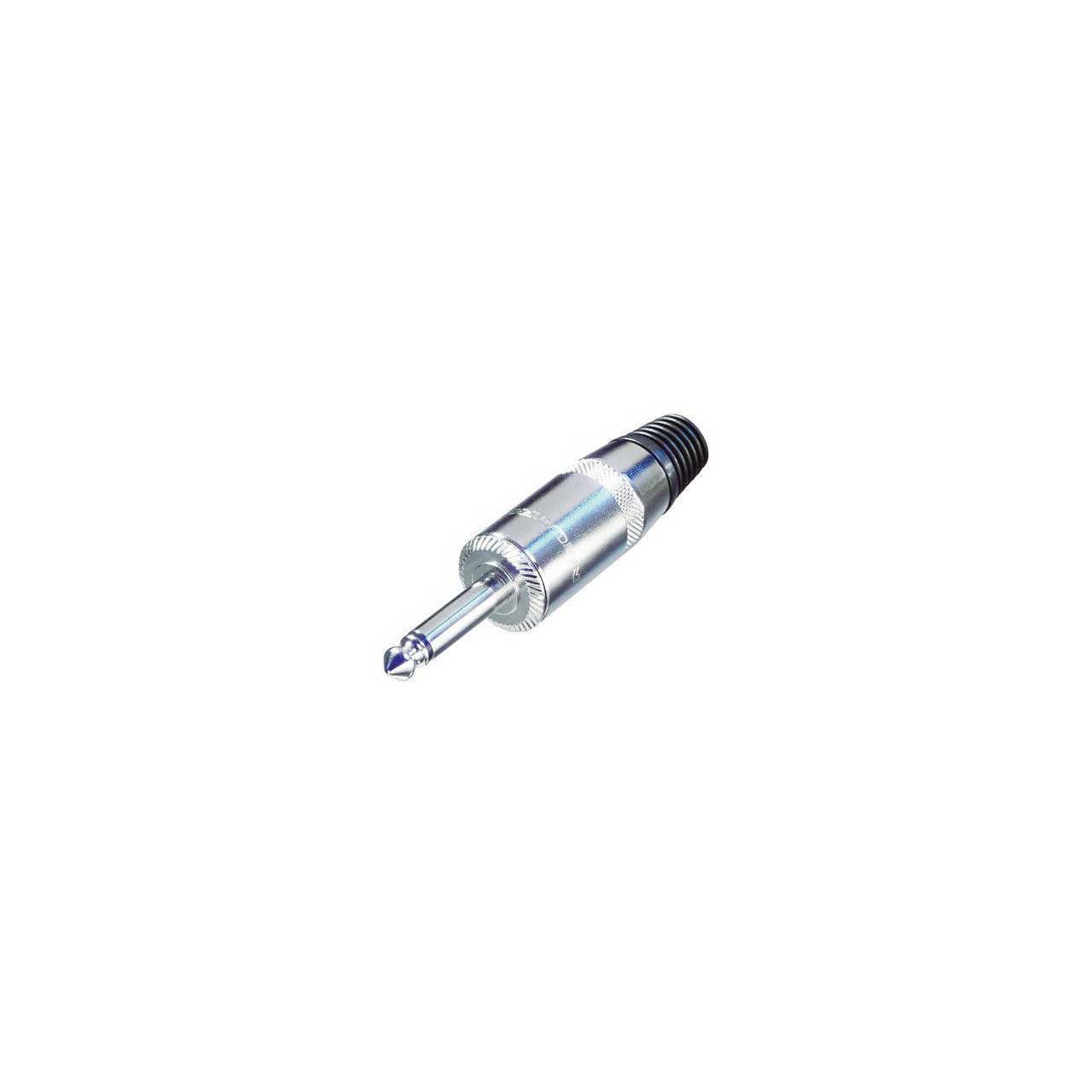

Rean NYS225L Jumbo 1/4 Inch TS Connector with Large 8mm Cable Opening

NYS225L - Overview

• Specifications:

  • Product
  • Title: NYS225
  • Connection Type: 1/4" Plugs & Jacks

    Electrical
  • Contact Resistance: = 10mΩ
  • Insulation Resistance: = 200 MO(Initial)
  • Dielectric Strength: 0.5 KVdc 50HZ

    Mechanical
  • Lifetime: > 1,000 Mating Cycles
  • Insertion and Withdrawal Force: = 60 N
  • Cable O.D.:
    - Max 8.8 mm for standard outlet
    - Max 10 mm for large outlet ( * L)
  • Wiresize: 12 AWG

    Material
  • Tip: Brass
  • Bushing: PA66+30%GF
  • Inner: Steel
  • Insulation: CerPVC
  • Sleeve: Brass
  • Insulation: PA66+30%GF
  • Soldering Contact: Brass
  • Cable Clamp: Steel
  • Housing: Zinc
  • Push Ring: ABS
  • Boot: CerPVC
  • Tip: Nickel Plating
  • Sleeve: Nickel Plating
  • Sleeve: Nickel Plating
  • Housing: Nickel Plating
  • Inner: Zinc Plating
  • Soldering Contact: Tin and Cer
  • Cable Clamp: Tin and Cer


• GTIN:

  7613187015960
