Shattuc SCA-2201 22AWG 1 Pair Shielded Cable for Microphone and Line Level Analog Audio - 1000 Foot

ITEM #: SCS-SCA-2201 MFG #: SCA-2201

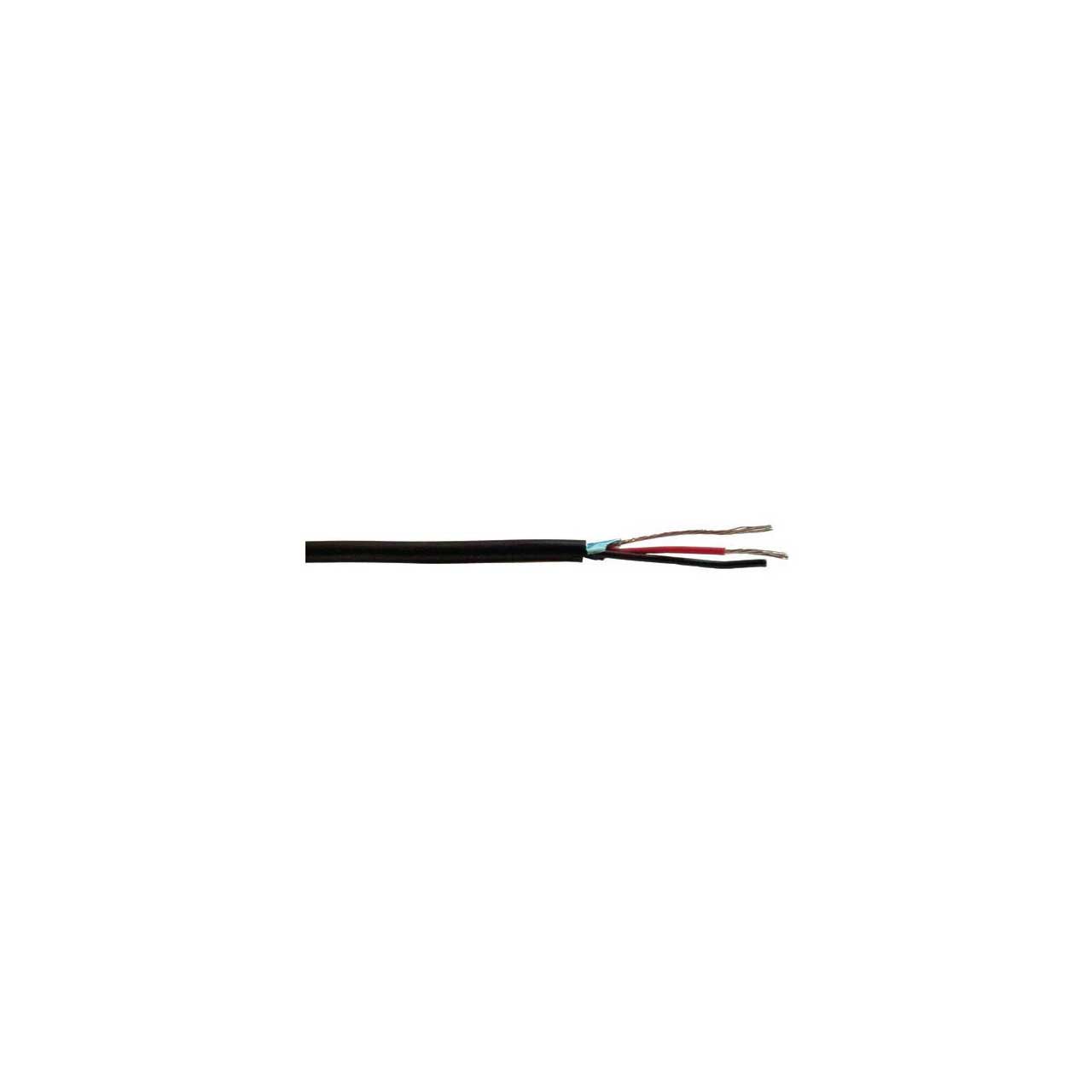

Primary Image
Shattuc Cord Specialties, Inc.
Free Shipping with $49 Minimum Order

List Price:

$209.08

Our Price:

$199.12

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SCA-2201 - Overview

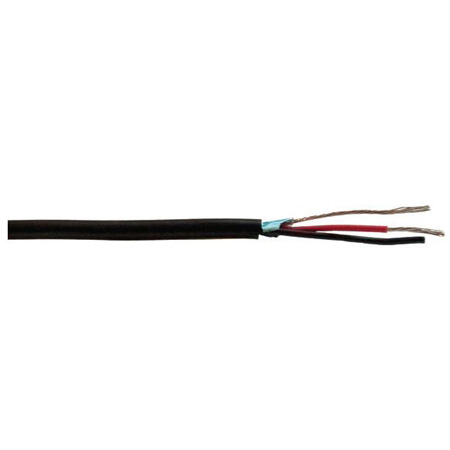

The Shattuc SCA-2201 is a 22 AWG, 1 shielded pair cable constructed with stranded tinned copper conductors, PP insulation, overall shield, and an overall PVC jacket, manufactured in the USA and (UL) listed CMR C(UL) US 167°F.

Applications:
Line level analog audio applications

  • Specifications:

    • Conductor
    • Material: Annealed Tinned Copper
    • Conductor Count: 2 Conductors
    • AWG & Stranding: 22AWG 7 Strand Class B

      Insulation
    • Material: Polypropylene
    • Wall Thickness: 0.008"
    • Color Code: Black, Red

      Assembly
    • Nominal Lay Length: 2.00" LHL (6TW/FT)
    • Drain Wire: 22 AWG 7 Strand Tinned Copper (inside)
    • Pair Shield: Heat Fusible Aluminum/MYLAR 100% Coverage

      Jacket
    • Material: Pressure Extruded Polyvinylchloride
    • Wall Thickness: 0.023"
    • Diameter: 0.137" ±0.005"
    • Color: Multiple
    • Ripcord: No
    • Weight: 15 lbs/mft

      Nominal Electrical Characteristics
    • D.C. Resistance: 14.1Ω/Mft @68°F
    • Shield D.C. Resistance: 14.3Ω/Mft @68°F
    • Capacitance: 27.60 pF/ft Conductor to Conductor
    • Capacitance of Shield: 49.68 pF/ft conductor to Shield
    • Impendance: 55Ω
