SCA-2202AZR - Overview

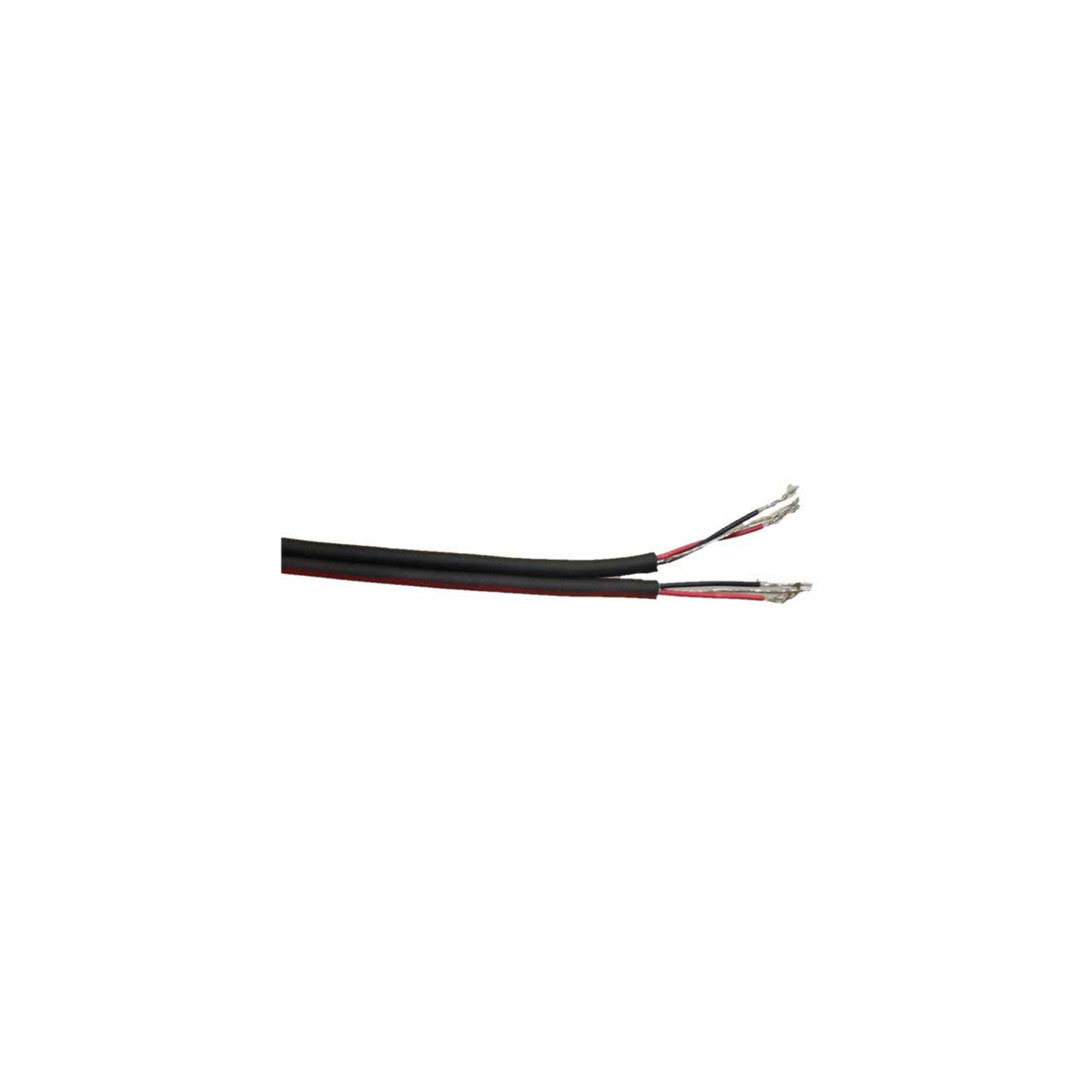

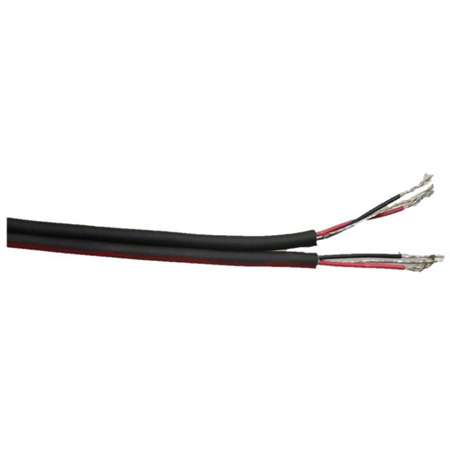

This Shattuc SCA.2202AZR is a two-element zip-cord cable with an overall integral pressure extruded PVC jacket. CMR c(ul)us rated.

Applications:
For line level audio applications in riser environments

  • Specifications:

    • Conductor
    • Material: Annealed Tinned Copper
    • Conductor Count: 2 Pairs
    • AWG & Stranding: 22AWG 7 Strand Class B

      Insulation
    • Material: Polypropylene
    • Wall Thickness: 0.008"
    • Color Code: Black, Red

      Assembly (Pairs)
    • Nominal Lay Length: 1.00" LHL (12.00 TW/FT) Nominal
    • Drain Wire: 22 AWG 7 Strand Tinned Copper (In Continuous Contact With Foil Shield)
    • Pair Shield: Heat Fusible Aluminum MYLAR 100% Coverage (Foil Facing In)

      Overall Assembly
    • Cable Lay Length: Pulled In Parallel At Jacketing For A Zip Cord Construction

      Jacket
    • Material: Integral Pressure Extruded Flexible Polyvinylchloride
    • Wall Thickness: 0.023"
    • Diameter: 0.140" ±0.005" x 0.292" ±0.010"
    • Color: Black With Red Co Extruded Stripe
    • Ripcord: No
    • Weight: 30 lbs/mft
