Shattuc SCA-2402AZR 24AWG Dual (Zip) Balanced Audio Cable for Microphone and Line Level CMR - 1000 Foot

ITEM #: SCS-SCA-2402AZR MFG #: SCA-2402AZR

Primary Image
Shattuc Cord Specialties, Inc.
Free Shipping with $49 Minimum Order

List Price:

$309.75

Our Price:

$295.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SCA-2402AZR - Overview

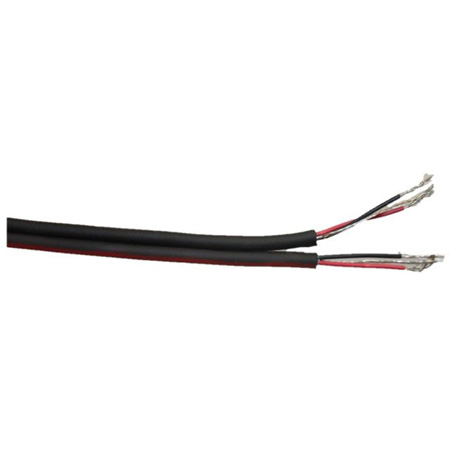

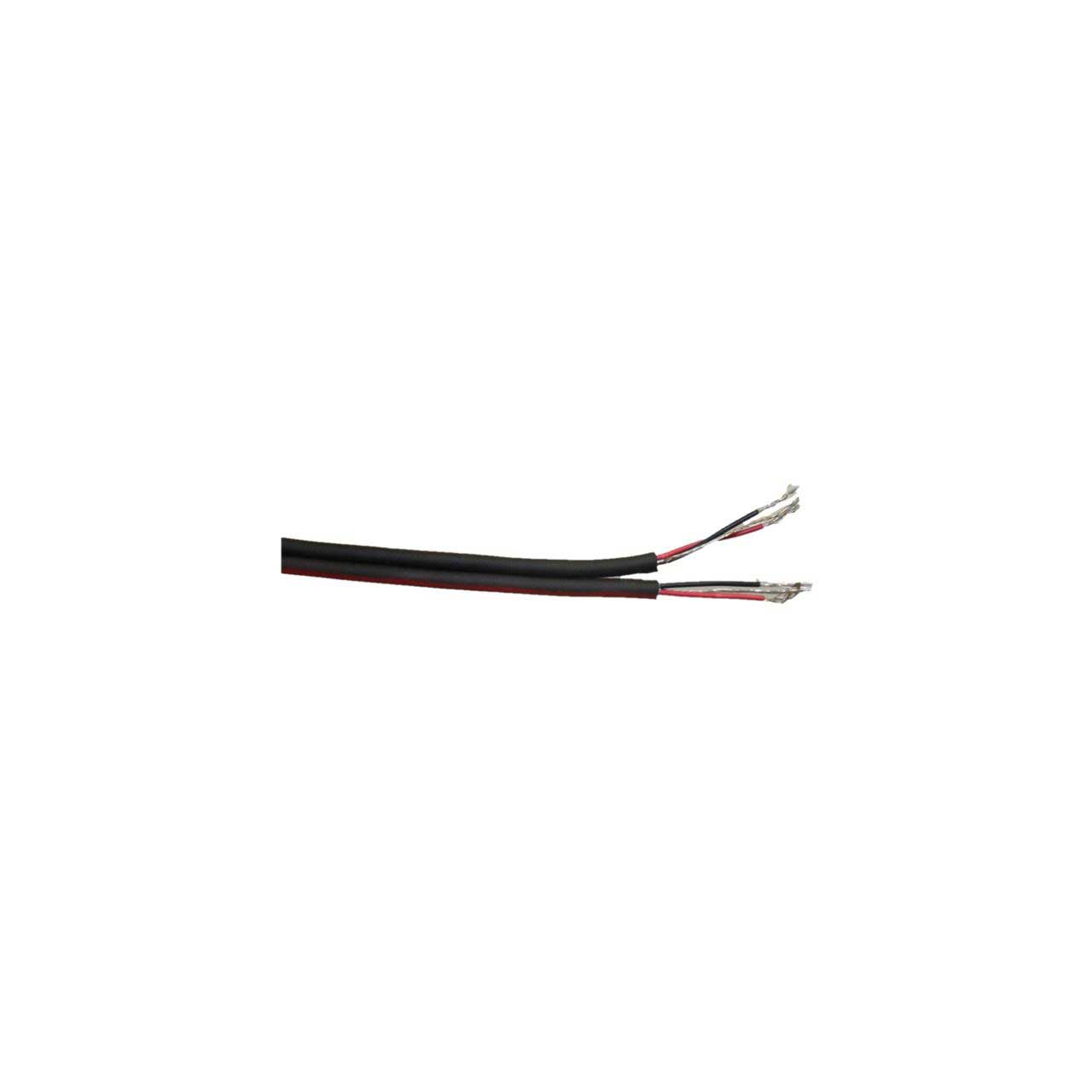

The Shattuc SCA-2402AZR1 is a two-element zip-cord cable with an overall integral pressure extruded PVC jacket. CMR C(UL)US rated.

Applications:
For line level audio applications in riser environments

  • Specifications:

    • Conductor
    • Material: Annealed Tinned Copper
    • Conductor Count: 2 Pairs
    • AWG & Stranding: 24AWG 7 Strand Class B

      Insulation
    • Material: Polypropylene
    • Wall Thickness: 0.008"
    • Color Code: (2) Black x Red

      Assembly (Pairs)
    • Nominal Lay Length: 1.50" LHL (8.0 TW/FT) Nominal
    • Drain Wire: 24 AWG 7 Strands Tinned Copper
    • Pair Shield: Heat Fusible Aluminum/MYLAR Tape 100% Coverage (Foil Facing In)

      Overall Assembly
    • Pulled In Parallel At Jacketing For A Zip-Cord Construction

      Jacket
    • Material: Integral Pressure Extuded Flexible Polyvinylchloride
    • Wall Thickness: 0.023"
    • Diameter: 0.130" ±0.005" X 0.275" ±0.010"
    • Color: Black with Red Co-Extruded Stripe
    • Ripcord: No
    • Weight: 22 lbs/mft
