Shattuc SCMQ-2400 24AWG 4 Conductor O/S Highly Flexible Star Quad Microphone Cable - 1000 Foot Roll

ITEM #: SCS-SCMQ-2400 MFG #: SCMQ-2400

Primary Image
Shattuc Cord Specialties, Inc.
Free Shipping with $49 Minimum Order

List Price:

$895.04

Our Price:

$852.41

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

SCMQ-2400 - Overview

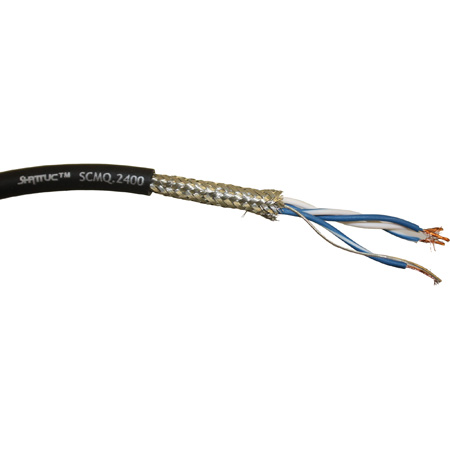

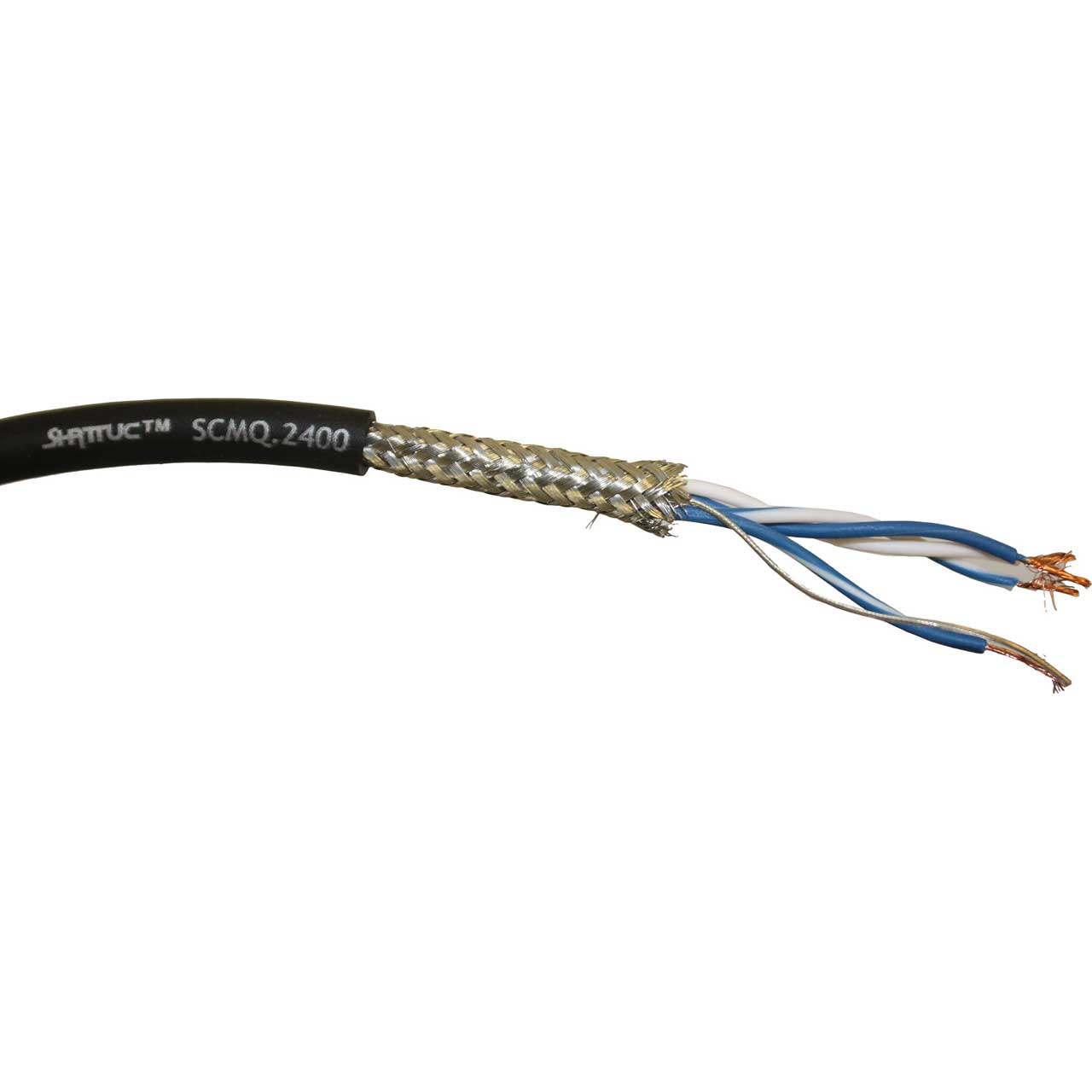

The Shattuc SCMQ-2400 is 24 AWG 4 conductors shielded cable constructed with stranded bare copper, pe insulation, a stranded tinned copper drain wire, a tinned copper braided shield, and an overall PVC jacket.

Applications:
Highly flexible microphone cable

  • Specifications:

    • Conductor
    • Material: Annealed Bare Copper
    • Conductor Count: 4 Conductors
    • AWG & Stranding: 24 AWG 41 Strand

      Insulation
    • Material: Polyethylene
    • Wall Thickness: 0.016"
    • Color Code: White, Blue, White/Blue and Blue/White
    • Assembly
    • Cable Lay length: 1.00" LHL (12TW/FT) Nominal
    • Fillers: Cotton Fillers-As Necessary For Circular Cross Section
    • Cable Binder: Tissue Wrap Binder, 100% Coverage
    • Drain: 24 AWG 19 Strands Tinned Copper
    • Cable Shield: Tinned Copper Braid - 95% Coverage

      Jacket
    • Material: Flexible Pressured Polyvinylchloride
    • Wall Thickness: 0.038"
    • Diameter: 0.242" ±0.005"
    • Color: Multiple Available
    • Ripcord: Not Required
    • Weight: 42 lbs/mft

      Electrical Characteristics
    • DC Resistance: 28.7 Ω/Mft @ 68°F
    • Impedance: 84Ω ±5
    • Capacitance: 18. pF/ft ±10%
    • Propogation Velocity: 66%
