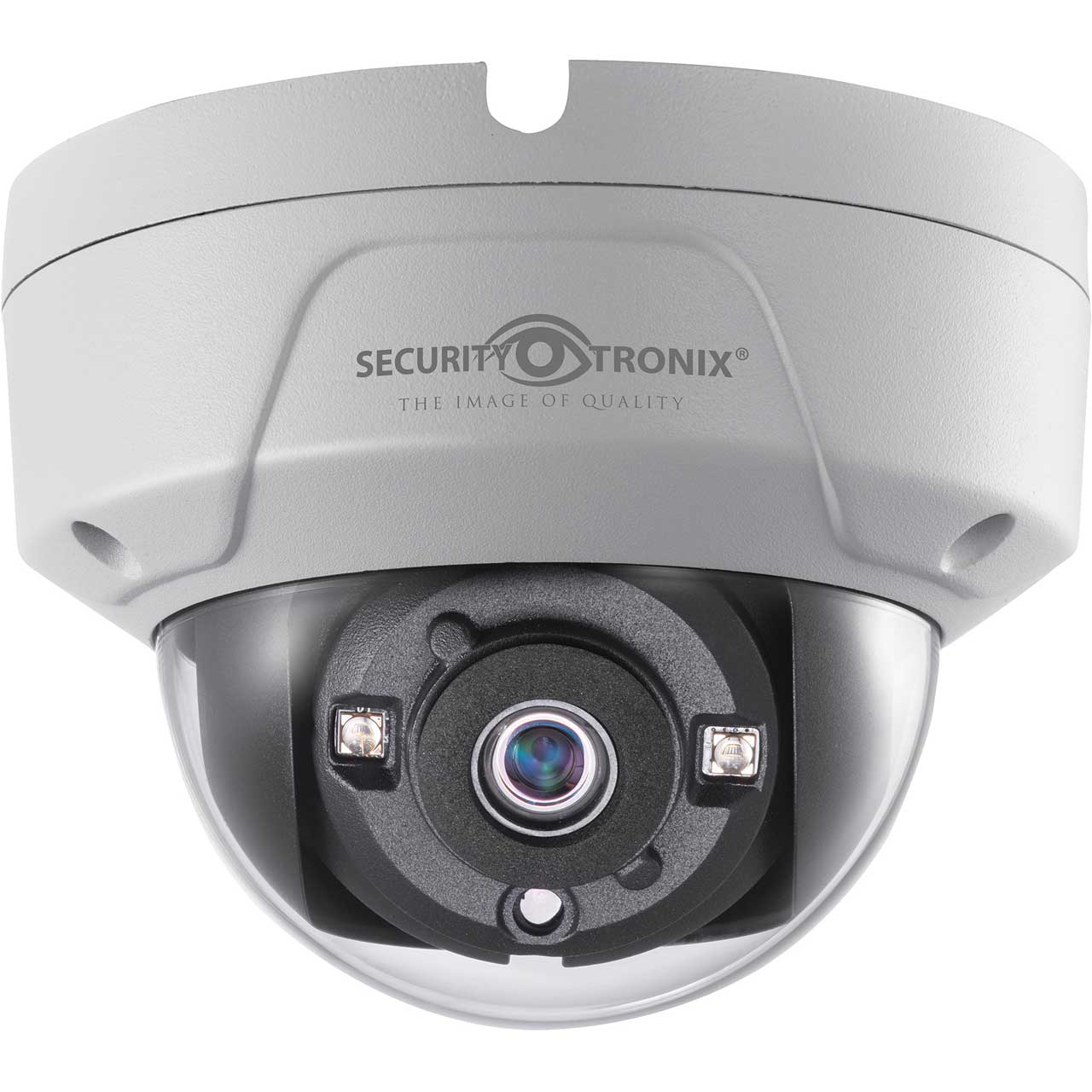

SecurityTronix ST-HDC2FD-2.8 2MP HD-TVI Fixed Lens Dome Camera

ITEM #: SCT-ST-HDC2FD-28 MFG #: ST-HDC2FD-2.8

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SCT-ST-HDC2FD-28

ST-HDC2FD-2.8 - Overview

The SecurityTronix ST-HDC2FD-2.8 TVI High Definition over Coax 2.8mm Fixed Lens Dome Camera features built in Smart IR LEDs which adjusts the intensity of the cameras infrared LEDs to compensate for the distance of an object so that the infrared does not overexpose the object and is able to see in total darkness. The Wide Dynamic Range feature makes these ideal for applications where bright and dim lighting can be an issue in making out an image. They have rounded style dome housing and are IK10 vandal resistant which can minimize the risk of someone knocking the camera out of view with the ability to resist up to 20 joules of impact. They are sleek, aesthetically pleasing in design and can be used in commercial, residential, indoor and outdoor applications. Power supply not included.

  • Features:

    • 2MP High Resolution
    • Incorporates HD-TVI to provide HD 1080p video over coaxial cable
    • 3.6mm or 2.8mm Fixed lens
    • True Day/Night
    • Smart IR
    • IR Distance up to 65 Feet
    • On Screen Display menu
    • IP66 Weather rating
    • IK10 Vandal rating

  • Specifications:

    • Camera
    • Image Sensor: 2MP CMOS Image Sensor
    • Effective Pixels: 1928(H) x 1088(V)
    • Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on
    • Shutter Time: 1/25s to 1/50,000s
    • Lens: 3.6 or 2.8mm Fixed lens
    • Lens Mount: M12
    • Angle Adjustment: Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355°
    • Day & Night: ICR
    • Synchronization: Internal synchronization
    • WDR: 120dB
    • Video Frame Rate: 1080p@25fps/1080p@30fps
    • HD Video Output: 1 turbo HD output
    • S/N Ratio: More than 62dB

      Menu
    • AGC: Supported
    • D/N Mode: Smart IR/Color/BW
    • White Balance: Auto/Manual
    • BLC: Supported
    • Language: English
    • Functions: Wide Dynamic Range, Digital noise reduction, Mirror, Smart IR

      General
    • Operating Temperature: -40° to 140°F (-40° to 60°C)
    • Operating Humidity: 90% or less (non-condensing)
    • Power Supply: 12 VDC (not included)
    • Power Consumption: Max. 5W
    • Weather Proof Ratings: IP66
    • IR Range: Up to 65 Feet
    • Impact Protection: IK10
    • Communication: Up the coax
    • Dimensions: 4.3 x 3.25" (111 x 82.5mm)
    • Weight (approx.): 0.77Lbs (350g)
