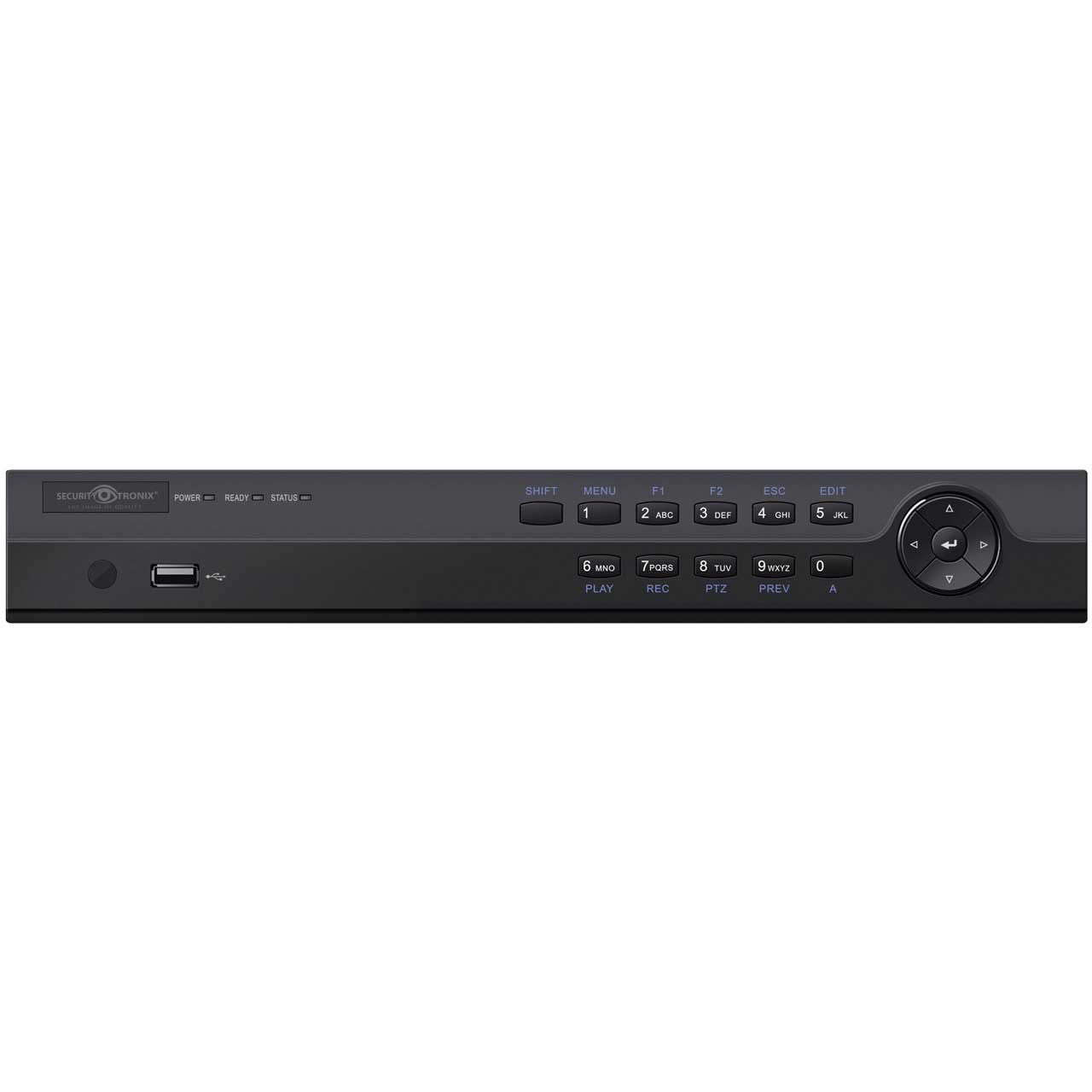

SecurityTronix ST-EZ8 8-CH Network Video Recorder with Built-In 8 port PoE without HDD

ITEM #: SCT-ST-EZ8 MFG #: ST-EZ8

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$269.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ST-EZ8 - Overview

The SecurityTronix ST-EZ8 EZ-Connect II Series of Network Video Recorders (NVR's) from SecurityTronix finally brings the ease of analog video surveillance system installations to the IP camera platform. With virtually no IP address setup when using SecurityTronix EZ-Connect II IP cameras, simply Plug and play and the NVR will auto detect the camera, address it and display the video. There is no need to manually address the cameras, as must be done with other IP based video surveillance systems. This makes EZ-Connect II the go-to system for installers branching out from traditional analog and HDoC into IP and Network Video solutions allowing installers to grow their business. These models can be installed in a wide-range of properties.

Applications:
Connectable to smart IP cameras for recording, playing back, and backing up of VCA alarms
VCA (Video Content Analysis) detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
HDD Quotas track and control disk storage to increase efficiency in storage management
Smart Search makes searching and playing back video easy

  • Features:

    • HD Input
      H.265/H265+/H.264/H.264+/MPEG4 video formats
      Connectable to the third-party network cameras
      8 or 16 IP cameras can be connected
      Recording at up to 8 MP resolution
      Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
    • HD Output
      HDMI/VGA independent outputs provided
      HDMI Video output at up to 4K (3840 × 2160) resolution
    • HD Storage
      Up to 2 SATA interfaces connectable for recording and backup
      Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
    • HD Transmission
      1 self-adaptive 10M/100Mbps network interface
      8 or 16 independent PoE network interfaces are provided

  • Specifications:

    • Video/Audio Input
    • IP Video Input: 8-ch
    • Two-Way Audio Input: 1-ch, RCA (2.0 Vp-p, 1kΩ)

      Network
    • Incoming Bandwidth: 80Mbps
    • Outgoing Bandwidth: 80Mbps
    • Remote Connection: 128

      Video/Audio Output
    • Recording Resolution: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Frame Rate:
      Main stream: 50 fps (P) / 60 fps (N)
      Sub-stream: 50 fps (P) / 60 fps (N)
    • HDMI/VGA Output: 1-CH resolution: 1920 x 1080 /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz,
    • 1024 x 768 /60Hz
    • Audio Output: 1-ch, RCA (Linear, 1kΩ)

      Decoding
    • Live View/Playback Resolution: 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Capability: 8-ch@720P, 6-ch@1080P

      Hard Disk
    • SATA: 2 SATA interfaces for 2 HDDs
    • Capacity: Up to 6TB for each disk

      External Interface
    • Network Interface: 1 RJ-45 10 /1000 Mbps self-adaptive Ethernet interface
    • USB Interface: 1x USB 2.0 and 1x USB 3.0

      PoE
    • Interface: 8 independent 100 Mbps PoE network interfaces
    • Max. Power: 120W
    • Supported Standard: AF and AT

      Others
    • Power Supply: 100~240V AC
    • Consumption (without hard disk and PoE): ≤10W
    • Operating Temperature: 14° to 131°F (-10° to 55°C)
    • Operating Humidity: 10 to 90%
    • Chassis: 19-inch rack-mounted 1U chassis
    • Dimensions (WxDxH): 17.5 x 11.4 x 1.8" (445 x 290 x 45mm)
    • Weight (without hard disk): ≤ 2.2Lbs (1kg)
