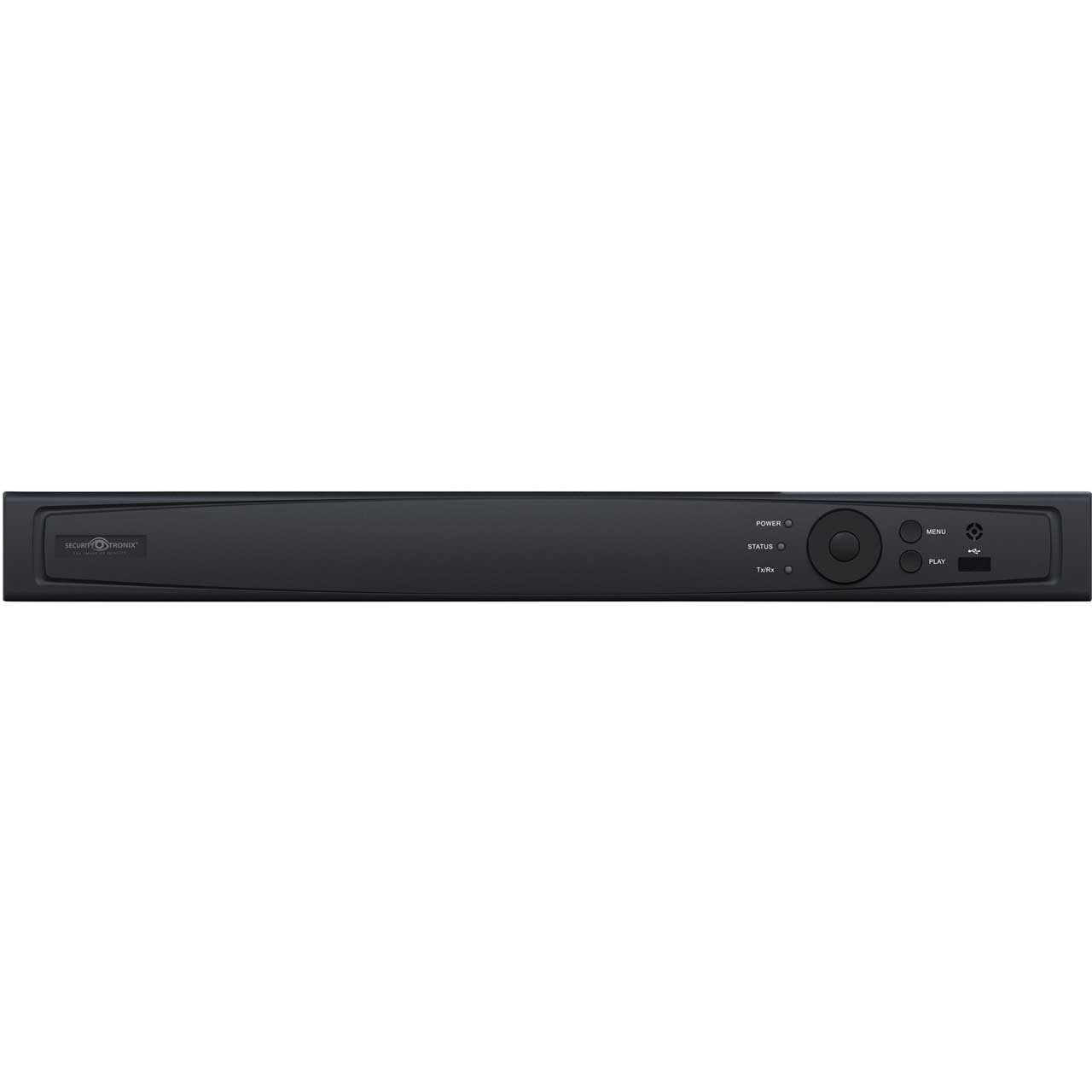

SecurityTronix ST-HDC16 16-CH Digital Video Recorder Supports HD-TVI/CVI/AHD/Analog & 2 IP Cameras

ST-HDC16 - Overview

• Features:

  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • Up to 2-CH 4 MP IP cameras input (ST-HDC4 & ST-HDC8)
  • Long distance transmission over UTP and coaxial cable
  • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub­stream of analog cameras
  • H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Full channel recording at up to 4 MP lite resolution
  • Simultaneous HDMI/VGA outputs
  • HDMI/VGA output at up to 1920 x 1080p resolution for ST­HDC4 and ST­HDC8? up to 4K (3840 x 2160) resolution for ST­HDC16
  • One-key recording configurable
  • All camera grid view recording allows all camera feeds to be recorded in grid view on a single channel
  • Supports real time 1080p lite resolution mode
  • Up to 4/8/16-CH synchronous playback at 1080p resolution
  • Smart search for efficient playback
  • Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
  • One SATA interface (up to 6 TB per HDD) provided for ST-HDC4 / ST-HDC8; two SATA interfaces provided for ST-HDC16
  • One RJ45 10M/100Mbps self-adaptive network interface for ST-HDC4 / ST-HDC8 and one RJ45 10M/100M/1000Mbps self­adaptive network interface for the ST­HDC16
  • P2P & DDNS (Dynamic Domain Name System)
  • Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
  • ST-HDC4 & ST-HDC8 support 4-CH line crossing detection and intrusion detection; ST-HDC16 supports 4-CH line crossing detection and intrusion detection, and 1­ch sudden scene change detection
  • VQD (Video Quality Diagnostics)
  • Supports PTZ control
  • Central management software


• Specifications:

  • Video/Audio Input
  • Video Compression: H.265+/H.265/H.264+/H.264
  • Analog video Input: 16-CH - BNC interface (1.0 Vp-p, 75Ω), supporting coaxitron connection
  • HDTVI Input:
    4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
    Note: The 3 MP signal input is only available for channel 1 of the ST-HDC4, for channel 1/2 of the ST-HDC8, and for channel 1/2/3/4 of the ST-HDC16.
  • AHD Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
  • CVBS Input: PAL/NTSC
  • IP video Input: 2-CH, Up to 4 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
  • Audio Compression: G.711u
  • Audio Input: 1-CH, RCA (2.0 Vp-p, 1KΩ)

    Video/Audio Output
  • CVBS Output: 1-CH, BNC (1.0 Vp-p, 75Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
  • HDMI/VGA Output: HDMI: 1-CH, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
  • Encoding Resolution:
    When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
    When 1080p Lite mode enabled:
  • 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
  • Frame Rate - Main Stream - When 1080p Lite mode not enabled:
    For 4 MP Stream Access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    For 3 MP Stream Access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
    For 1080p Stream Access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p Stream Access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
  • Frame Rate - Main Stream - When 1080p Lite mode enabled:
    4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bit Rate: 32 Kbps to 6 Mbps
  • Audio Output: 1-CH, RCA (Linear, 1KΩ)
  • Audio Bit Rate: 64 Kbps
  • Dual Stream: Supported
  • Stream Type: Video, Video & Audio
  • Synchronous Playback: 16-CH

    Network Management
  • Remote Connections: 128
  • Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

    Hard Disk
  • SATA: 2 SATA interfaces
  • Capacity: Up to 6TB capacity for each disk

    External Interface
  • Two-way audio Input: 1-CH, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
  • Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • USB Interface:
    Front Panel: 1x USB 2.0
    Rear Panel: 1x USB 3.0
  • Serial Interface: RS-485 (half-duplex)

    General
  • Power Supply: 12 VDC
  • Consumption (without HDD): <25W
  • Operating Temperature: 14° to 131°F (-10° to 55°C)
  • Operating Humidity: 10 to 90%
  • Dimensions (WxDxH): 15 x 12.6 x 1.9" (380 x 320 x 48mm)
  • Weight (without HDD): 4.4bs (2kg)
