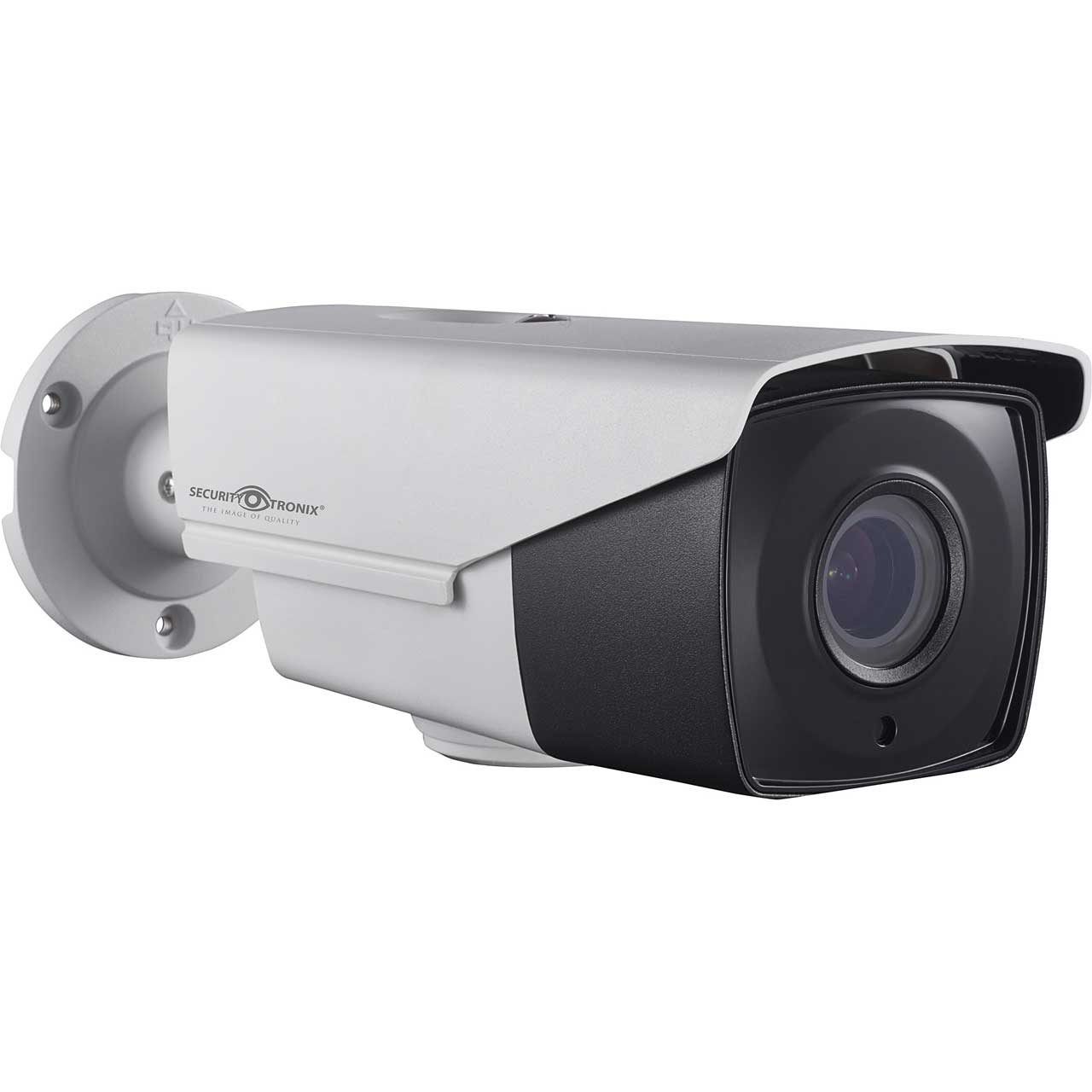

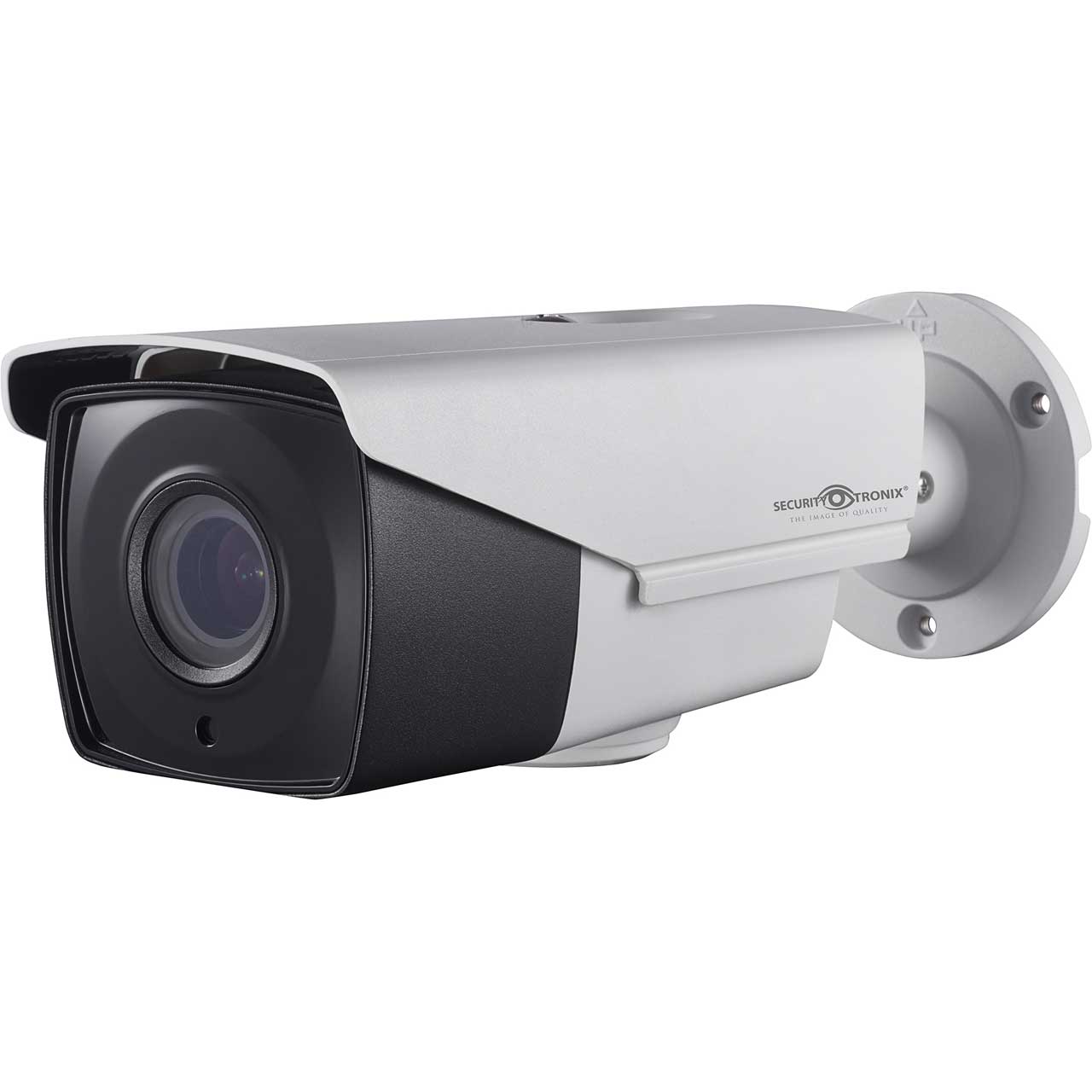

SecurityTronix ST-HDC2VFB-MZ 2MP HD-TVI Motorized Varifocal Lens Bullet Camera

ITEM #: SCT-ST-HDC2VFBMZ MFG #: ST-HDC2VFB-MZ

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the SCT-ST-HDC2VFBMZ

ST-HDC2VFB-MZ - Overview

The SecurityTronix ST-HDC2VFB-MZ sends HD video over coaxial cable making this camera a cost effective high-definition surveillance solution for any budget. The HD-COAXINATOR™ TVI series utilizes the same coaxial cable, connectors, and power plugs as a traditional analog camera system. The series is priced like analog and delivers resolution like IP, but without video latency or other complexities found when dealing with IP based systems. Integrators can easily upgrade existing systems from analog to HD by simply replacing the old DVR (digital video recorder) and analog cameras with HD-COAXINATOR™ TVI cameras and recorders. Junction box included.

  • Features:

    • 2MP High Resolution
    • Incorporates HD-TVI to provide HD 1080p video over coaxial cable
    • Motorized 2.8mm - 12.0mm vari-focal lens
    • True Day/Night
    • Smart IR
    • IR Distance up to 131 Feet
    • On Screen Display menu
    • IP66 Weather rating
    • 12VDC/24VAC Dual voltage powering capability

  • Specifications:

    • Camera
    • Image Sensor: 2MP CMOS Image sensor
    • Effective Pixels: 1928(H) x 1088(V)
    • Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR on
    • Shutter Time: 1/25(1/30) s to 1/50,000 s
    • Lens: Motorized VF lens; 2.8 - 12 mm @ F1.2
    • Angle Adjustment: Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0-360°
    • Day & Night: ICR
    • Synchronization: Internal synchronization
    • WDR: 120 dB
    • Video Frame Rate: 1080p@25fps/1080p@30fps
    • HD Video Output: 1 turbo HD output
    • S/N Ratio: More than 62dB

      Menu
    • AGC: Supported
    • D/N Mode: Color/BW/Smart
    • White Balance: ATW/MWB
    • BLC: Supported
    • Functions: Wide Dynamic Range, Digital noise reduction, Mirror, Smart IR

      General
    • Operating Temperature: -40° to 140°F (-40° to 60°C)
    • Operating Humidity: 90% or less (non-condensing)
    • Power Supply: 12 VDC / 24 VAC (not included)
    • Power Consumption: Max. 6W
    • Weather Proof Ratings: IP66
    • IR Range: Up to 131 Feet
    • Communication: Up the coax
    • Dimensions: 3.62 x 3.34 x 10.6" (92 x 84.8 x 269.6mm)
    • Weight (Approx.): 1.98Lbs (900g)
