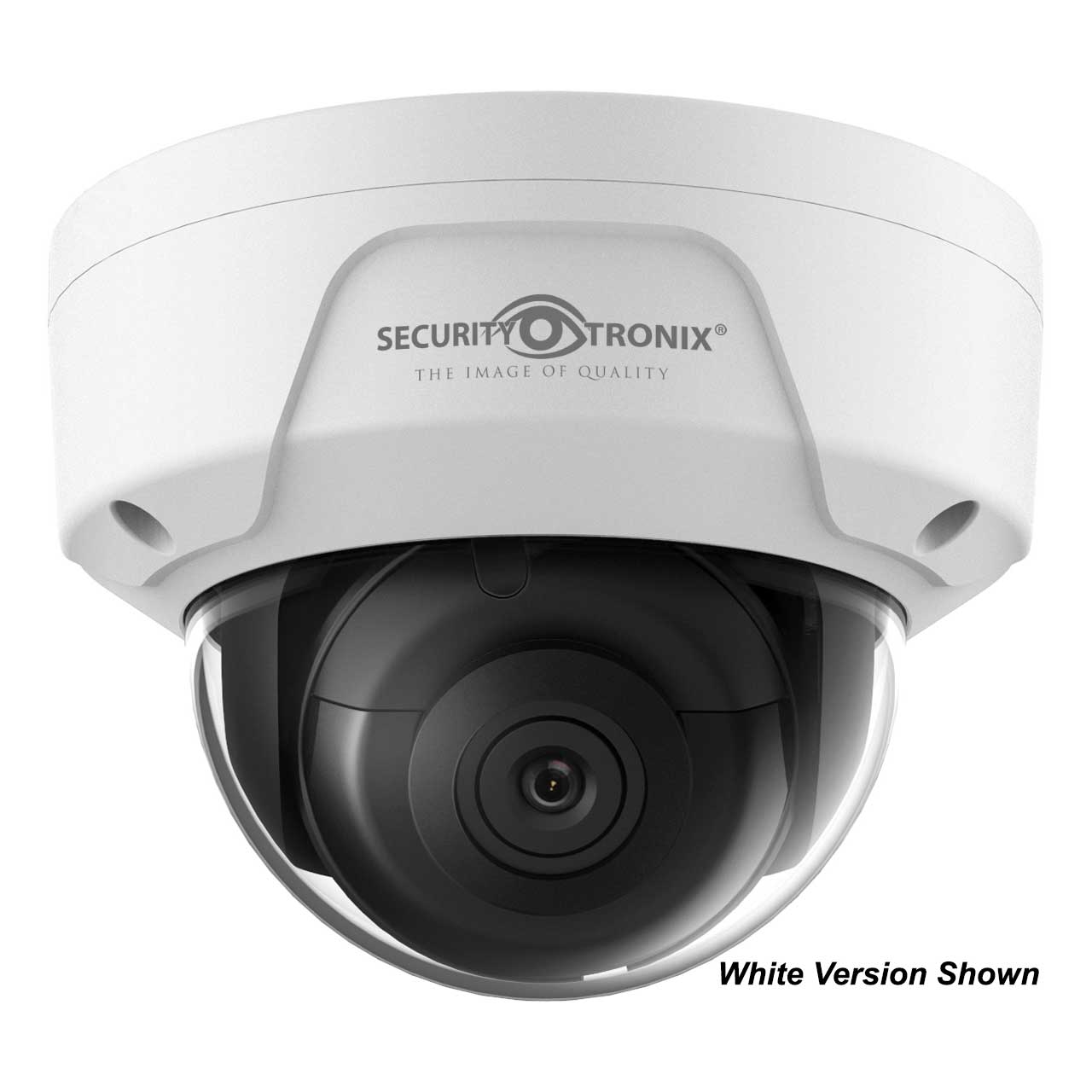

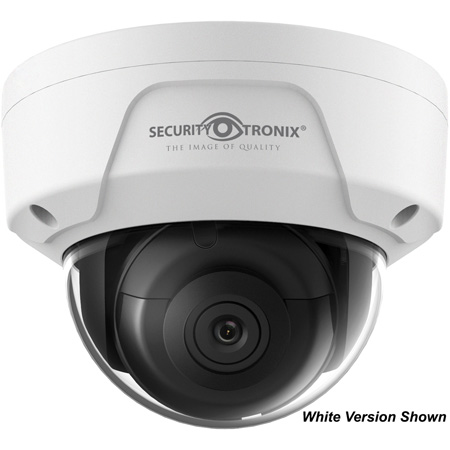

SecurityTronix ST-IP4FD-BLK 4MP IP Fixed Lens Dome Camera -Black

ST-IP4FD-BLK - Overview

• Features:

  • Up to 4 megapixel high resolution
  • Full HD 2560 x 1440 @ 30fps video
  • Three streams
  • 2.8mm or 4.0mm fixed lens
  • 120dB Wide dynamic range
  • 3D Digital noise reduction
  • Backlight compensation
  • Region of interest
  • Black or white housing
  • DC12V & PoE
  • H.265+, H.265, H.264+, H.264
  • Up to 98’ IR range
  • 3-axis adjustment
  • IP67 weather-proof protection
  • IK10 Vandal rating
  • 2 Behavior analyses and face detection


• Specifications:

  • Camera
  • Image sensor: 1/3" Progressive Scan CMOS
  • Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Lens Options: 2.8mm: horizontal FOV 98°, vertical FOV 55°, diagonal FOV 114° 4.0mm: horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
  • Lens Mount: M12
  • Day & Night: IR cut filter
  • Digital Noise Reduction: 3D DNR
  • Wide Dynamic Range: 120dB
  • Pan & Tilt Rotation: Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
  • Video Compression:
    Main Stream H.265 / H.264
    Sub Stream H.265 / H.264 / MJPEG
    Third Stream H.265 / H.264
  • Video Bit Rate: 32 Kbps – 16 Mbps
  • Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Behavior Analysis: Line crossing detection, intrusion detection
  • Face Detection: Yes
  • Region of Interest: 1 fixed region for main stream and sub-stream

  • Max. Image Resolution: 2560 x 1440
  • Frame Rate:
    Main Stream 50Hz:25fps (2560 x 1440, 2304 x 1296, 1920 x 1080) 60Hz: 30fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
    Sub Stream 50Hz: 25fps (640 x 480, 640 x 360, 320 x 240) 60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
    Third Stream 50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288) 60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
  • Image Enhancement: BLC / 3D DNR
  • Day & Night: switch Auto / Schedule / triggered by alarm in
  • Image Settings: Rotate mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
  • ROI: Supported

    Network
  • Network Storage: Supports Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Alarm Trigger: Motion Detection, Tampering alarm, Network disconnect , IP address conflict, Storage exception, illegal login, HDD full, HDD error
  • Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
  • General: One-key reset, anti-flicker, three streams, Flash-prevention, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
  • Standard: ONVIF (Profile S, Profile G), ISAPI
  • Client: Central management software
  • Simultaneous Live View: Up to 6 channels
  • User / Host: Up to 32 users, 3 levels: administrator, operator and user
  • Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

    Interface
  • Audio: 1 input (line in/mic.in), 1 output (line out), terminal block, mono sound
  • Communication Interface: 1 RJ45 10M/100M Ethernet interface
  • Alarm: 1 input, 1 output (up to 12 VDC, 30 mA), terminal block
  • On-Board Storage: Built in micro SD/SDHC/SDXC slot up to 128GB
  • Reset: Yes

    General
  • Operating Conditions: -22° to 140°F (-30° to 60°C)
  • Humidity: 95% or less (non-condensing)
  • Power Supply:12 VDC ± 25%, 5.5mm coaxial power plug, PoE (802.3af, class 3) (not included)
  • Power Consumption: 12 VDC, 0.5A, max. 6W
  • Protection Level: IP67, IK10 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • IR Range: Up to 98 Feet
  • Dimensions: 4.4 x 3.2" (111 x 82mm)
  • Weight: Approx. 1.3Lbs (610g)
