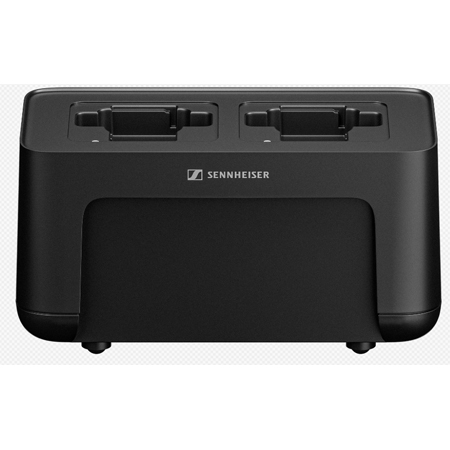

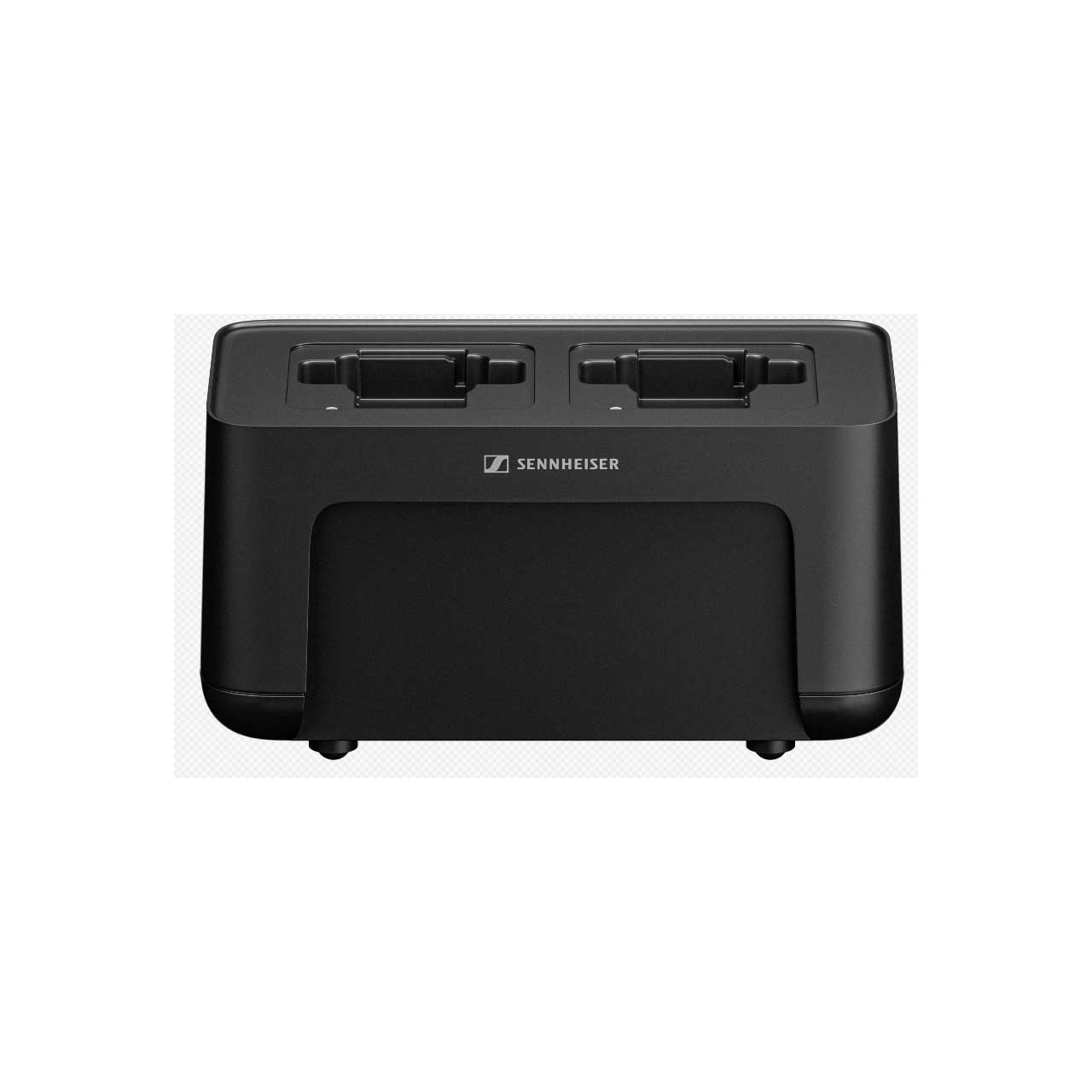

Sennheiser CHG 70N is a network enabled charger featuring two individual charging bays.
The CHG 70N is a network enabled charger featuring two individual charging bays. The charger is network-enabled and is capable of simultaneously charging up to two handheld and/or bodypack transmitters of the Sennheiser EW-DX series. A colored LED at each charging bay indicates its charge status. The CHG 70N has an RJ-45 network socket and supports the Media Control Protocol to provide for remote control and status monitoring via the Sennheiser Control Cockpit software or a media control system. The CHG 70N has a 12 V DC input voltage supplied from an external power supply unit. The power supply unit has a power cascade of up to 5 chargers with an input current max of 3.5 A for a cascade of up & Charging voltage of 4.35 V, charging max. 860 mA per charging bay. The charger is able to operate on Power over Ethernet (PoE IEEE 802.3af Class 0).
