Save big on the costs of expensive XLR audio snakes and pair-down 4 cable channels into a single low profile run with the Sescom 4XLRF-CAT. This brilliantly simple solution allows you to convert 4 XLR channels to single RJ45 connection allowing balanced mic level, AES/EBU digital or DMX signals to be run over a single CAT5, CAT5e, CAT6 or CAT7 cable.

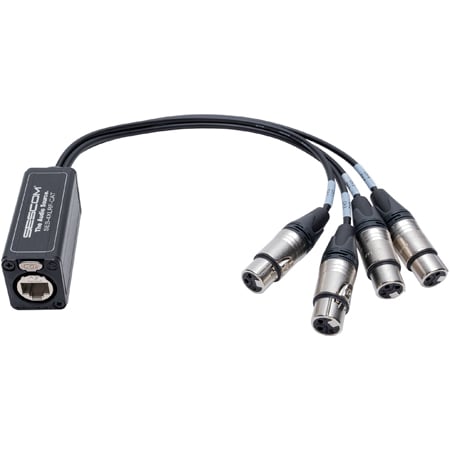

Run only the channels you need and even take advantage of the Sescom 4XLRF-CAT versatility by mixing multiple signals types in the same setup. The 4XLRF-CAT features four (4) female 3-pin XLR connectors on a 12-inch fanout attached to a Neutrik etherCON RJ45 chassis connector that's housed in a rugged field box. Because it's passive, it can be plugged directly into analog or digital mixers, consoles, breakouts boxes and more. Pair the system to a Jackreel connectorized RJ45 cable reel and you have a fast field deploy system for gigs, live events and any remote production.
4-channel versions will support phantom power ONLY if shielded category cable is used.
This unit, SES-4XLRF-CAT, can be paired with: SES-4XLRM-CAT or SES-4XLRM-CATBX.
