Shure MXWANI8 8 Channel Audio Network Interface

MXWANI8 - Overview

• Features:

  • Analog connections: 4 or 8 block connector channel outputs, with 1 or 2 block connector inputs (model dependent)

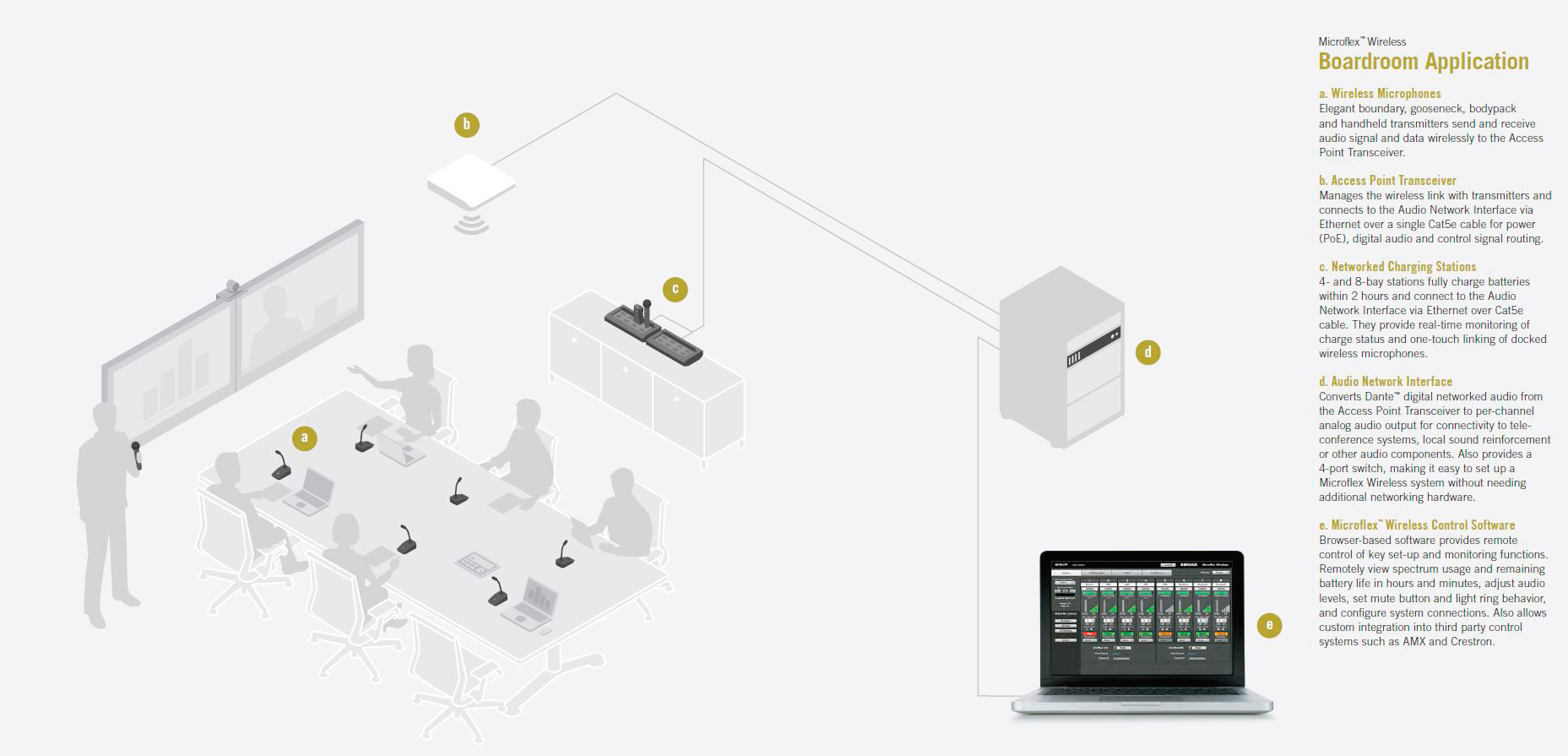

  • Four port gigabit switch: Optimized port confi gurations for connection to the Access Point Transceiver and Networked
  • Charging Stations, third party control systems, and corporate networks
  • Ethernet connectivity: Send audio and control signals over long cable runs of up to 300 feet or anywhere over a
  • corporate network
  • Power over Ethernet: Port 1 of the rear panel switch supplies power over Ethernet to the Access Point Transceiver for
  • simplifi ed installation
  • Corporate uplink mode: Link to the corporate network for remote control of system settings while keeping audio off the
  • network for security and to reduce bandwidth

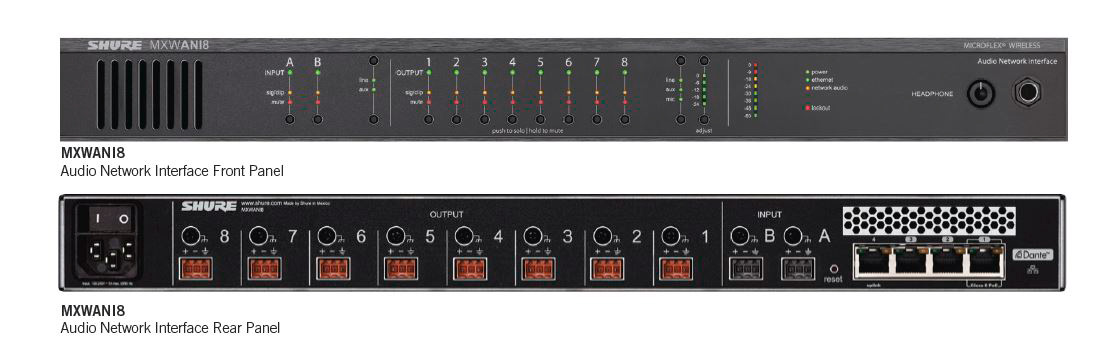

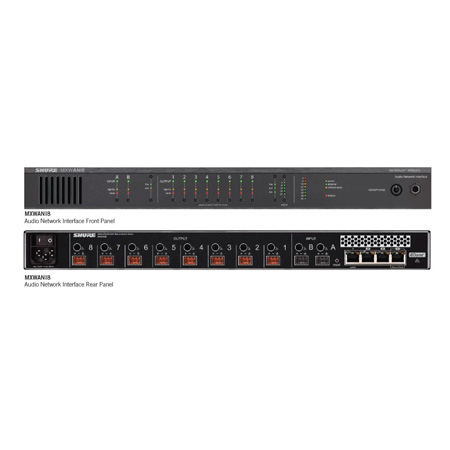

  • Front panel controls: Mute or solo channels and set input/output levels easily from the front panel

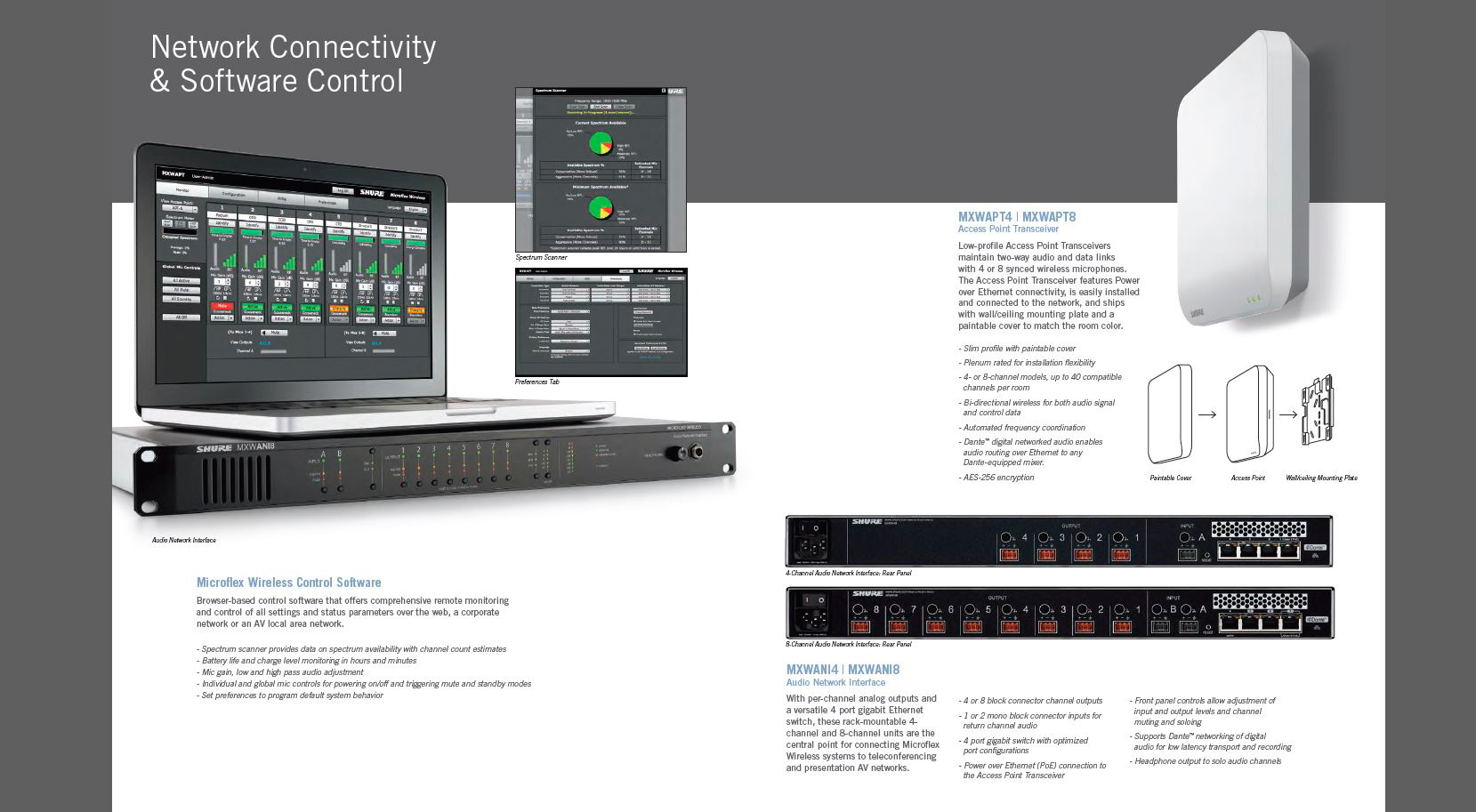

  • PC/Mac software control: Access the Microfl ex Wireless Control Software from a networked computer for input/output
  • levels and port confi guration
  • Dante networking: Transports low latency digital audio received from wireless microphones over Ethernet to any other
  • Dante-equipped device
  • Headphone output: Solo audio signal on any channel


• Specifications:

  • Audio:
  • Frequency Response 20 Hz to 20 kHz
  • Dynamic Range Analog-to-Dante: 113 dB (20 Hz to 29 kHz, A-weighted, typical)
  • Dante-to-Analog: 110 dB (20 Hz to 29 kHz, A-weighted, typical)
  • Output Noise Line: -84.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
  • Aux: -95.2 dBV (20 Hz to 29 kHz, A-weighted, typical)
  • Mic: -106.5 dBV (20 Hz to 29 kHz, A-weighted, typical)
  • THD + N < 0.05% (20 Hz to 20 kHz@ +4dBu analog input, -10 dBFS digital input)
  • Polarity Non-inverting, any input to any output
  • Inputs:
  • Configuration Active balanced
  • Impedance 10.6 kO
  • Clipping Level Line: 23.8 dBV (minimum)
  • Aux: 10.8 dBV (minimum)
  • Outputs
  • Configuration Active balanced
  • Impedance 310 O
  • Clipping Level Line: 26.2 dBV
  • Aux: 16.2 dBV
  • Mic: -3.8 dBV
  • Headphone Output 1/4" (6.3 mm) TRS, 100 mW, 350 O, dual mono (will drive stereo phones)
  • DSP
  • AD/DA Conversion 24-bit, 48 kHz
  • Latency Analog-to-Dante: 0.21 ms (Estimated Nominal, ±0.1 ms)
  • Dante-to-Analog: 0.24 ms + TN (Estimated Nominal, ±0.1 ms)
  • TN = Network latency in milliseconds, as set in Dante Controller
  • Note: Dante network latency is typically associated with the receiving device
  • Networking
  • Network Interface Four-Port Gigabit Ethernet Switch, Dante digital audio
  • Uplinks Port: Selectable, blocks multicast traffic (Port 4)
  • PoE Provided on Port 1 to power MXWAPT
  • Cable Requirements Cat 5e or higher, shielded, 100 m maximum between network devices
  • Network Addressing Capability DHCP, link-local, static
  • General:
  • Power Requirements 100 to 240 V AC, 50-60 Hz, 1 A
  • Housing Steel; Extruded aluminum
  • Temperature Range Operating: 0 to 145°F (-18 to 63°C)
  • Storage: -20 to 165°F (-29 to 74°C)
  • Dimensions (H x W x D) 1.7 x 19.0 x 14.4" (44 x 483 x 366 mm)
  • Weight 7.1 lb (3.2 kg)


• GTIN:

  0042406250115
