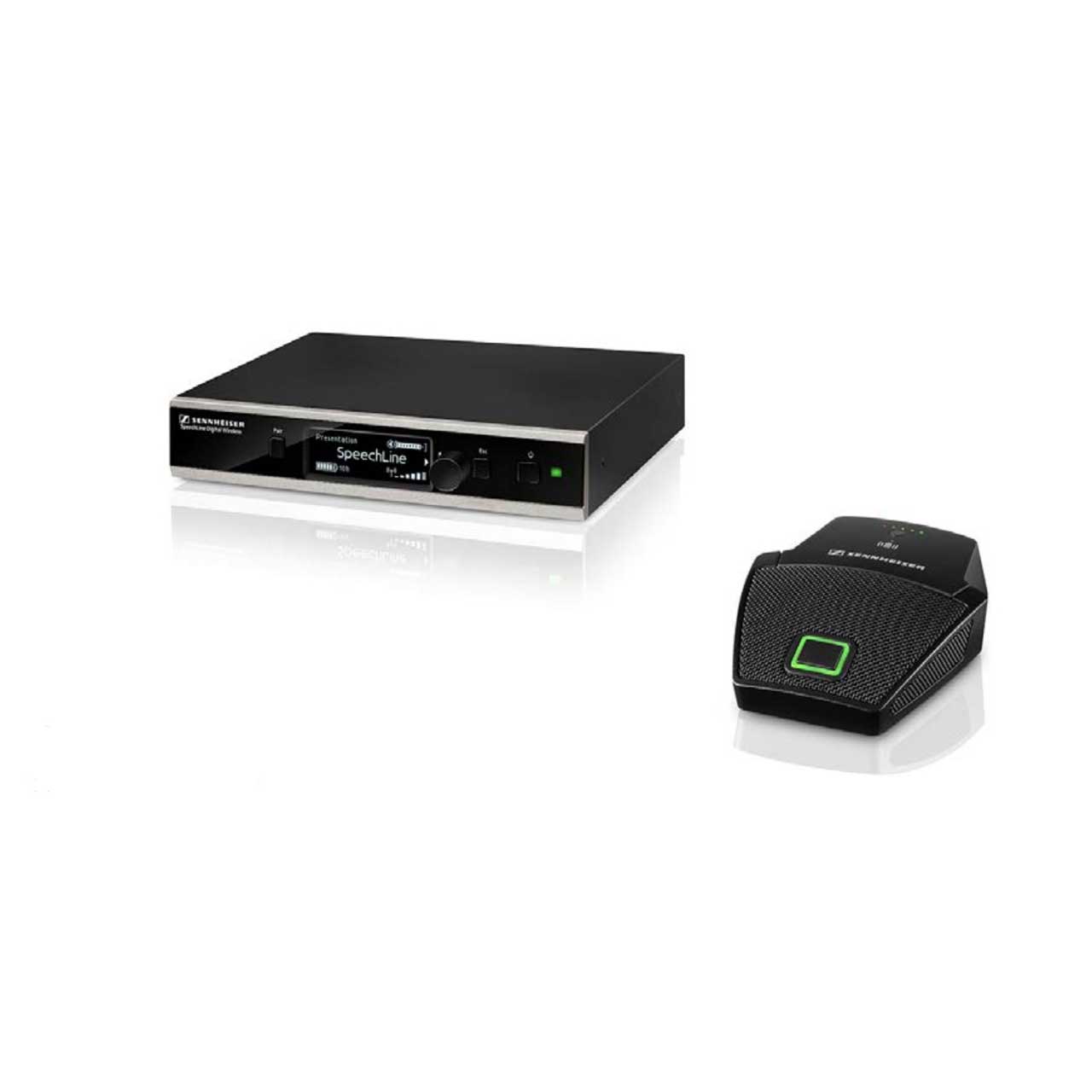

Sennheiser SL BOUNDARY SET DW-4 US SpeechLine Digital Wireless Conferencing Microphone Set

SL BOUNDARY SET DW-4 US - Overview

• Features:

  • Wireless inductive charging
  • Clear battery life indication via dedicated battery status LEDs
  • Remote monitoring and control with the Sennheiser Control Cockpit


• Specifications:

  • System
  • AF frequency response: 20 to 20,000 Hz
  • Dynamic range: > 120 dB(A)
  • THD (1 kHz): typ. 0.1 %
  • Audio sampling: 24 bit/48 kHz
  • Signal-to-noise ratio: > 90 dB(A)
  • Encryption: AES 256
  • RF frequency range: 1,920 to 1,930 MHz
  • Modulation: GFSK with back channel
  • Transmission method: TDMA, space diversity
  • Latency: 19 ms
  • Relative air humidity: max. 95%
  • Operating Temperature: 14 °F to 131 °F
  • Storage Temperature: -4 °F to 158 °F

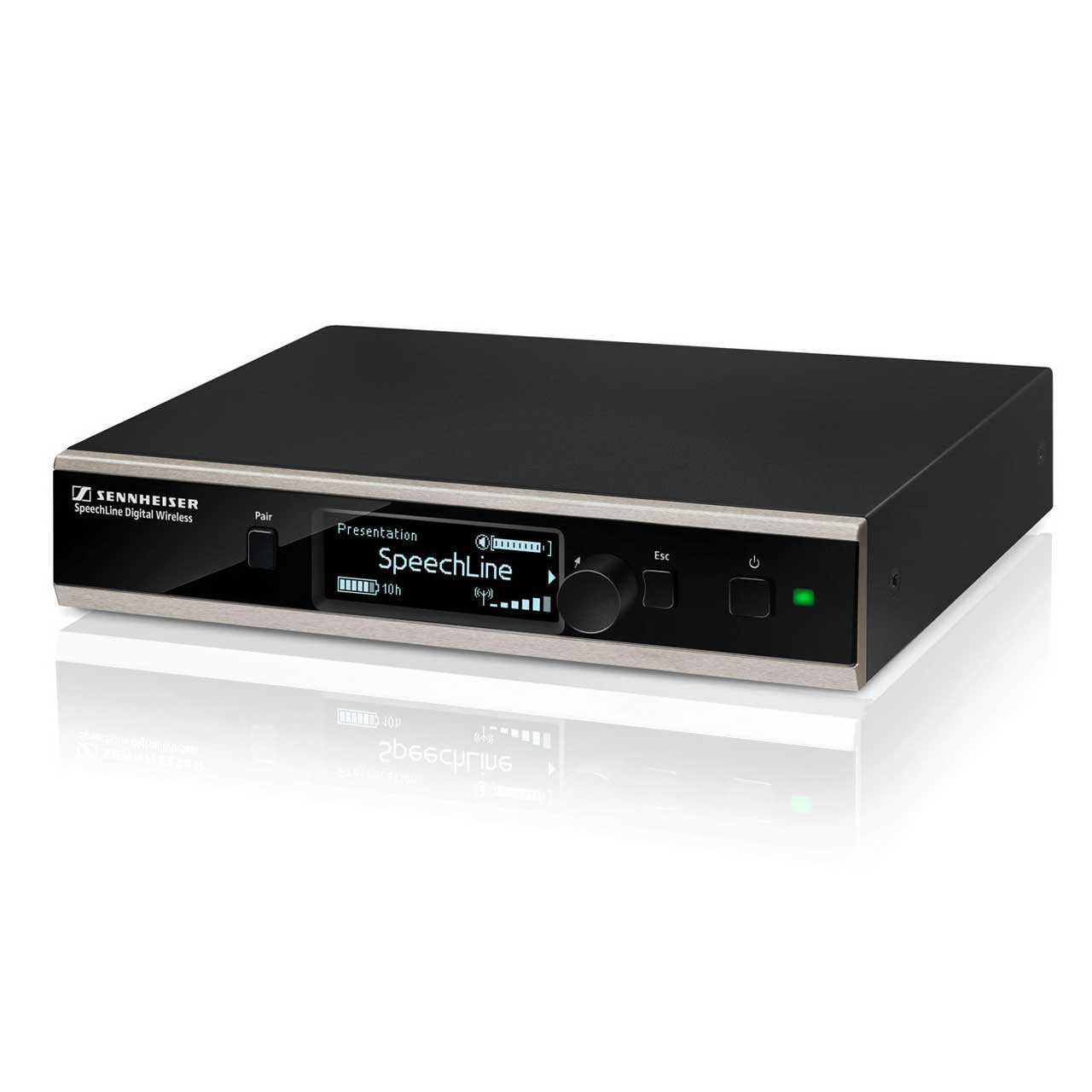

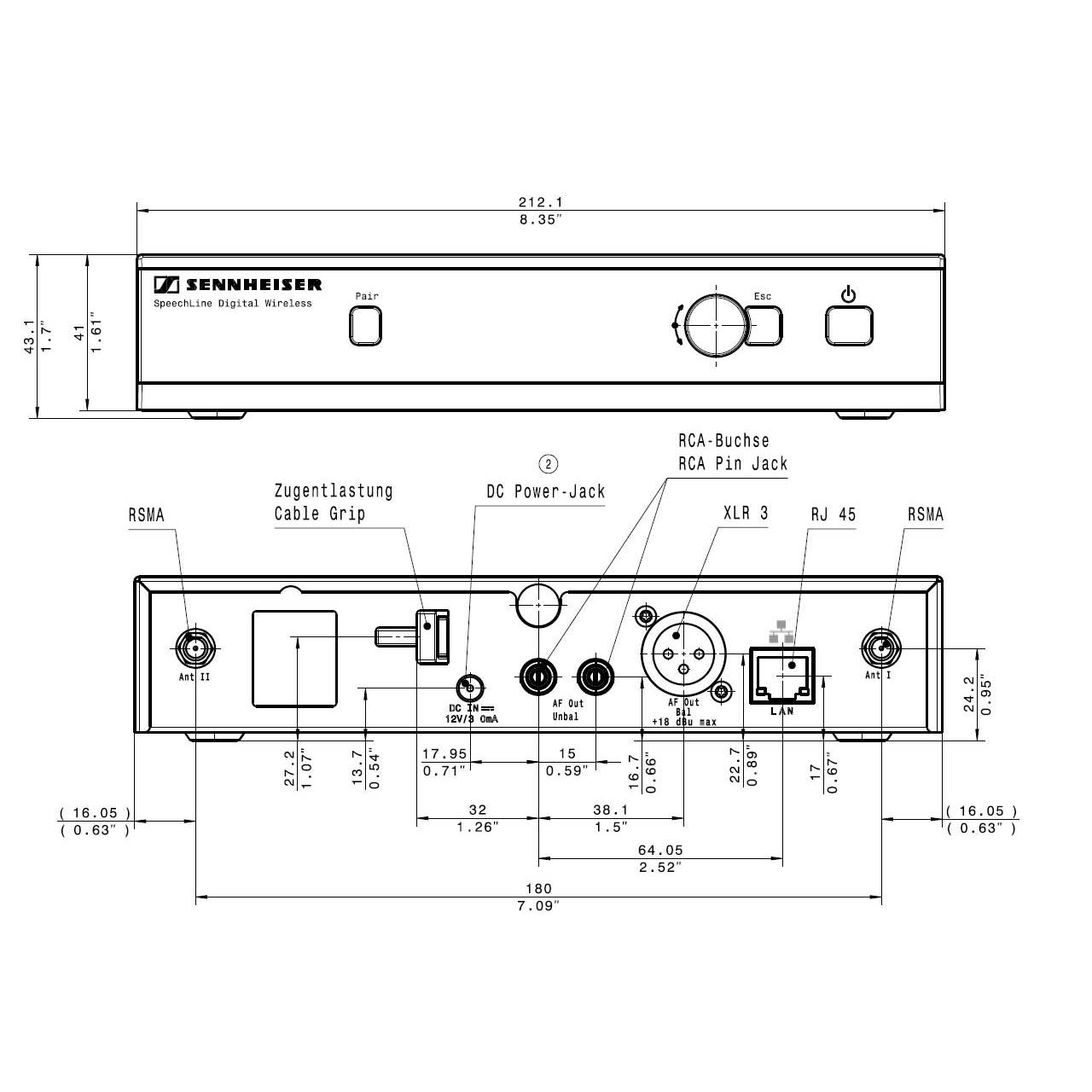

    SL Rack Receiver DW
  • RF sensitivity: < -90 dBm
  • RF output power back channel
  • adaptive, up to 250 mW: (country-specific)
  • XLR output level, balanced: max. +18 dBu
  • RCA output level, unbalanced: max. +6 dBu
  • Display: OLED
  • Network protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/IPv6
  • Power supply: 12V DC
  • Current consumption: 350 mA
  • AF connection sockets: XLR/2 x RCA
  • Antenna sockets: 2 x reverse SMA
  • Network sockets: RJ-45
  • DC socket for power supply: hollow jack
  • Weight: 1.82 lbs

    Accupack (BA 40)
  • Charging capacity: 2200 mAh
  • Output voltage: 3.6 V

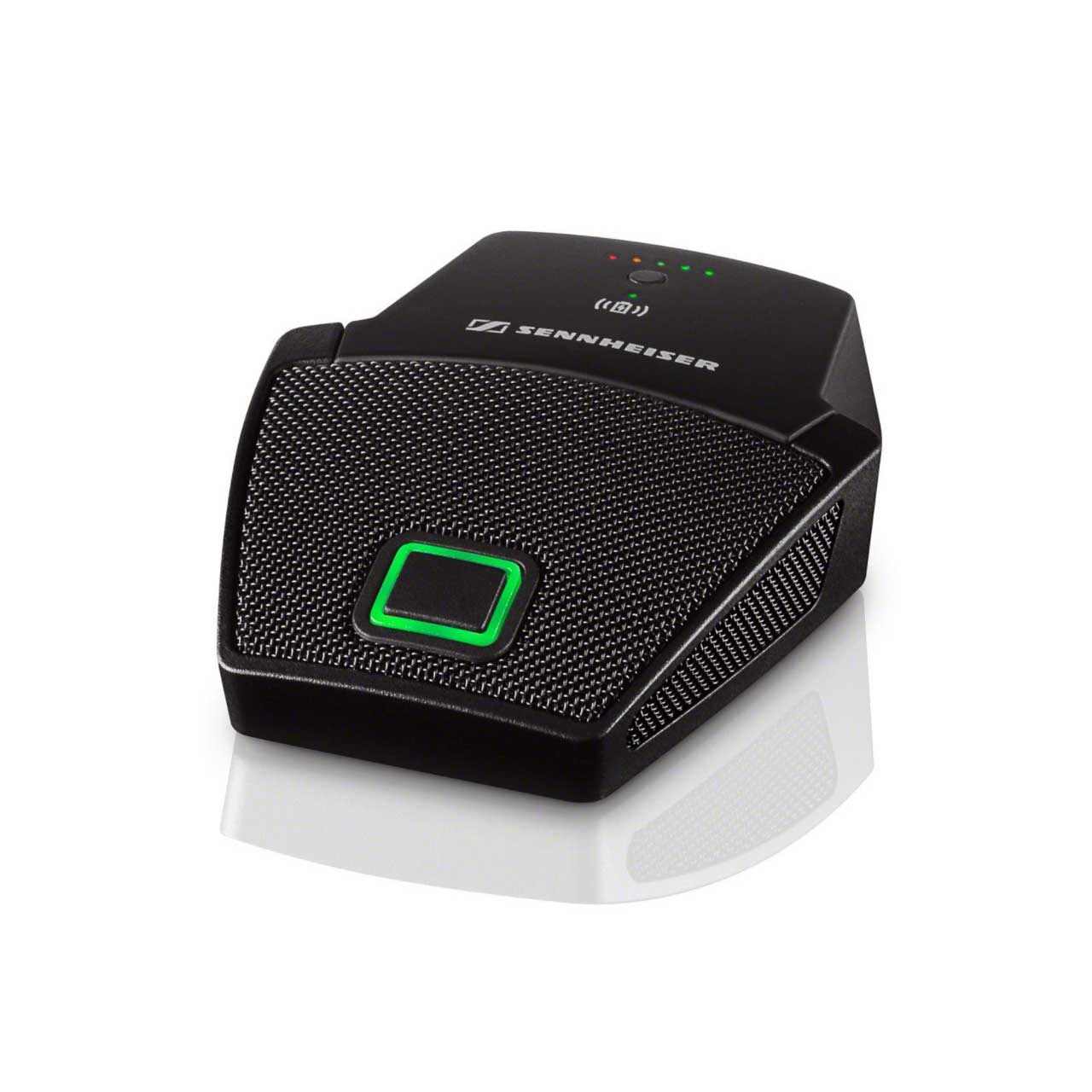

    SL Boundary 114-S DW
  • AF frequency response: 40 to 20,000 Hz
  • Pickup pattern: cardioid
  • Dynamic range: <100 dB(A)
  • Sensitivity: 10 mV/PA
  • Power supply: BA 40 accupack (Li Ion 3.6 V)
  • Operating time: Accupack: typ. 13 h
  • Relative humidity: max. 95%
  • Operating Temperature: 50 °F to 113 °F
  • Storage Temperature: -4 °F to 158 °F
  • Dimensions: 4.49" x 3.36" x 1.21"
  • Weight: 0.45 lbs (without accupack)


• Item Includes:

  • SL Boundary 114-S DW
  • BA 40 accupack
  • SL Rack Receiver DW (includes power supply)
  • GA 4 rackmount kit
  • Quick Guide
  • Safety Guide
  • USB cable


• GTIN:

  0615104264106
