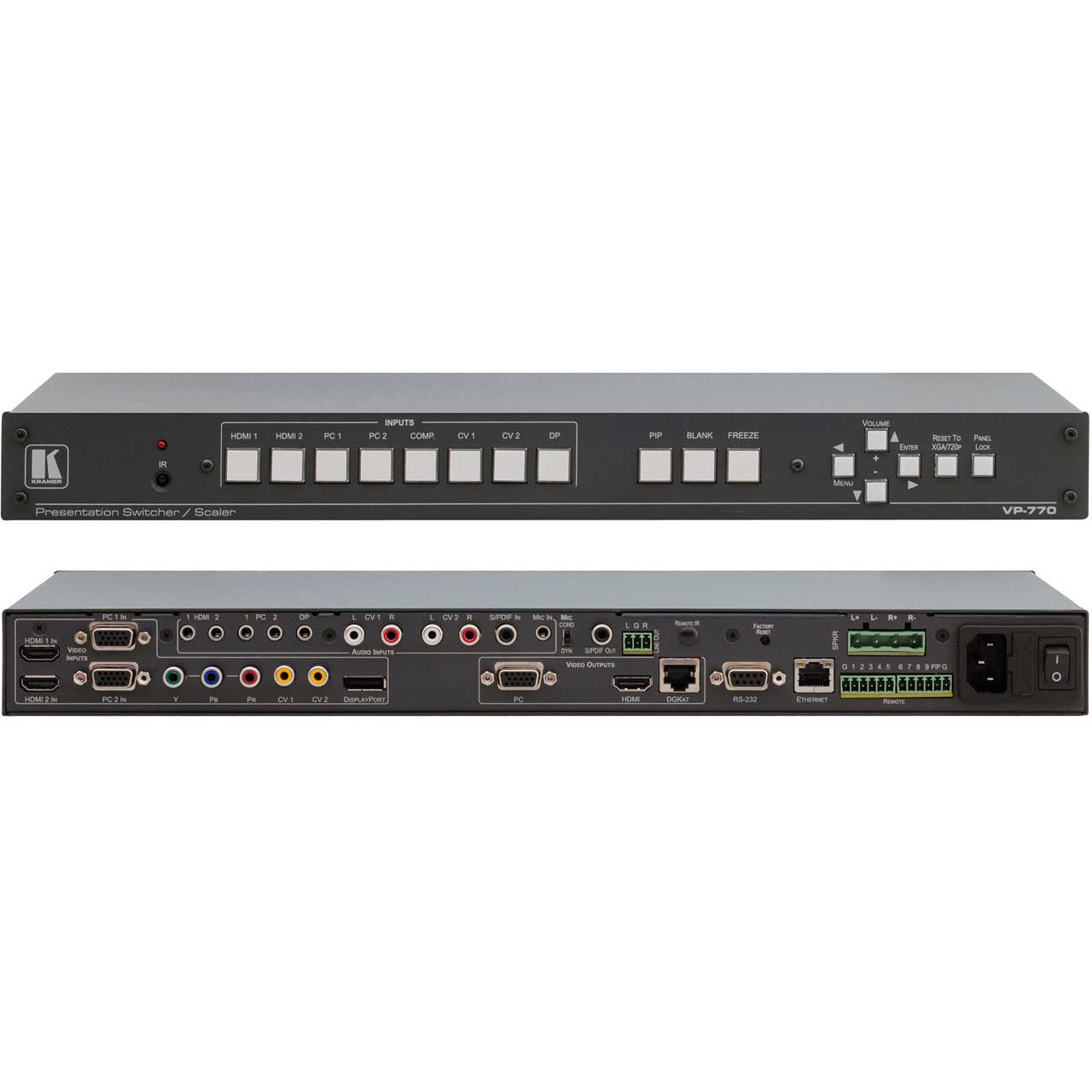

Kramer VP-770 8-Input ProScale Presentation Switcher/Scaler with Speaker Output

VP-770 - Overview

HDTV Compatible & HDCP Compliant

• Features:

  • K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to any other video source with full window positioning and sizing controls.
  • PixPerfect™ Scaling Technology - Kramer's PixPerfect™Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down scaling of all video input signals
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
  • Advanced EDID Management - For each input and analysis of the EDID of a selectable master connection to one of the outputs.
  • Mass Notification Emergency Communication System (MNEC) - Activates a national or campus-wide notification, immediately displayed when an emergency situation develops. It uses automatic text overlaying, either via a crawler or a full screen cover up, as well as an optional audio alert.
  • DGKat™Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables. Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
  • HDTV Compatible.
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.

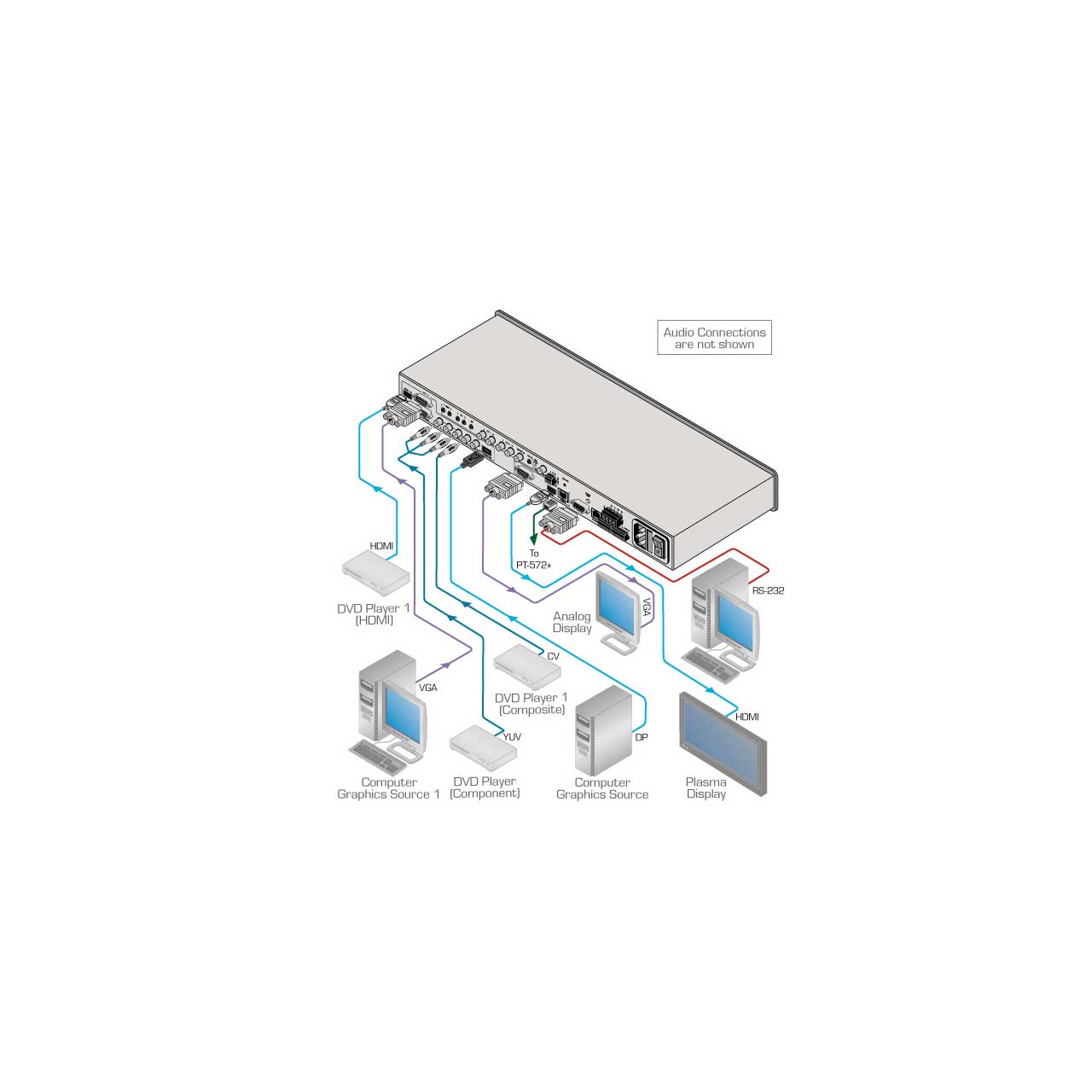

  • Video Inputs - Component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), 2 computer graphics on 15-pin HD connectors, 2 composite video on RCA connectors and 2 HDMI.
  • Scaled Outputs - HDMI, computer graphics on a 15-pin HD connector and DGKat twisted pair on an RJ-45 connector simultaneously.
  • Multiple Output Resolutions - Up to 2K and 1080p.
  • HDMI Deep Color Support.
  • Luma Keying - Via PIP window.
  • Vertical Keystoning.
  • Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input.
  • 3D Comb Filtering - Provides the best quality color separation for composite video inputs.
  • Built-in Time Base Corrector - Stabilizes unstable video sources.
  • Powerful Noise Reduction Filters - Temporal, block, mosquito and combing.
  • Picture Zooming - Up to 1600% both on main and PIP picture.
  • De-interlacing - 3:2 and 2:2 pull-down; 24sf handling.
  • Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan.
  • Dual Window Display - Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts.
  • Audio Inputs - 2 HDMI, 2 computer graphics and 1 DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV and 1 S/PDIF on RCA connectors.
  • Audio Outputs - 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 3-pin terminal block connector and a 2x10W built-in power amplifier with speaker outputs on terminal block connectors.
  • Input and Output Audio Level Adjustment.
  • Audio Delay - For lip-sync correction.
  • Selectable Power Saving Modes - For efficient energy usage.
  • Microphone Input - Supports mix and talk-over features, as well as delay to prevent feedback.
  • Non-Volatile Memory - Saves final settings.
  • Firmware Upgrades - Via Ethernet and RS-232.
  • Flexible Control Options - Front panel buttons, contact closure, OSD (on-screen display) via front panel buttons or IR remote (remote control included).
  • Worldwide Power Supply - 100-240V AC.


• Specifications:

  • INPUTS
  • 2 HDMI (deep color) connectors,
  • 2 VGA on 15-pin HD connectors,
  • 1 component video on 3 RCA connectors,
  • 2 composite video on RCA connectors,
  • 1 DisplayPort connector,
  • 2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
  • 1 S/PDIF (for component video input) digital audio on an RCA connector,
  • 1 mic on a 3.5mm mini jack connector


  • OUTPUTS
  • 1 VGA on a 15-pin HD connector,
  • 1 HDMI (deep color)connector,
  • 1 DGKat on an RJ-45 connector,
  • 1 S/PDIF digital audio on an RCA connector,
  • 1 unbalanced stereo audio on a 3-pin terminal block connector,
  • 12x10W speaker amplifier balanced stereo audio on terminal block connectors


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI (deep color) and HDCP, Supports: DisplayPort 1.1a


  • OUTPUT RESOLUTIONS:
  • 640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1360x768p60, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080@60Hz, 2048x1080@50Hz


  • CONTROLS
  • Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector, Ethernet, contact closure


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-49° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER SOURCE
  • 100-240V AC, 56VA max


• Item Includes:

  • VP-770 Scaler
  • Power cord
  • Rack ears
  • IR remote control


• Warranty:

  • Limted 7 Year Warranty


• GTIN:

  7291063059750
