Skaarhoj RCPv2 Panel with Joystick for Camera Control

ITEM #: SKA-RCP-JOY-V2B MFG #: RCP-JOY-V2B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$4,503.00

Our Price:

$4,390.43

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RCP-JOY-V2B - Overview

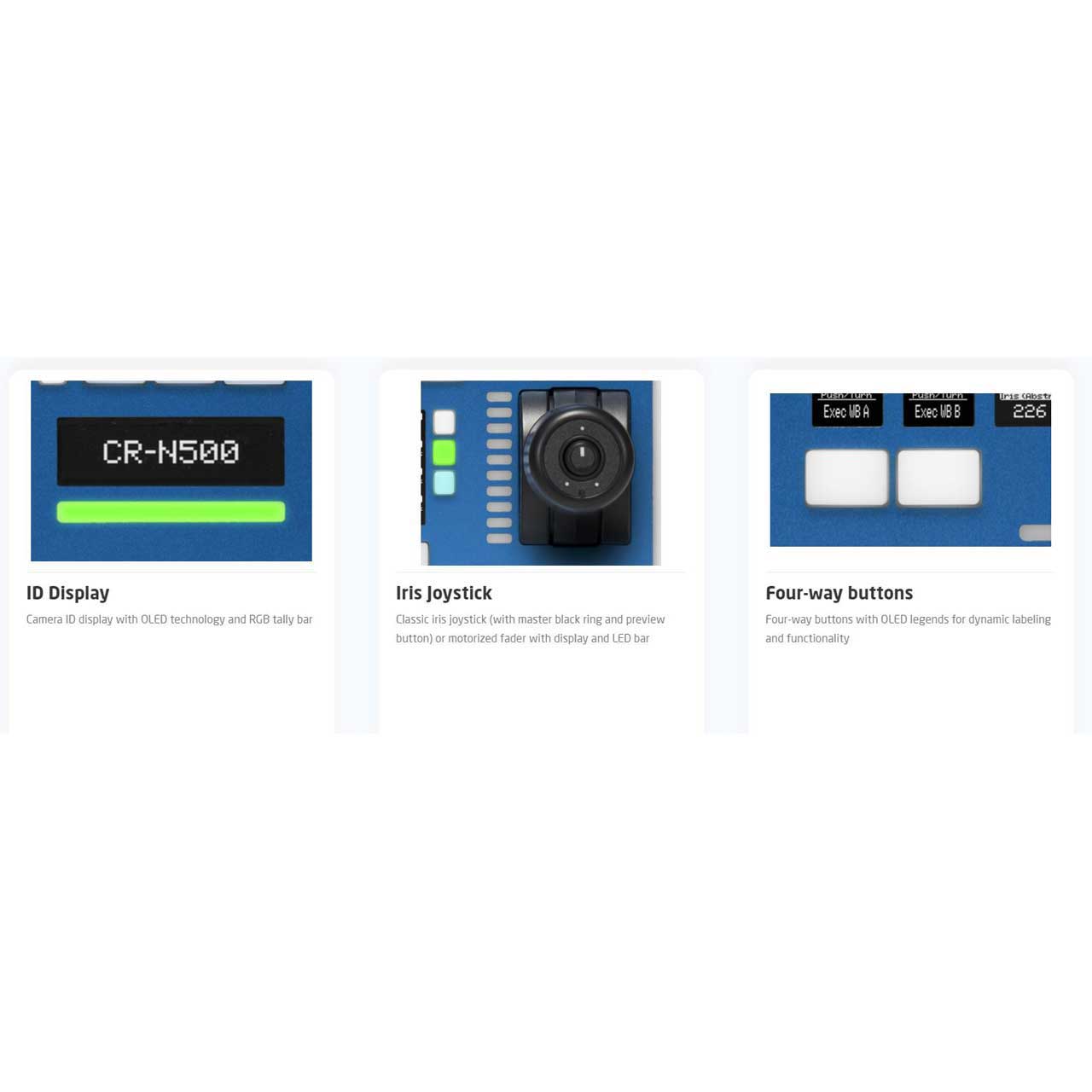

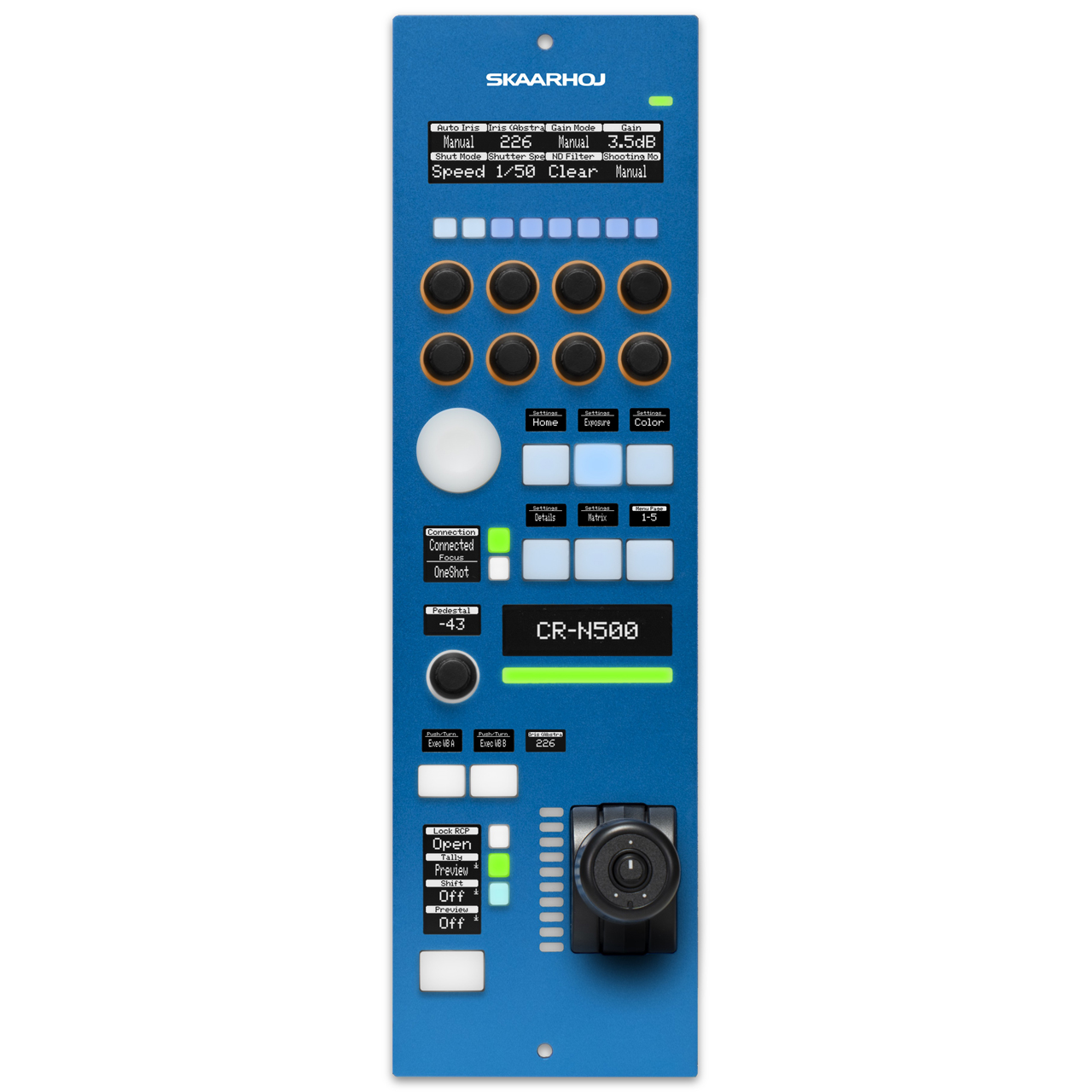

SKAARHOJ's RCPv2 Joystick is already a classic in precision camera control. It features a joystick fader with a potentiometer pedestal ring, a push-button top, and 8 LED-backlit encoders for settings. The large OLED display, segmented for each encoder, works in concert with four-way buttons for efficient navigation. Even PTZ control, zoom, and focus and be assigned to the special joystick pad. Its single-channel GPIO and DB-9 connector enhance its drop-in versatility. With the Blue Pill platform, it supports a wide array of cameras, including Sony, Panasonic, Canon, ARRI, RED, Dream Chip and many more. The RCPv2 is a time-tested, reliable choice for any production setup.

Recommended cables (not in the box): Skaarhoj recommends using LAN Cat 6 S/FTP or better, and a USB 2.0 A-Micro B (if needed).

  • Features:

    • Advanced joystick with potentiometer ring for precise control.

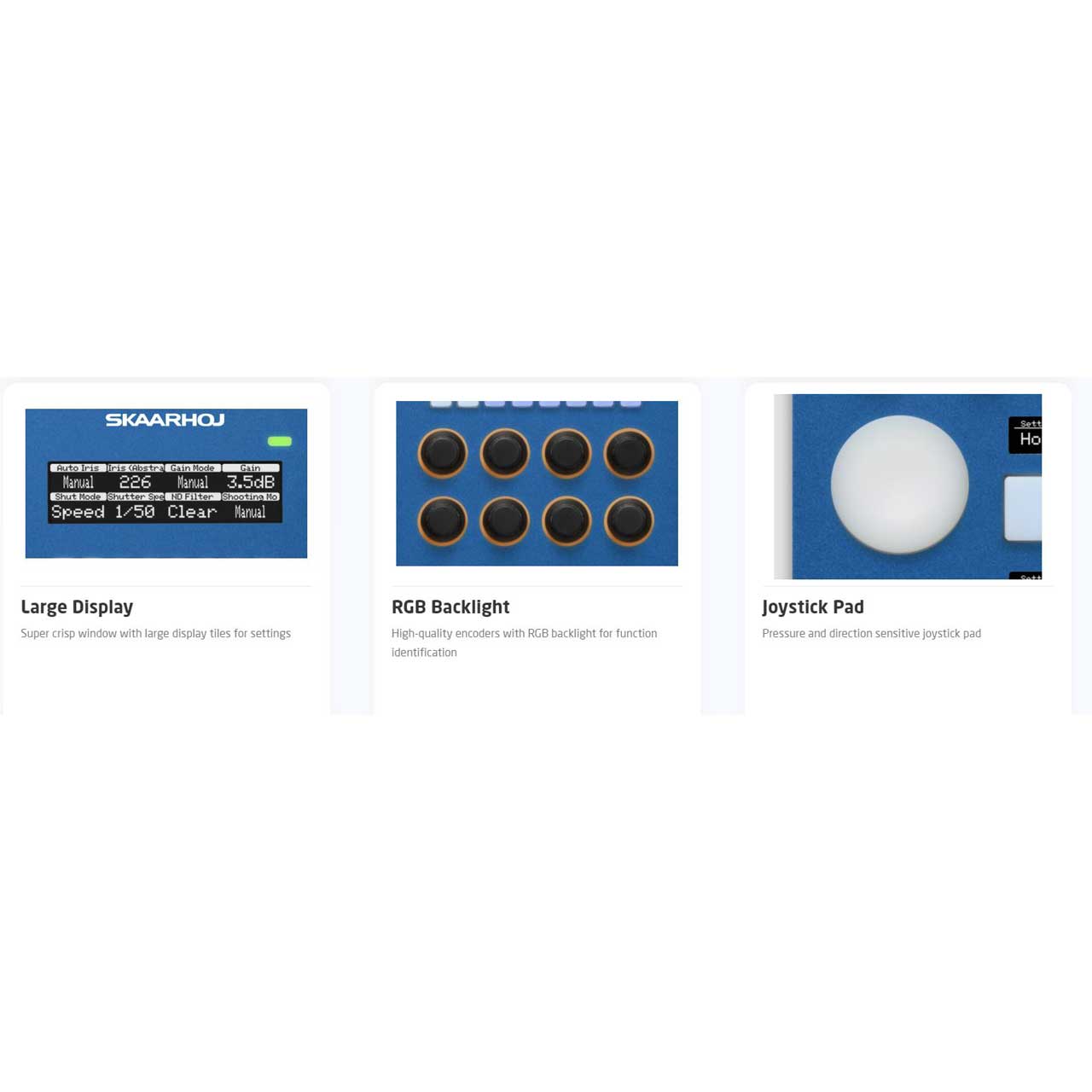

    • LED-backlit encoders and segmented OLED display for clear visual feedback.
    • Versatile button configuration, including elastomer and Four-way, for multifaceted control.
    • Supports a broad range of cameras with Blue Pill and Reactor integration.
    • Single-channel GPIO input/output for extended functionality.
    • Ideal for professionals seeking reliable, long-term performance in camera control.
    • Compact design ensuring fit and function in any production environment.
    • Time-tested with a legacy of reliability and performance in camera shading.
    • Universal control of multiple 3rd party cameras
    • User customization with Reactor Web UI
    • 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • WiFi and Micro USB for service options
    • Blue Pill Platform w/Reactor 2.0 and Device Cores
    • Designed and made in Denmark

  • Specifications:

      Hardware Specifications
    • Component Highlights: RCP Joystick Fader with Pedestal ring and push button
    • Buttons: Elastomer Button x13; Elastomer Four-Way Button w/Display x8; Elastomer Four-Way Button x1; Joystick top button x1
    • Encoders: Encoder w/LED ring x8; Encoder x1
    • Analog Components: Opto-isolated Input (to GND) x1; Elastomer Joystick, Left-Right x1; Elastomer Joystick, Up-Down x1; Joystick fader x1; Joystick wheel x1
    • Programmable OLED Tiles: 128x32 pixels x1; 64x32 pixels, gray x8; 64x32 pixels x18
    • GPIs: Opto-isolated Input (to GND) x1
    • Other: OLED Display Tile x4; x1; LED-Bar, 10 steps x1; Relay Output (to GND) x1; LED x1

      Connectivity

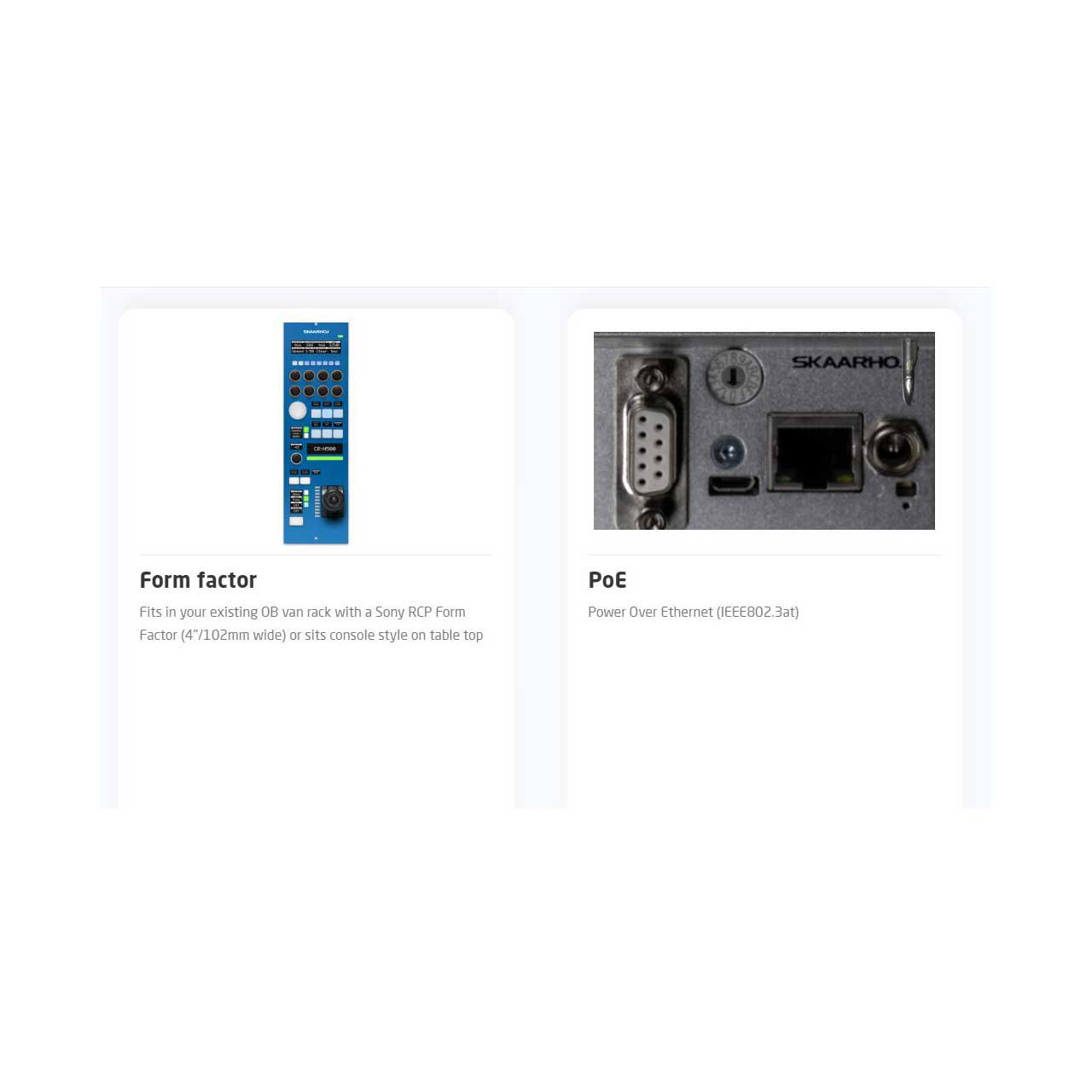

    • Networking: 1G Ethernet w/Power over Ethernet (PoE IEEE802.3af/t)
    • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    • Service Port: Micro USB for setting manual IP
    • Peripherals: 1 channel GPIO (1 opto-isolated input / 1 relay output)

      Software
    • Platform: Blue Pill (Reactor, Device Cores, skaarOS Linux)
    • Licenses: Full Reactor and Device Core licenses included

      Physical
    • Length: 4"
    • Width: 14"
    • Height: 2.83"
    • Weight: 2.54lbs
    • Shipping Length: 17.52"
    • Shipping Width: 5.52"
    • Shipping Height: 5.9"
    • Shipping Weight: 4.25lbs

  • Item Includes:

    • 1x RCP-JOY-V2B
    • 1x 12V Power Supply
