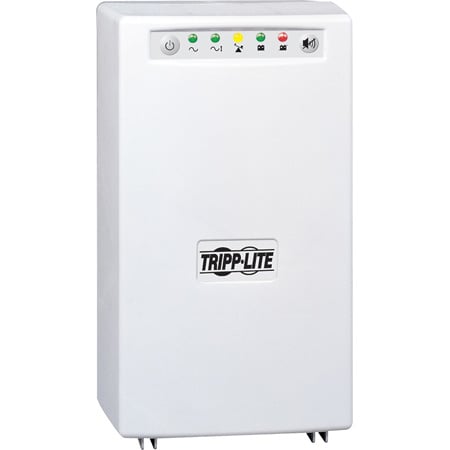

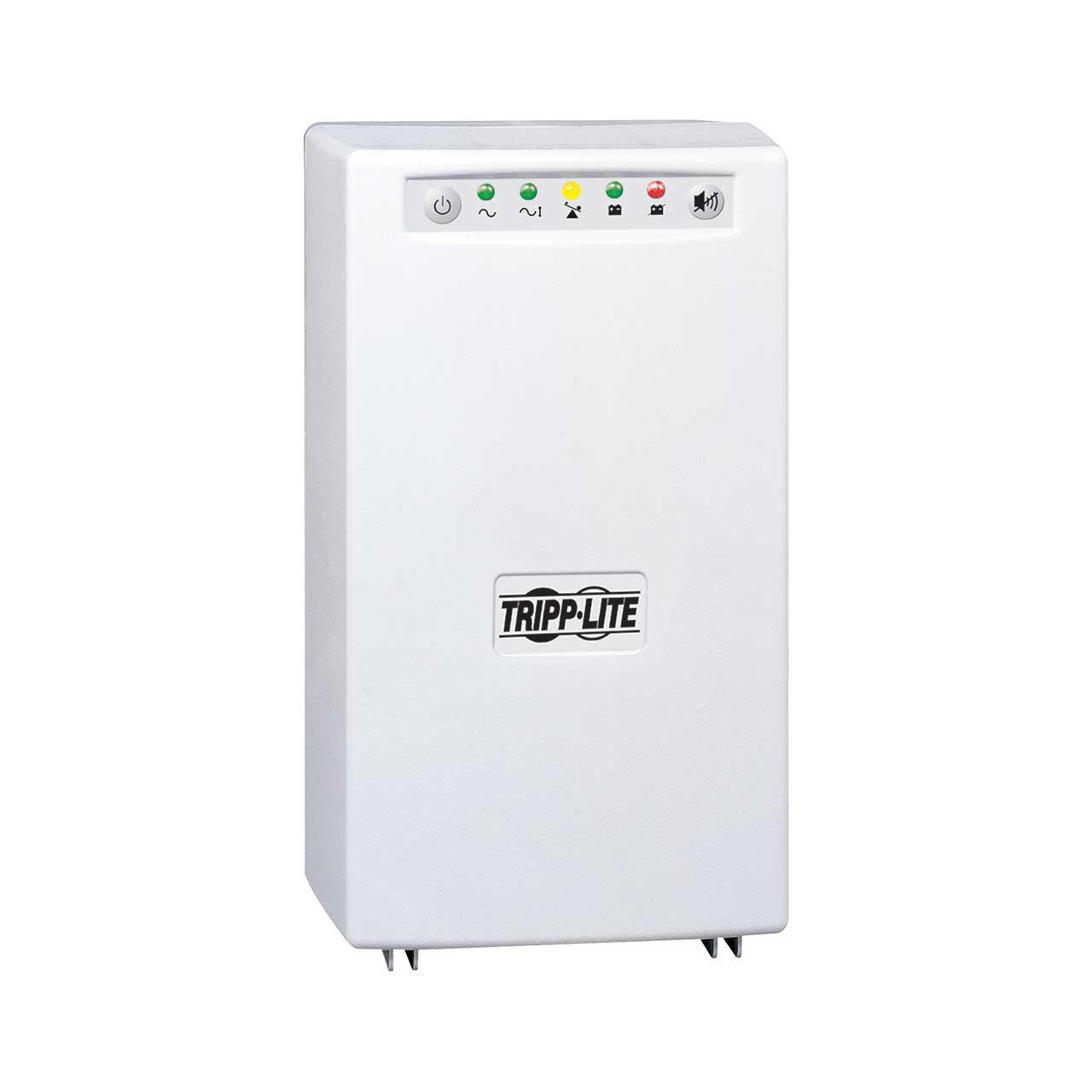

Tripp Lite SMART1200XLHGL 1000VA 750W Lithium Ion UPS Smart Tower AVR Hospital Medical

ITEM #: SMART1200XLHGL MFG #: SMART1200XLHGL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,452.80

Our Price:

$2,297.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


SMART1200XLHGL - Overview

Tripp Lite’s SMART1200XLHGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePhos) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It's fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 28 minutes of runtime for a half load and 10 minutes for a full load. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. A built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. It also reduces the cumulative leakage current of connected equipment to less than 100 μA. Floating AC output prevents noise coupling from noisy hospital ground systems. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both backup protection and 940 joules of surge protection. The SMART1200XLHGL also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite’s free downloadable PowerAlert® software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

  • Features:

    • 28 min. runtime at half load; 10 min. at full load
    • Reduces cumulative leakage current to under 100 μA
    • Floating AC output prevents noise coupling
    • 940 joules of surge protection
    • 10,000-cycle LiFePhos battery

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 1000
    • Output kVA Capacity (kVA): 1
    • Output Watt Capacity (Watts): 750
    • Power Factor: 0.8
    • Nominal Output Voltage(s) Supported: 115V; 120V
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -18%, +8%
    • Output Voltage Regulation (Battery Mode): 115V (+/- 5%)

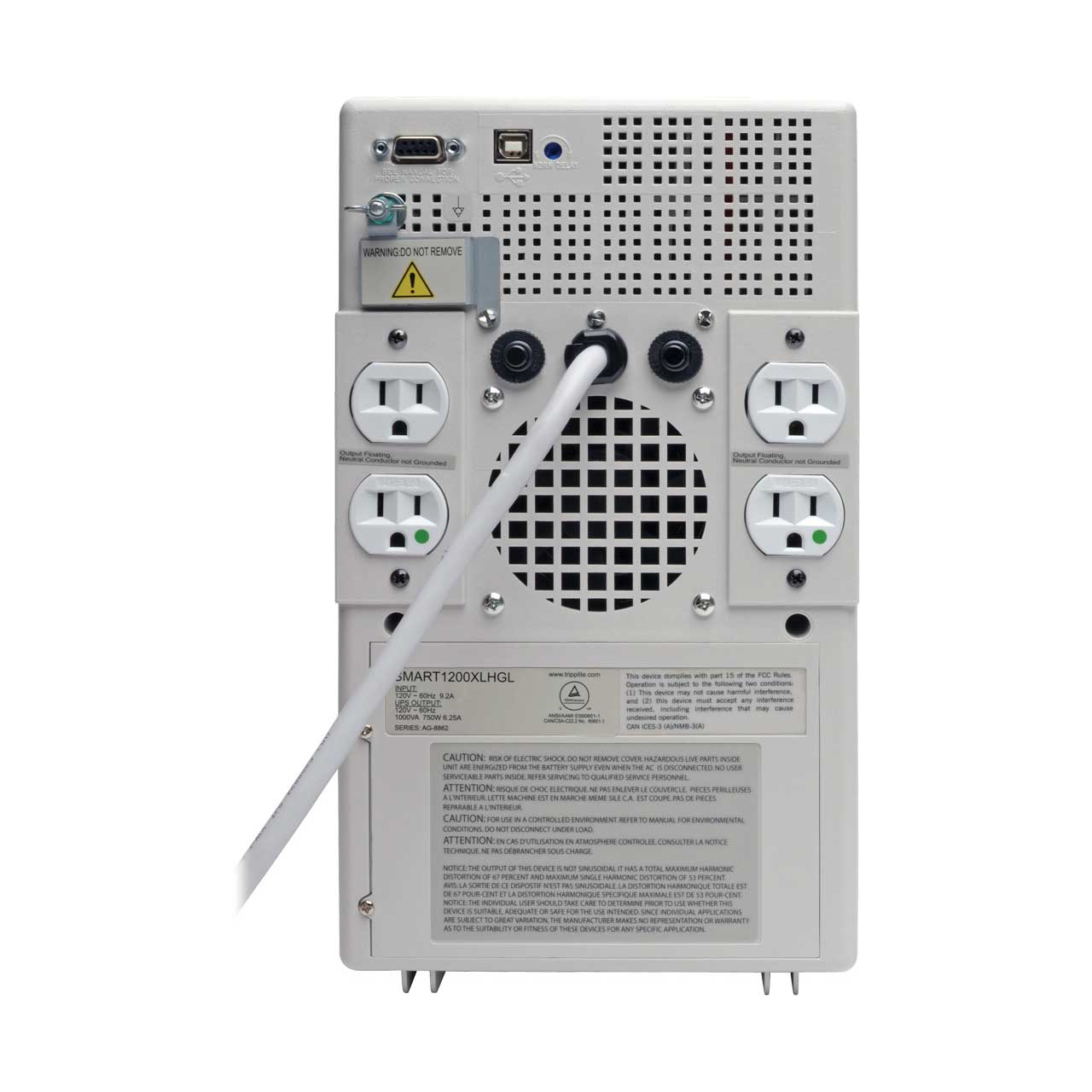

    • Output Receptacles: (4) 5-15R
    • Output Receptacle Details: Hospital grade output receptacles
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): PWM sine wave
    • Individually Controllable Load Banks: No

      Input
    • Rated input current (Maximum Load): 9.2A
    • Nominal Input Voltage(s) Supported: 120V AC

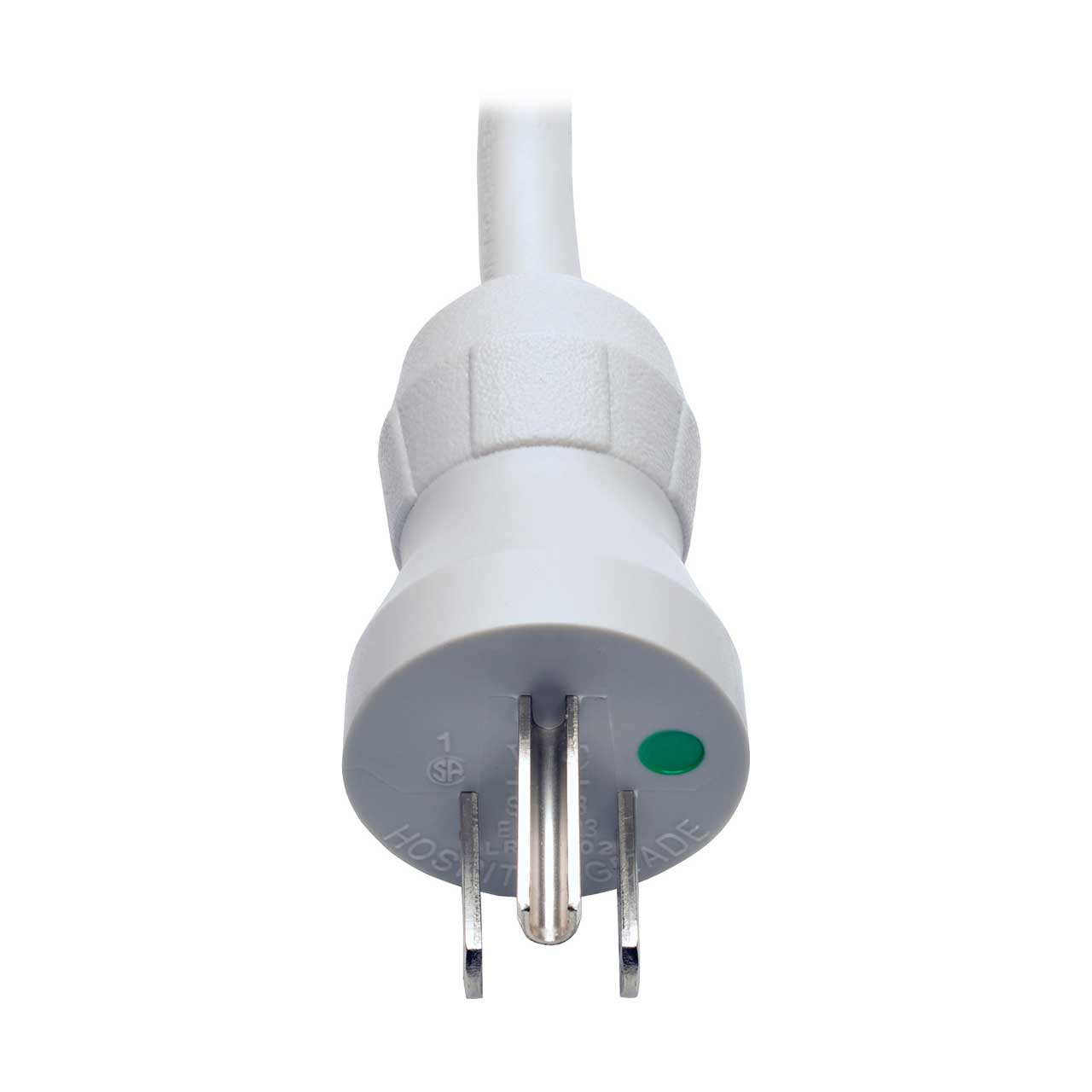

    • UPS Input Connection Type: 5-15P-HG
    • Input Circuit Breakers: 15A
    • UPS Input Cord Length (ft.): 6
    • Recommended Electrical Service: 15A 120V
    • Input Cord Length (ft.): 6
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 10 min. (750w)
    • Half Load Runtime (min.): 28 min. (375w)
    • DC System Voltage (VDC): 36
    • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
    • Internal UPS Replacement Battery Cartridge: RBC53L
    • Battery Access: Battery access door
    • Expandable Runtime: No

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
    • Overvoltage Correction: Input voltages between 126 and 143 are reduced by 9%
    • Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%
    • Severe Undervoltage Correction: Input voltages between 81 and 95 are boosted by 21%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 940
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes
    • AC Suppression Joule Rating: 940

      Isolation
    • Output Isolation Transformer: Hospital grade load isolation transformer
    • Leakage Current: Less than 100 microamps

      Physical
    • Installation Form Factors Supported with Optional Accessories: Wallmount (UPSWM - tower mounting kit)
    • Primary Form Factor: Tower
    • UPS Power Module Dimensions (hwd, in.): 12.5 x 7.5 x 9.5
    • UPS Power Module Weight (lbs.): 33.6
    • UPS Power Module Weight (kg): 15.24
    • Shipping Dimensions (hwd / in.): 17.00 x 11.40 x 13.10
    • Shipping Weight (lbs.): 36.54
    • Cooling Method: Fan
    • UPS Housing Material: PVC
    • Primary UPS Height (mm): 318
    • Primary UPS Width (mm): 191
    • Primary UPS Depth (mm): 241

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 162.8
    • Battery Mode BTU / Hr. (Full Load): 315.2
    • AC Mode Efficiency Rating (100% Load): 94%

      Communications
    • Communications Interface: USB; DB9 Serial
    • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
    • PowerAlert Software: For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
    • Communications Cable: USB and DB9 serial cabling included

      Line / Battery Transfer
    • Transfer Time: 2-4 milliseconds
    • Low Voltage Transfer to Battery Power (Setpoint): 81
    • High Voltage Transfer to Battery Power (Setpoint): 143

      Special Features
    • Grounding Lug: Grounding lug (equipotential)
    • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
    • High Availability UPS Features: Hot swappable batteries

      Certifications
    • UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)

  • Item Includes:

    • SMART1200XLHGL 1kVA/750W Medical-Grade Tower UPS System
    • USB monitoring cable, 6 ft.
    • DB9 serial monitoring cable, 6 ft.
    • 5 yr. warranty on UPS and batteries
    • Owner’s manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332192202
