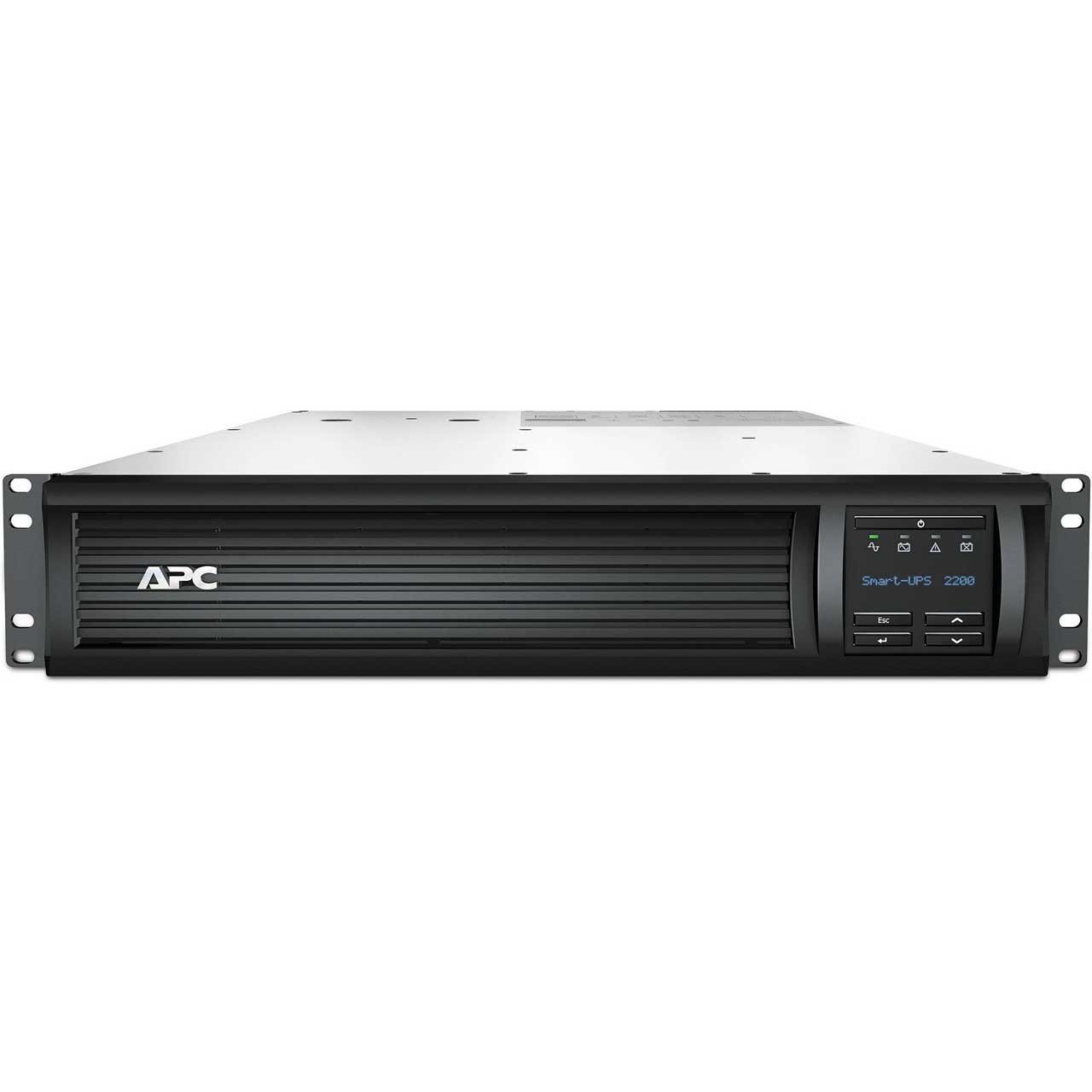

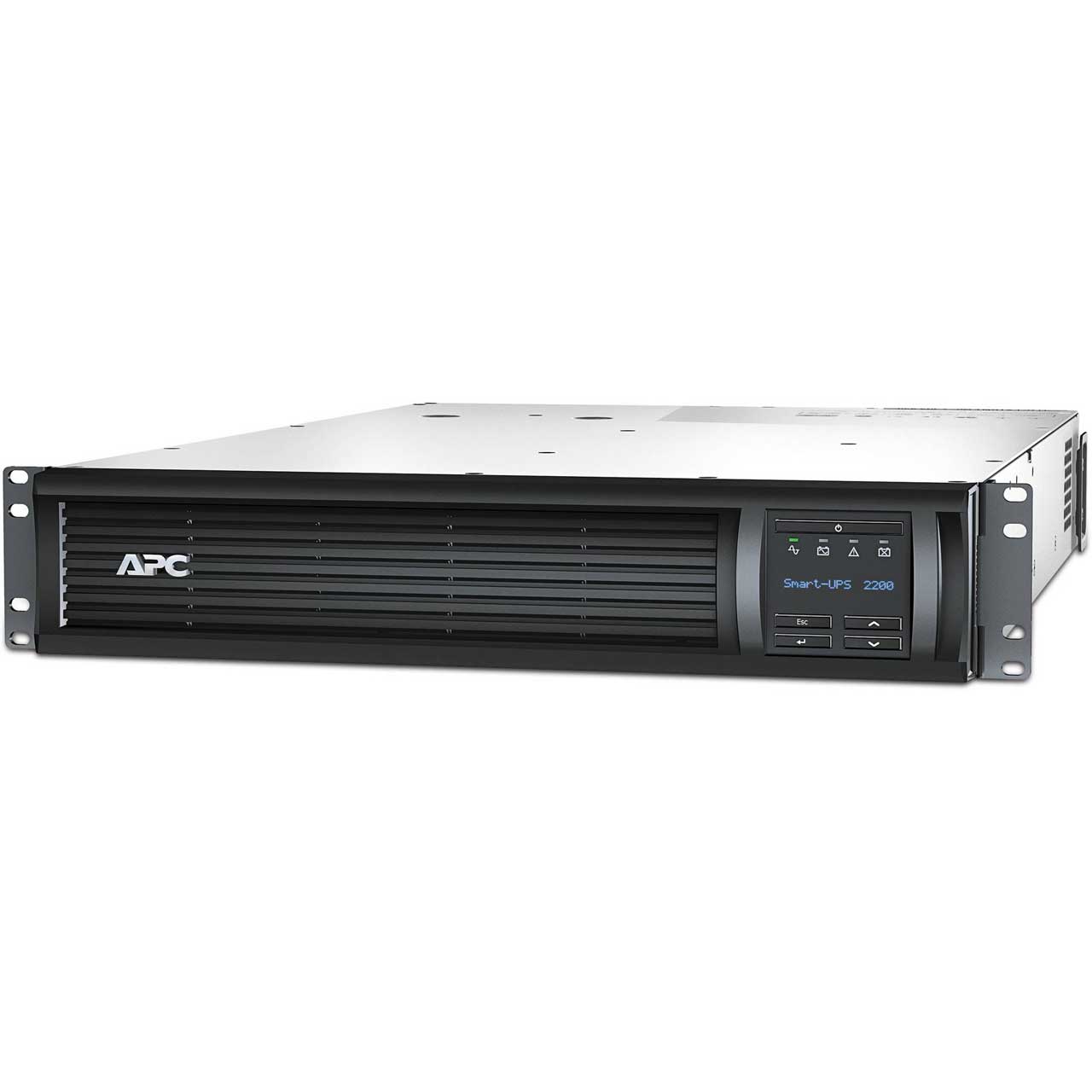

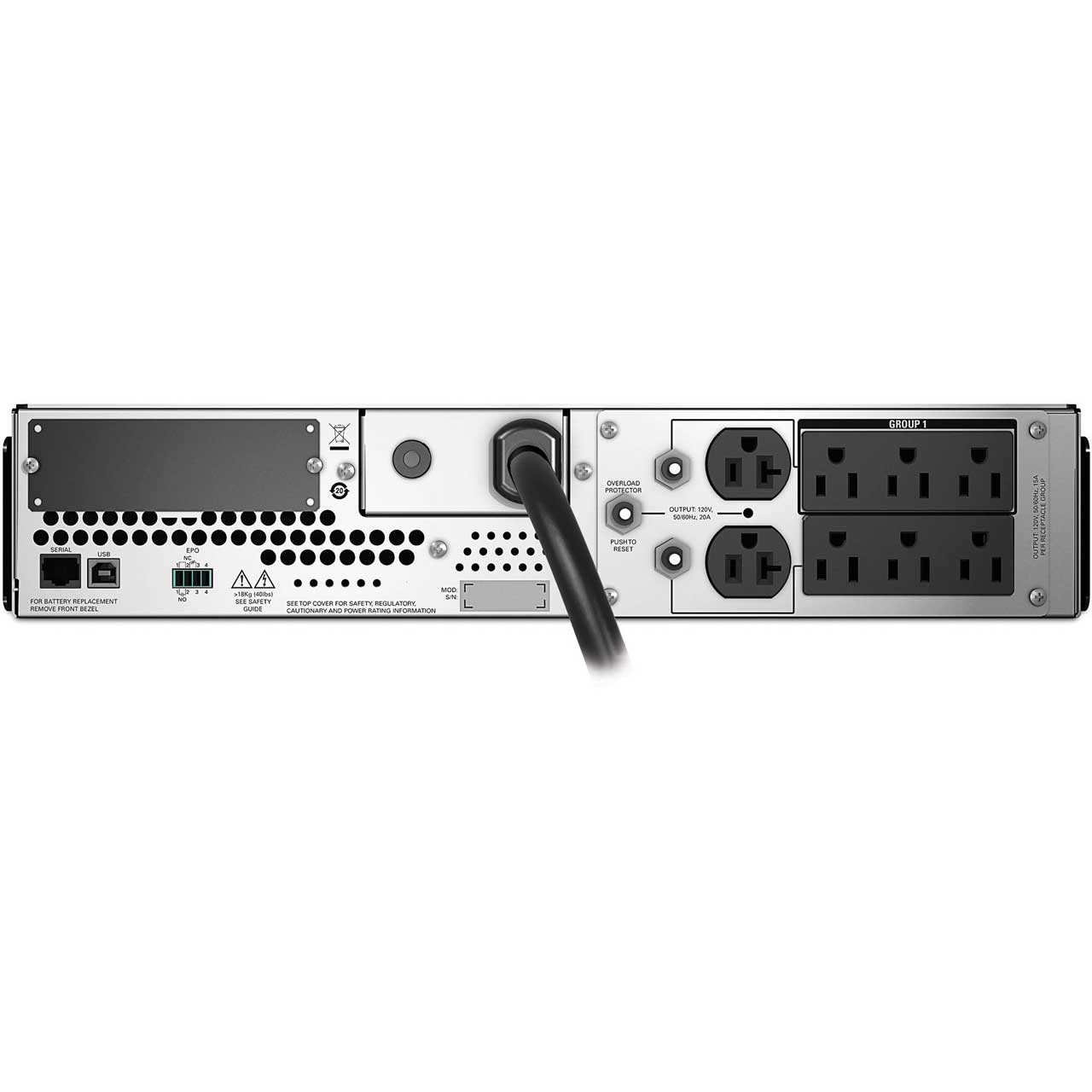

APC SMT2200R2X106 Smart-UPS 2200VA LCD RM 2U 120V with L5-20P

SMT2200R2X106 - Overview

• Features:

  • Cold-start capable
  • Energy meter
  • Green mode
  • High online efficiency
  • Intuitive LCD interface
  • Predictive replace battery date
  • Pure sine wave output on battery
  • Sequenced network shutdown and reboot
  • Single switched outlet group
  • SmartSlot
  • StruxureWare Data Center Expert compatible
  • Temperature-compensated battery charging


• Specifications:

  • Output
  • Max Configurable Power (Watts): 1.98kWatts / 2.2kVA
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz ±3 Hz
  • Topology: Line Interactive
  • Waveform type: Sine wave
  • Transfer Time: 4ms typical : 8ms maximum

    Input
  • Input frequency: 50/60 Hz ±3 Hz (auto sensing)
  • Input voltage range for main operations: 82 - 143V
  • Input voltage adjustable range for mains operation: 75 - 154V
  • Number of Power Cords: 1

    Batteries & Runtime
  • Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 3-hour(s)
  • Replacement Battery: RBC43
  • Expected Battery Life (years): 3 - 5
  • RBC Quantity: 1
  • Battery Volt-Amp-Hour Capacity: 494

    Communications & Management
  • Interface Port(s): USB
  • Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery: distinctive - Low Battery Alarm: overload continuous tone alarm
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot™ Interface Quantity: 1

    Surge Protection and Filtering
  • Surge energy rating: 530Joules

    Physical
  • Maximum Height: 3.39" (86mm, 8.6cm)
  • Maximum Width: 18.9" (480mm, 48cm)
  • Maximum Depth: 26.89" (683mm, 68.3cm)
  • Net Weight: 93.08Lbs (42.31kg)
  • Shipping weight: 109.4Lbs (49.73kg)
  • Shipping Height: 10" (254mm, 25.4cm)
  • Shipping Width: 23.62" (600mm, 60cm)
  • Shipping Depth: 38.6" (980mm, 98cm)
  • Color: Black
  • Units per Pallet: 8

    Environmental
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Operating Relative Humidity: 0 to 95%
  • Operating Elevation: 0 to 10000' (0 to 3000m)
  • Storage Temperature: 5° to 113°F (-15° to 45°C)
  • Storage Relative Humidity: 0 to 95%
  • Storage Elevation: 0 to 50000' (0 to 15000m)
  • Audible Noise at 1 meter from Surface of Unit: 55.0dBA
  • Online Thermal Dissipation: 215.0BTU/hr


  • Conformance
  • Approvals: CSA, FCC Part 15 Class A, UL 1778
  • Equipment protection policy: Lifetime: $150000
  • Standard warranty: 3 years repair or replace (excluding battery) and 2 year for battery

    Sustainable Offer Status
  • RoHS: Compliant
  • REACH: Contains No SVHCs


• Item Includes:

  • 1x CD with software
  • 1x Documentation CD
  • 1x Rack Mounting brackets
  • 1x Rack Mounting support rails
  • 1x Smart UPS signalling RS-232 cable
  • 1x USB cable


• GTIN:

  0731304294085
