Sonifex CM-HPX1 Headphone Volume Control Passive XLR Input - Jack Output

ITEM #: SON-CM-HPX1 MFG #: CM-HPX1

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$361.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CM-HPX1 - Overview

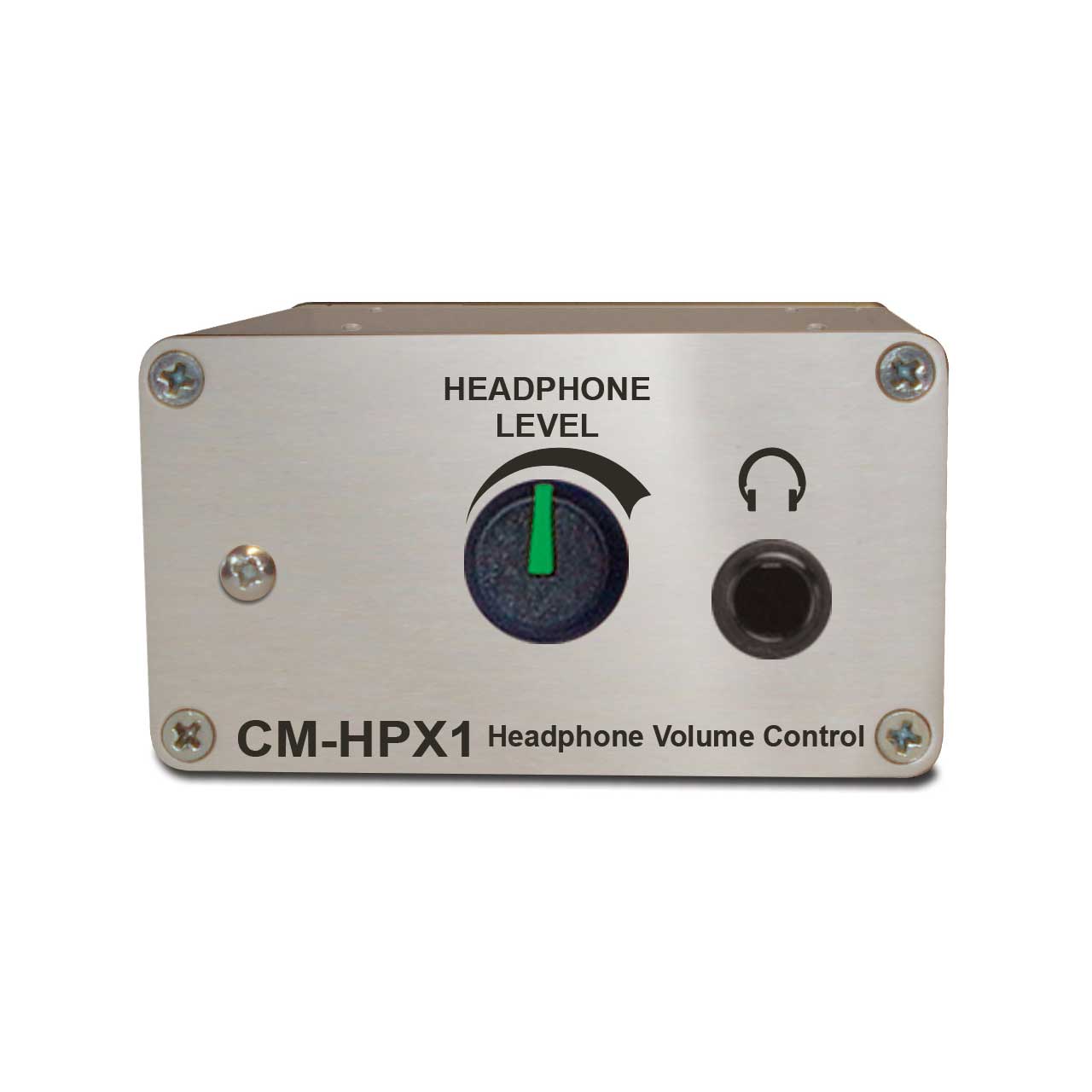

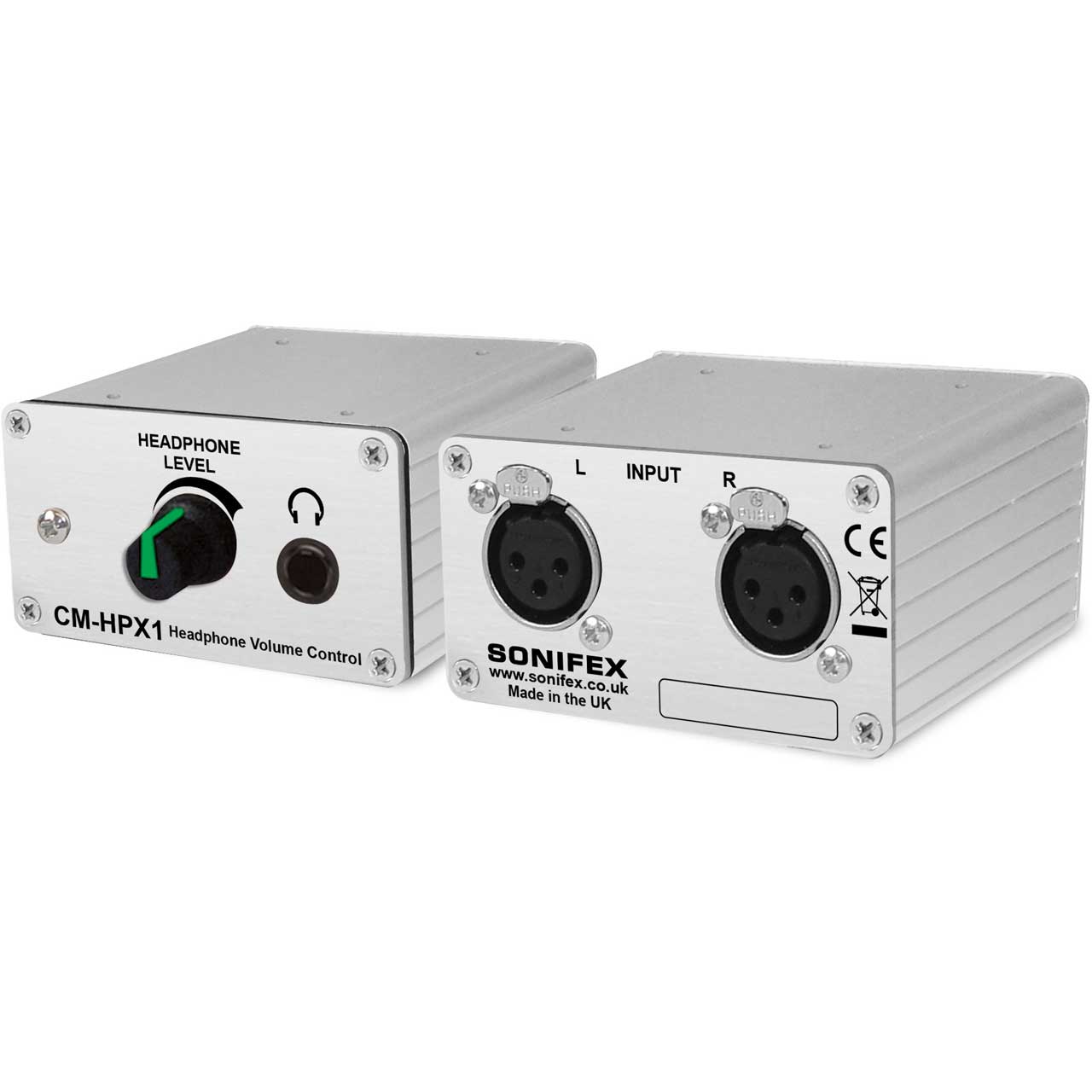

The Sonifex CM-HPX1 passive headphone volume control allows you to connect a stereo balanced line input via 2 female XLRs using the StudioHub+ pinout to create a headphone output with level control for any headphone over 150 ohms impedance. Transformer balanced at a ratio of 2:1 your ensured that any headphone load the unit is presented with is reflected to the input at a 1:4 ratio, suitably loaded for a good quality line output stages.

  • Specifications:

    • Audio Specification
    • Input/Output Level Ratio: 2:1
    • Input/Output Impedance Ratio: 4:1
    • Minimum Headphone Impedance: 150Ω
    • Max Input Level: +28dBu
    • Max Output Level: +22dBu
    • Frequency Response: 20Hz to 20kHz, +0/-0.5dB
    • Noise: <-115dBu A-wgtd
    • Distortion Ref +8dBu (Output): <0.01%
    • Common Mode Rejection: >80dB

      Connections

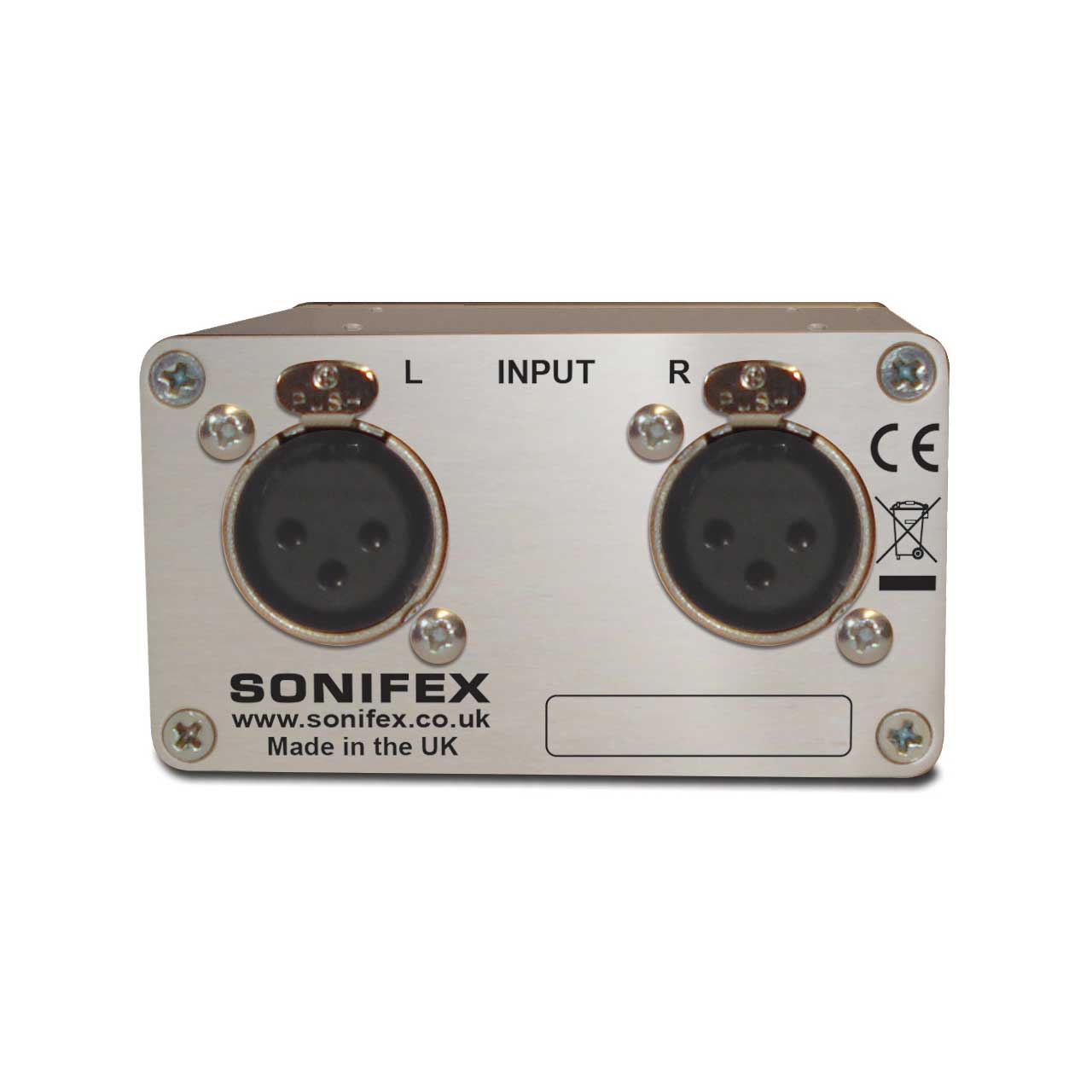

    • Main Stereo Input (CM-HPX1): 2 x XLR 3 pin, female
    • Output: 1/4 inch (6.35mm) A/B gauge 3-pole stereo jack sockets

      Physical Specification
    • Dimensions (W x D x H): 3.0 inch x 3.3 inch x 1.7 inch (7.7cm x 8.3cm x 4.2cm)
    • Weight Nett: 0.49lbs Gross: 0.73lbs
