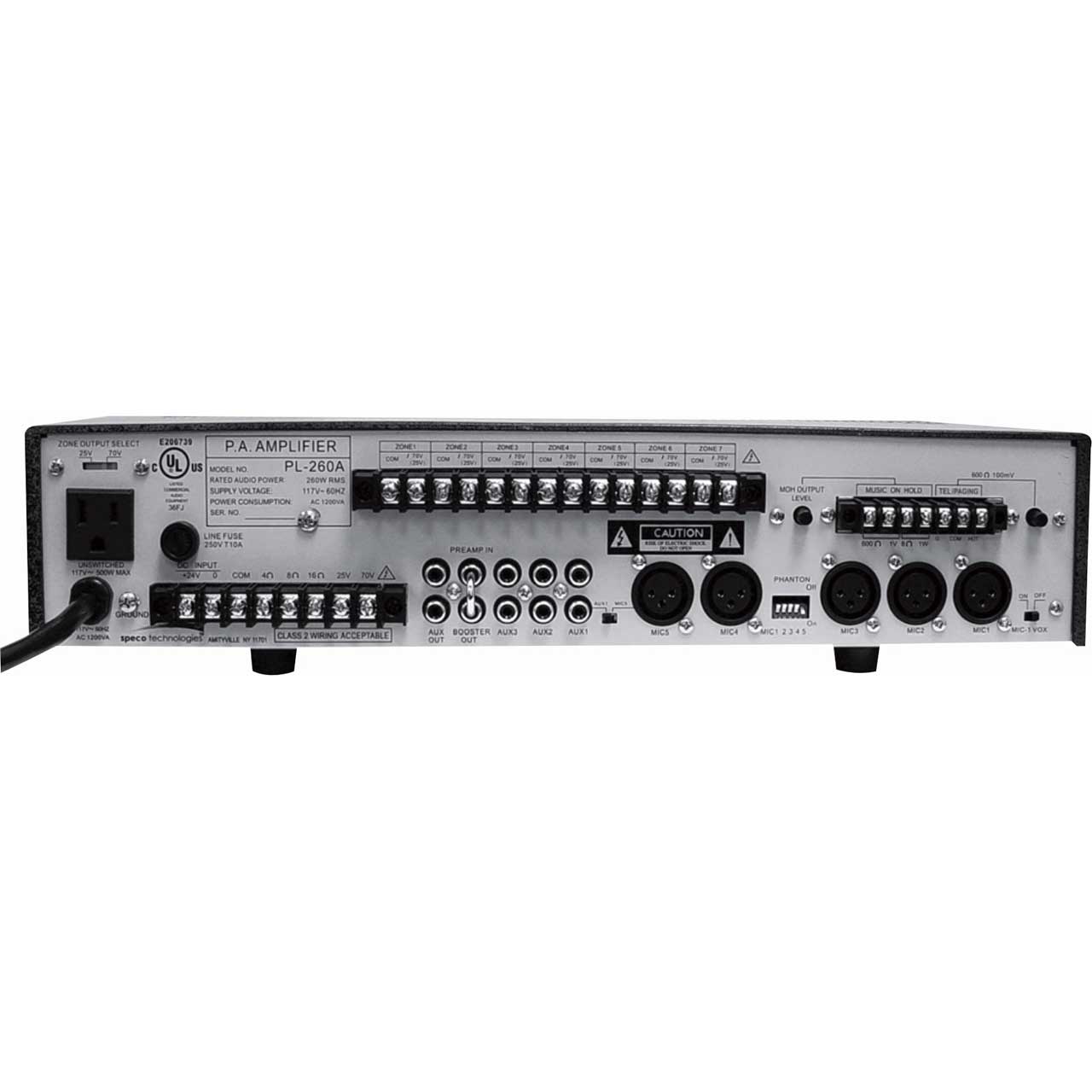

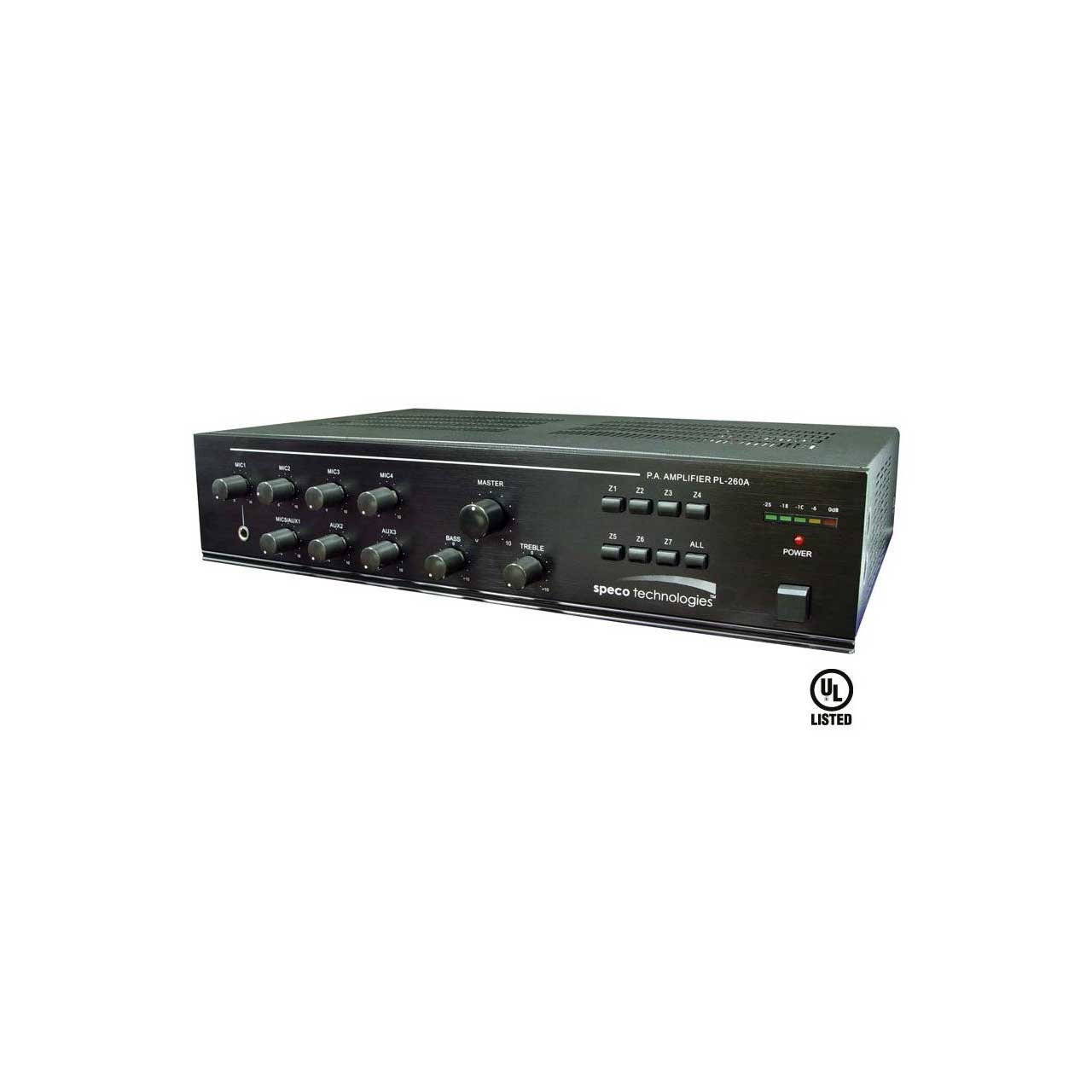

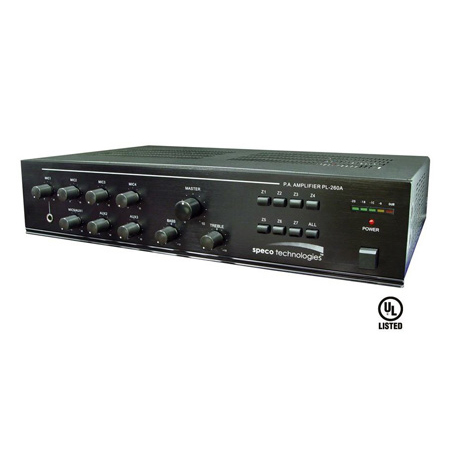

Speco PL260A 260 Watt Seven Zone Commercial Amplifier

PL260A - Overview

• Features:

  • 24 Volt input for emergency backup power
  • Separate bass and treble controls
  • Each XLR microphone input has a phantom power toggle
  • Mic1 selectable priority paging


• Specifications:

  • RMS Output Power........... 260W
  • Max. Output Power............ 390W
  • AC Power Consumption..... 1200W
  • Power Supply.................... AC 117V, 60Hz, DC 24V, 12A
  • Zones................................ 7
  • Speaker Outputs............... 4/8/16 Ohms (non-zoned), 70/25V (zoned)
  • Other Outputs.................... Aux (Stereo RCA), Pre-Amp (RCA)
  • Inputs................................. 5 x Mic (XLR), 3 x Aux (Stereo RCA),
  • 1 x EQ/Mix (RCA), 1 x TEL (Terminal)
  • Frequency Response........ 50Hz ~ 15KHz (±3dB)
  • Tone Control...................... Bass ± 10 dB, Treble ± 10dB
  • THD................................... Less than 1% @1KHz
  • Signal/Noise Ratio............. Microphone: >60dB, TEL: >60dB, Line: >70dB
  • Controls............................. Volume for each source, Master Volume,
  • TEL Input Level, MoH Volume, Tone,
  • Zone Selector, Phantom Power on/off
  • Telephone.......................... TEL in and MoH Out
  • Indicators........................... Power, power level
  • Dimensions........................ 16.9" (W) x 3.5" (H) x 11.6" (D)
  • Weight............................... 29.2 lbs.
  • Listings.............................. UL, cUL, CE, FCC, RoHS


• GTIN:

  0030519081214
