NTI ST-C6FOUSB4K-LC 4K 10.2Gbps HDMI USB KVM Extender via One CATx or Fiber Optic Cable

ST-C6FOUSB4K-LC - Overview

• Features:

  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Signal transmission via one CAT6/6a/7 cable or one single-strand singlemode/multimode LC fiber optic cable.
  • Using CAT6/6a/7 cable:
  • Extend a 4Kx2K signal up to 328 feet (100 meters).
  • Extend a 1080p or 1920x1200 signal up to 492 feet (150 meters).
  • Use with a Gigabit switch to extend a total distance of 656 feet (200 meters) between the transmitter and receiver - the transmitter and receiver can each be extended 328 feet (100 meters) from the switch.
  • Using singlemode 9-micron cable, extend to 6.21 miles (10 km).
  • Using multimode 50-micron cable, extend to 984 feet (300 meters).
  • HDMI features supported:
  • HDMI 1.4
  • 36-bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Dolby, DTS, Stereo, and LPCM
  • Bandwidth up to 340 MHz (10.2 Gbps)
  • HDCP 1.4 compliant.
  • Four USB 2.0 ports for keyboard, mouse, flash drive, HDD or touchscreen display.
  • Keyboard and mouse are hot-pluggable.
  • Supports Plug-and-Play specification.
  • Using an unmanaged Gigabit network switch, extend up to 32 pairs in Point-to-Point connections.
  • Use the DIP switch on the transmitter and receiver to specify the ID for the unit.
  • Transmitter and receiver units with the same ID will connect to each other. (Only Point-to-Point connections are supported.)
  • Supports full-duplex RS232 up to 115200 baud.
  • EDID pass-through for the support of any HDMI display device.
  • Mounting brackets included for easy surface/wall mounting.


• Specifications:

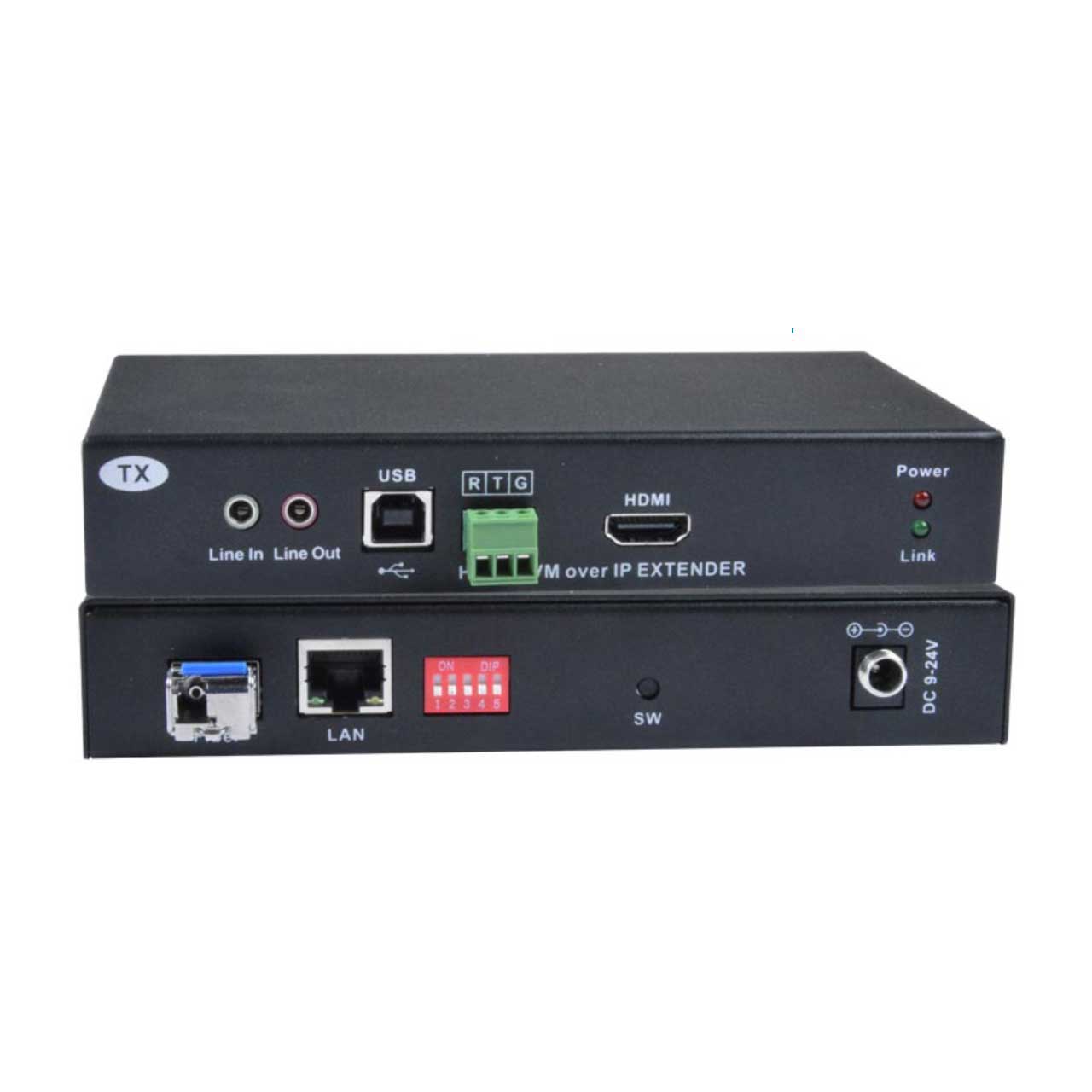

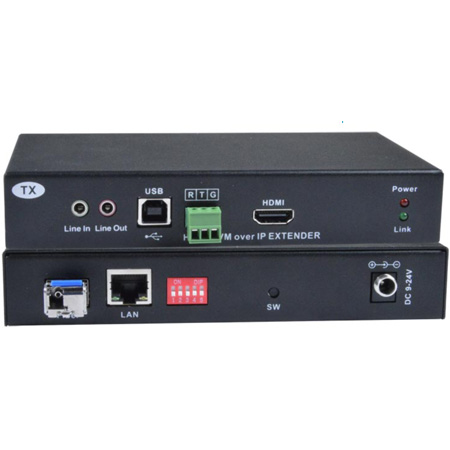

  • Local Unit
  • Compatible with a USB computer with Ultra-HD HDMI output.
  • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Linux, and MAC OS 10/11.
  • One female HDMI connector.
  • One female USB Type B connector.
  • Two female 3.5mm stereo jacks for audio out and mic in.
  • 3-pin screw terminal for RS232.
  • Support full-duplex RS232 up to 115200 baud.
  • One female RJ45 port for sending/receiving video, audio, USB, and RS232 signals.
  • One simplex female LC fiber optic port for sending video, audio, USB, and RS232 signals.
  • DIP switch for specifying unit ID.
  • Supports HDCP 1.4

    Remote Unit
  • One female HDMI connector.
  • Four female USB 2.0 Type A connectors for keyboard, mouse, flash drive, HDD, or touchscreen display.
  • Two female 3.5mm stereo jacks for audio out and mic in.
  • 3-pin screw terminal for RS232.
  • Support full-duplex RS232 up to 115200 baud.
  • One female RJ45 port for sending/receiving video, audio, USB, and RS232 signals.
  • One simplex female LC fiber optic port for sending/receiving video, audio, USB, and RS232 signals.
  • DIP switch for specifying unit ID.
  • Supported video resolutions:
  • Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @30Hz YUV 4:4:4
  • HDTV resolutions to 1080p
  • Up to 1920x1200 (WUXGA)
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.

    Power
  • Local and remote unit:
  • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 12VDC, 2A

    Dimensions
  • WxDxH (in): 6.32x3.82x1.1 (161x97x28 mm)

    Environmental
  • Operating temperature: 32° to 131°F (0° to 55°C)
  • Storage temperature: -4° to 185°F (-20° to 85°C)
  • Operating/storage relative humidity: 5 to 90% non-condensing RH.

    Regulatory Approvals
  • CE, FCC, RoHS

    Max Distance
  • Using CAT6/6a/7 cable:
  • Extend a 4Kx2K signal up to 328 feet (100 meters).
  • Extend a 1080p or 1920x1200 signal up to 492 feet (150 meters).
  • Using singlemode 9-micron cable, extend to 6.21 miles (10 km).
  • Using multimode 50-micron cable, extend to 984 feet (300 meters).

    Cables
  • Interface cables between the source/display and the transmitter/receiver are required for proper operation.
  • Supports HDMI cable lengths to 20 feet for 4Kx2K resolutions and 50 feet for 1080p.
  • Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source or display.
  • HD-3/6/10/15/20-MM supports resolutions to 4K@30Hz.
  • HD-30/50-MM supports resolutions to 1080p.
  • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
  • Use DVI-HD-xx-MM to connect DVI source or display.
  • Does not support 4Kx2K resolutions.
  • Use a USB2-AB-x-5T male USB Type A to male USB Type B interface cable to connect the USB computer to the transmitter.
  • Use CAT6/6a/7 cable terminated with standard RJ45 connectors to extend the receiver from the transmitter.
  • Extend a 4Kx2K signal up to 328 feet (100 meters).
  • Extend a 1080p or 1920x1200 signal up to 492 feet (150 meters).
  • Use a simplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 6.21 miles (10 km).
  • Use a simplex multimode LC 50-micron fiber optic cable to extend the receiver from the transmitter up to 984 feet (300 meters).
  • Cables not included.
