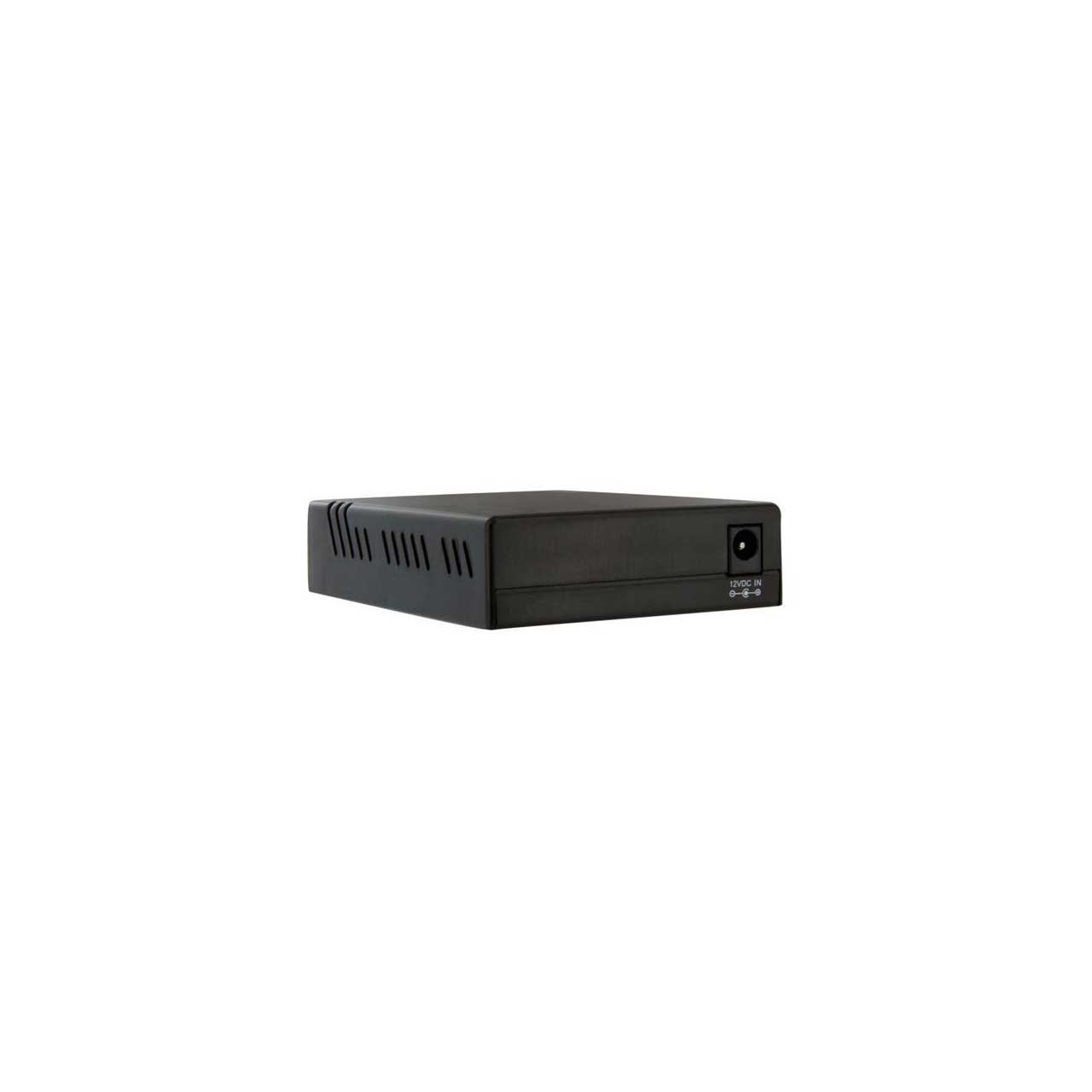

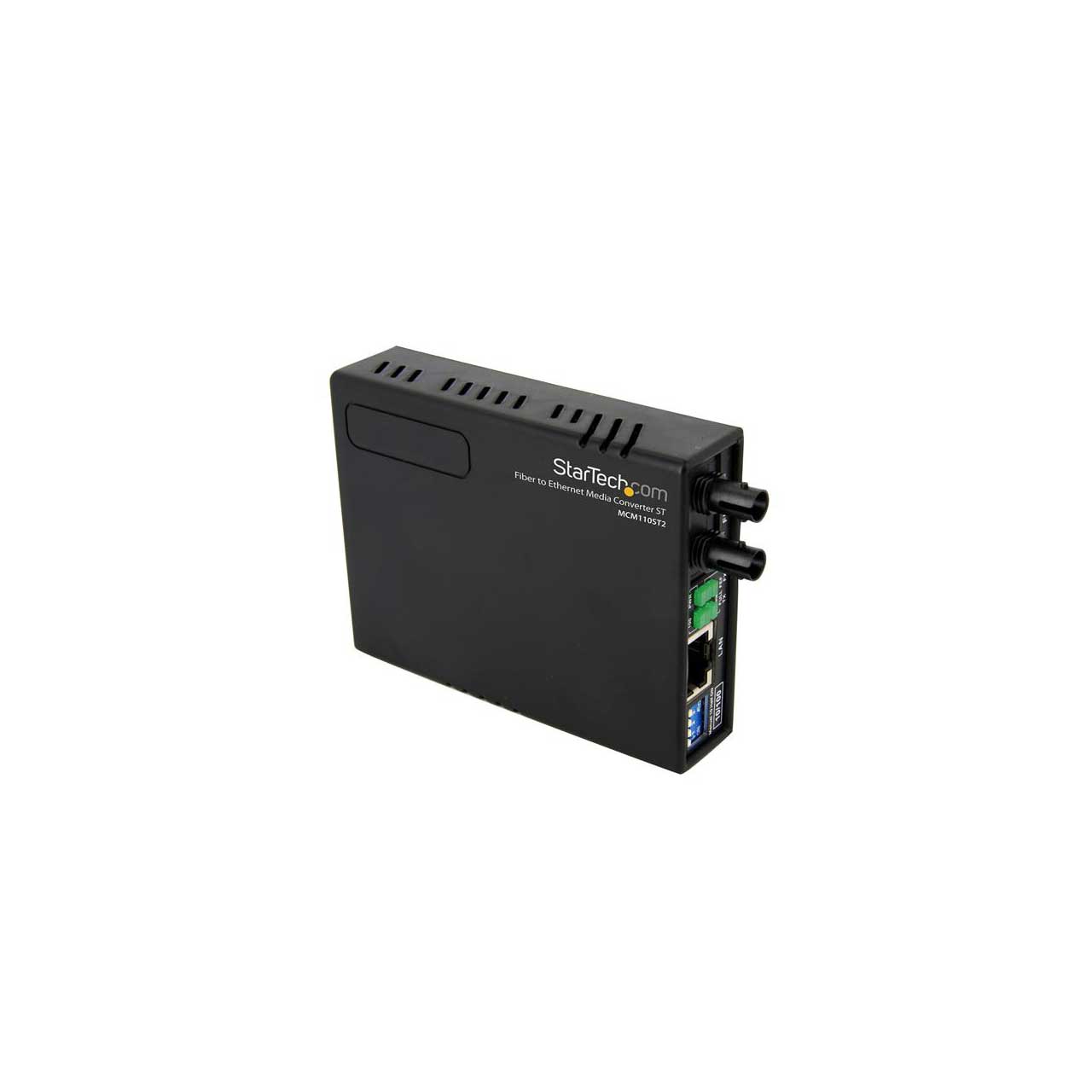

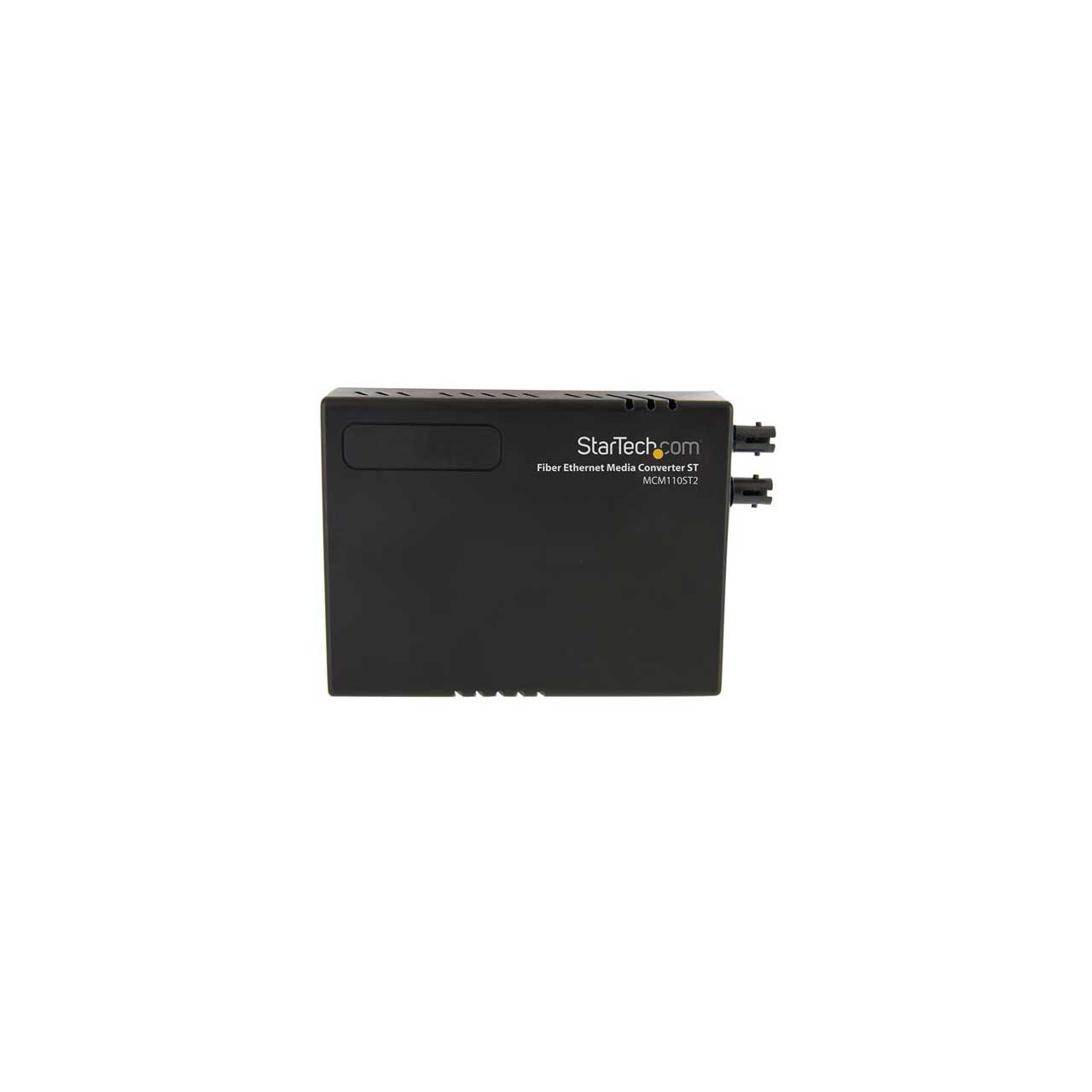

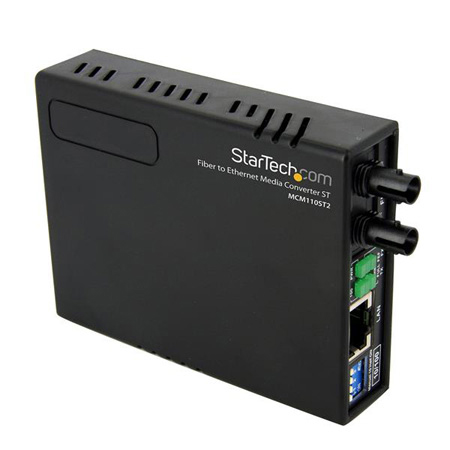

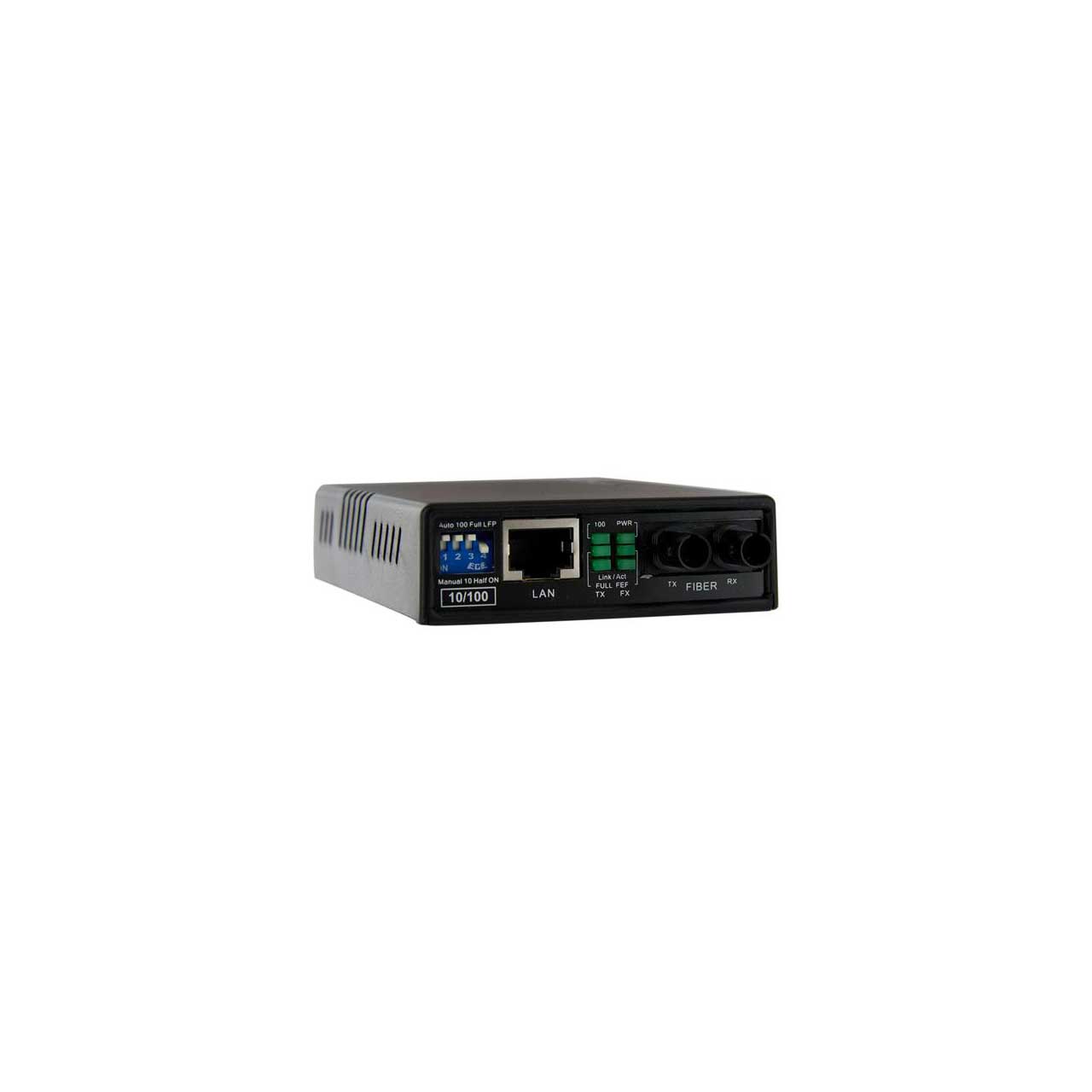

StarTech MCM110ST2 - 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km

MCM110ST2 - Overview

• Features:

  • Supports a maximum multi mode fiber optic cable distance of 2 km
  • Supports full or half-duplex operation
  • Compatible with 3COM, Cisco, Lucent and Nortel networks
  • Supports Link Fault Pass through (LFP)
  • Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
  • Supports IEEE 802.1q Tag VLAN pass thru
  • Supports Q in Q double tagged frame transparent
  • LED Indicators for simple Ethernet/Fiber network link monitoring
  • Support flow control (Pause)


• Specifications:

  • Hardware
  • Industry Standards IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-FX
  • IEEE 802.3u 100BASE-TX
  • PoE No
  • WDM No


  • Performance
  • Fiber Operating Mode Half/Full-Duplex
  • Fiber Type Multi Mode
  • Max Transfer Distance 2 km (1.2 mi)
  • Maximum Data Transfer Rate 10/100Mbps
  • MTBF 65,000 Hours
  • Optical Power -14 ~ -20 dBm
  • Power Budget 11 dB
  • Sensitivity -31 dBm
  • Wavelength 1310nm


  • Connector(s)
  • Local Unit Connectors 1 - Fiber Optic ST Duplex Female
  • 1 - RJ-45 Female


  • Indicators
  • LED Indicators 1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
  • 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
  • 1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
  • 1 - Full ( Full duplex / Half duplex)
  • 1 - Power
  • 1 - Speed (10 or 100 Mbps)


  • Power
  • Center Tip Polarity Positive
  • Input Voltage 115 AC
  • Output Current 0.2A
  • Output Voltage 12 DC
  • Plug Type M
  • Power Source AC Adapter Included


  • Environmental
  • Humidity 10~90% RH
  • Operating Temperature 0°C to 50°C (32°F to 122°F)
  • Storage Temperature -10°C to 70°C (14°F to 158°F)


  • Physical Characteristics
  • Color Black
  • Enclosure Type Plastic
  • Product Height 0.8 in [20 mm]
  • Product Length 3.7 in [95 mm]
  • Product Weight 3.2 oz [90.5 g]
  • Product Width 3 in [75 mm]
  • Shipping (Package) Weight 0.9 lb [0.4 kg]

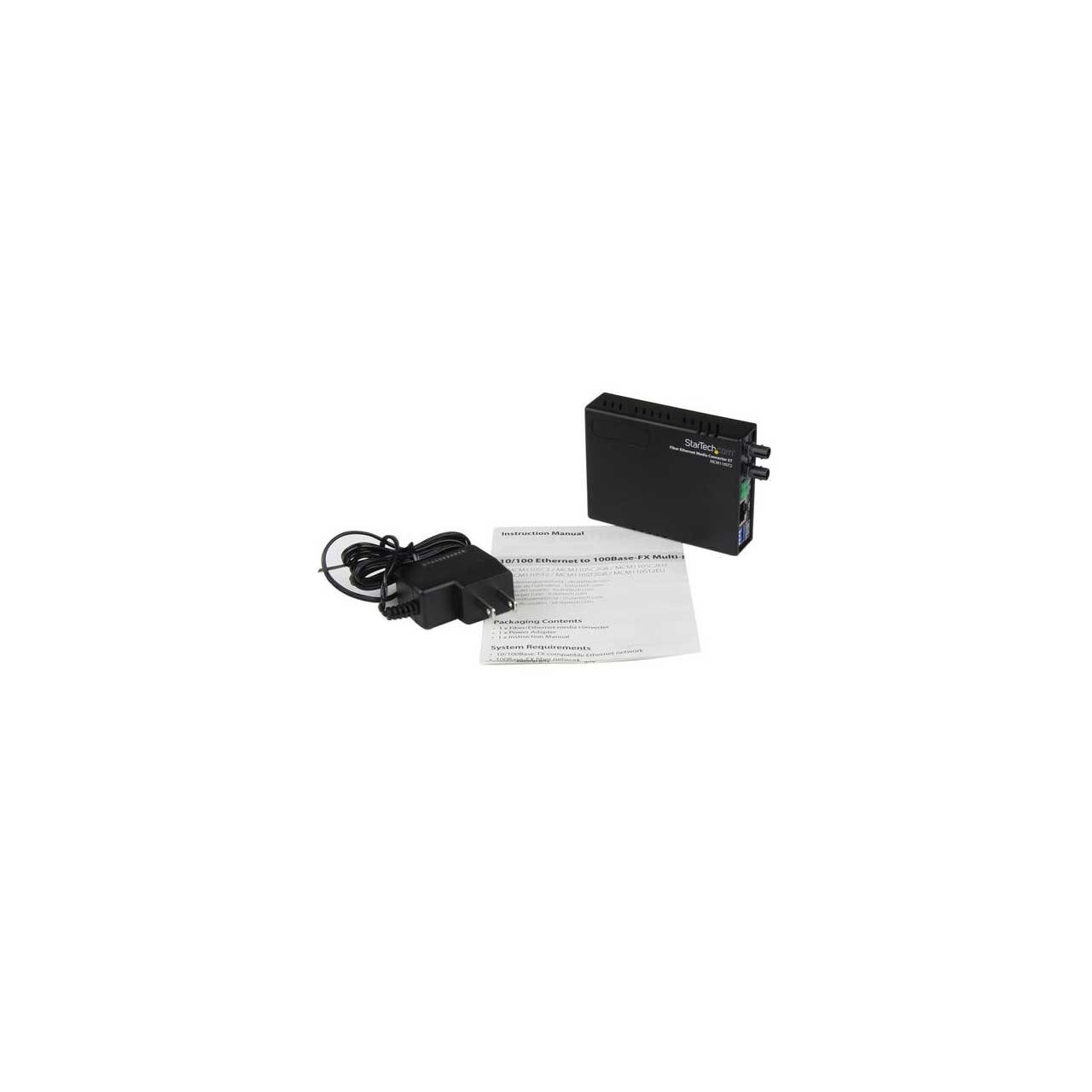

• Item Includes:

  • 1 - Media Converter
  • 1 - Power Adapter
  • 1 - Instruction Manual


• Warranty:

  • 2 Years


• GTIN:

  0065030835633
