Shure STEM HUBX1 Hub Express - Enables use of multiple STEM Devices in One Room - Analog / USB and VOIP/SIP Connectivity

HUBX1 - Overview

Multi-Device Conferencing Hub

• Features:

  • Connects up to 10 audio enpoints, centralizes and processes signals from all connected devices to provide a single audio channel for the entire room.
  • Ethernet connection provides the device with data, power, SIP, and the ability to communicate with other networked endpoints.
  • Hub: Dante® digital audio networking (1 input / 1 output) including compatibility with Dante Domain Manager for seamless expansion over any
    network infrastructure.
  • USB connectivity allows to connect a Stem Ecosystem room solution directly to a PC for video conferencing.Power over Ethernet (PoE+).
  • Female terminal block connector is available to connect existing analog speakers in the room or to add them for additional speaker output.
  • Power over Ethernet (PoE+).
  • Wall mountable with slim design to hide the device behind a screen.
  • Kensington lock equipped


• Specifications:

  • Connector Type: RJ45 and USB Type B
  • Power Requirements: Power over Ethernet Plus (PoE+) 802.3 at Type 2
  • Control Application: Stem Ecosystem Platform
  • Weight: 0.5 lbs (0.23 kg)
  • Product Dimensions: 7 x 1.5 in (17.8 x 3.8 cm) D x H
  • Operating Temperature Range: -6.7°C (20°F) to 40°C (104°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Frequency Response: 50 Hz to 16 kHz

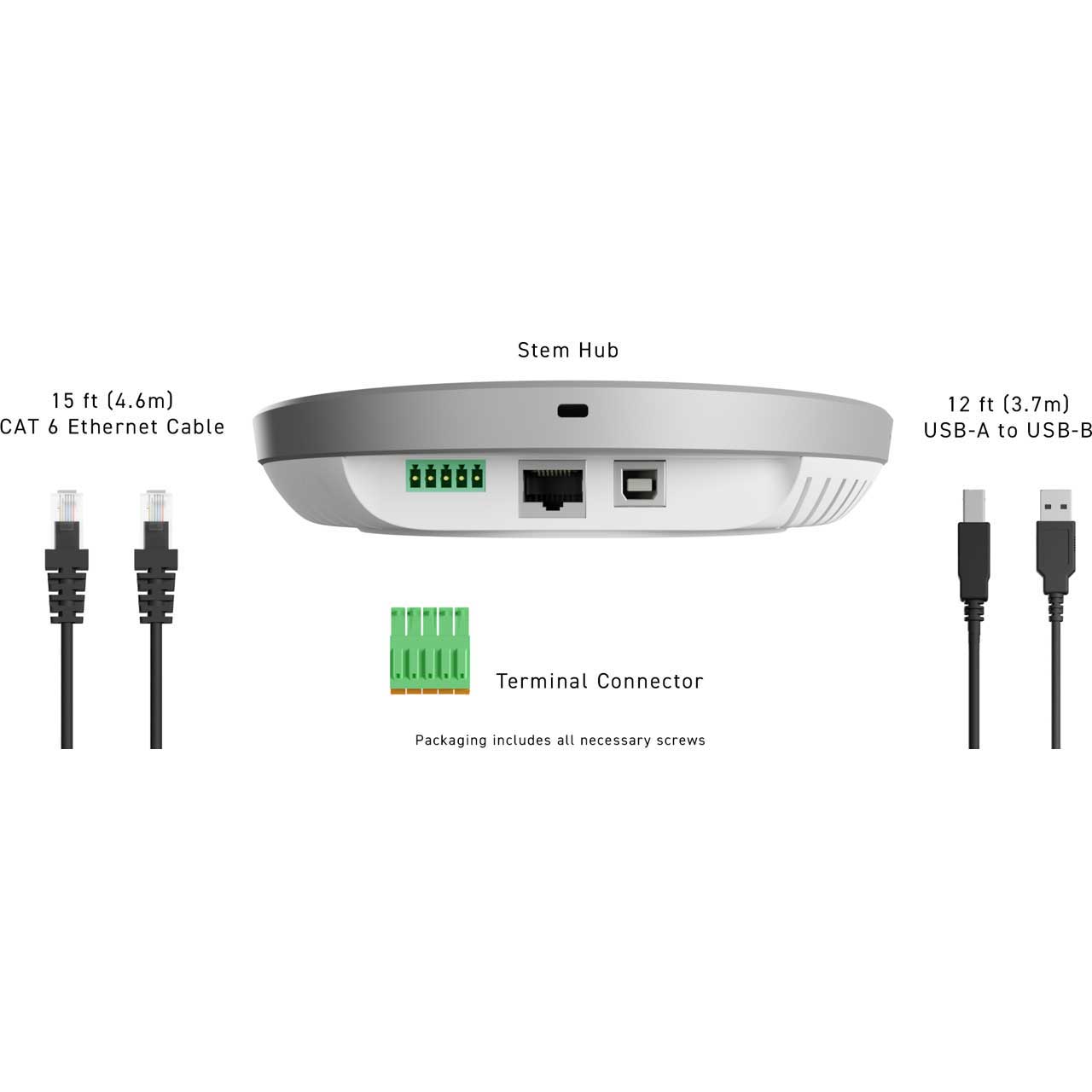

• Item Includes:

  • 1x STEM HUBX1
  • 1x CAT 6 Ethernet Cable: 15 ft. (4.6 m)
  • 1x USB Type A to USB Type B Cable: 12 ft. (3.7 m)
  • 1x Terminal Connector
  • 1x Wall Mounting Kit (Screws and Drywall Anchors)


• GTIN:

  0850014858063
