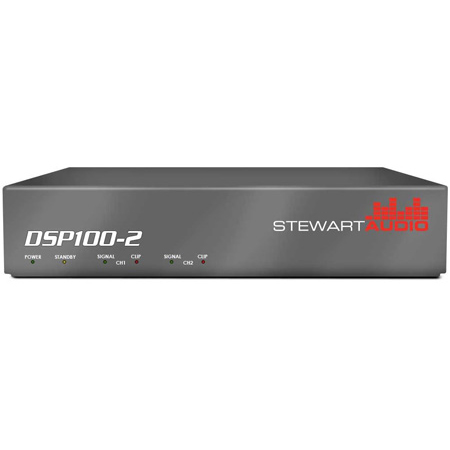

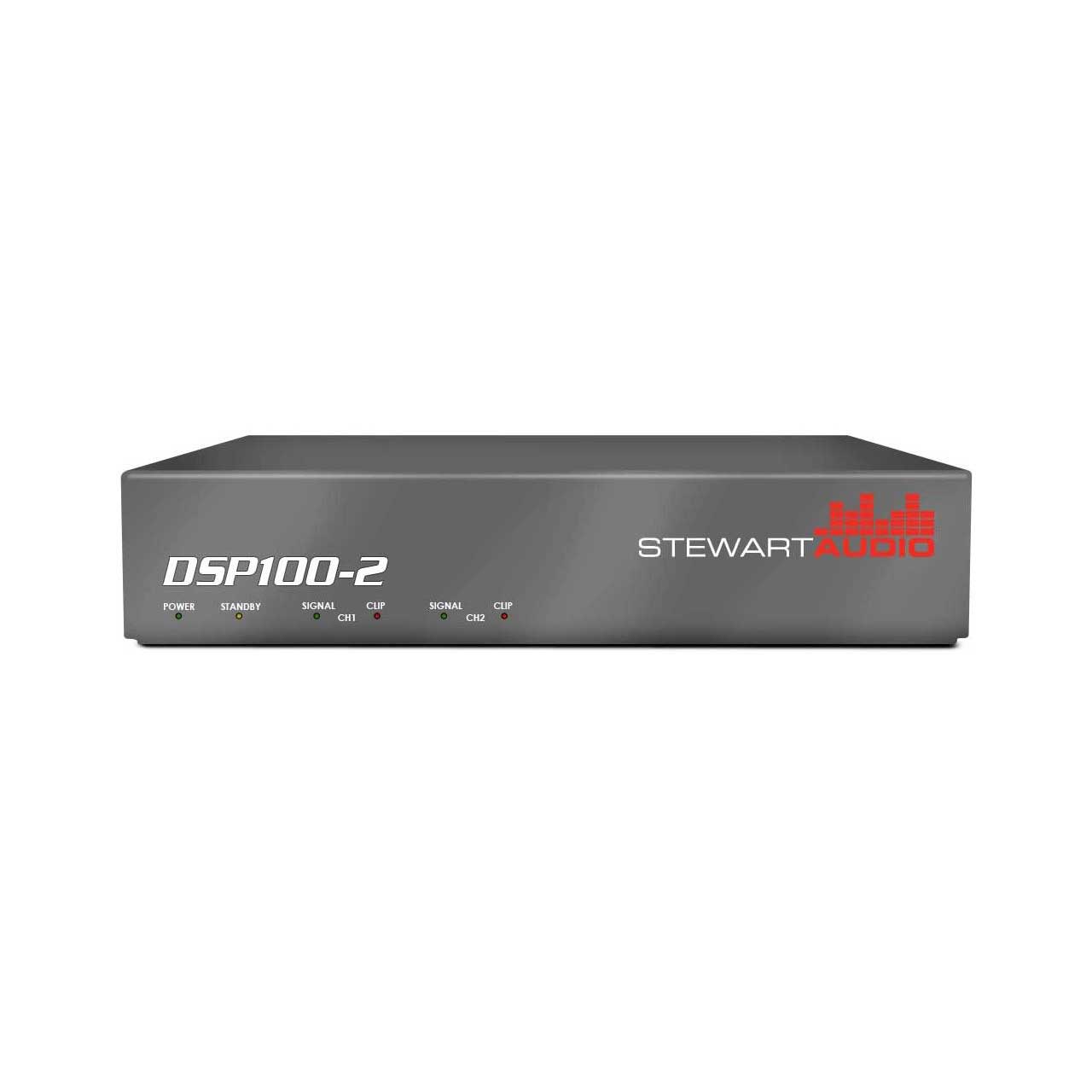

Stewart DSP100-2-CV-D 2 Channel DSP-Enabled Amplifier 2 x 100W @ 70V/100V Dante Network Enabled

ITEM #: STW-DSP100-2-CVD MFG #: DSP100-2-CVD

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,399.00

Our Price:

$1,185.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DSP100-2-CVD - Overview

The DSP100-2-CV-D is an affordable amplifier with fully integrated DSP designed to optimize the speakers and overcome the acoustical limitations of a zone. The DSP100-2-CV-D provides 100W from each of the two 70/100V output channels. The robust, full function DSP includes a full cross-point mixer, EQ, filters, limiters, and more. A USB port makes programing simple, fast and repeatable for large installations. The remove volume control operates with a wide range of devices. You won't find a more cost effective way to bring outstanding sound quality to two zones on the market today.

  • Features:

    • Onboard full featured DSP
    • Configurable via USB port
    • Convection cooled, 1/2 rack enclosure
    • 2 balanced + 2 RCA analog line/mic inputs
    • 2 Dante input channels
    • Remote Volume Control
    • Made in the USA

  • Specifications:

    • Output: 100W x 2 @ 70V / 100V
    • Frequency Response: 100 Hz - 20kHz
    • THD+N: <.1% @ Full Power
    • Signal-to-Noise Ratio: >100dB
    • Input Sensitivity: 1V (0 dBV)
    • Input impedance (Balanced/Unbalanced): 7.2K Ohms/3.6K Ohms
    • Current Draw - Standby, 1/8 Power: 12W/65W (Varies by model)
    • Amplifier Class: D
    • Remote Volume: 0-10VDC
    • External Mute: Contact-Closure

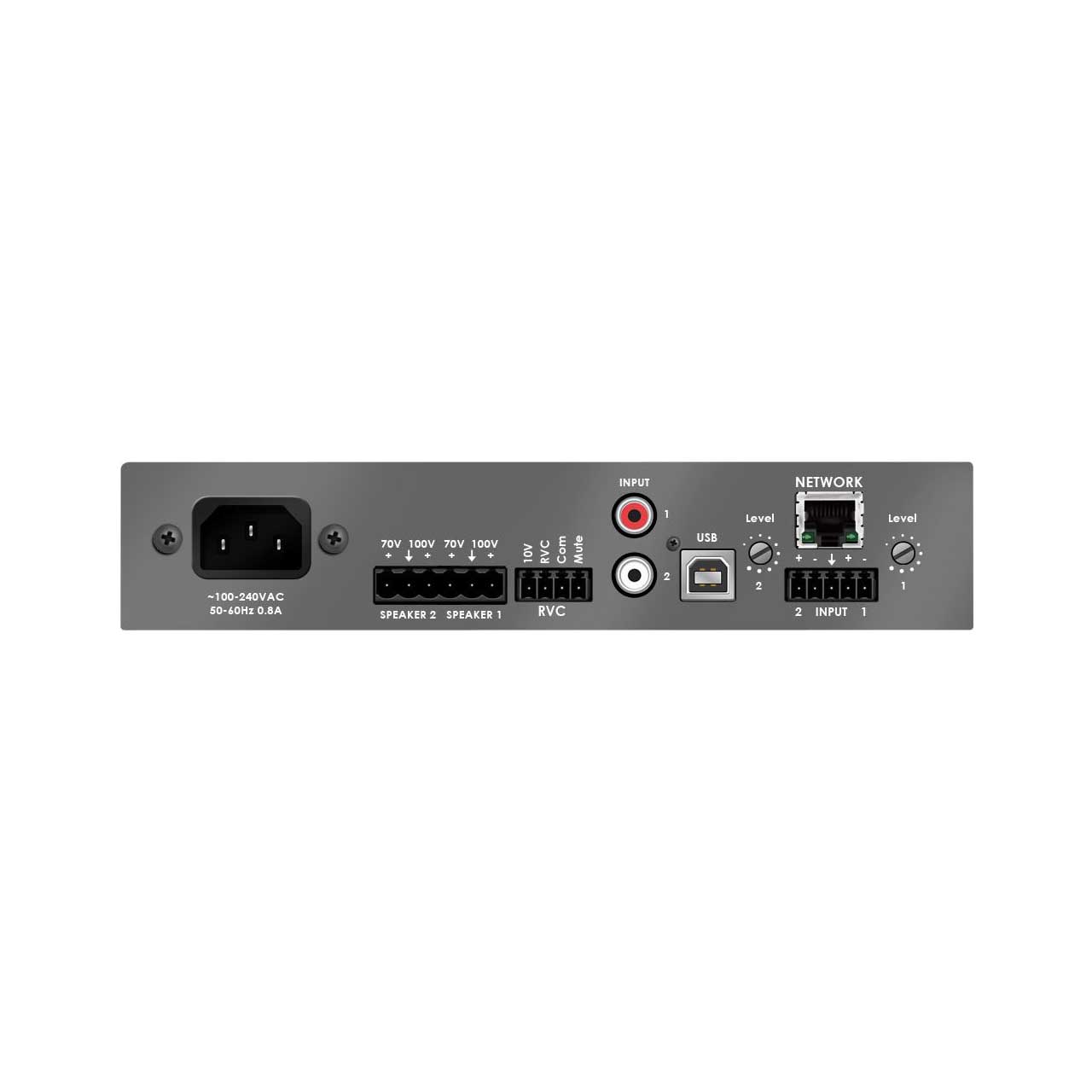

    • Input Connectors: 3.5mm Euroblock and RCA
    • Output Connectors: 5mm Euroblock
    • LED Indicators: Power, Standby, Signal, and Clip
    • Controls: USB for programming, Remote Volume, Trim Knobs
    • Optional Network Input: Dante
    • Power Supply Input: 110/240 VAC 50/60Hz (Universal Input)
    • Cooling: Convection-Cooling (No Fans)
    • Construction: Aluminum Chassis
    • Mounting: Rack-Mountable
    • Dimensions (height, width, depth): 1.7"H x 8.4"W x 10.7"D
    • Weight: 4.5lbs max (varies by model)

  • Warranty:

    • 3 Year


DSP100-2-CVD - Required Accessories
