Switchcraft 35HDLBN 3.5MM Locking Stereo Plug Black Handle Nickel Plug - 0.290 Inch Cable Opening

Name: Switchcraft 35HDLBN 3.5MM Locking Stereo Plug Black Handle Nickel Plug - 0.290 Inch Cable Opening
Brand: Switchcraft
SKU: SW-35HDLBN
Price: 17.08 USD
Availability: InStock

ITEM #: SW-35HDLBN MFG #: 35HDLBN

Switchcraft

List Price:

$18.00

Our Price:

$17.08

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

35HDLBN - Overview

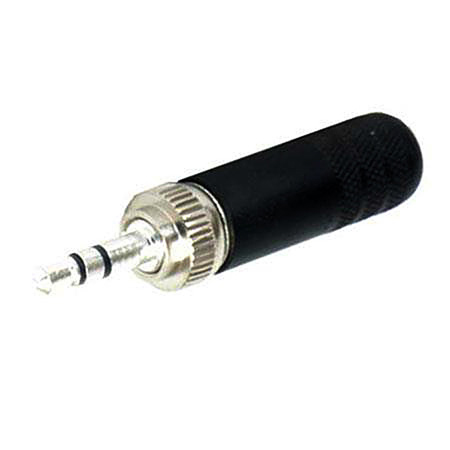

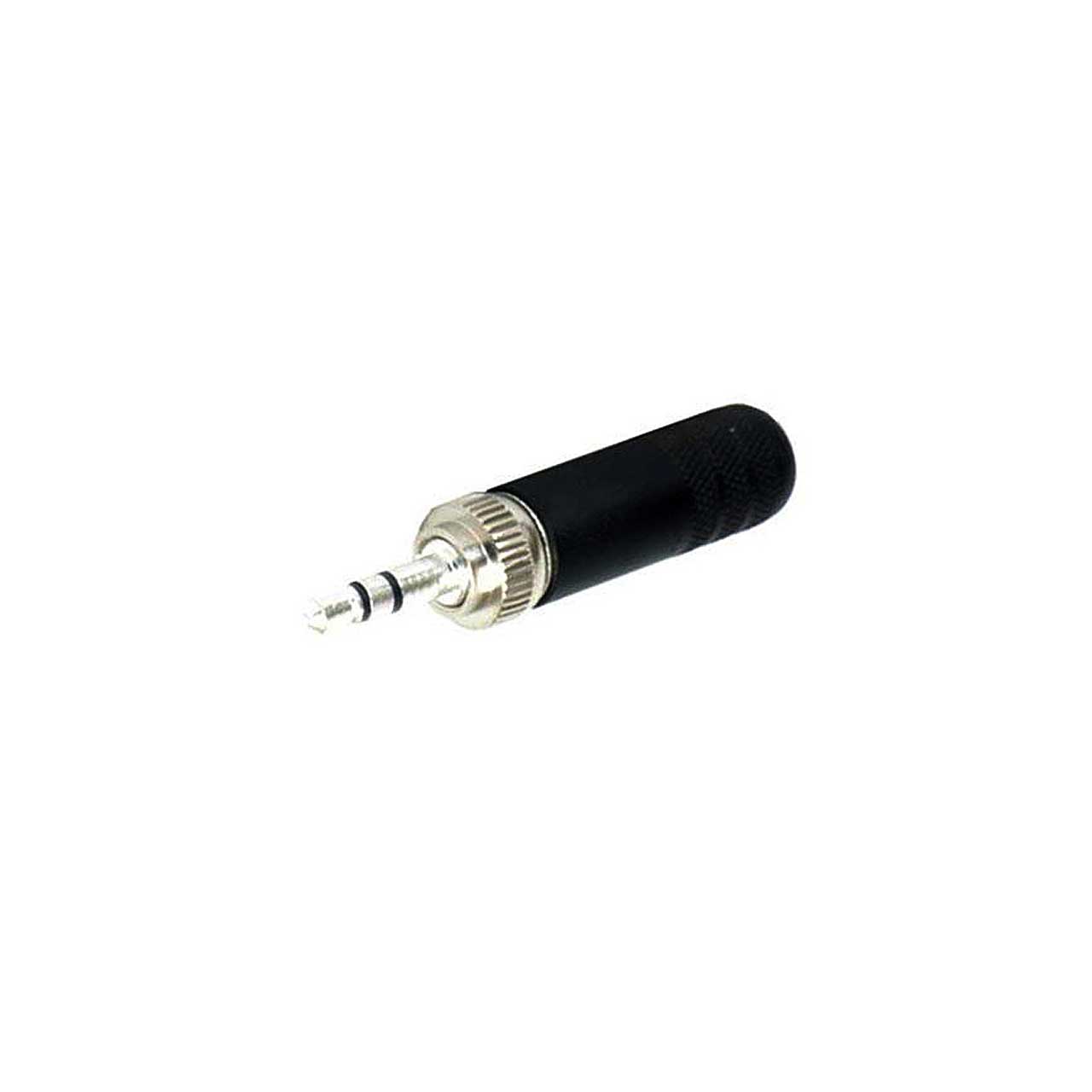

Switchcrafts 35HDLBN is a 3.5MM (1/8" mini) Locking Stereo Plug with black handle, tin plug, and 0.290" cable opening that mates with the 35RAPC series.

Specifications:
- Contact Resistance: 20 MilliOhms Max.
- Dielectric Withstanding Voltage: 250 VAC Min.
- Insulation Resistance @ 500 VDC: 2,000 MegaOhms Min.
- Max. Working Voltage: 250 VAC; 140VDC
- Current Carry @ Working Voltage: 4 Amps
- Insertion/Withdrawal Force: Typical 2.5/2 Lbs.
- Temperature Range: -20°C to 85°C (operating)
- Thermal Shock: MIL-STD-202, Method 107G
- Vibration: MIL-STD-202, Method 201
- Life: 5,000 Cycles
- Cable Size: .290 Dia. Max.
