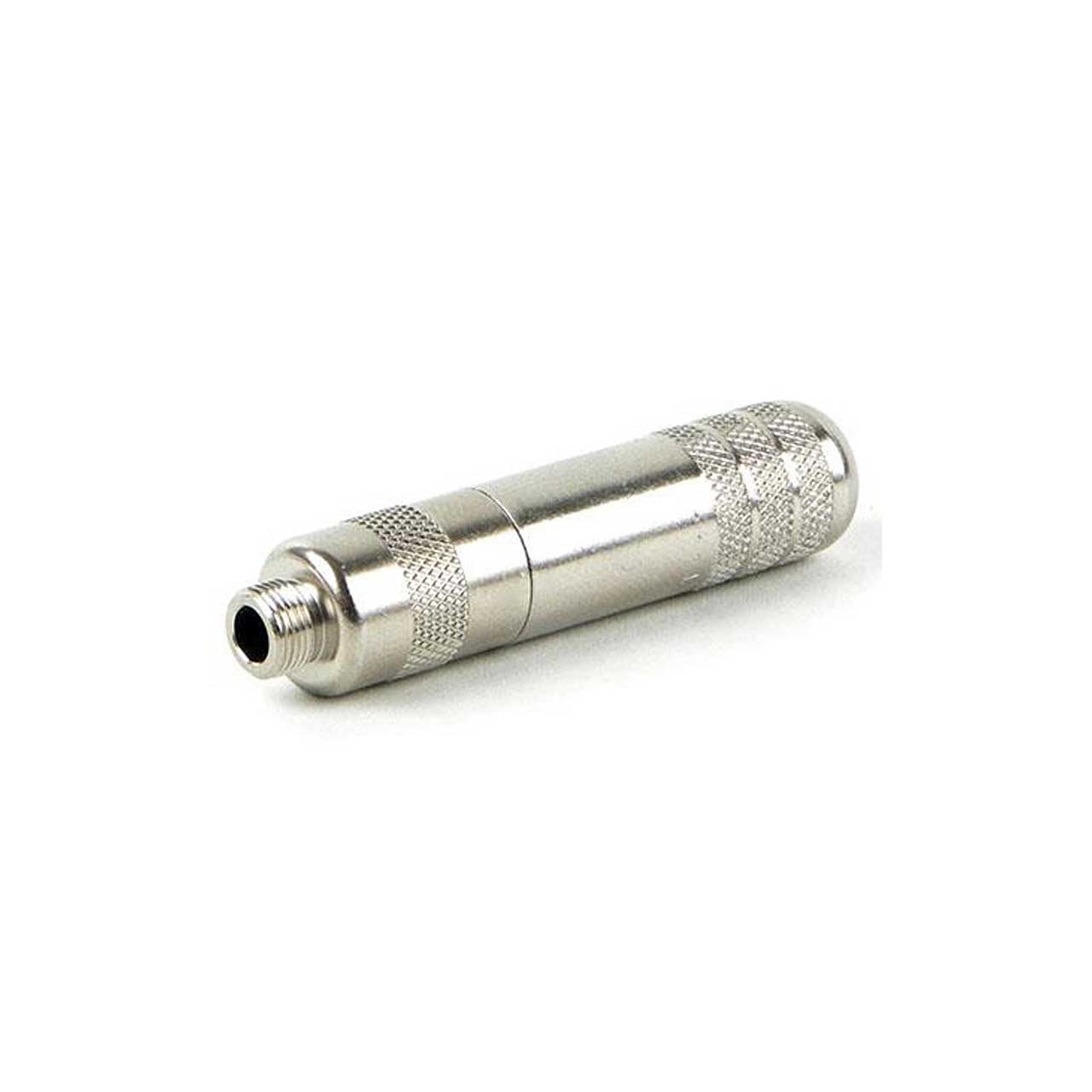

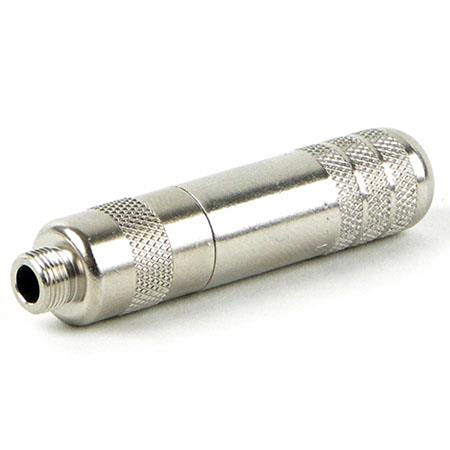

Switchcraft 35LJNS 3.5MM Stereo Cable Mount Extension Jack - Nickel Body / Silver Contacts / .175 in. Opening

35LJNS - Overview

• Features:

  • Solid metal housing.
  • Available with gold or silver contacts.

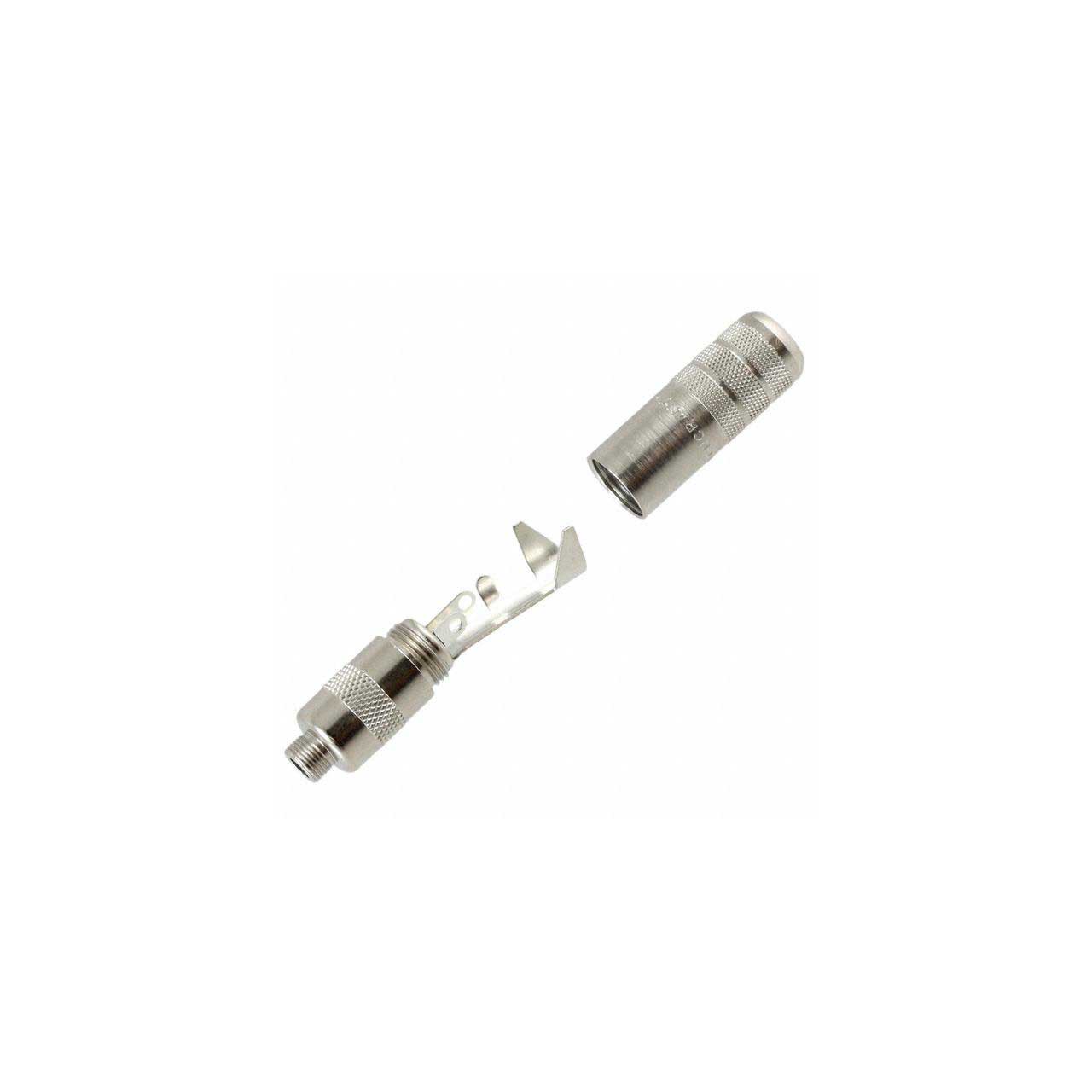

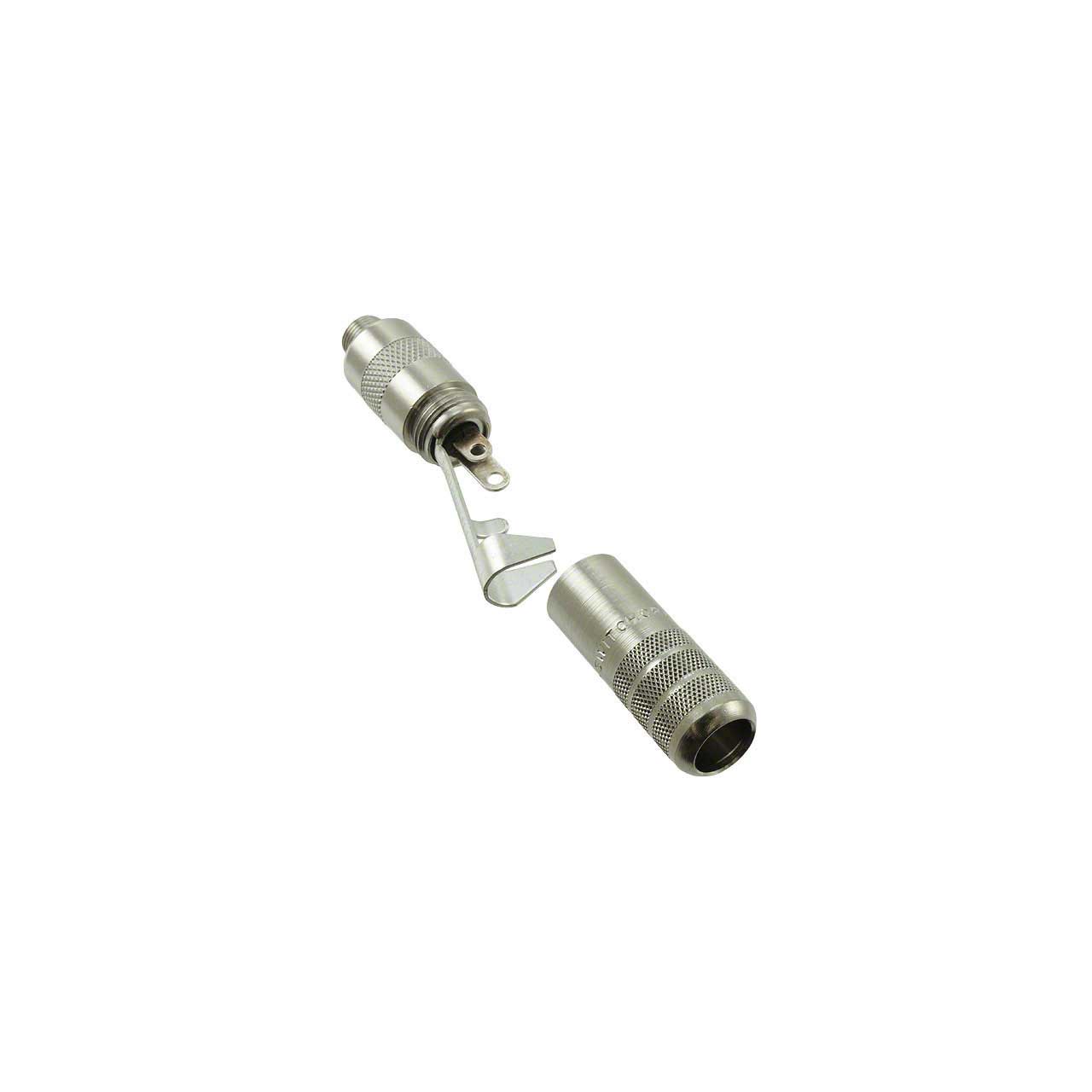

  • Two piece design simplifies termination
  • Rated to 5000 insertion/ withdrawal cycles
  • Mates with 35HD series locking or non-locking plugs


• Specifications:

  • Electrical Specifications
  • Contact Resistance: 0.020 ohms
  • Insulation Resistance : 2000 megohms
  • Dielectric Withstand Voltage: 250VAC
    Mechanical Specifications
  • Insertion Force: 8 lbs MAX
  • Withdrawal Force: 1lbs MIN
  • Life Cycles: 5,000 insertion/ withdrawal cycles
  • Max Soldering Temp/Time: 800°F/10s or 700°F/20s
  • Vibration per MIL-STD-202F Method 201
  • Thermal Shock per MIL-STD-202F Method 107G
    Material Specifications
  • Sleeve: Copper alloy, nickel
  • Handle: Copper alloy, nickel
  • Cable Clamp: C.R.S., tin-plated
  • Solder Terminal: Copper alloy, silver or gold plated
  • Insulator: Thermoplastic, black
