NDI® EFP Production System

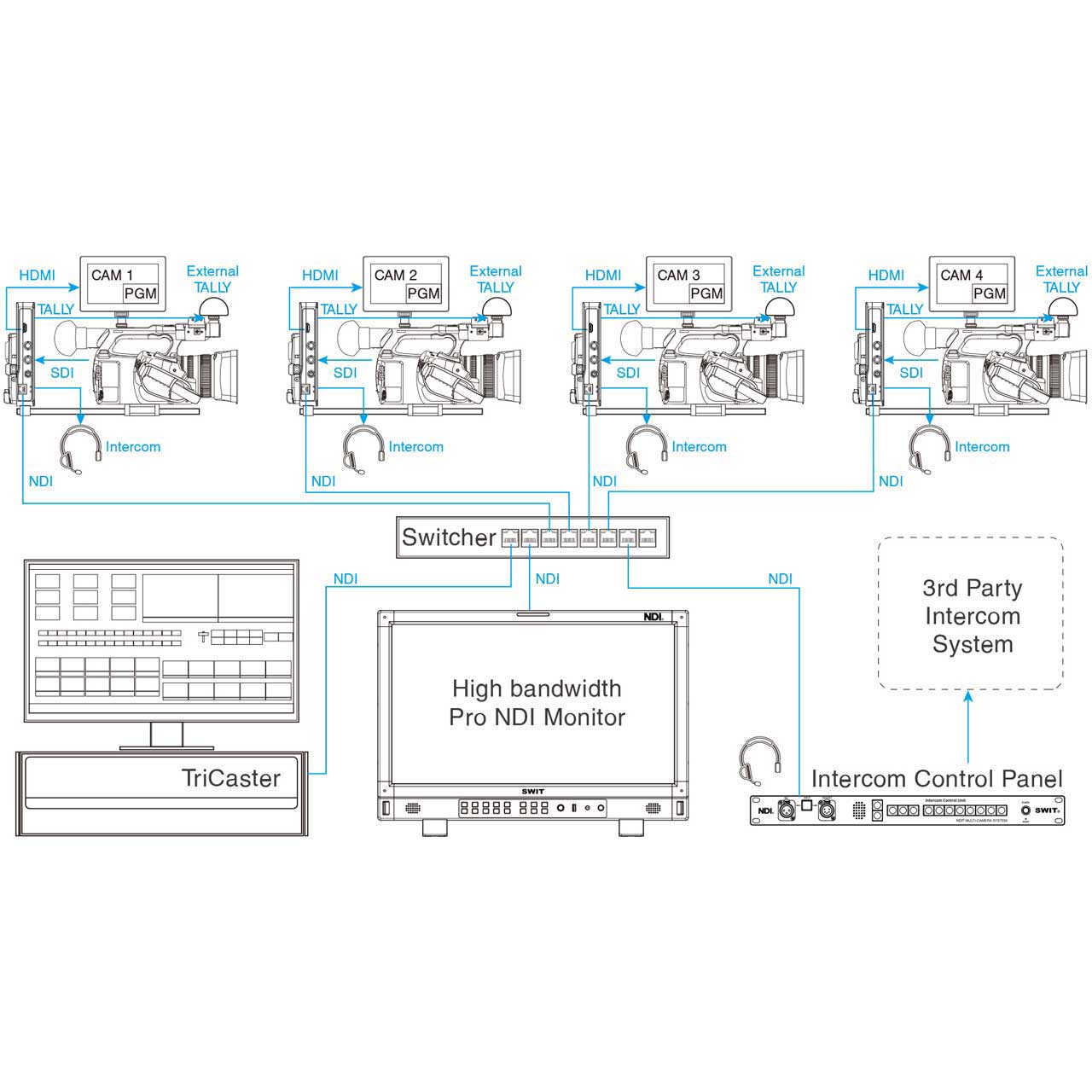

EC-N200 is the camera adaptor of SWIT NDI® EFP Multi-camera Production System. The camera adaptor will encode camera SDI to high bandwidth NDI®, and also decode PGM NDI® source to display as return video. The system has on-board and external TALLY light and support full duplex intercom between cameramen and director.

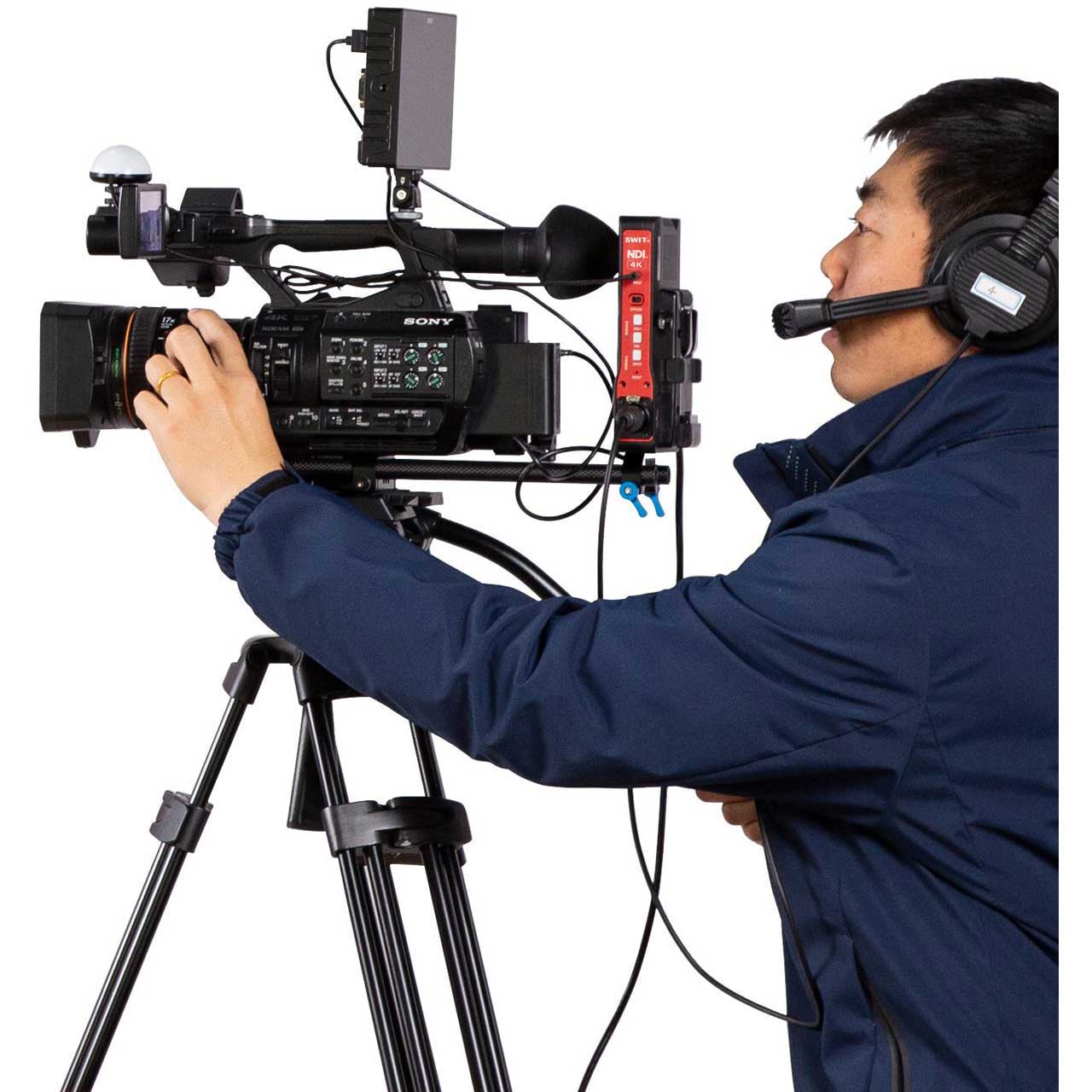

Full Duplex Intercom
The camera adaptor EC-N200 supports 5-pin headset connection, and working together with SWIT ET-N80 Intercom control panel, the system supports full duplex intercom between director and cameramen. You can control intercom volume and initiate the call to director on the camera adaptor.

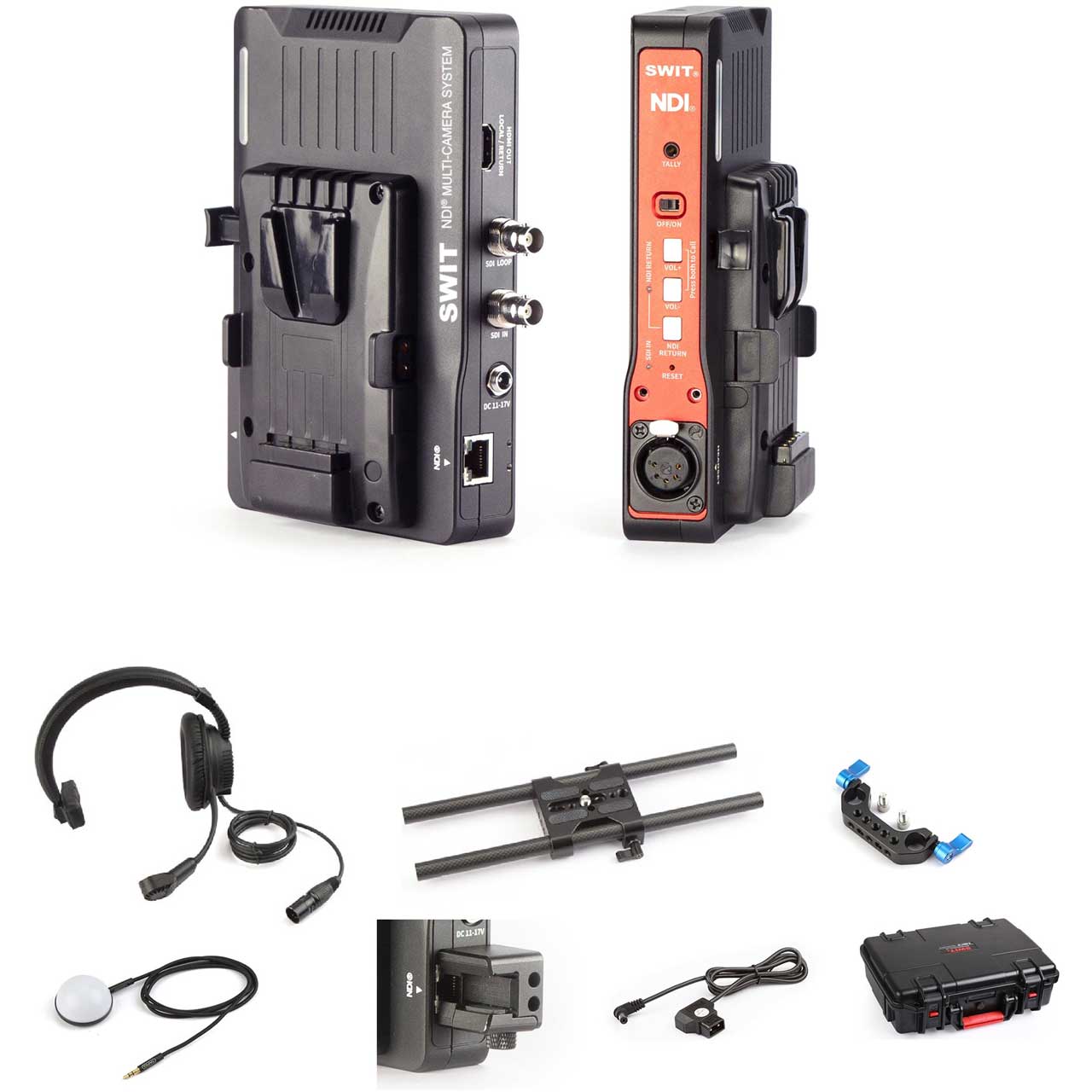

Interfaces
The EC-N200 camera adaptor supports 3G-SDI input and loop out, high bandwidth NDI® connected to the network, and HDMI monitor output for local video and return video.
The camera adaptor provides 5-pin XLR headset connector and 3.5mm jack for external TALLY light, powered by V-mount or Gold mount, or through 5.5mm DC-IN, or powered by PoE.
TALLY Lights
There's an on-board bi-color TALLY light to display Red (PGM); Green (PVW). The package also provides an external TALLY light to install on the front of the camera, for the anchor.
Return NDI® Video Switch
The camera adaptor also decode the PGM NDI® source and output through HDMI. You can use any monitors with HDMI to display local video and return video in Pic-in-Pic mode, or full screen return video mode, by pressing the Return button on the camera adaptor.
RJ45 Cable Clamp
The camera adaptor provides a clamp to fix any standard RJ45 cables, which ensure the reliability of connection during video productions.

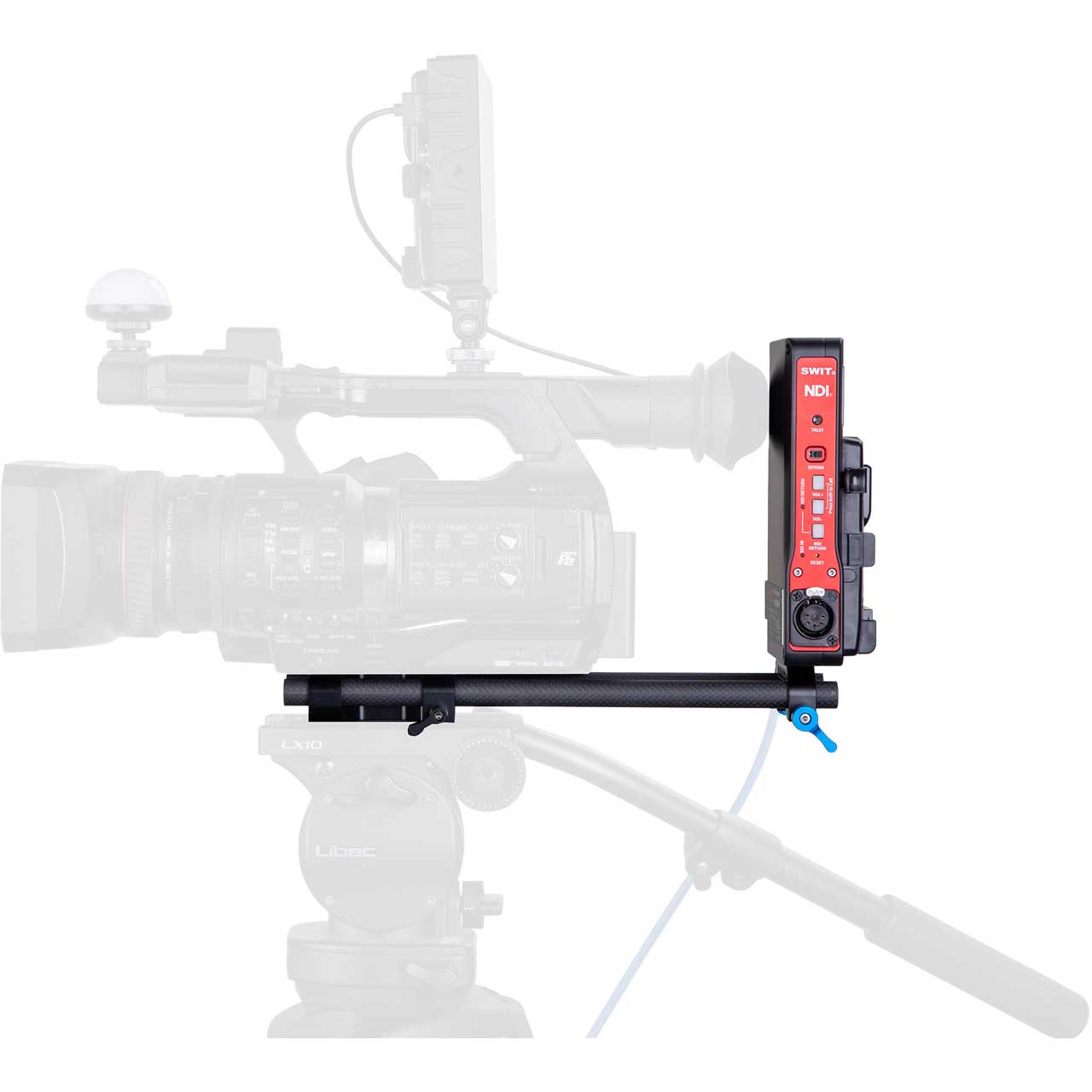

15mm Rod System
The EC-N200 camera adaptor package provides the 15mm Rod system to install between camera and tripod. The Rod system is universally compatible with all kinds of ENG cameras and video tripods, and easy to install.
