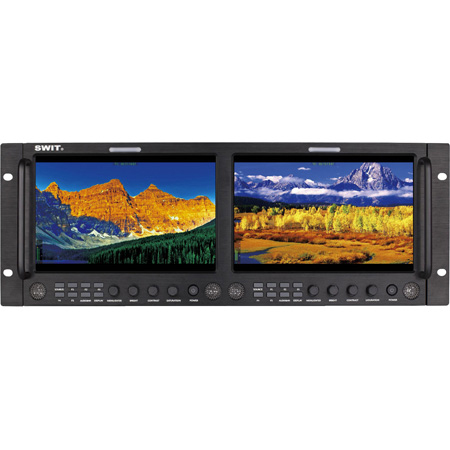

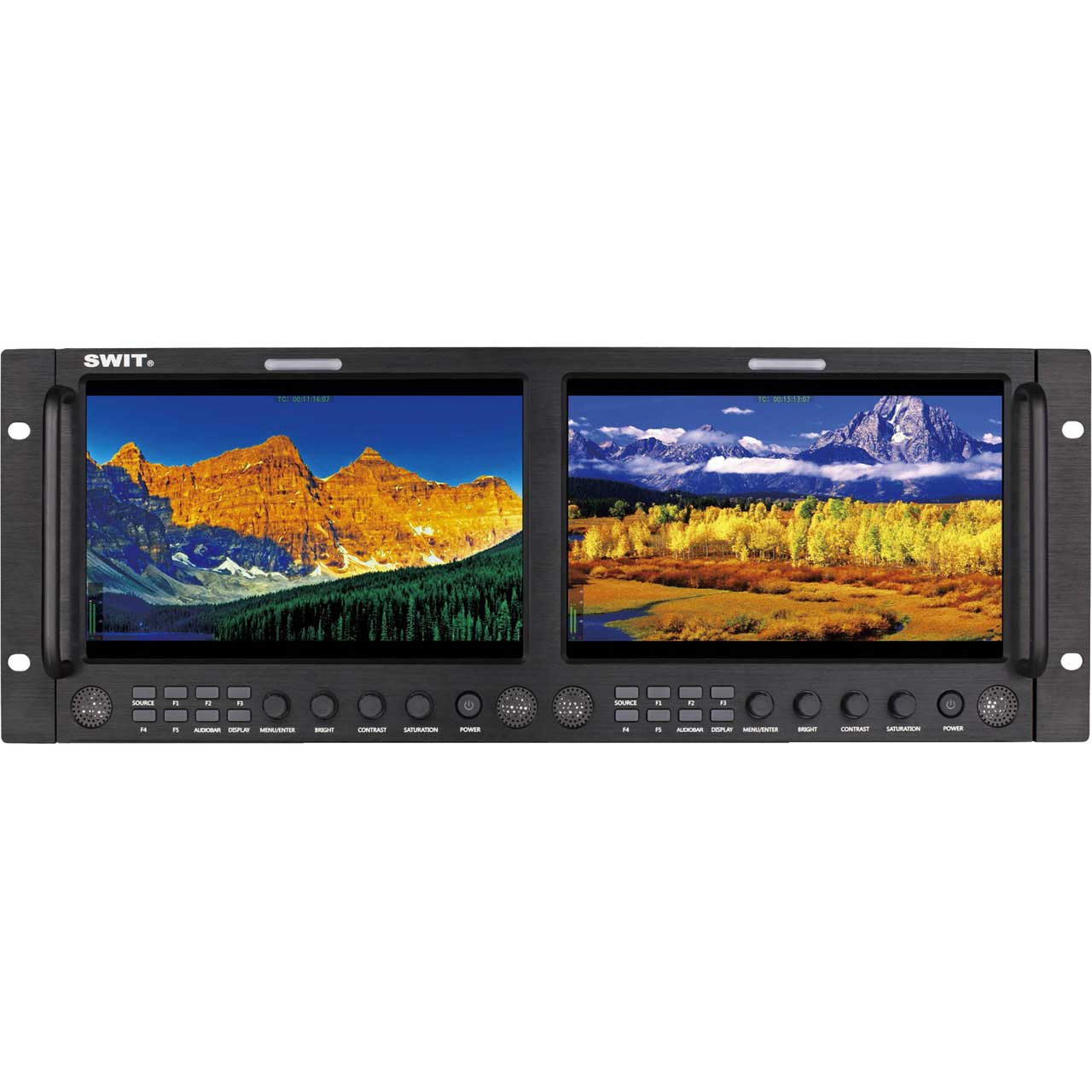

SWIT M-1093H Dual 9-inch FHD Rack LCD Monitor

M-1093H - Overview

• Features:

  • 9-inch IPS LCD Panel x2
  • 1920x1200 resolution, 800:1 contrast
  • 19-inch 4U rack mounting, ±30° rotatable
  • 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

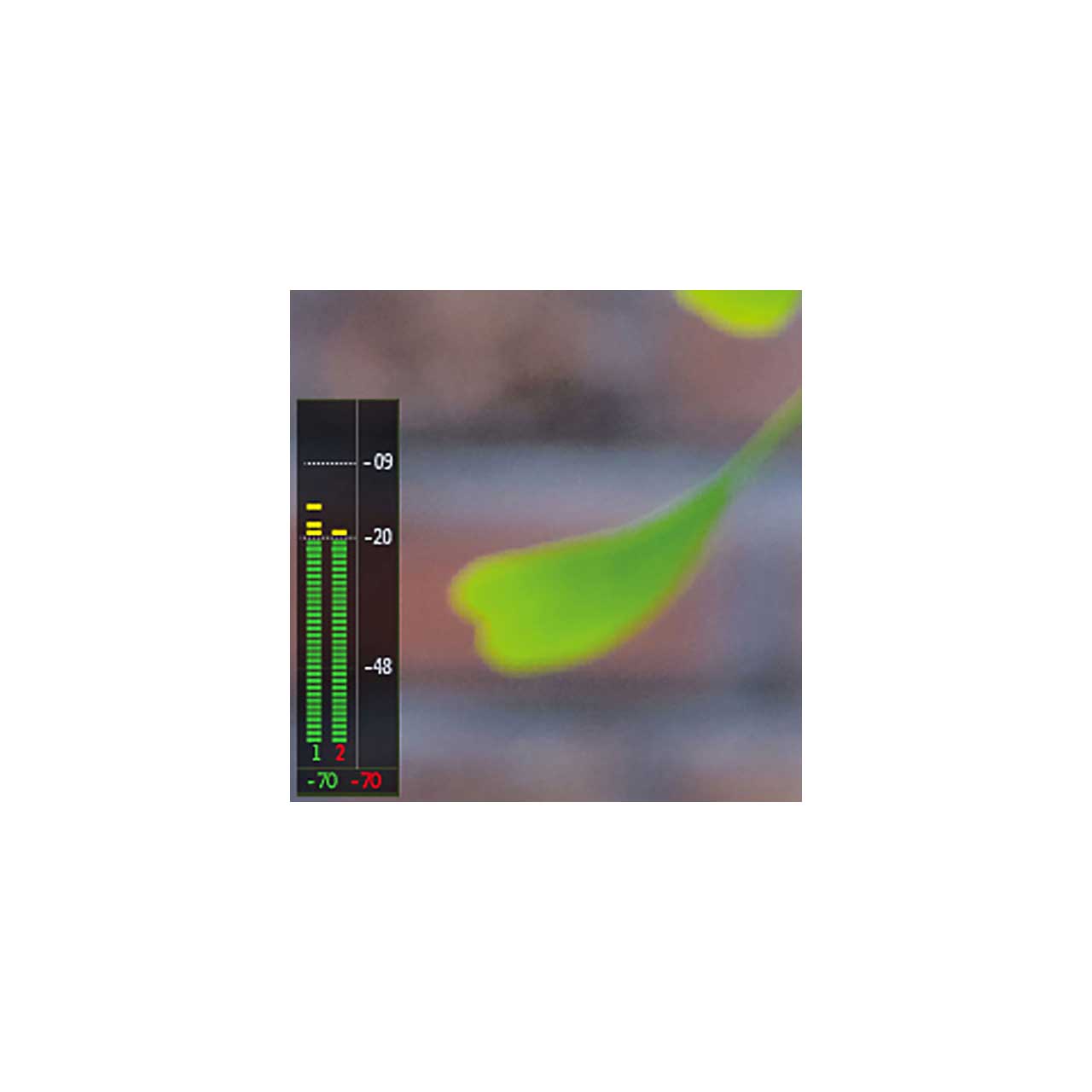

  • 2-ch Embedded audio meters alert
  • AFD, H/V delay, R/G/B/Mono, False color

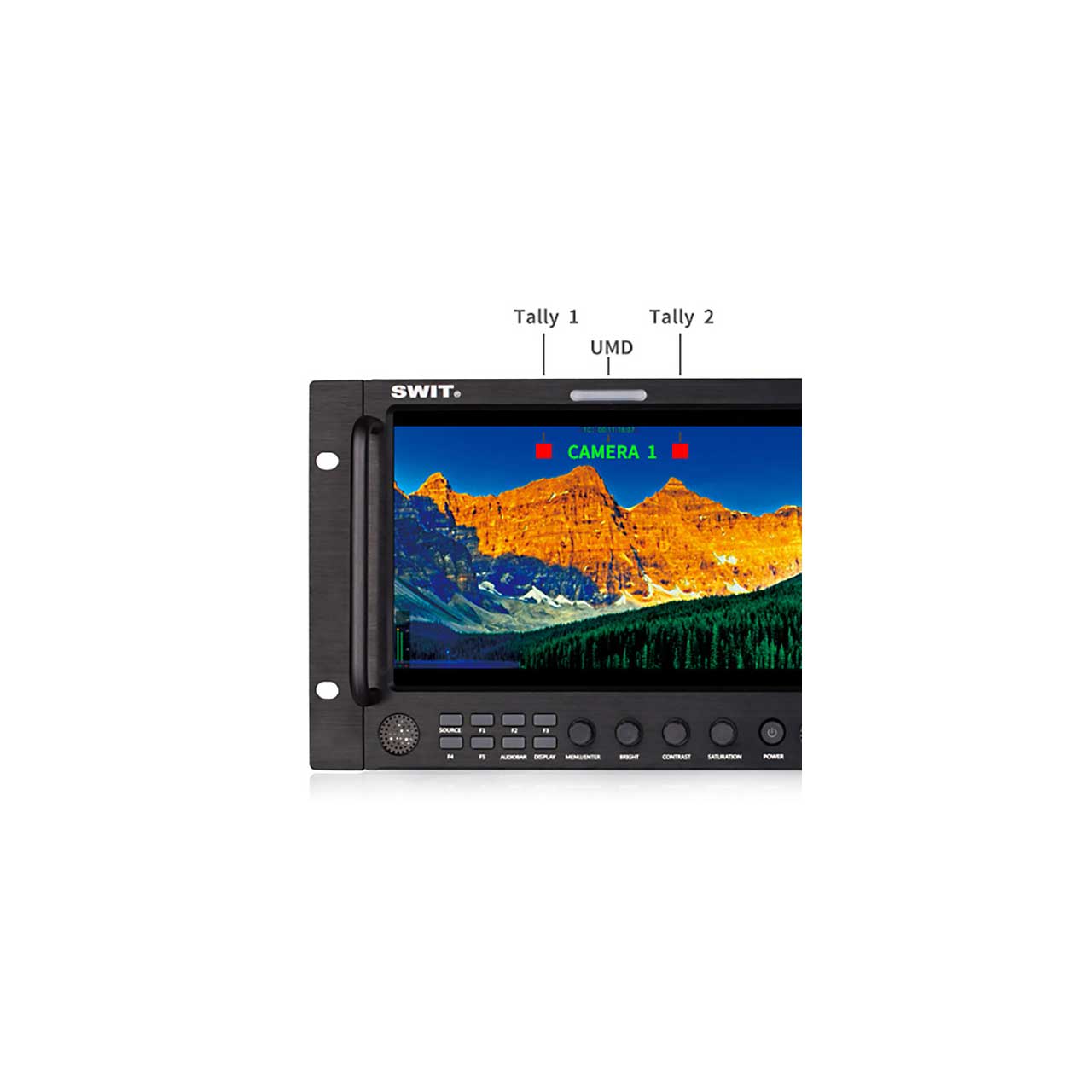

  • TSL UMD and Text-Tally display
  • Zebra stripes, Peaking focus assist
  • SDI timecode display
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • TALLY light and GPI control
  • USB firmware upgrade


• Specifications:

  • LCD Performance
  • Size: 9 inches each
  • Display Area: 191.52mm x 119.70mm
  • Resolution: 1920x1200
  • Aspect Ratio: 16:9 (4:3adjustable)
  • Brightness: 450cd/m2
  • Contrast: 800:1
  • Color: 16.77 million color
  • Viewing Angle:
    - Horizontal: 170°
    - Vertical: 170°

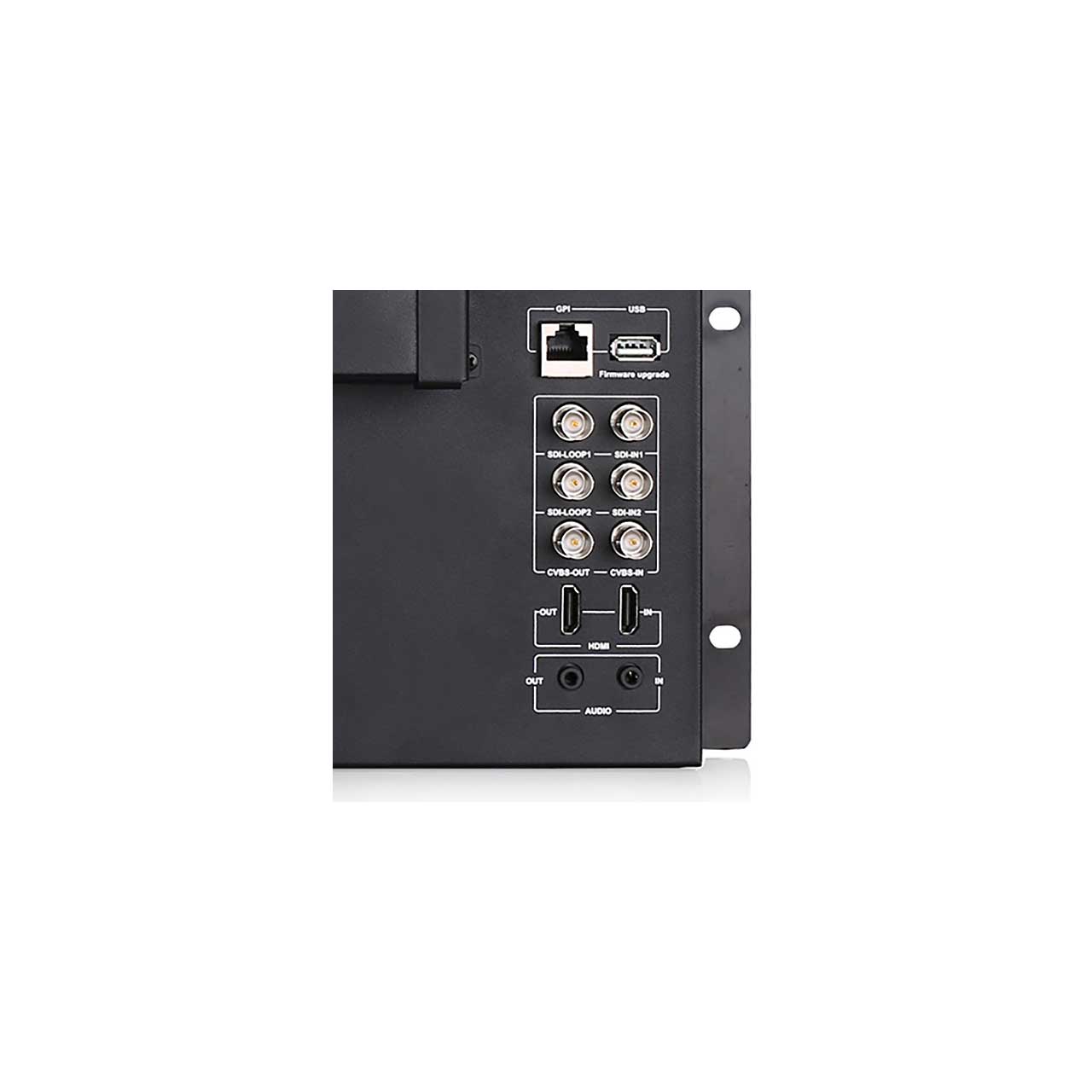

    Input (EACH LCD)
  • 2x BNC: 2K/3G/HD/SD-SDI input
  • 1x BNC: Composite Input
  • 1x HDMI: HDMI input
  • 1x 3.5mm: Analog audio input

    Output (Each LCD)
  • 2x BNC: 2K/3G/HD/SD-SDI loop output
  • 1x BNC: Composite loop output
  • 1x HDMI: HDMI loop output
  • 1x 3.5mm: SDI, HDMI, Analog audio output

    General
  • Power Consumption: ≤36W
  • Working Voltage: DC/Battery: 6.5V - 24V
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: 5°F - 140°F (-15°C - 60°C)
  • Humidity: 10% - 90%
  • Dimensions: 19" x 7" x 4.5"
  • Net Weight: 6.17lbs
