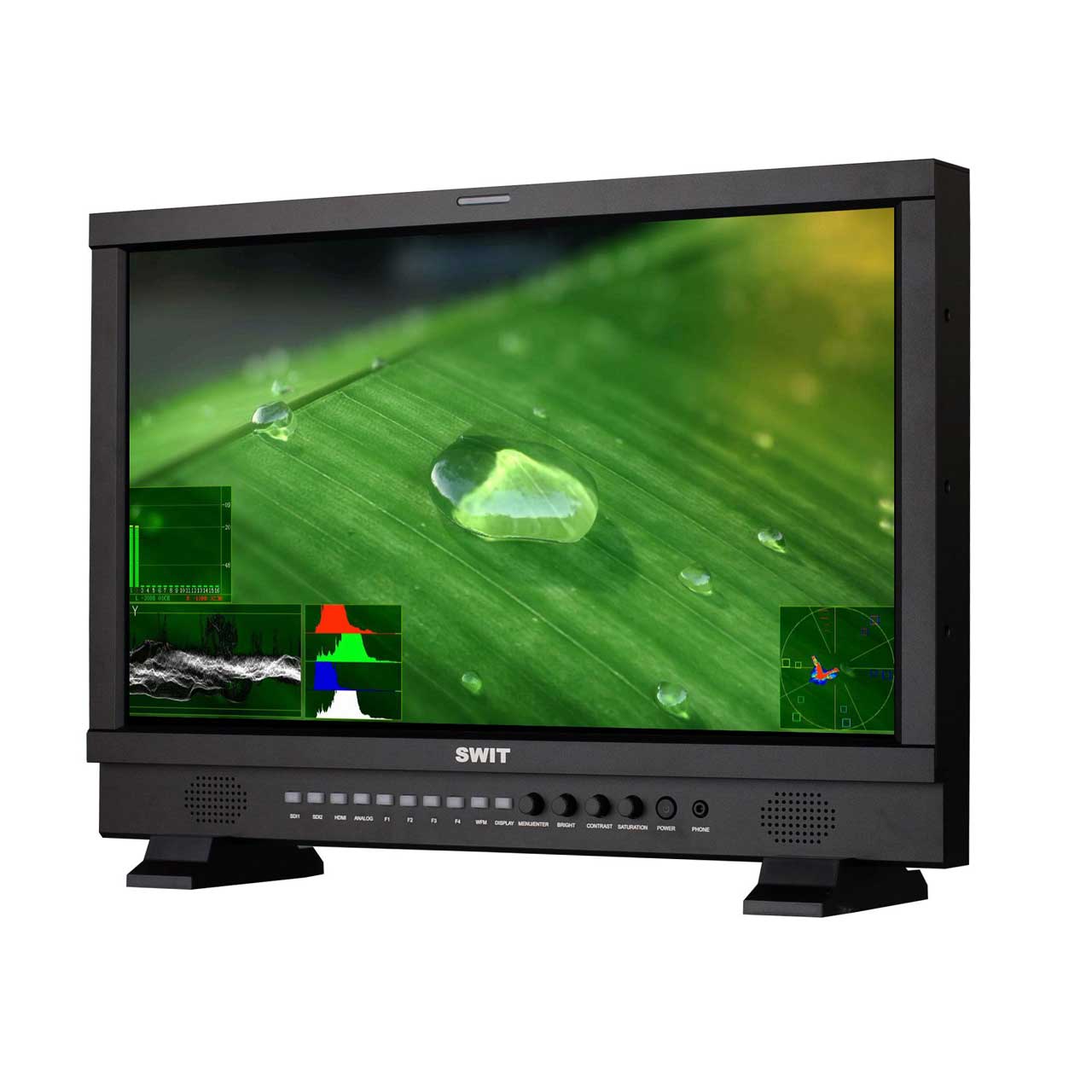

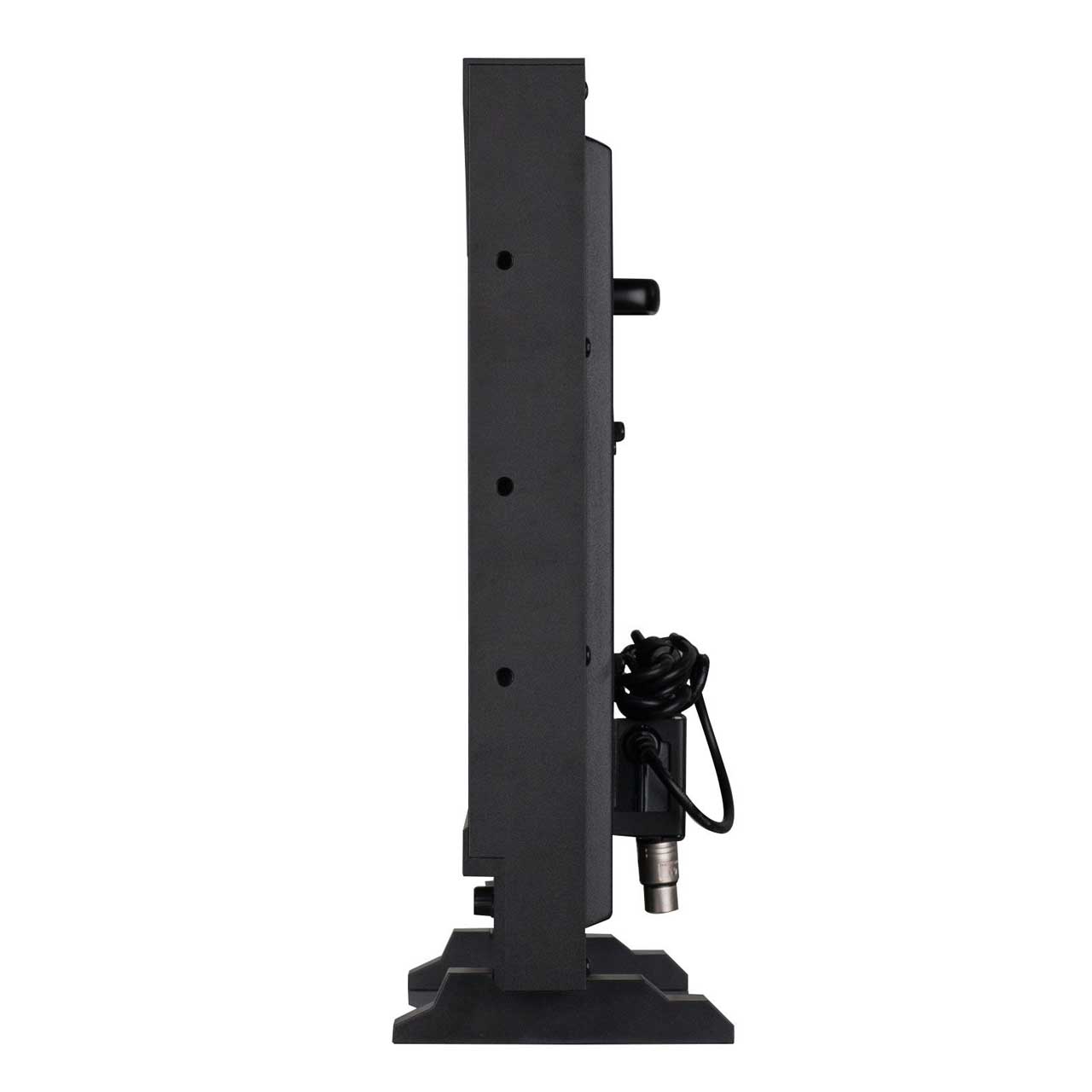

SWIT S-1223FS 21.5-inch 2K/3G/HDSDI&HDMI Waveform Studio Monitor with S-7004S V-mount Battery Plate

S-1223FS - Overview

• Features:

  • 21.5-inch LCD Panel with LED backlight
  • 1920×1080 resolution
  • 2K/3G/HD/SD-SDI, HDMI monitoring
  • Y/Pb/Pr, VGA, CVBS(NTSC?PAL) monitoring
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Peaking focus assist (red/blue switch)
  • Vector scope, histogram R/G/B/Y
  • TSL UMD and text TALLY display
  • AFD, Timecode, H/V delay
  • Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
  • False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar

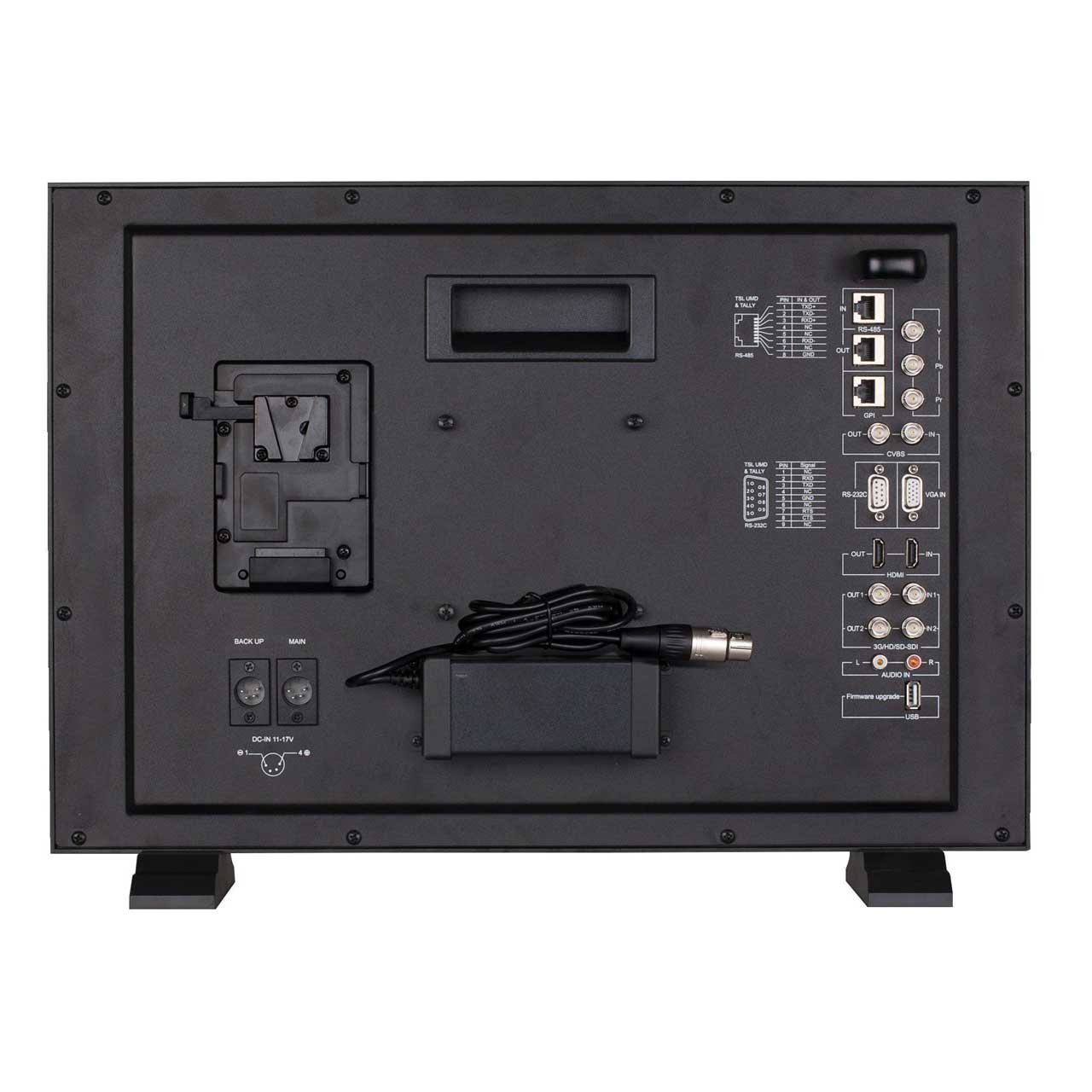

  • 4-pin XLR AC-DC adapter and V-mount battery Plate
  • Standard VESA stand install optional
  • USB firmware upgrade


• Specifications:

  • Input:
  • 2K/3G/HD/SD-SDI input×2
  • HDMI input ×1
  • YUV input ×1
  • VGA input ×1
  • CVBS input ×1
  • RS485 UMD input×1
  • RS232C UMD input ×1
  • RS485 GPI input ×1
  • L/R analog audio input×1
    Output:
  • 2K/3G/HD/SD-SDI loop through output ×2
  • HDMI loop through output x1
  • CVBS loop through output x1
  • RS485 UMD output×1
  • 3.5mm ×1 SDI/HDMI embedded audio output, analog audio output
    LCD panel Size: 23.8-inch
  • Viewing Angle: Horizontal: 178° / Vertical: 178°
  • Resolution: 1920x1080
  • Brightness: 250cd/m²
  • Contrast: 1000:1
  • Aspect Ratio: 16:9 (4:3 adjustable)
  • Working voltage AC: 100V-240V DC: 11V-17V
  • Rated power consumption:≤ 32W
  • Working humidity 10%~90%
  • Working temperature: 0°C~+40°C
  • Storage temperature -15°C~+60°C
  • Storage humidity 10%~90%
  • Dimensions: 20.6x14.1x3.4inch /525×358×87mm
  • Net Weight: 14 Ib / 6.2 KG
    Signal Format
  • CVBS: NTSC?PAL
  • SDI: SMPTE ST 2048-1: 2011 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-425M 1080p (60 / 59.94 / 50)
  • SMPTE-274M 1080i (60 / 59.94 / 50)
  • 1080p (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-296M 720p (60 / 59.94 / 50)
  • SMPTE-125M 480i (59.94)
  • ITU-R BT.656 576i (50)
  • HDMI: 480i/ 576i / 480p / 576p
  • 1080i (60 / 59.94 / 50)
  • 720p (60 / 59.94 / 50)
  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • Y/Pb/Pr: 480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
  • VGA: 640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768
  • 1280×960 / 1280×1024 / 1600×1200


• Item Includes:

  • S-1223F monitor
  • Desktop Stand Feet×2
  • 1x 4-pin XLR AC-DC power adaptor
  • 1x V- mount battery Plate (S-7004S)
  • Optional accessories: A-VS22(Rotatable VESA desk top Stand)


• Warranty:

  • 2 Years


• GTIN:

  6948193501949
